160kW 176kW Weichai Diesel Generator China Soundproof Weather Proof
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Weichai Power Generator | Control System | Smartgen HGM6120N |
|---|---|---|---|
| Cooling System | Water Cooled | Emission Standard | Stage II |
| Frequency | 50 | Fuel | Diesel |
| Fuel Consumption | 42L 100% Loading (L/H) | Noise Level | 70dB(A) |
| Standby Power | 176kW / 220kVA | Speed | 1500 |
| Governor | Electric | Type | Silent Generator |
| Voltage | 220-690V | Warranty | 1-3 Years |
| Highlight | 176kW Weichai Diesel Generator,160kW Weichai Diesel Generator,Soundproof chinese diesel generator |
||
Product Description

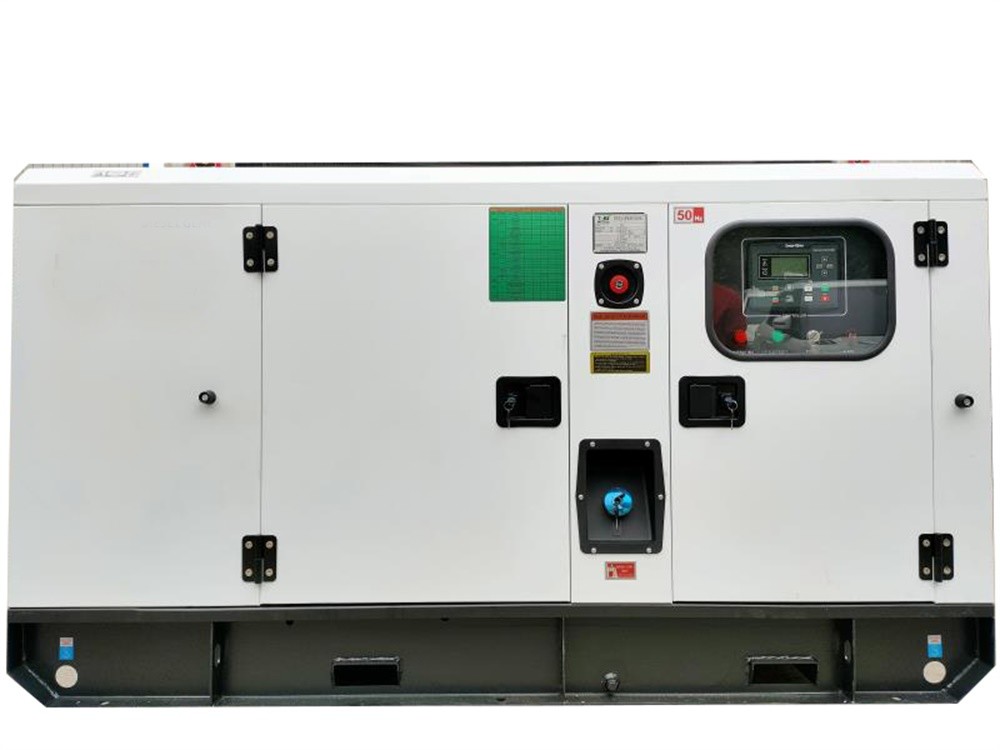

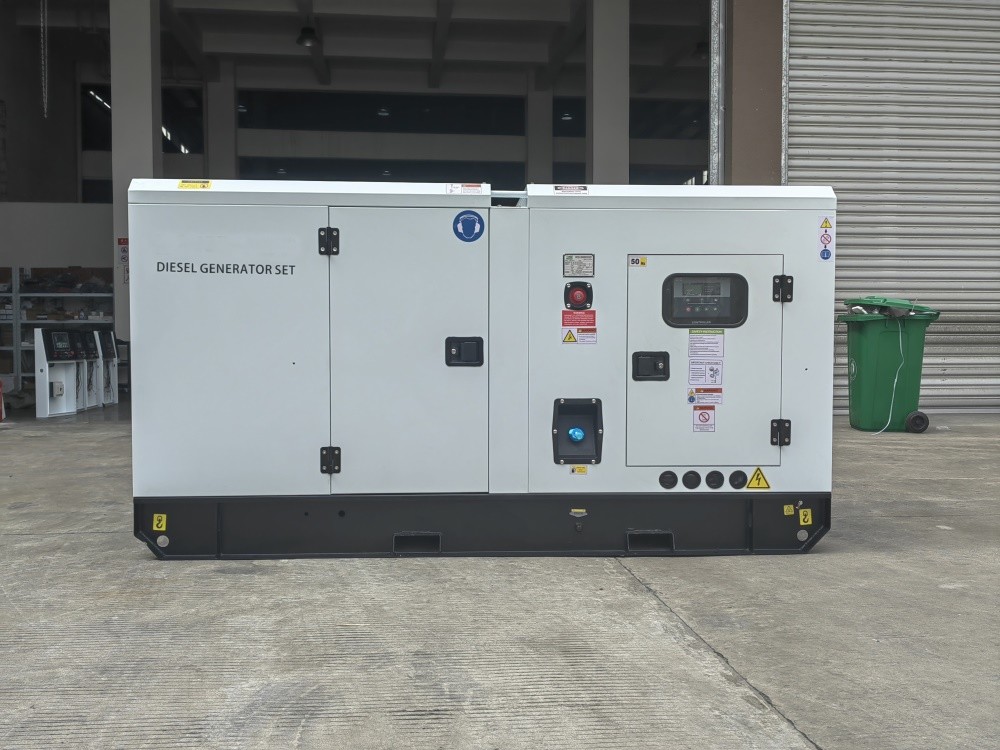

160kW / 176kW China Generator Soundproof & Weather Proof Type Weichai Diesel Engine Genset
Our Advantage - TECGEN Power Generator Set
* Manufacturer from Fujian, China
* Professional produce and inspect team more than 10 years experience
* 100% test on idle load,fully load and 10% overload of generator before shipment
* ISO9001 quality control system and CE certification.
* 1.5 year guarantee
* OEM Customerization supported
TECHNICAL DATA:
| Technical Specification: | ||
| Generator Set Specification | ||
| Genset Model | TG220WC | TG220WCS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 288.7A | |
| Prime Power | 160kW / 200kVA | |
| Standby Power | 176kW / 220kVA | |
| Engine Model | WP10D200E200 | |
| Alternator Model | TGI274S160 | |
| Controller | HGM6120N | |
| Weight & Dimensions | ||
| Length (mm) | 2550 | 3100 |
| Width (mm) | 1050 | 1250 |
| Height (mm) | 1550 | 1700 |
| Weight (kgs) | 1600 | 2260 |
| Engine Specification | ||
| Brand | Weichai | |
| Engine Model | WP10D200E200 | |
| Prime/Standby power (kW) | 182 / 200 | |
| Injection | Indirect | |
| Aspiration | Turbocharged and Intercooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 126 x 130 | |
| Displacement (L) | 9.726 | |
| Cooling | water | |
| Compression Ratio | 17.3:1 | |
| Engine Oil capacity (L) | 10 | |
| Coolant Capacity ( In radiator) | 10 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 42 | |
| 75% Load (L/h) | 34 | |
| 50% Load (L/h) | 25 | |
| 25% Load (L/h) | 17 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI274S160 | |
| Rate Output (kVA) | 200 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Smartgen | |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
WEICHAI Engine System
- Heavy-duty Famous Weichai diesel engine
- Four-stroke and water-cooled
- 12V and 24V starters and charging alternators
- Cooling radiator and fan
- Maintenance-free battery with rectifier and cable
- Flexible fuel connection hoses and manual oil sump drain valve
- Exhaust silencer
- Mechanical or electronic governors
- Fuel injection pump
- Electric motor starting system
- Forged steel crankshaft, cast iron cylinder and replaceable wet cylinder liner
- Low exhaust emissions and low fuel consumption
- Easy to install and maintain
Alternator system
- Brushless design and single bearing structure
- Flexible disc for easy installation
- Insulation class: H
- Protection class: IP23
- Self-excitation and self-regulation capabilities
Canopy
- All canopies are designed based on modular principles
- All metal canopy parts are painted with electrostatic polyester paint
- Soundproof design ensures noise levels are kept to a minimum
- Easy to lift and move
- Convenient to maintain and operate
- Base Frame
- Base frame includes fork lift and crane positions
- Integral fuel tank included
- Daily fuel tank able to provide continuous operation for 8-24 hours
- Fuel tank easy to maintain and clean
- Anti-vibration pads are used between the engine and alternator
Control system
- Controller brand: Deepsea, ComAp, Smartgen, DATAKOM, MEBAY
- Control panel with English interface, LED screen and touch buttons for easy operation and monitoring.
- Control, monitor, and protect the generator set including:
- High water temperature alarm
- Low oil pressure alarm
- Over-speed and under-speed alarm
- Over current alarm
- Under/over generator voltage alarm
- Start and stop failure alarm
- Low and high battery voltage alarm
- Charge failure alarm
- Emergency stop function
^ Warranty
Warranty period is 1500 hours or 18 months from shipment (whichever comes first).
Improper operation and maintenance will not be covered by the warranty.
