150kW Marine Diesel Generator Powered by Weichai Marine Engine with Leory Somer Alternator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Conditions Of Use | Marine | Production | Marine Diesel Generator |
|---|---|---|---|
| Prime Output | 150kW / 188kVA | Standby Output | 165kW / 206kVA |
| Frequency | 60Hz | Voltage | 220V |
| Engine Model | Weichai WP10D200E201 | Power Range | 25kW - 2450kW |
Product Description

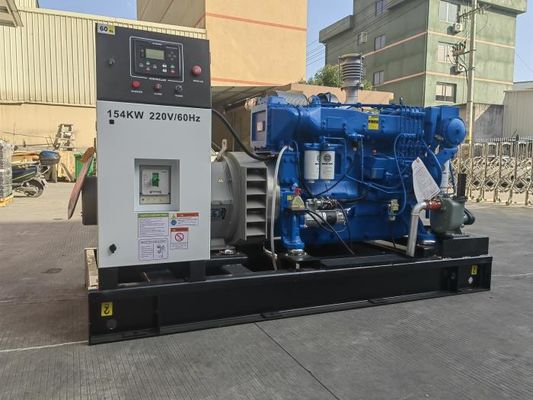

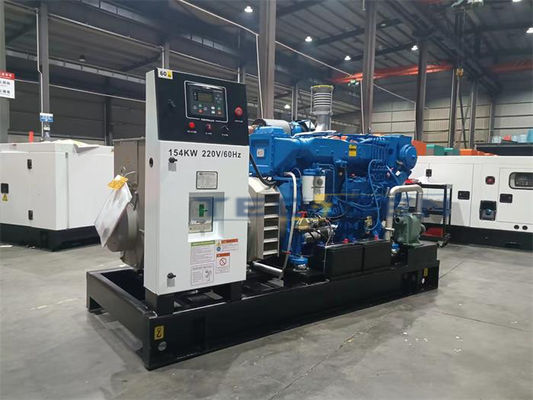

150kW Marine Diesel Generator Powered by Weichai Marine Engine with Leory Somer Alternator
Weichai Marine diesel generators offer a range of power ratings to cater to different vessel requirements. The available power ratings may vary depending on the specific model and series of the generator. However, as a general guideline, Weichai Marine diesel generators can be found with power outputs ranging from a few kilowatts (kW) to several megawatts (MW). Here's an overview of the typical power ratings available:
- Small Range: Weichai Marine offers small-range marine diesel generators with power outputs starting from around 20 kW and going up to approximately 150 kW. These generators are suitable for smaller vessels, yachts, and recreational boats that require relatively lower power levels.
- Medium Range: The medium-range Weichai Marine generators typically have power ratings ranging from approximately 150 kW to 500 kW. These generators are commonly used in a variety of vessels, including small to medium-sized commercial ships, fishing vessels, and offshore support vessels.
- Large Range: Weichai Marine also provides larger marine diesel generators designed for applications that require higher power outputs. These generators can have power ratings ranging from around 500 kW to several megawatts (MW). They are suitable for larger vessels, such as bulk carriers, tankers, container ships, and offshore platforms.
It's important to note that the specific power ratings and available models may vary over time as Weichai Marine continues to innovate and introduce new generator series. When considering a Weichai Marine diesel generator, it's recommended to consult with the manufacturer or authorized dealers to get the most up-to-date information on the available power ratings and models that best suit your specific marine application.
150kW WEICHAI MARINE DIESEL GENERATOR TECHNICAL DATA:
| Technical Specification: | ||
| Marine Diesel Generator Set Specification | ||
| Genset Model | TG206WCSD6 | TG206WCSD6 |
| Open | Silent | |
| Frequency | 60Hz | |
| Voltage | 220/120V | |
| Phase | 3 | |
| Rate Current | 493.4A | |
| Prime Power | 150kW / 188kVA | |
| Standby Power | 165kW / 206kVA | |
| Engine Model | Weichai WP10D200E201 | |
| Alternator Model | TAL-A44-K | |
| Controller | ComAp AMF20 | |
| Fuel Tank Type | Integrated-fuel-tank | |
| Weight & Dimensions | ||
| Length (mm) | 2440 | 3200 |
| width (mm) | 980 | 1100 |
| Height (mm) | 1500 | 1630 |
| Weight (kgs) | 1700 | 2400 |
| Engine Specification | ||
| Brand | Weichai | |
| Engine Model | WP10D200E201 | |
| Prime / Standby power | 182kW / 200kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged & Intercooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 126 x 130 | |
| Displacement (L) | 9.726 | |
| Cooling | water | |
| Compression Ratio | 18:1 | |
| Engine Oil capacity (L) | 17 | |
| Coolant Capacity ( In radiator) | 17 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 60Hz | |
| 100% Load (L/h) | 41.1 | |
| 75% Load (L/h) | 30.8 | |
| 50% Load (L/h) | 20.5 | |
| 25% Load (L/h) | 10.3 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI274S150 | |
| Rate Output | 163kW | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Double | |
| Controller System | ||
| Brand | ComAp | |
| Model | AMF20 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Weichai Group is a leading Chinese manufacturer of marine diesel generators. Weichai Marine is a division of Weichai Group that specializes in the design, production, and supply of marine diesel generators for various maritime applications. Weichai Marine generators are known for their reliable performance, durability, and compliance with international standards.
Key features and Characteristics of Weichai Marine diesel generators:
- Wide Range of Power Outputs: Weichai Marine offers a wide range of power outputs to meet different vessel requirements. They provide marine diesel generators with power ratings ranging from a few kilowatts to several megawatts, catering to various types and sizes of vessels.
- High Efficiency and Fuel Economy: Weichai Marine diesel generators are designed to deliver high efficiency and fuel economy, helping to reduce operational costs and environmental impact. They incorporate advanced fuel injection technology, turbocharging, and optimized combustion systems to achieve efficient power generation.
- Reliability and Durability: Weichai Marine generators are built to withstand the harsh marine environment and demanding operating conditions. They feature robust construction, durable components, and advanced cooling systems to ensure reliable performance, even in challenging maritime settings.
- Environmental Compliance: Weichai Marine diesel generators are designed to meet stringent environmental regulations and emission standards. They employ technologies such as common rail fuel injection, advanced exhaust gas treatment systems, and efficient combustion to minimize emissions and comply with international emission regulations.
- Intelligent Control and Monitoring: Weichai Marine generators are equipped with intelligent control and monitoring systems. These systems provide real-time data on generator performance, fuel consumption, and operating parameters, allowing for efficient operation and proactive maintenance.
- Service and Support: Weichai Marine provides comprehensive service and support for their generators. They have a network of service centers and trained technicians to assist with installation, commissioning, routine maintenance, and troubleshooting. They also offer spare parts availability to ensure ongoing reliability and longevity of their generators.
Weichai Marine diesel generators are widely used in various marine applications, including commercial shipping, offshore operations, fishing vessels, pleasure boats, and more. They are trusted for their performance, efficiency, and adherence to international standards, making them a popular choice for marine power generation needs.
