22kW Diesel Power Generators For Industrial Back-Up Power 28kVA / 30kVA Output
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 22kW diesel power generators,28kVA diesel power generators,30kVA diesel power generators |
||
|---|---|---|---|
Product Description

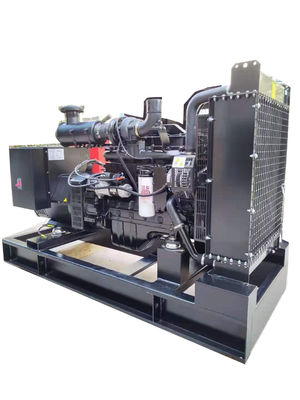

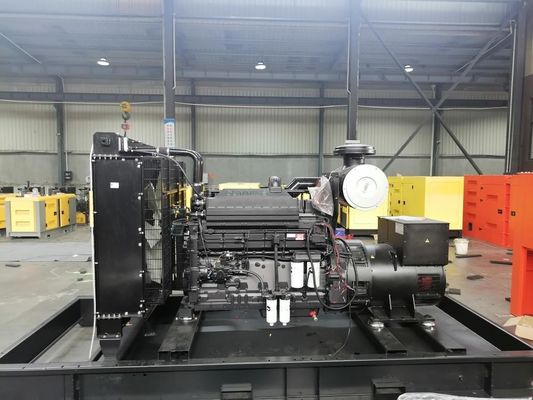

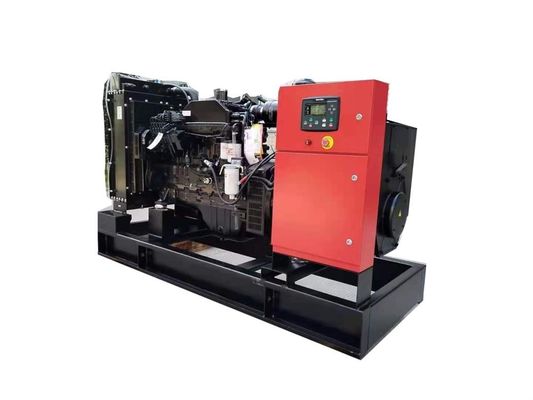

22kW Diesel Power Generators For Industrial Back-up Power 28kVA / 30kVA Output
Diesel Generator Set / Silent Diesel Generator Set / Soundproof Diesel Generator Set / Trailer Diesel Generator Set / Container Diesel Generator Set
Safety - Stability - Economy - Reliability Power
Our gensets comply with all major standards, including: GB/T2820, ISO8528, IEC34, CE standards
Prime output power: 20kVA – 1570kVA (16kW - 1260kW)
Rated voltage: 120/208V, 128/220V,120V/240V, 220/380V, 230V/400V,240V/415VV, 254V/440V etc.
Phase/connection: 3 Phase, 4 wire Or 3 Phase, 12 Wire for 60Hz
Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm
Alternator excited type: Brushless, self excited or PMG
Insulation class: Class H
Protection: IP21~IP23
Voltage regulation: AVR automatic control
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤ 90%
22kW / 24kW Cummins Industrial Generators Specifications:
| Technical Specification: | ||
| Generator Set Specification | ||
| Genset Model | TG30C | TG30CS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 40.5A | |
| Rate Power | 22kW / 28kVA | |
| Standby Power | 24kW / 30kVA | |
| Engine Model | 4B3.9-G2 | |
| Alternator Model | TGI184S22 | |
| Controller | DSE7320 | |
| Weight & Dimensions | ||
| Length (mm) | 1700 | 2300 |
| width (mm) | 840 | 980 |
| Height (mm) | 1360 | 1460 |
| Weight (kgs) | 800 | 1160 |
| Engine Specification | ||
| Brand | Cummins | |
| Engine Model | 4B3.9-G2 | |
| Prime/Standby power (kW) | 24 / 27 | |
| Injection | Indirect | |
| Aspiration | Naturally Aspirated | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 102 x 120 | |
| Displacement (L) | 3.9 | |
| Cooling | water | |
| Compression Ratio | 17.3:1 | |
| Engine Oil capacity (L) | 8.3 | |
| Coolant Capacity ( In radiator) | 8.3 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 6.7 | |
| 75% Load (L/h) | 5.2 | |
| 50% Load (L/h) | 4.0 | |
| 25% Load (L/h) | 2.7 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI184S22 | |
| Rate Output | 28kVA | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Deepsea | |
| Model | DSE6020 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Advanced Generator Specifications
1. Versatile Power Range: Our generators offer a rated power from 20 kVA to a robust 1570 kVA prime, catering to a wide range of power needs.
2. Frequency Options: You can choose between 50Hz and 60Hz to match the specific requirements of your applications.
3. Precision Speed Control: Our generators operate at 1500/1800 RPM, ensuring precise power output.
4. Flexible Phase Configurations: Whether you need 3-phase or single-phase power, our generators can accommodate your needs.
5. Voltage Customization: We provide voltage options ranging from 110 V to 460 V, ensuring compatibility with various electrical systems.
6. Extended Operation: A generously-sized fuel tank ensures 8 hours of continuous operation or more, perfect for long-lasting power supply.
7. Quiet Operation: Our generators maintain a noise level below 68 dB at 7 meters, minimizing disruption in noise-sensitive environments.
8. Extreme Environment Compatibility: Operating seamlessly between -5ºC and +50ºC, our generators handle a broad range of environmental conditions.
9. Efficient Cooling: Featuring a 50ºC environmental protection water tank, our generators ensure consistent cooling even in demanding situations.
10. Robust Diesel Engine: Our generators are powered by reliable four-stroke, water-cooled diesel engines, offering longevity and performance.
11. Top-Notch Alternators: We use brushless alternators from reputable brands like Stamford Leroy Somer, Mecc Alte and Copy Stamford alternator, ensuring exceptional power output.
12. Advanced Control Options: Your generator is equipped with controllers from leading brands such as Deepsea, ComAp, Smartgen, or DATAKOM, offering precise control and monitoring.
13. Quick Delivery: Our standard delivery time is just 15 days, ensuring you get your power solution promptly.
14. Convenient Starting: Start your generator manually or opt for electric start with adjustable settings, providing flexibility in operation.
15. Secure Packaging: Generators are carefully wrapped in plastic shrink wrap film to ensure they reach you in top condition.
16. Customized Export Options: We export via Fuzhou Port or your preferred port, offering flexibility in shipping.
FAQ
Q1: Exceptional Warranty Period
A: Yes, we stand by our products with an extended 18-month warranty, giving you peace of mind and confidence in your investment.
Q2: Custom Branding
A: Absolutely! You can make our diesel generator sets your own by having your logo printed on them. Inform us of your branding preferences before production, and we'll work with you to bring your vision to life.
Q3: Streamlined Ordering Process
A: Ordering is simple. Start by sharing your requirements or applications. We'll tailor a solution to meet your specific needs. Once you confirm the order details and arrange the deposit payment, we initiate production. Your power solution is just a few steps away.
Q4: Efficient Shipping
A: We typically ship via sea freight, ensuring cost-effectiveness. Delivery times vary based on distance, but we prioritize efficiency.
Q5: Exceptional Technical Support
A: During the guarantee period, if any non-human-related faults occur, we promptly send you the necessary replacement parts. Alternatively, you can choose to order parts alongside your generator sets. Plus, our dedicated technical support team is available online around the clock. For more complex issues, we can dispatch professional technical experts to your location to guide you through the resolution process.
