Electric 15kva Perkins Generator With Origin Stamford Brushless Alternator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Electric 15kva perkins generator,220V 15kva perkins generator,380v perkins 15 kva diesel generator |
||
|---|---|---|---|
Product Description

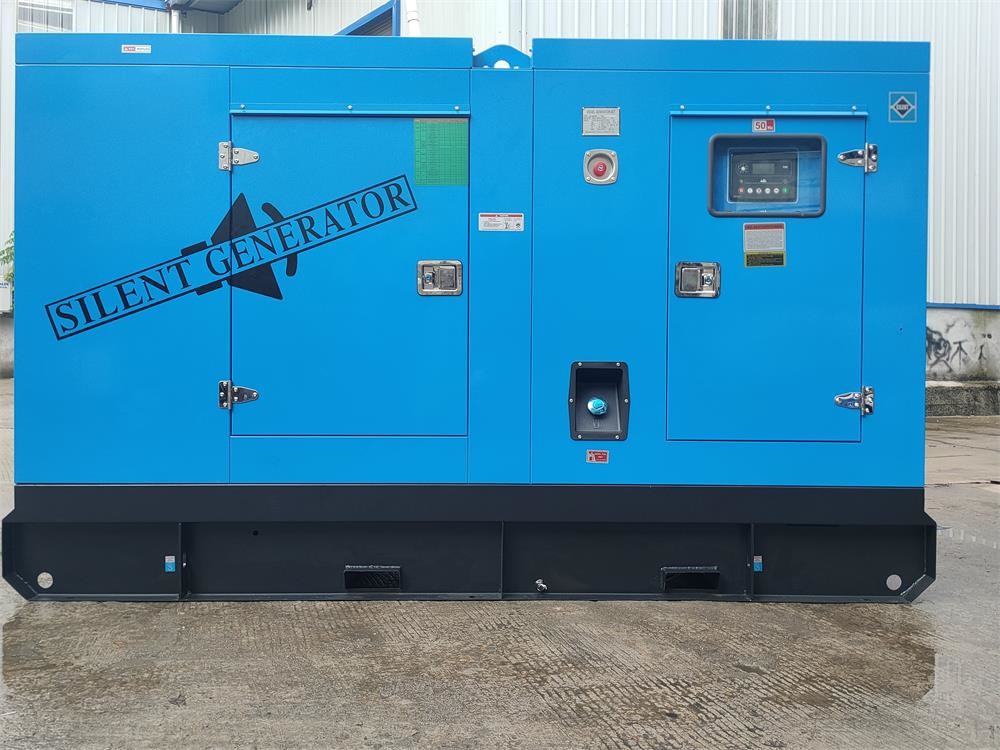

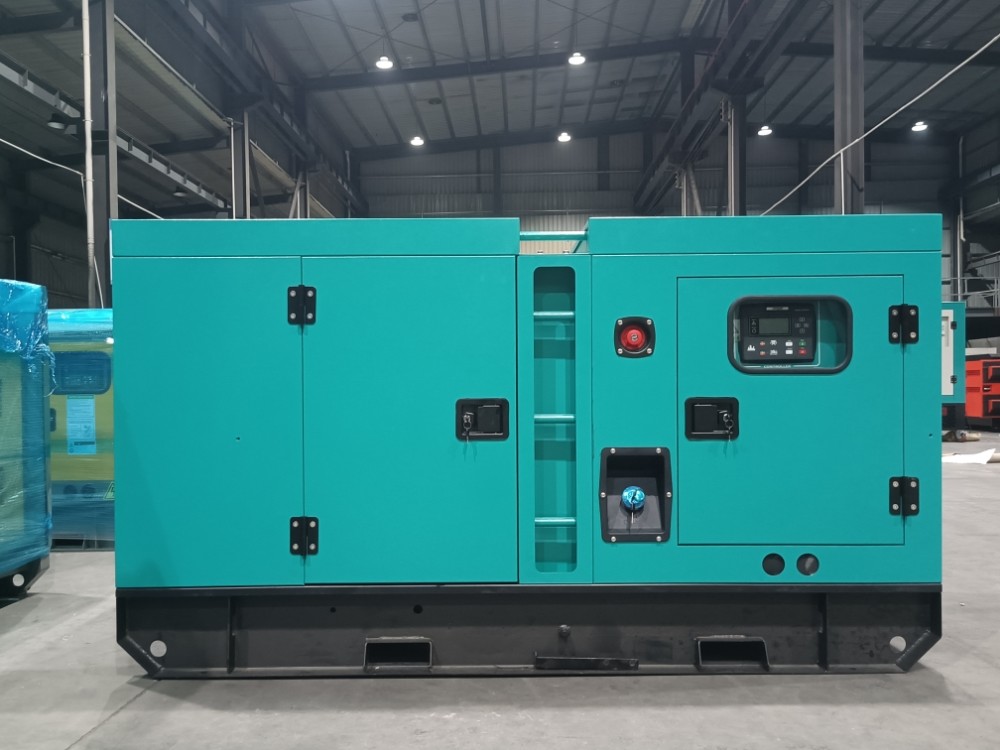

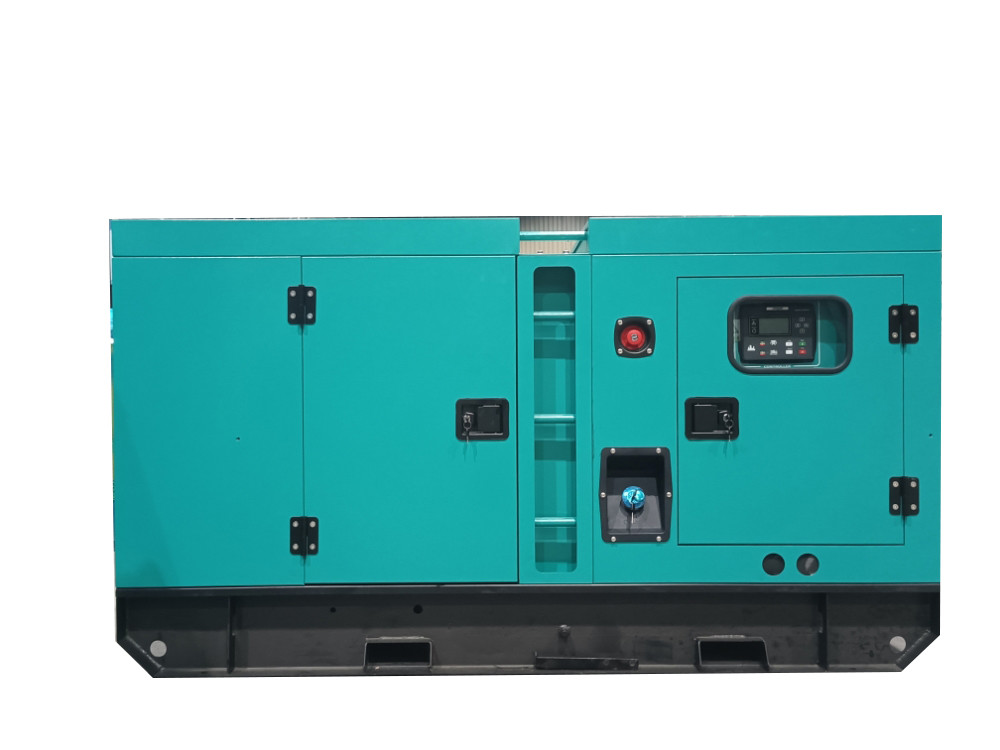

15kVA Perkins Engine Diesel Electric Generator with Origin Stamford Brushless Alternator
Our gensets comply with all major standards, including: GB/T2820, ISO8528, IEC34, CE, EPA Tier4 Standards
Prime output powers range from 5KVA to 2000 KVA
Rated voltages include 120V/240V, 220/380V, 230V/400V, 254V/440V, etc.
Phase/connection: 3 phase, 4 wire.
Rated frequencies: 50Hz@1500rpm, 60Hz@1800rpm
Alternator excited types: Brushless, self-excited or PMG
Insulation class: Class H
Protection grade: IP21~IP23
Voltage regulation: AVR automatic control 1%
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤90%
Technical Data:
| Technical Specification: | ||
| Generator Set Specification | ||
| Genset Model | TG17P | TG17PS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 380/220V | |
| Phase | 3 Phase, 4 Wires | |
| Rate Current | 22.8A | |
| Prime Power | 12kW / 15kVA | |
| Standby Power | 13kW / 17kVA | |
| Engine Model | Perkins 403A-15G2 | |
| Alternator Model | Stamford PI 044G | |
| Controller | ComAp AMF20 | |
| Weight & Dimensions | ||
| Length (mm) | 1320 | 1900 |
| width (mm) | 700 | 730 |
| Height (mm) | 1100 | 1150 |
| Weight (kgs) | 530 | 750 |
| Engine Specification | ||
| Brand | Perkins (Wuxi) | |
| Engine Model | 403A-15G2 | |
| Prime/Standby power (kw) | 13.6 / 15.1 | |
| Injection | Indirect | |
| Aspiration | Naturally Aspirated | |
| No. of cylinders | 3 | |
| Bore of Stroke (mm) | 84 x 90 | |
| Displacement (L) | 1.496 | |
| Cooling | water | |
| Compression Ratio | 22.5:1 | |
| Engine Oil capacity (L) | 6.0 | |
| Coolant Capacity ( In radiator) | 6.0 | |
| Governor | MECH | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 50Hz | |
| 100% Load (L/h) | 3.9 | |
| 75% Load (L/h) | 2.9 | |
| 50% Load (L/h) | 1.9 | |
| 25% Load (L/h) | 1.0 | |
| Alternator Specification | ||
| Brand | Cummins Generator Technologies | |
| Model | Stamford PI 044G | |
| Rate Output (kVA) | 15 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | ComAp | |
| Model | AMF20 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Tecgen Perkins diesel gensets provide the perfect combination of reliability, performance, and cost-efficiency. Count on us for your power generation needs.
(1) Enhanced Durability: Our generator canopies are constructed from cold-rolled sheet metal, ensuring superior strength and durability in any situation.
(2) Long-Lasting Finish: Our spray-painted plastics undergo a meticulous pickling and phosphating pretreatment process, guaranteeing that the paint surface remains vibrant and colorfast, even after five years of exposure to the elements.
(3) Customized Canopy Colors: We offer a wide range of canopy color options, allowing customers to select the perfect aesthetic to match their unique requirements.
(4) Rigorous Load Testing: Our generators undergo rigorous testing, including 50% load, 75% load, 100% load, and even 110% load capacity testing, ensuring they can handle the toughest situations.
(5) Forklift-Friendly Design: Convenient forklift pockets are strategically placed on the base frame, making loading and unloading a breeze, even in tight spaces.
(6) Branded Solutions: For orders of at least 5 units or one full container, customers have the option to request a customized logo on their generators, promoting brand identity and recognition.
TECGEN Power: Where Your Power Needs Find Answers
Got questions about our diesel generators? We've got answers!
Q1: What's Your Power Range?
A: At TECGEN Power, we offer diesel generators spanning an impressive power range, from 8KVA all the way up to 3000KVA.
Q2: How Do You Package and Ship Your Generators?
A: Our generators are meticulously packaged using polywood or pearl cotton with an option for customized packaging. We employ the safest shipping methods, ensuring your order arrives in perfect condition.
Q3: How Fast Can I Get My Generator?
A: We understand the value of time. That's why our usual delivery time is swift, typically within 1-3 weeks.
Q4: What Are Your Payment Terms?
A: Our payment terms are flexible. We accept wire transfers (T/T) with a 30% advance payment, and the balance paid before shipment. Alternatively, you can opt for the convenience of a 100% letter of credit (LC) upon sight.
Q5: What's Your Warranty Policy?
A: We stand by the quality of our products. Our standard warranty period is 1.5 years or 1500 running hours, whichever occurs first. However, for specialized projects, we're happy to discuss extending the warranty period to meet your specific needs.
Q6: Can I Get Customized Generators with My Brand?
A: Absolutely, at TECGEN Power, we offer Original Equipment Manufacturing (OEM) services, allowing you to have generators tailored to your brand and specifications.
Ready to find the perfect power solution? Contact TECGEN Power, and let's explore the possibilities together!
