50kVA DCEC Cummins Diesel Generators 40kW Prime Silent Type
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine Brand | Cummins | Control System | AMF/ATS |
|---|---|---|---|
| Cooling System | Water | Emission Standard | EU Stage II/EPA Tier 2 |
| Frequency | 50Hz | Fuel Consumption | 14.9L /hour |
| Installation Time | 7-15 Days | Noise Level | 68dB(A) |
| Power Range | 20-1650kVA | Speed | 1500rpm |
| Starting System | Electric | Type | Silent Diesel Generators |
| Voltage | 400/230V | Warranty Period | 1500 Hours |
| Highlight | DCEC Cummins Diesel Generators,50kVA Cummins Diesel Generators,40kW cummins 50 kva |
||
Product Description

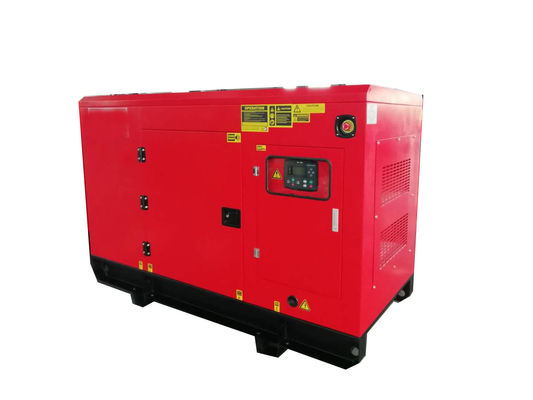

50kVA DCEC Cummins China Made Generator 40kW Prime Cummins Silent Type Generator Set
Each and every unit undergoes strict testing before shipment, including:
Functional testing:
√ Component faults testing
√ Fuel tank pressure testing
√ Bolt tightening torque testing
√ Painting finish testing
√ Temperature testing
√ Noise testing
√ Loading testing (0%, 25%, 50%, 75%, 100%, and 110% loading)
√ Control system and protection system function verification
stringent testing procedures
We take great care during the testing phase, conducting loading tests at 0%, 25%, 50%, 75%, 100%, and 110% for every unit we ship. Each genset undergoes a load test for at least 30 minutes to ensure that its power output is optimal and its performance is stable.
We then test the controller and protective functions of each genset to verify if they can effectively stop the genset during any abnormal situations. Finally, we inspect all the details of the genset, including whether the bolts and nuts are properly tightened, the quality of the painting finish, and the presence of all accessories.
TECHNICAL DATA:
| Technical Specification: | ||
| Generator Set Specification | ||
| Genset Model | TG55C | TG55CS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 72.2A | |
| Prime Power | 40kW / 50kVA | |
| Standby Power | 44kW / 55kVA | |
| Engine Model | 4BTA3.9-G2 | |
| Alternator Model | TGI224S40 | |
| Controller | DSE6020 | |
| Weight & Dimensions | ||
| Length (mm) | 1750 | 2300 |
| width (mm) | 840 | 980 |
| Height (mm) | 1360 | 1460 |
| Weight (kgs) | 930 | 1290 |
| Engine Specification | ||
| Brand | Cummins | |
| Engine Model | 4BTA3.9-G2 | |
| Prime/Standby power (kw) | 58 / 64 | |
| Injection | Indirect | |
| Aspiration | Turbocharged & Water-air Intercooled | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 102 x 120 | |
| Displacement (L) | 3.9 | |
| Cooling | water | |
| Compression Ratio | 17.3:1 | |
| Engine Oil capacity (L) | 8.3 | |
| Coolant Capacity ( In radiator) | 8.3 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 14.9 | |
| 75% Load (L/h) | 11.4 | |
| 50% Load (L/h) | 8.1 | |
| 25% Load (L/h) | 4.8 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI224S40 | |
| Rate Output (kVA) | 50 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Deepsea | |
| Model | DSE6020 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Tecgen Cummins Power Generator Feature:
1, Output range: 20kVA to 1650kVA Heavy Duty Cummins diesel generator.
2, Different brands of engine, alternator and controller as options
3, Coupled with Stamford alternator, Marathon alternator or Chinese Tecgen Power alternator
4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery
7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
11, Perfect after-service network
12, Both 50Hz and 60Hz
13, CHNT circuit breaker
14, Three-phase output meets differing requirements
15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
16, Working Hours Base Fuel Tank
17, Anti-Vibration Mounted
18, Industrial silencer and flexible exhaust hose
19, 0-110% load test for each unit before delivery
20, Warranty with 1500 hours or 1.5 year, which comes first.
perfect and luxury for advertising.
All stand machine can install wheel. It depends on your requirements. If we done this, the machine can move around easily.
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: What's your MOQ ?
A: MOQ: 1 unit.
Q: How long is your delivery time ?
A: 15 days or less against deposit.
Q: What's your payment term?
A: TT: 30% deposit and 70% balance before shipment.
LC: 100% irrevocable LC.
Q: What's your warranty period ?
A: The goods are under warranty for a period 18 months or 1500 hours
whichever comes first from the date of delivery to the end user
(except the damageable spares of diesel genset caused by incorrect man-made operation)
