32kW DCEC Soundproof 40 Kva Cummins Generator By Cummins 4BT3.9-G1 Diesel Engine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | 32kW Cummins Genset | Rate Power | 32kW |
|---|---|---|---|
| Standby Power | 35kW | Engine Brand | DCEC Cummins |
| Engine Model | 4BT3.9-G1 | Option Engine Model | 4BT3.9-G2 |
| Governor | MECH / Electric | Alternator Brnad | Tecgen |
| Alternator Model | TGI184S32 | Alternator Type | Single Bearing / 3 Phase |
| Alternator Option | Stamford / Leroy Somer | Controller | Smartgen HGM6120N |
| Work Altitude | ≤1000m | HS Code | 8502110000 |
| Highlight | Soundproof 40 kva cummins generator,32kW 40 kva cummins generator,35kW cummins 40 kva generator |
||
Product Description

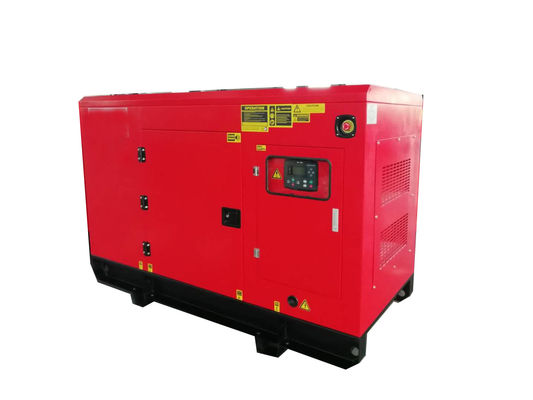

32kW 40kVA DCEC Soundproof Diesel Genset Powered by Cummins 4BT3.9-G1 Diesel Engine with 10 Hours Fuel Tank
DCEC Cummins Series Diesel Generating Set:
- Genset output range: 20kW to 400kW
- Engine types: 4B, 6B, 6C, 6L, QSM, 6Z, QSZ series
- Manufacturer: Dongfeng Cummins Engine Co., Ltd.
Range Datasheets:
| TECGEN DCEC Cummins Series Diesel Generator Set | |||||||||
| Gneset Model | Frequency | Voltage | MAIN | STANDBY | ENGINE | ALTENRATOR | |||
| Open | Silent | Hz | V | KW | KVA | KW | KVA | Cummins | Stamford |
| TG28C | TG28CS | 50 | 230/400V | 20 | 25 | 22 | 28 | 4B3.9-G1 | PI 144E |
| TG28C | TG28CS | 50 | 230/400V | 20 | 25 | 22 | 28 | 4B3.9-G2 | PI 144E |
| TG50C | TG50CS | 50 | 230/400V | 32 | 40 | 40 | 50 | 4BT3.9-G1 | PI 144J |
| TG44C | TG44CS | 50 | 230/400V | 32 | 40 | 35 | 44 | 4BT3.9-G2 | PI 144J |
| TG69C | TG69CS | 50 | 230/400V | 50 | 63 | 55 | 69 | 4BTA3.9-G2 | UCI 224 F |
| TG69C | TG69CS | 50 | 230/400V | 50 | 63 | 55 | 69 | 4BTA3.9-G2 | UCI 224 F |
| TG80C | TG80CS | 50 | 230/400V | 58 | 73 | 64 | 80 | 4BTA3.9-G11 | UCI 224 F |
| TG110C | TG110CS | 50 | 230/400V | 80 | 100 | 88 | 110 | 6BT5.9-G1 | UCI 274 C |
| TG110C | TG110CS | 50 | 230/400V | 80 | 100 | 88 | 110 | 6BT5.9-G2 | UCI 274 C |
| TG124C | TG124CS | 50 | 230/400V | 90 | 113 | 99 | 124 | 6BT5.9-G2 | UCI 274 D |
| TG138C | TG138CS | 50 | 230/400V | 100 | 125 | 110 | 138 | 6BTA5.9-G2 | UCI 274 D |
| TG152C | TG152CS | 50 | 230/400V | 110 | 138 | 121 | 152 | 6BTAA5.9-G2 | UCI 274 E |
| TG165C | TG165CS | 50 | 230/400V | 120 | 150 | 132 | 165 | 6BTAA5.9-G12 | UCI 274 F |
| TG207C | TG207CS | 50 | 230/400V | 150 | 188 | 165 | 207 | 6CTA8.3-G1 | UCI 274 G |
| TG207C | TG207CS | 50 | 230/400V | 150 | 188 | 165 | 207 | 6CTA8.3-G2 | UCI 274 G |
| TG220C | TG220CS | 50 | 230/400V | 160 | 200 | 176 | 220 | 6CTAA8.3-G2 | UCI 274 H |
| TG275C | TG275CS | 50 | 230/400V | 200 | 250 | 220 | 275 | 6LTAA8.9-G2 | UCDI 274 K |
| TG275C | TG275CS | 50 | 230/400V | 200 | 250 | 220 | 275 | 6LTAA8.9-G3 | UCDI 274 K |
| TG358C | TG358CS | 50 | 230/400V | 260 | 325 | 286 | 358 | QSM11-G2 | HCI 444 ES |
| TG413C | TG413CS | 50 | 230/400V | 300 | 375 | 330 | 413 | 6ZTAA13-G3 | HCI 444 FS |
| TG495C | TG495CS | 50 | 230/400V | 360 | 450 | 396 | 495 | QSZ13-G2 | HCI 544 C |
| TG550C | TG550CS | 50 | 230/400V | 400 | 500 | 440 | 550 | QSZ13-G3 | HCI 544 C |
40kVA Cummins Generator TECHNICAL SPECIFICATION:
| Technical Specification: | ||||
| Generator Set Specification | ||||
| Genset Model | TG44C | TG44CS | TG44C | TG44CS |
| Open | Silent | Open | Silent | |
| Frequency | 50Hz | |||
| Voltage | 400/230V | |||
| Phase | 3 | |||
| Rate Current (A) | 72.2 | |||
| Prime Power (KW/KVA) | 32 / 40 | 32 / 40 | ||
| Standby Power(KW/KVA | 35 / 44 | 35 / 44 | ||
| Engine Model | 4BT3.9-G1 | 4BT3.9-G2 | ||
| Alternator Model | TGI184S32 | TGI184S32 | ||
| Controller | Smartgen HGM6120N | |||
| Fuel Tank Capacity | 70L | 70L | ||
| Weight And Dimensions | ||||
| Length (mm) | 1750 | 2300 | 1750 | 2300 |
| width (mm) | 840 | 980 | 840 | 980 |
| Height (mm) | 1360 | 1460 | 1360 | 1460 |
| Weight (kgs) | 870 | 1230 | 870 | 1230 |
| Engine Specification | ||||
| Engine Model | 4BT3.9-G1 | 4BT3.9-G2 | ||
| Prime/Standby power (kw) | 24 / 27 | |||
| Injection | Indirect | |||
| Aspiration | Naturally Aspirated | |||
| No. of cylinders | 4 | |||
| Bore of Stroke (mm) | 102x120 | |||
| Displacement (L) | 3.9 | |||
| Cooling | water | |||
| Compression Ratio | 17.3:1 | |||
| Engine Oil capacity (L) | 7.2 | |||
| Coolant Capacity ( In radiator) | 7.2 | |||
| Governor | Mechanical | Electric | ||
| Air Filter | Dry Element | Dry Element | ||
| Fuel consumption | at 50Hz | at 50Hz | ||
| 100% Load (L/h) | 7.1 | 6.7 | ||
| 75% Load (L/h) | 5.7 | 5.2 | ||
| 50% Load (L/h) | 4.3 | 4.0 | ||
| 25% Load (L/h) | 2.8 | 2.7 | ||
| Alternator Specification | ||||
| Brand | Tecgen | |||
| Model | TGI184S32 | |||
| Rate Output (kVA) | 40 | |||
| Pole | 4 | |||
| Winding Connections | Star | |||
| Insulation Class | H | |||
| Enclosure | IP23 | |||
| Altitude (m) | ≤1000 | |||
| Voltage Regulator | AVR | |||
| Steady State Voltage Regulator | 1% | |||
| Bearing | single | |||
| Controller System | ||||
| Brand | Smartgen | |||
| Model | HGM6120N | |||
| Functions | Control with AMF module | |||
| Static with auto. battery charger | ||||
| Emergency stop push button | ||||
| ATS Connection | ||||
| OPTIONAL EQUIPMENTS | ||||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||||
Tecgen Cummins Power Diesel Generator Feature:
1, Output range: 20kVA to 1500kVA Heavy Duty Cummins generator set.
2, Different brands of engine, alternator and controller as options
3, Coupled with Stamford alternator, Marathon alternator or Chinese APT Power alternator
4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery
7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
11, Perfect after-service network
12, Both 50Hz and 60Hz
13, CHNT circuit breaker
14, Three-phase output meets differing requirements
15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
16, Working Hours Base Fuel Tank
17, Anti-Vibration Mounted
18, Industrial silencer and flexible exhaust hose
19, 0-110% load test for each unit before delivery
20, Warranty with 1000 hours or one year, which comes first.
All stand machine can install wheel. It depends on your requirements. If we done this, the machine can move around easily.
