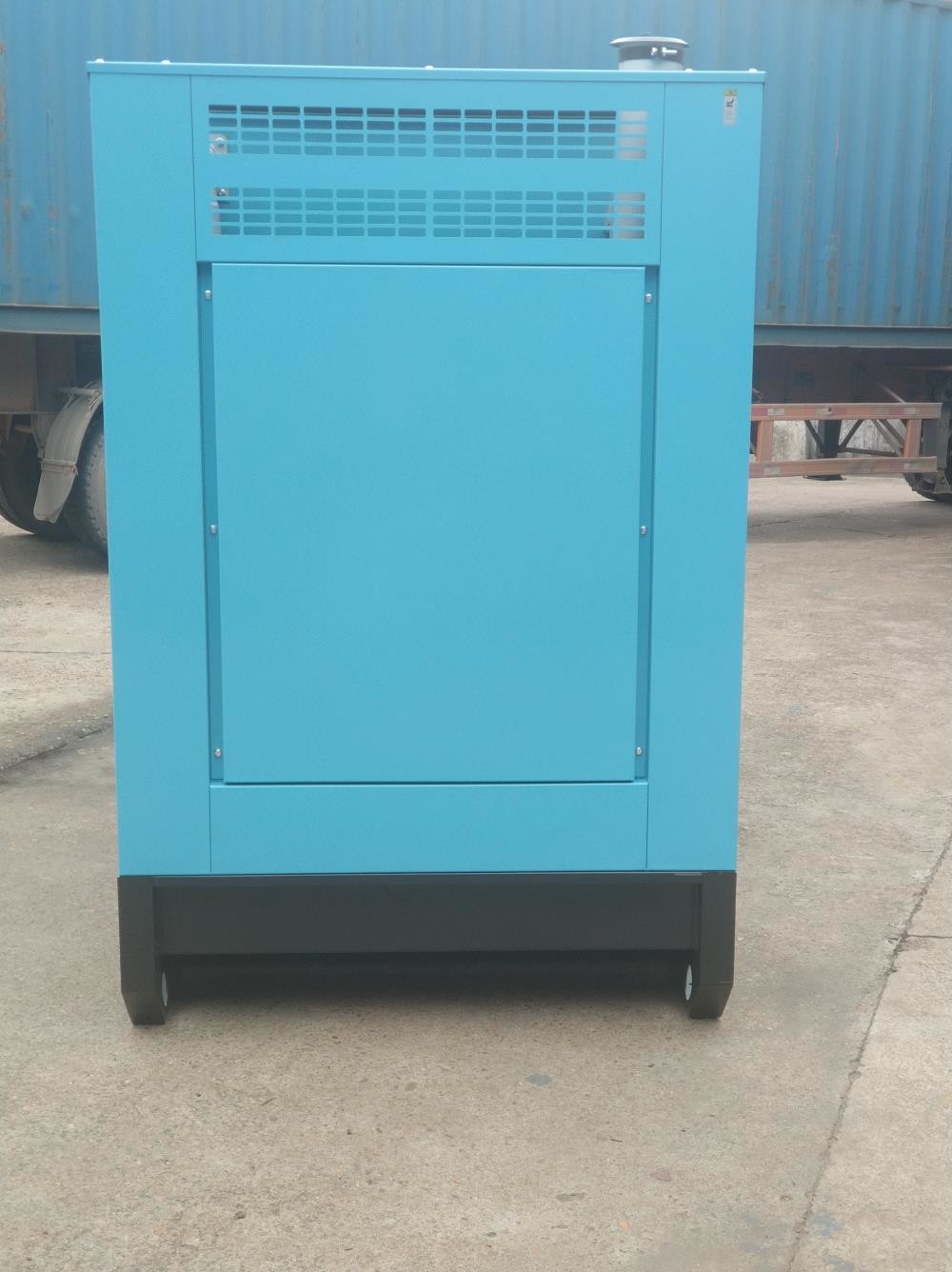

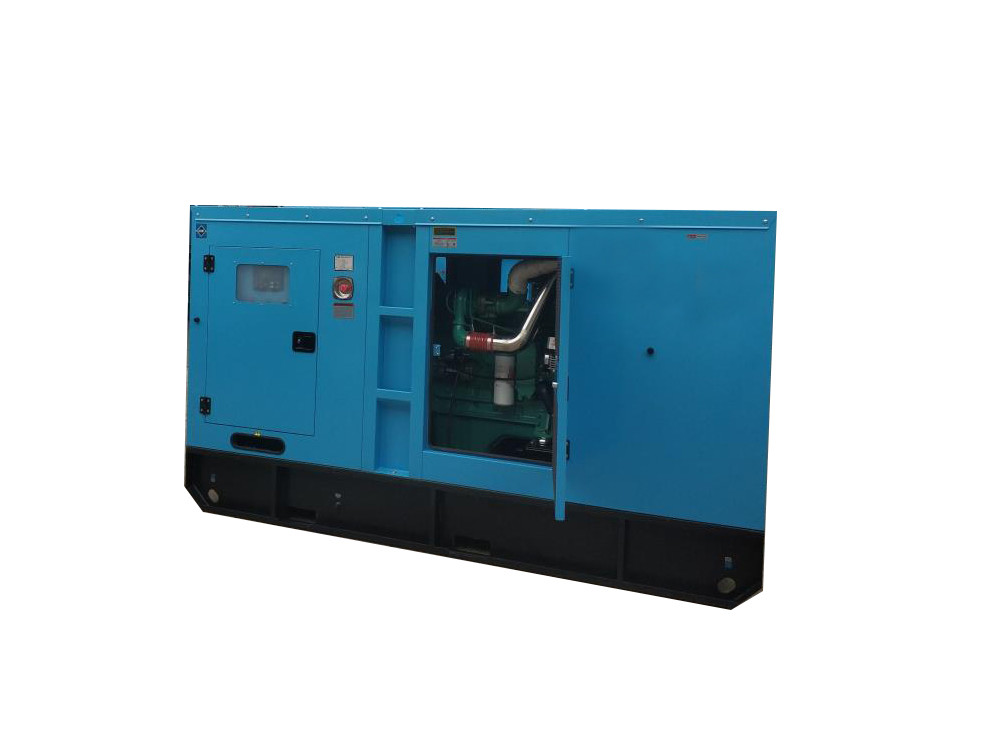

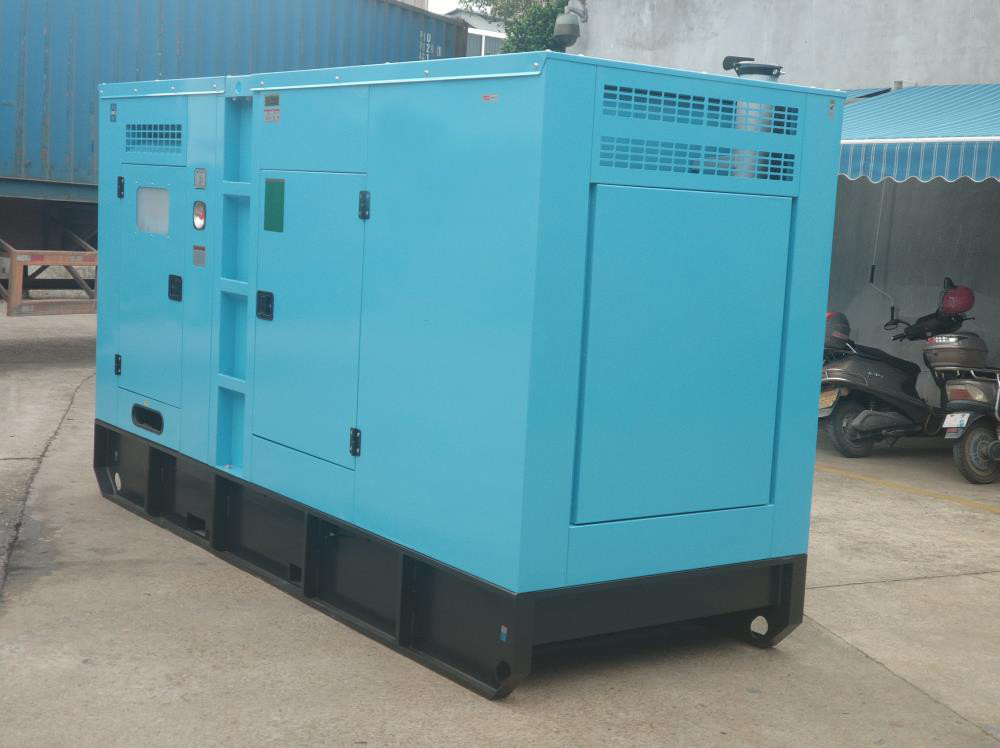

Cummins 100kW/110kW Genset TG138C/TG138CS/TG151C/TG151CS 6BTAA5.9-G2 Engine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output | 125kVA / 138kVA | Product | Cummins Generators |
|---|---|---|---|
| Rate Voltage | 400 / 230V | Freuqency | 50Hz |
| Genset Type | Silent | Engine Brand | DCEC Cummins |
| Alternator | Tecgen Power Alternator | Noise Level | 68dB(A) |
| Controller | HGM6120N Smartgen | ATS | 250A Auto Transfer Switch |
| Fuel Tank Capacity | 198L | Opetion | 3000 Hours Spare Parts |
Product Description
Cummins 100kW/110kW Genset TG138C/TG138CS/TG151C/TG151CS 6BTAA5.9-G2 Engine
DCEC Cummins Series Diesel Power Generating Set:
- Genset output range: 20kW to 400kW
- Engine types: 4B, 6B, 6C, 6L, QSM, 6Z, QSZ series
- Manufacturer: Dongfeng Cummins Engine Co., Ltd.
CCEC Cummins Series Diesel Power Generating Set:
- Genset output range: 200kW to 1200kW
- Engine types: N855, M11, QSNT, K19, K38, QKS38, K50 series
- Manufacturer: Chongqing Cummins Engine Co., Ltd.
100kW / 110kW Cummins Genset TECHNICAL DATA:
| Technical Specification: | ||||
| Generator Set Specification | ||||
| Genset Model | TG138C | TG138CS | TG151C | TG151CS |
| Open | Silent | Open | Silent | |
| Frequency | 50Hz | |||
| Voltage | 400/230V | |||
| Phase | 3 | |||
| Rate Current (A) | 180.4 | 217.9 | ||
| Prime Power (KW/KVA) | 100 / 125 | 110 / 138 | ||
| Standby Power(KW/KVA | 110 / 138 | 121 / 151 | ||
| Engine Model | 6BTAA5.9-G2 | 6BTAA5.9-G2 | ||
| Alternator Model | TGI274S100 | TGI274S110 | ||
| Controller | Smartgen HGM6120N | |||
| Fuel Tank Capacity | 198L | 218L | ||
| Weight And Dimensions | ||||
| Length (mm) | 2400 | 2900 | 2400 | 2900 |
| width (mm) | 930 | 1100 | 930 | 1100 |
| Height (mm) | 1440 | 1530 | 1440 | 1530 |
| Weight (kgs) | 1300 | 1930 | 1350 | 2000 |
| Engine Specification | ||||
| Engine Model | 6BTAA5.9-G2 | |||
| Prime/Standby power (kw) | 120 / 130 | |||
| Injection | Indirect | |||
| Aspiration | Turbocharged and Charge Air Cooled | |||
| No. of cylinders | 6 | |||
| Bore of Stroke (mm) | 102x120 | |||
| Displacement (L) | 5.9 | |||
| Cooling | water | |||
| Compression Ratio | 17.3:1 | |||
| Engine Oil capacity (L) | 8.3 | |||
| Coolant Capacity ( In radiator) | 8.3 | |||
| Governor | Electric | |||
| Air Filter | Dry Element | |||
| Fuel consumption | at 50Hz | at 50Hz | ||
| 100% Load (L/h) | 24.7 | 27.2 | ||
| 75% Load (L/h) | 18.6 | 20.4 | ||
| 50% Load (L/h) | 12.4 | 13.6 | ||
| 25% Load (L/h) | 6.2 | 6.8 | ||
| Alternator Specification | ||||
| Brand | Tecgen | Tecgen | ||
| Model | TGI274S100 | TGI274S110 | ||
| Rate Output (kVA) | 125 | 138 | ||
| Pole | 4 | |||
| Winding Connections | Star | |||
| Insulation Class | H | |||
| Enclosure | IP23 | |||
| Altitude (m) | ≤1000 | |||
| Voltage Regulator | AVR | |||
| Steady State Voltage Regulator | 1% | |||
| Bearing | single | |||
| Controller System | ||||
| Brand | Smartgen | |||
| Model | HGM6120N | |||
| Functions | Control with AMF module | |||
| Static with auto. battery charger | ||||
| Emergency stop push button | ||||
| ATS Connection | ||||
| OPTIONAL EQUIPMENTS | ||||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||||
Advanced Generator Specifications
1. Versatile Power Range: Our generators offer a rated power from 20 kVA to a robust 1500 kVA prime, catering to a wide range of power needs.
2. Frequency Options: You can choose between 50Hz and 60Hz to match the specific requirements of your applications.
3. Precision Speed Control: Our generators operate at 1500/1800 RPM, ensuring precise power output.
4. Flexible Phase Configurations: Whether you need 3-phase or single-phase power, our generators can accommodate your needs.
5. Voltage Customization: We provide voltage options ranging from 110 V to 460 V, ensuring compatibility with various electrical systems.
6. Extended Operation: A generously-sized fuel tank ensures 8 hours of continuous operation or more, perfect for long-lasting power supply.
7. Quiet Operation: Our generators maintain a noise level below 68 dB at 7 meters, minimizing disruption in noise-sensitive environments.
8. Extreme Environment Compatibility: Operating seamlessly between -5ºC and +50ºC, our generators handle a broad range of environmental conditions.
9. Efficient Cooling: Featuring a 50ºC environmental protection water tank, our generators ensure consistent cooling even in demanding situations.
10. Robust Diesel Engine: Our generators are powered by reliable four-stroke, water-cooled diesel engines, offering longevity and performance.
11. Top-Notch Alternators: We use brushless alternators from reputable brands like Stamford Leroy Somer, Mecc Alte and Copy Stamford alternator, ensuring exceptional power output.
12. Advanced Control Options: Your generator is equipped with controllers from leading brands such as Deepsea, ComAp, Smartgen, or DATAKOM, offering precise control and monitoring.
13. Quick Delivery: Our standard delivery time is just 15 days, ensuring you get your power solution promptly.
14. Convenient Starting: Start your generator manually or opt for electric start with adjustable settings, providing flexibility in operation.
15. Secure Packaging: Generators are carefully wrapped in plastic shrink wrap film to ensure they reach you in top condition.
16. Customized Export Options: We export via Fuzhou Port or your preferred port, offering flexibility in shipping.
