Standby Generator 80kVA N4105ZLDS Ricardo Engine Generator Dependable Backup Power
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | 80kVA Standby Ricardo Genset | Frequency | 50Hz |
|---|---|---|---|
| Rate Output | 73kVA | Rate Current | 101.6 A |
| Max Output | 80kVA | Engine Model | N4105ZLDS |
| Governor | MECH | Controller | Mebay DC52D |
| HS Code | 8502110000 | ||
| Highlight | 80kVA ricardo engine generator,N4105ZLDS ricardo engine generator,50Hz diesel standby generator |
||
Product Description

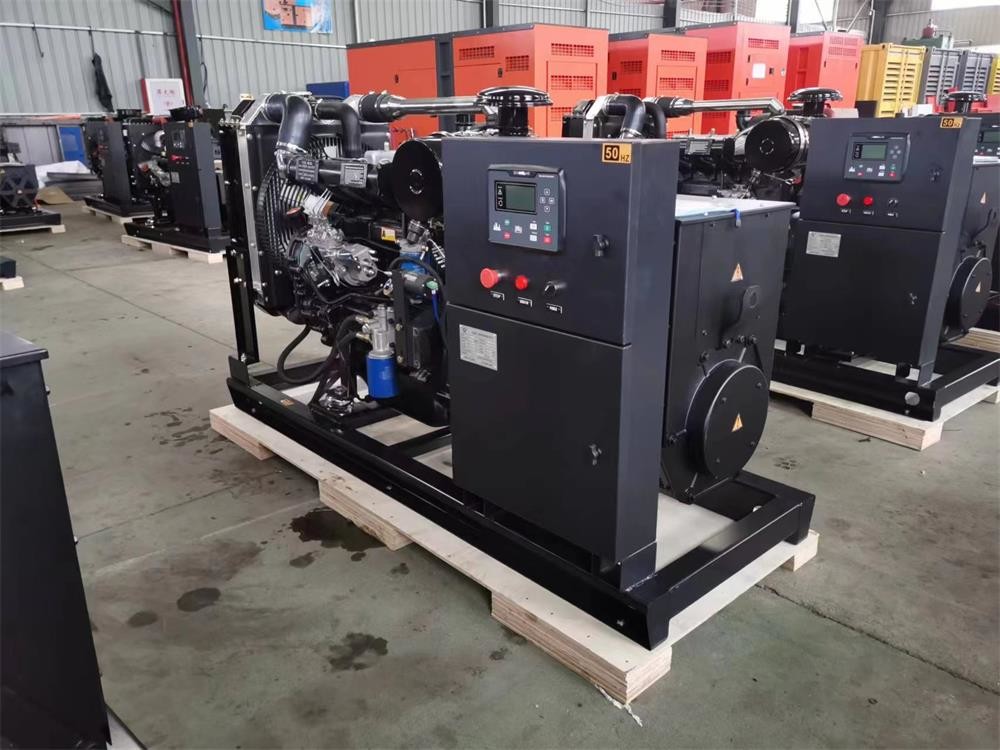

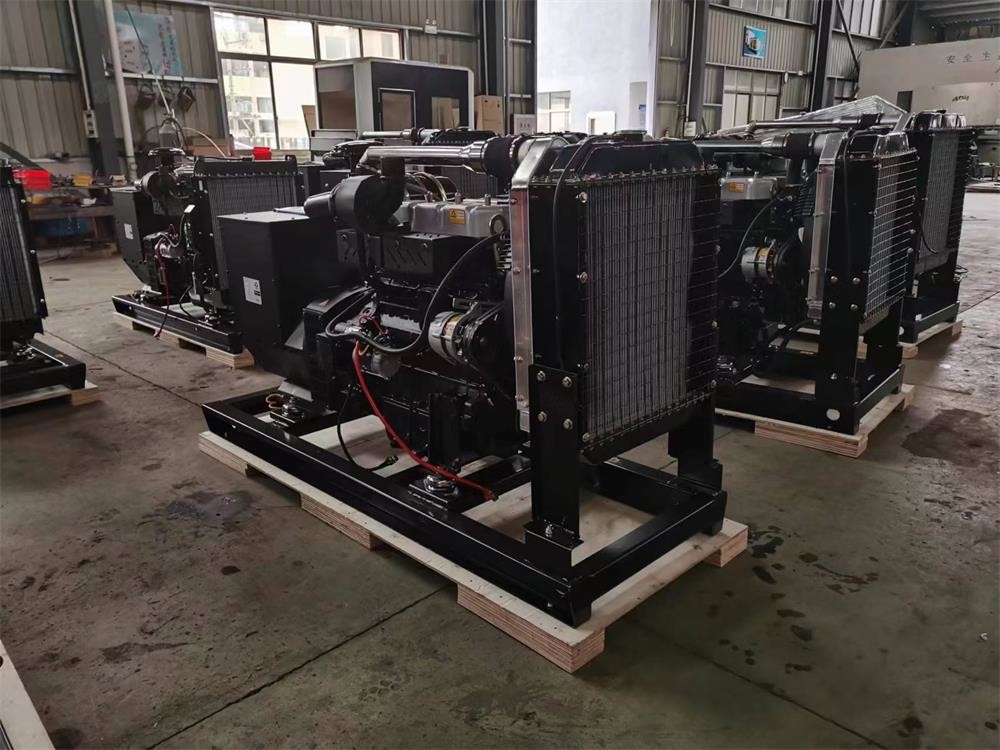

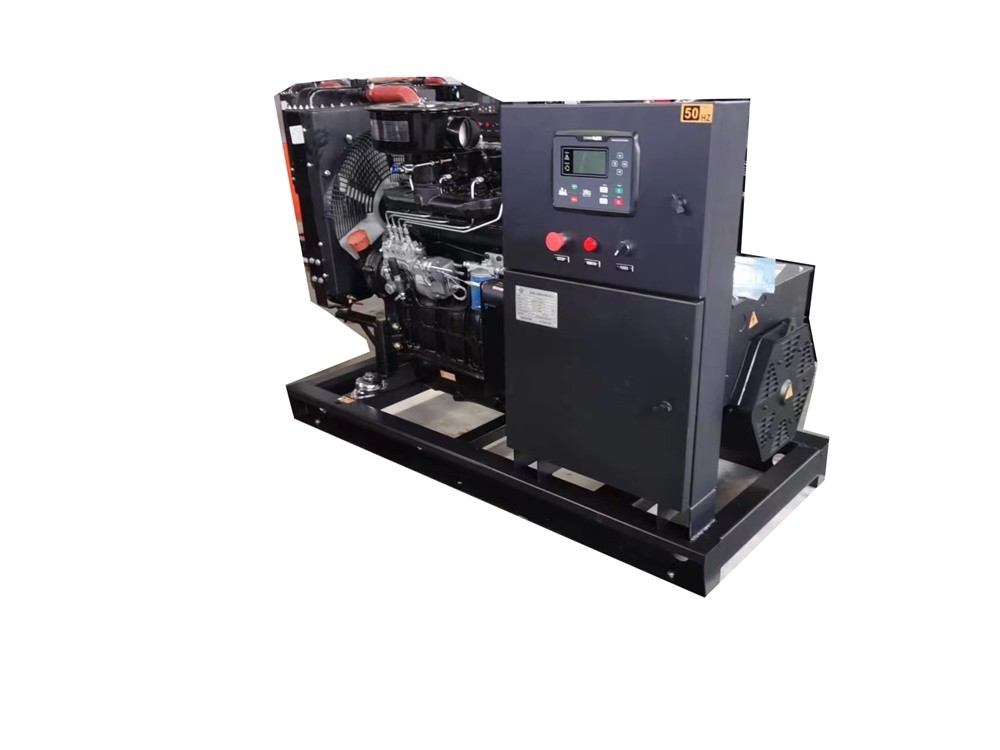

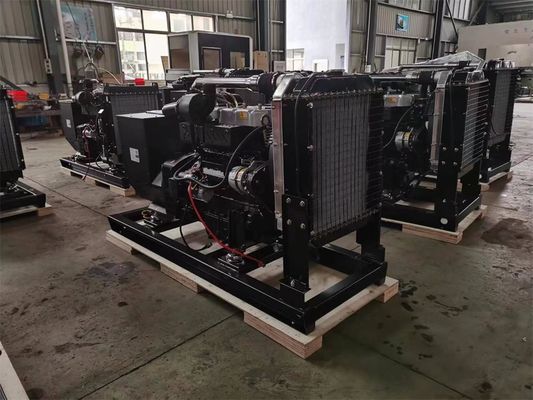

Standby Generator 80kVA Ricardo N4105ZLDS Diesel Generator Dependable Backup Power
Optional
1 50Hz (380/220V, 400/230V, 415V/240V, 440V etc) Or 60Hz (110/220V, 115/230V,127/220V, 220/440V, etc )
2 Single phase or Three phase
3 ATS(Automatic Transfer Switch)
4 Water/Oil heater
5 Genset with Super Silent design
6 Customed RAL Colors
80kVA Weifang Ricardo Genset TECHNICAL DATA:
| Technical Specification: | ||
| Generator Set Specification | ||
| Genset Model | TG80R | TG80RS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 415/240V | |
| Phase | 3 | |
| Rate Current | 101.6A | |
| Prime Power | 58kW / 73kVA | |
| Standby Power | 64kW / 80kVA | |
| Engine Model | N4105ZLDS | |
| Alternator Model | TGI224S58 | |
| Controller | Mebay DC52D | |
| Weight & Dimensions | ||
| Length (mm) | 2000 | 2700 |
| width (mm) | 900 | 1050 |
| Height (mm) | 1100 | 1600 |
| Weight (kgs) | 1250 | 1660 |
| Engine Specification | ||
| Brand | KOFO Ricardo Series | |
| Engine Model | N4105ZLDS | |
| Prime power (kw) | 66 | |
| Injection | Indirect | |
| Aspiration | Turbocharged & Intercooled | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 105 x 120 | |
| Displacement (L) | 4.15 | |
| Cooling | water | |
| Compression Ratio | 17:1 | |
| Engine Oil capacity (L) | 6.2 | |
| Coolant Capacity ( In radiator) | 6.2 | |
| Governor | Mech | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 15.5 | |
| 75% Load (L/h) | 11.7 | |
| 50% Load (L/h) | 7.8 | |
| 25% Load (L/h) | 3.9 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI224S58 | |
| Rate Output (kVA) | 73 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Mebay | |
| Model | DC52D | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Product Description
1 Brand new water-cooled Weifang Ricardo diesel engine with 50 ºC tropical radiator.
2 Brand new brushless Tecgen alternator, 2 years warranty.
3 MEBAY digital controller.
4 Maintenance-free starter battery with battery cable, battery terminal caps and battery isolator switch.
5 Oil, Coolant, Fuel and Water Drain on the base frame. Let genset clean more easy
6 Anti-vibration mountings between engine/alternator and base frame.
7 0%, 25%, 50%, 75%,100%,110% loading test by load bank for each generator unit before shiping standard.
8 Genset with 8-10 hours fuel tank.
9 General catalog in English in PDF format that illustrates the quality and added values of manufacturing.
10 An additional kit of filters and basic spare parts is provided, on all models.
11 Using 100% free-resistant sound attenuation material, has very good adhesive strength and ensures that the sound attenuation materials do not fall off over time.
12 Manufacure strictly according to ISO9001-2008, GB/T19001-2008 international quality management system.
FAQ For Your Reference
1 Q: What is your Minimum order qty?
A: 1pcs
2 Q: What is your payment terms?
A: T/T, L/C.
3 Q: What is the delivery time?
A: 10-30 workings days
4 Q: Where is your port of loading?
A: Fuzhou port, China.
5 Q: Can I use my own brand name?
A: Yes, OEM and ODM are both supported.
6 Q: Available colors?
A: RAL White, Blue, Red, Green, Yellow, Gray and etc.
7 Q: Which markets have you exported before?
A: Southeast Asia, the Middle East, Africa, Europe, North and South America, Oceania
8 Q: Any certifications for your gensets?
A: ISO9001-2008, ISO14001-2004, CE, etc.
9 Q: How is your packaging?
A: Stretching film as standard, plywood crate is optional
10 Q: The valid period of the offer?
A: 30 DAYS
