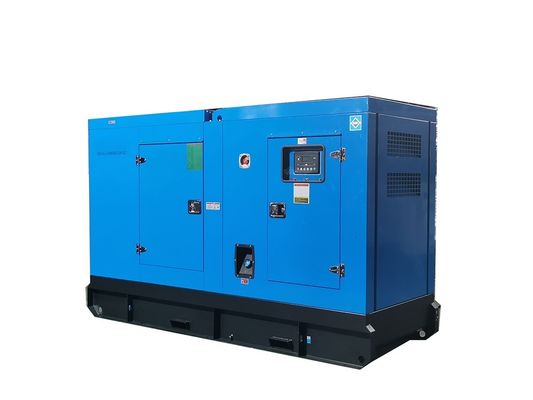

80kW Weifang Ricardo Diesel Generators 4RT55-88D 4 Cylinder Diesel Generator 100kVA For Diverse Application
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | 80kW Ricardo Genset | Usage | Common Units, Standby Unit, Emergency Crew |
|---|---|---|---|
| Prime Output | 80kW / 100kVA | Standby Output | 88kW / 110kVA |
| Frequency | 50Hz | Voltage | 400/230V, Various Voltage Available |
| Phase | 3 Phase , 4 Wire | Genset Type | Silent |
| Canopy Color | RAL White, Blue, Red, Yellow And Customized Color | Transport Package | Strengthen Packing/Compact Packing |
| Highlight | 80kW Ricardo Diesel Generators,Ricardo Diesel Generators 4RT55-88D,4 cylinder diesel generator 100kVA |
||
Product Description
80kW Weifang Ricardo 4RT55-88D 4 Cylinder Diesel Engine Generator Set 100kVA for Diverse Application
China Weifang Ricardo Diesel Engine Back-up Generator Set Features:
- Powered by KOFO Ricardo engines with China brand brushless type alternator
- Generators power range from 13kVA to 375kVA prime
- Radiator 50°C max, fans driven by belt, with safety guard
- 12//24V DC start motor and storage battery
- Brushless, self-excited, IP22/23, insulation class H alternator
- Absorber to reduce vibration
- Dry type air filter, fuel filter, oil filter
- Main line circuit breaker
- Control system: Standard configuration is key start control panel, optional digital auto start or ATS system
- 10 hours operation base fuel tank
- High efficient muffler to reduce noise
- Ripple flex exhaust pipe, exhaust siphon and flange, etc.
- Genset type: open type or soundproof/silent type, or trailer type
- Maintenance and operation manual, quality certificate, etc.
- Rigorous testing must be done before delivery, including 50% load, 75% load, 100% load and 110% load test and all protection functions (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
- Certificate: ISO9001:2000, CE (ESC/070119), SASO, IAF
100kVA RICARDO GENSET TECHNICAL DATA:
| Technical Specification: | ||
| Generator Set Specification | ||
| Genset Model | TG110R | TG110RS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 Phase, 4 Wires | |
| Rate Current | 144.3A | |
| Prime Power | 80kW / 100kVA | |
| Standby Power | 88kW / 110kVA | |
| Engine Model | 4RT55-88D | |
| Alternator Model | TGI274S80 | |
| Controller | Mebay DC52D | |
| Weight & Dimensions | ||
| Length (mm) | 1800 | 2450 |
| width (mm) | 950 | 1100 |
| Height (mm) | 1150 | 1450 |
| Weight (kgs) | 1250 | 1550 |
| Engine Specification | ||
| Brand | KOFO Ricardo Series | |
| Engine Model | 4RT55-88D | |
| Prime power (kw) | 88 | |
| Injection | Indirect | |
| Aspiration | Turbocharged | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 110 x 140 | |
| Displacement (L) | 5.32 | |
| Cooling | water | |
| Compression Ratio | 17:1 | |
| Engine Oil capacity (L) | 10 | |
| Coolant Capacity ( In radiator) | 10 | |
| Governor | Mech | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 22.8 | |
| 75% Load (L/h) | 17.1 | |
| 50% Load (L/h) | 11.4 | |
| 25% Load (L/h) | 5.7 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI274S80 | |
| Rate Output (kW) | 80 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Mebay | |
| Model | DC52D | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Tecgen Power Diesel Power Genset:
Multiple types available for open, Silent, Super silent, Soundproof, Trailer, container type
- Engine options: Cummins, Perkins, Deutz, Doosan, SDEC, Yuchai, Weichai, FAW, Ricardo, Yangdong, Isuzu, Mitsubishi, VMAN, Wudong, Shanghai Engine, Kubota, Yuhcai MTU, Cummins USA and others.
- Alternator – Multiple choices available including Stamford, Leroy Somer, Marathon, Mecc alte., etc.
- System options: Control system, ATS system, remote control system, parallel operation system,.
- Control panel: Smartgen, Deepsea, ComAp, DATAKOM, MEBAY) included digital LED genset control model (HGM6120N; DSE7320; DSE6020; AMF20; AMF25; DKG-507).
- Radiator: Equipped with a 50°C radiator with fan to ensure sufficient engine cooling system for long-time operation.
- Canopy: Generator diesel High-quality steel are thickness canopy – 2MM to 6MM.
- Material: High-density sound-absorbing material for sound insulation and fireproofing.
- Battery: Generator diesel 12V/ 24V DC battery with charger and battery connects wire.
- Fuel tank: Generator diesel 10-12 hours fuel tank with fuel indicator for long working time.
- Protection: Genset High protect class control box and power output box with IP55 Waterproofing and Electric leakage protect and Breaker, Waterproof protection Level IP55 +C1 high leak protection switch.+OCR warning circuit prevents unsafe conditions for operator ), suitable for portability generator set..
- New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency by 15%.
- Design: Generator diesel Beautiful & practicably design with Bottom hole for forklift, water outlet & oil outlet for easy maintenance.
- Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
