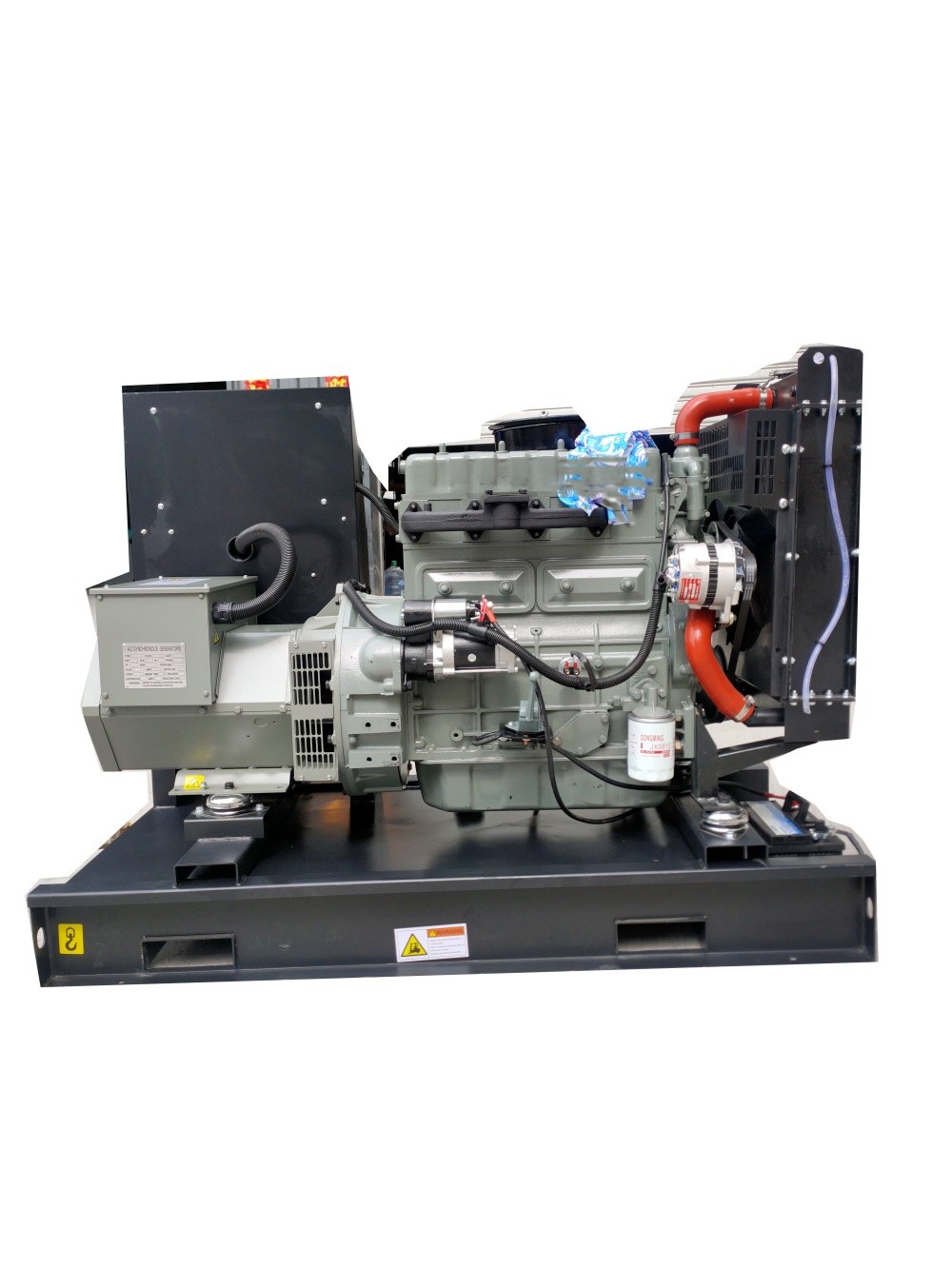

20kW Ricardo Diesel Powered Generator 18kW 23kVA Home Backup Use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Ricardo Genset |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TG25RD6 |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plastic film package in container |
| Delivery Time | 10 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Open | Frequency / Speed | 60Hz / 1800rpm |
|---|---|---|---|
| Voltage | 120 / 128 / 208 / 220 / 256 / 415/ 440V | Genset Prime Output | 18kW / 23kVA |
| Genset Standby Output | 20kW / 25kVA | Genset Engine Model | 4YT23-20D |
| Controller | Mebay DC52D | Options | ATS / Water Heater |
| Highlight | Ricardo Diesel Powered Generator,Diesel Powered Generator 18kW,23kVA diesel backup generator for home |
||
Product Description
Standby 20kW Ricardo Diesel Powered Generators 18kW / 23kVA Home backup use
Product Description:
Ricardo Diesel Generators provide reliable and powerful backup energy solutions. Our Ricardo Diesel Gensets offer strong performance and efficient operation with standby output of up to 20kW/25kVA and prime output of up to 18kW/23kVA. The Mebay DC52D Controller ensures maximum control and reliable operation. Further, our Ricardo Backup Generator also provides options for Automatic Transfer Switches (ATS) and Water Heater for additional convenience. These diesel generators are engineered to run at a frequency of 60Hz and a speed of 1800rpm to ensure maximum efficiency.
Features:
- Product Name: Ricardo Diesel Generators
- Genset Standby Output: 20kW / 25kVA
- Controller: Mebay DC52D
- Frequency / Speed: 60Hz / 1800rpm
- Genset Prime Output: 18kW / 23kVA
- Genset Type: Open
- Engine: Diesel Ricardo Engine
- Genset: Weifang Ricardo Genset
Technical Parameters:
| Technical Specification: | ||
| Standby 20kW Weifang Ricardo Diesel Generator Specification | ||
| Genset Model | TG25RD6 | TG25RSD6 |
| Open | Silent | |
| Frequency | 60Hz | |
| Rate Speed | 1800RPM | |
| Voltage | 208/120V | |
| Phase | 3 Phase, 4 or 12 Wires | |
| Rate Current | 69.4A | |
| Prime Power | 18kW / 23kVA | |
| Standby Power | 20kW / 25kVA | |
| Engine Model | Ricardo 4YT23-20D | |
| Alternator Model | TGI184S18 | |
| Controller | DC52D | |
| Weight & Dimensions | ||
| Length (mm) | 1700 | 2300 |
| width (mm) | 840 | 980 |
| Height (mm) | 1360 | 1460 |
| Weight (kgs) | 800 | 1150 |
| Engine Specification | ||
| Brand | KOFO Ricardo Series | |
| Engine Model | 4YT23-20D | |
| Prime power (kW) | 22 | |
| Injection | Indirect | |
| Aspiration | Naturally Aspirated | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 88 x 95 | |
| Displacement (L) | 2.31 | |
| Cooling | water | |
| Compression Ratio | 18:1 | |
| Brand | KOFO Ricardo Series | |
| Engine Oil capacity (L) | 7.2 | |
| Coolant Capacity ( In radiator) | 7.2 | |
| Governor | MECH | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 60Hz | |
| 100% Load (L/h) | 5.7 | |
| 75% Load (L/h) | 4.6 | |
| 50% Load (L/h) | 3.7 | |
| 25% Load (L/h) | 2.4 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI184S18 | |
| Rate Output (kVA) | 23 | |
| Speed | 1800RPM | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Mebay | |
| Model | DC52D | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
The Ricardo Backup Generator is a perfect choice for remote areas and locations where power outages are common. It is also a great choice for businesses that rely on a reliable source of power. Tecgen Ricardo Genset is a trusted brand in the industry with its Model Number TG25RD6. It is ISO / CE / SASO / CIQ certified and is available in minimum order quantity of 1 Unit. The price is negotiable and the packaging details include plastic film package in container. The delivery time is 10 working days and the payment terms are T/T / L/C. The supply ability is 400 Units Per Month with a range of options including ATS and Water Heater. The Genset Standby Output is 20kW / 25kVA and the Genset Prime Output is 18kW / 23kVA. The Voltage range is 120 / 128 / 208 / 220 / 256 / 415/ 440V and it is an Open Genset Type.
Customization:
Ricardo Diesel Powered Generators
Brand Name: Tecgen Ricardo Genset
Model Number: TG25RD6
Place of Origin: Fuzhou, China
Certification: ISO / CE / SASO / CIQ
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Plastic film package in container
Delivery Time: 10 Working Days
Payment Terms: T/T / L/C
Supply Ability: 400 Units Per Month
Genset Engine Model: 4YT23-20D
Genset Type: Open
Frequency / Speed: 50Hz / 1500rpm
Voltage: 120 / 128 / 208 / 220 / 256 / 415/ 440V
Options: ATS / Water Heater
Ricardo Diesel Gensets
Tecgen Ricardo Genset TG25RD6 is a diesel powered generator. With its certification of ISO / CE / SASO / CIQ, this Ricardo diesel genset is popularly used in industries and commercial applications for its reliable performance.
Minimum order quantity of this Ricardo diesel generator is 1 unit, and delivery time is 10 working days. Price can be negotiated and payment terms can be either T/T or L/C. Supply ability of this genset is 400 units per month.
This Ricardo generator has a 4YT23-20D engine model and operates in open type. It runs in 60Hz and 1800rpm, and its voltage can be adjusted to 120 / 128 / 208 / 220 / 256 / 415/ 440V
Options of the genset include ATS and water heater.
Support and Services:
Ricardo Diesel Generators provides technical support and services to ensure our customers get the most out of their equipment. Our team of experienced engineers and technicians are available to provide troubleshooting assistance, maintenance, and repair services for a variety of diesel engine-powered generators. We can also provide spare parts and consumables for most models, ensuring that your generator will continue to perform reliably and efficiently.
We offer a range of services, tailored to the specific needs of our customers, including preventative maintenance, on-site services, repair, installation, commissioning, and more. Our team has the expertise to help you get the most out of your equipment and protect your investment for the long-term.
Packing and Shipping:
Ricardo Diesel Generators are carefully and securely packaged for shipping. All shipments are ensured to be safely delivered to customers. Our packaging process includes:
- Generators are securely and tightly secured in a protective box.
- The box is then placed in a protective bag to prevent any damage.
- We use shock-resistant packing materials to protect the generator from any impact.
- We use high-grade pallets and shrink wrap to ensure the generator is secure during transport.
FAQ:
Q1: What is the brand name of Ricardo Diesel Generators?
A1: The brand name of Ricardo Diesel Generators is Tecgen Ricardo Genset.
Q2: What is the model number of Ricardo Diesel Generators?
A2: The model number of Ricardo Diesel Generators is TG25RD6.
Q3: Where are Ricardo Diesel Generators made?
A3: Ricardo Diesel Generators are made in Fuzhou, China.
Q4: What certifications do Ricardo Diesel Generators have?
A4: Ricardo Diesel Generators have ISO / CE / SASO / CIQ certifications.
Q5: How many units can you supply per month?
A5: We can supply 400 units of Ricardo Diesel Generators per month.
