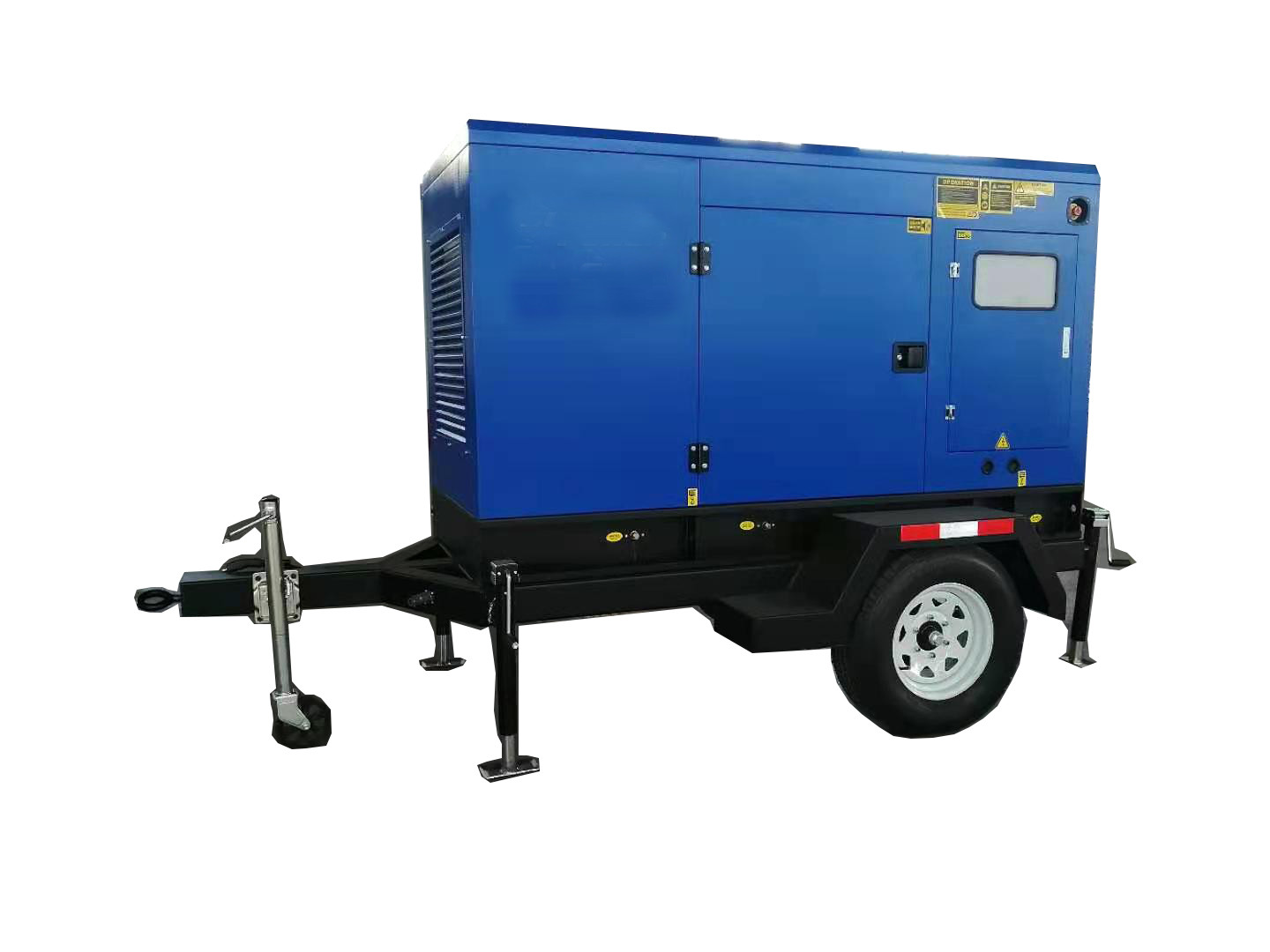

50Hz Trailer Type Perkins Industrial Generator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Perkins Trailer Type Genset | Genset Output | 135kVA |
|---|---|---|---|
| Frequency | 50Hz | Genset Type | Silent & Trailer |
| Trailer | 2 Wheels | Engine Brand | Perkins (Wuxi) |
| Alternator Brand | Stamford | Controller | ComAp AMF20 |
| Fuel Tank Capacity | 240L | HS Code | 8502120000 |
| Highlight | Trailer Type perkins industrial generator,135kVA perkins industrial generator,50Hz perkins engine generator |
||
Product Description
135kVA Trailer Type Generator Perkins Diesel Generator Excellence Quality for Industrial Demands
Our Perkins gensets comply with all major standards, including: GB/T2820, ISO8528, IEC34, CE, EPA Tier4 Standards
Prime output powers range from 9KVA to 2250 KVA
Rated voltages include 120V/240V, 220/380V, 230V/400V, 254V/440V, etc.
Phase/connection: 3 phase, 4 wire.
Rated frequencies: 50Hz@1500rpm, 60Hz@1800rpm
Alternator excited types: Brushless, self-excited or PMG
Insulation class: Class H
Protection grade: IP21~IP23
Voltage regulation: AVR automatic control 1%
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤90%
135kVA SILENT & TRAILER MOUNT PERKINS GENSET EDTECHNICAL DATA:
| Technical Specification: | ||
| Generator Set Specification | ||
| Genset Model | TG149PS | TG149PST |
| Silent | Silent & Trailer | |
| Frequency | 50Hz | |
| Voltage | 380/220V | |
| Phase | 3 Phase, 4 Wires | |
| Rate Current | 205.1A | |
| Prime Power | 108kW / 135kVA | |
| Standby Power | 119kW / 149kVA | |
| Engine Model | Perkins 1106A-70TG1 | |
| Alternator Model | Stamford UCI 274E | |
| Controller | ComAp AMF20 | |
| Trailer type | Two Wheels | |
| Weight & Dimensions | ||
| Length (mm) | 2900 | 3500 |
| width (mm) | 1100 | 1600 |
| Height (mm) | 1530 | 1900 |
| Weight (kgs) | 1980 | 2500 |
| Engine Specication | ||
| Brand | Perkins (Wuxi) | |
| Engine Model | 1106A-70TG1 | |
| Prime/Standby power (kw) | 123.7 / 136.9 | |
| Injection | Indirect | |
| Aspiration | Turbocharged & Intercooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 105 x 135 | |
| Displacement (L) | 7 | |
| Cooling | water | |
| Compression Ratio | 18.2:1 | |
| Engine Oil capacity (L) | 16.5 | |
| Coolant Capacity ( In radiator) | 16.5 | |
| Governor | MECH | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 50Hz | |
| 100% Load (L/h) | 30.2 | |
| 75% Load (L/h) | 22.7 | |
| 50% Load (L/h) | 15.9 | |
| 25% Load (L/h) | 9.0 | |
| Alternator Specification | ||
| Brand | Cummins Generator Technologies | |
| Model | Stamford UCI 274E | |
| Rate Output (kW) | 112 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | ComAp | |
| Model | AMF20 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, ABB Breaker, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Generator Heater, Parallel Panel, Fuel-water separator, Super Silent type, Trailer Type, 3000Hours Spare Parts | ||
PERKINS DIESEL GENSET FEATURES
1. Genuine Perkins industrial diesel engine
2. Radiator 50°C max, fans are driven by belt, with safety guard
3. Genuine Stamford. Leroy Somer, Marathon, TECGEN alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank
9. Mould case circuit breaker
10. 24V DC start motor and storage battery
11. 24V charge alternator
12. 24V batteries, rack and cable
13. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
14. Comply with ISO and CE standards
15. All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
Frequently Asked Questions (FAQ):
- What is your minimum order quantity (MOQ)? What are your payment methods and delivery timeframes?
Our MOQ is just 1 set. We accept various payment methods, typically 30% as deposit via T/T, with the balance paid before delivery. We also accept 100% L/C, trade assurance, PayPal, or Western Union. Delivery typically occurs within 10-15 working days of receipt of customer's deposit.
- What ports do you typically use for export?
We typically export through the port of Fuzhou, Fujian province, but can also accommodate customer-specified ports.
- Do you provide spare parts with the generators to facilitate maintenance?
Yes, we can provide customers with regular engine air filters, water filters, fuel filters, and oil filters for self-maintenance.
- Can you provide parts to us if we need them?
Yes, we can provide parts to you at any time, even outside of the warranty period. Typically, parts can be sent out within 3-5 days.
- Can you customize products to meet our requests for voltage, frequency, tank capacity, phase, and color?
Yes, we can customize products to meet your specific needs regarding voltage, frequency, tank capacity, phase, and color.
- If I want to become your products distributor in our country, what is your distribution policy?
We welcome individuals and companies worldwide to become our distributors. We can provide you with authorization certificates and sign an agreement with you accordingly.
