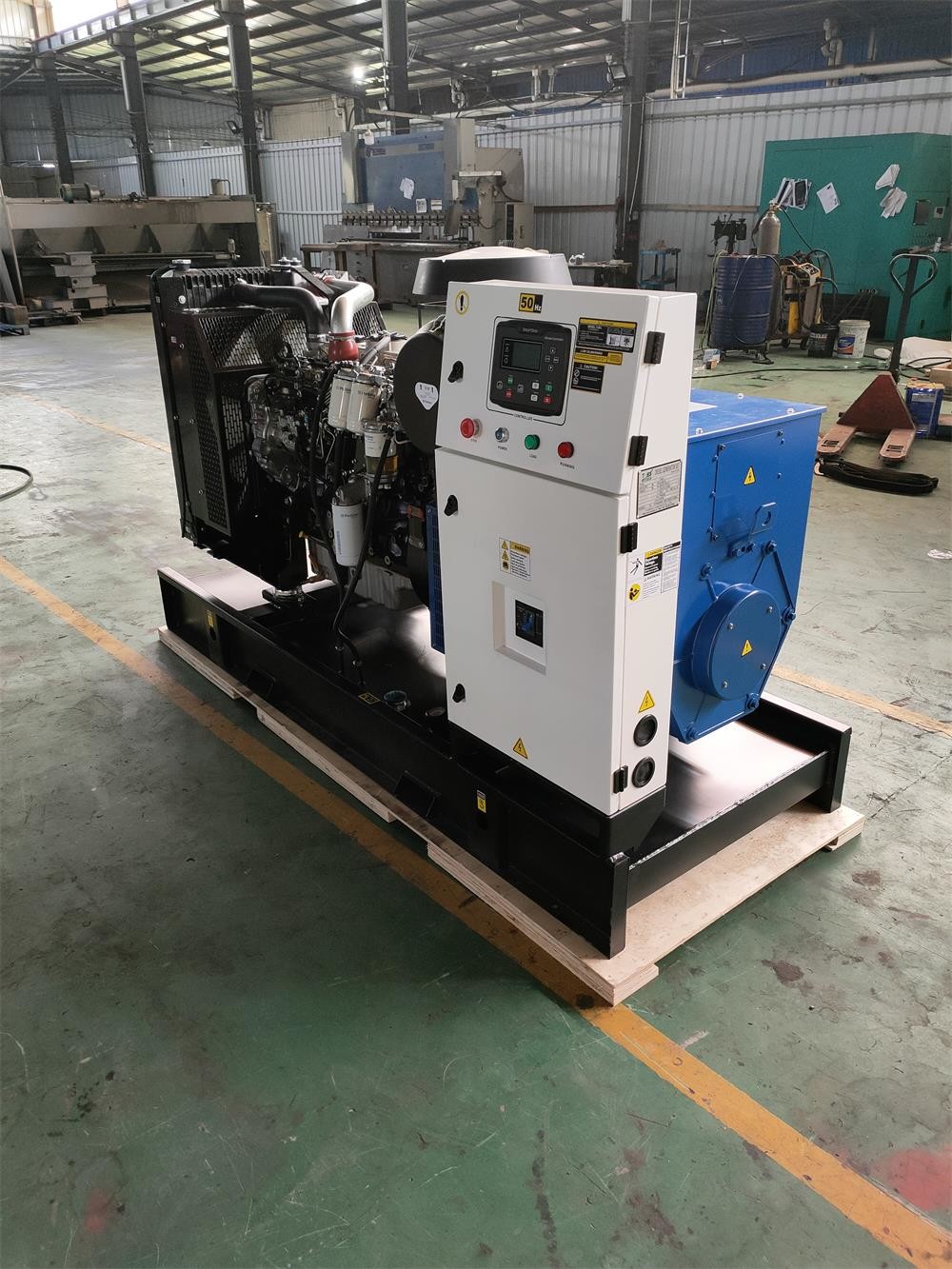

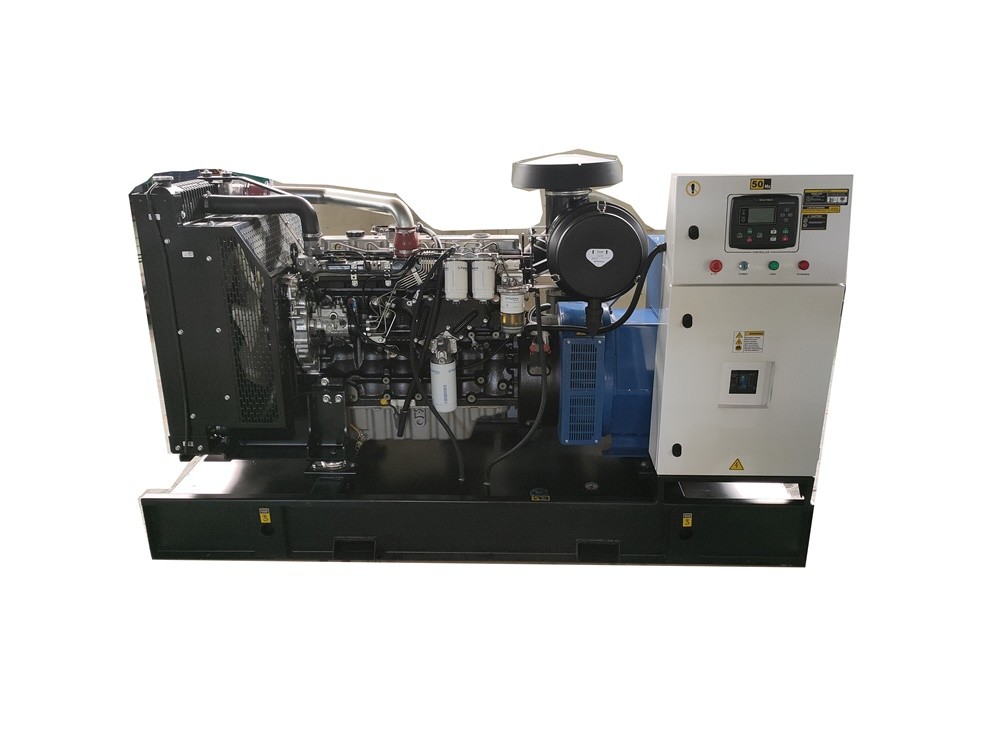

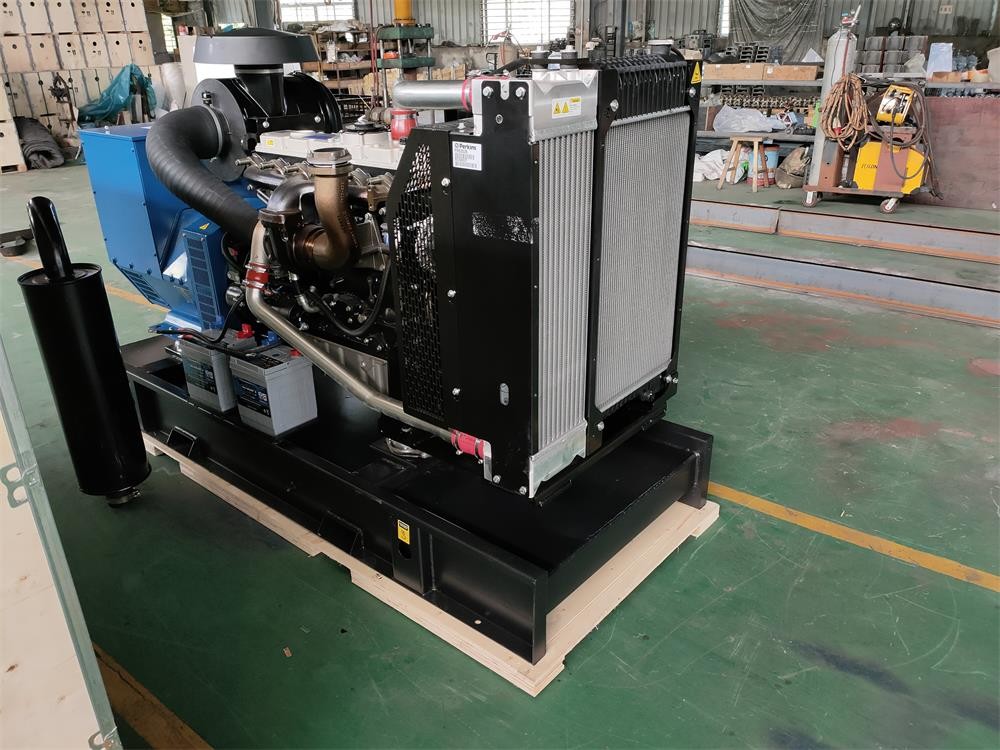

Trusted Power Solutions 28kVA Perkins Industrial Generator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | 28kVA Perkins Diesel Generator | Rate Output | 28kVA |
|---|---|---|---|
| Standby Output | 30kVA | Output Type | 3 Phase , 4 Wire |
| Frequency | 50Hz | Usage | Uninterruptible Power Supply |
| Engine Brand | Perkins (Wuxi) | Alternator Brand | Stamford |
| Genset Type | Open | Fuel Tank Capacity | 70L |
| Highlight | 28kVA perkins industrial generator,3 Phase perkins industrial generator,50Hz perkins 28kva generator |
||
Product Description
Trusted Power Solutions 28kVA Perkins Generator Set Reliability Genset for Industry Power
GENSET FEATURES
1. Genuine Perkins industrial diesel engine
2. Radiator 50°C max, fans are driven by belt, with safety guard
3. Genuine Stamford. Leroy Somer, Marathon, TECGEN alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank
9. Mould case circuit breaker
10. 24V DC start motor and storage battery
11. 24V charge alternator
12. 24V batteries, rack and cable
13. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
14. Comply with ISO and CE standards
15. All generator sets are gone through rigorous testing before being released to the market place, including 25%, 50% load, 75% load, 100% load and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
28kVA PERKINS GENERATOR TECHNICAL DATA:
| Technical Specification: | ||
| Generator Set Specification | ||
| Genset Model | TG30P | TG30PS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 380/220V | |
| Phase | 3 Phase, 4 Wires | |
| Rate Current | 42.5A | |
| Prime Power | 22kW / 28kVA | |
| Standby Power | 24kW / 30kVA | |
| Engine Model | Perkins 404D-22TG | |
| Alternator Model | Stamford PI 144F | |
| Controller | ComAp AMF20 | |
| Weight & Dimensions | ||
| Length (mm) | 1580 | 2250 |
| width (mm) | 810 | 860 |
| Height (mm) | 990 | 1150 |
| Weight (kgs) | 560 | 760 |
| Engine Specification | ||
| Brand | Perkins (Wuxi) | |
| Engine Model | 404D-22TG | |
| Prime/Standby power (kw) | 25.2 / 27.7 | |
| Injection | Indirect | |
| Aspiration | Turbocharged | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 84 x 100 | |
| Displacement (L) | 2.216 | |
| Cooling | water | |
| Compression Ratio | 23.3:1 | |
| Engine Oil capacity (L) | 9.3 | |
| Coolant Capacity ( In radiator) | 9.3 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 50Hz | |
| 100% Load (L/h) | 7.1 | |
| 75% Load (L/h) | 5.3 | |
| 50% Load (L/h) | 3.5 | |
| 25% Load (L/h) | 1.8 | |
| Alternator Specification | ||
| Brand | Cummins Generator Technologies | |
| Model | Stamford PI 144F | |
| Rate Output (kVA) | 28 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | ComAp | |
| Model | AMF20 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Tecgen Perkins Diesel Gensets: Your Reliable Power Solution
1. Powered by Perkins Excellence:
Our gensets are driven by the renowned Perkins engine, guaranteeing not only reliable performance but also exceptional energy efficiency. Perkins engines are celebrated for their longevity and consistent power output, providing peace of mind for your power needs.
2. Premium Alternator Choices:
Standard with a Leroy Somer alternator, which is globally recognized for its exceptional performance and quality. For added flexibility, choose from additional options like Meccalte and Deepsea DSE7320 alternators.
3. Advanced Control Panels:
Our Perkins open-type gensets come with a Smartgen HGM 6120N control panel as standard, ensuring user-friendly controls and straightforward operation. Additionally, you have the option to upgrade to AMF control panels such as Deepsea DSE7320 and DEIF DKG-507 for enhanced functionality. Plus, we offer Automatic Transfer Switch (ATS) options for seamless power source switching.
4. Reliable Circuit Protection:
Standard with CHNT breakers, ensuring dependable power distribution and circuit protection. For those seeking extra safety features, we offer ABB and Schneider breaker options.
5. Extended Fuel Capacity:
Enjoy uninterrupted operation with an 8-hour base fuel tank for gensets up to 650kVA. For other models, we provide a durable base frame as an alternative to ensure a stable foundation for your genset.
6. Anti-Vibration System:
Our gensets incorporate an anti-vibration mounted system, which minimizes mechanical stress and guarantees smooth operation, even in challenging conditions. This system provides stability and longevity for your equipment.
7. Backup Power Supply:
A built-in battery and battery switch are included to offer standby power in case of a primary power failure, ensuring continuous operation.
8. Silent Operation:
The industrial silencer and flexible exhaust hose are part of our standard package to reduce noise emissions, maintaining compliance with environmental regulations, and creating a comfortable workspace.
