Soundproof Type Cummins 125kVA Diesel Generator Set for hosipital Emergeny Power Generator Set
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Cummins Diesel Generator | Type | Silent Type |
|---|---|---|---|
| Frequency | 60Hz | Speed | 1800rpm |
| Voltage | 208/120V | Current | 249.8A |
| Prime Output | 100kW / 125kVA | Standby Output | 110kW / 138kVA |
| Controller | Smartgen HGM6120N | Noise Level | 68dB(A) |
Product Description

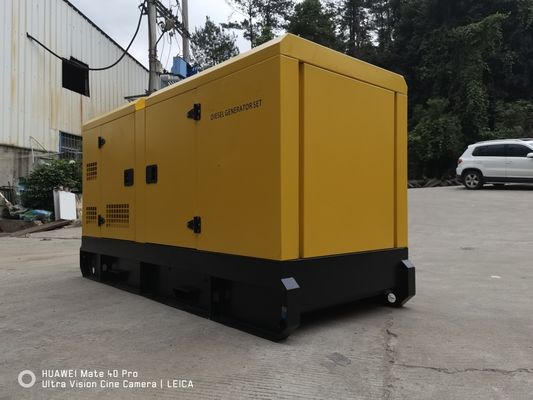

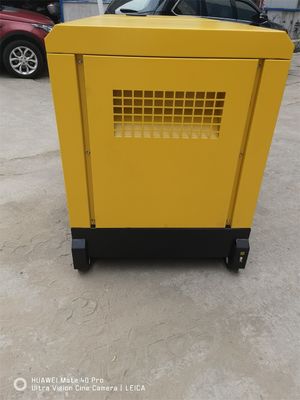

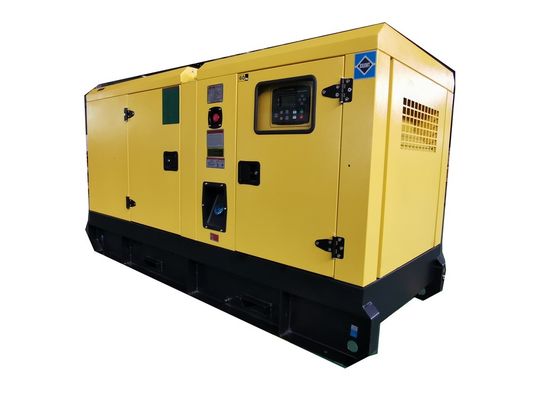

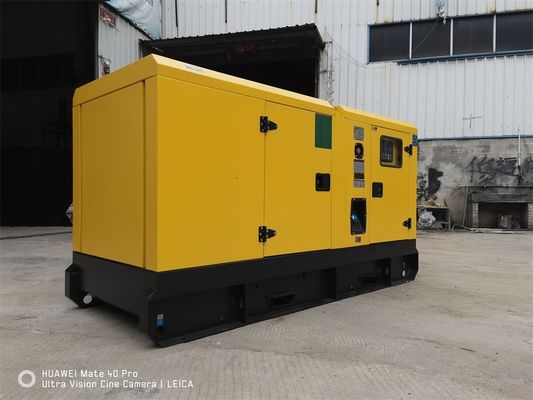

Soundproof Type Cummins 125kVA Diesel Generator Set for hosipital Emergeny Power Generator Set
Cummins Generator Specifications
1. Versatile Power Range: Our generators offer a rated power from 20 kVA to a robust 1500 kVA prime, catering to a wide range of power needs.
2. Frequency Options: You can choose between 50Hz and 60Hz to match the specific requirements of your applications.
3. Precision Speed Control: Our generators operate at 1500/1800 RPM, ensuring precise power output.
4. Flexible Phase Configurations: Whether you need 3-phase or single-phase power, our generators can accommodate your needs.
5. Voltage Customization: We provide voltage options ranging from 110 V to 460 V, ensuring compatibility with various electrical systems.
6. Extended Operation: A generously-sized fuel tank ensures 8 hours of continuous operation or more, perfect for long-lasting power supply.
7. Quiet Operation: Our generators maintain a noise level below 68 dB at 7 meters, minimizing disruption in noise-sensitive environments.
8. Extreme Environment Compatibility: Operating seamlessly between -5ºC and +50ºC, our generators handle a broad range of environmental conditions.
9. Efficient Cooling: Featuring a 50ºC environmental protection water tank, our generators ensure consistent cooling even in demanding situations.
10. Robust Diesel Engine: Our generators are powered by reliable four-stroke, water-cooled diesel engines, offering longevity and performance.
11. Top-Notch Alternators: We use brushless alternators from reputable brands like Stamford Leroy Somer, Mecc Alte and Copy Stamford alternator, ensuring exceptional power output.
12. Advanced Control Options: Your generator is equipped with controllers from leading brands such as Deepsea, ComAp, Smartgen, or DATAKOM, offering precise control and monitoring.
13. Quick Delivery: Our standard delivery time is just 15 days, ensuring you get your power solution promptly.
14. Convenient Starting: Start your generator manually or opt for electric start with adjustable settings, providing flexibility in operation.
15. Secure Packaging: Generators are carefully wrapped in plastic shrink wrap film to ensure they reach you in top condition.
16. Customized Export Options: We export via Fuzhou Port or your preferred port, offering flexibility in shipping.
80kW CUMMINS DIESEL GENERATOR TECHNICAL DATASHEET:
| Technical Specification: | ||
| 125kVA Cummins Generator Set Specification | ||
| Genset Model | TG138CD6 | TG138CSD6 |
| Open | Silent | |
| Frequency | 60Hz | |
| Rate Speed | 1800RPM | |
| Voltage | 208/120V | |
| Phase | 3 Phase, 4 or 12 Wires | |
| Rate Current | 347.0A | |
| Prime Power | 100kW / 125kVA | |
| Standby Power | 110kW / 138kVA | |

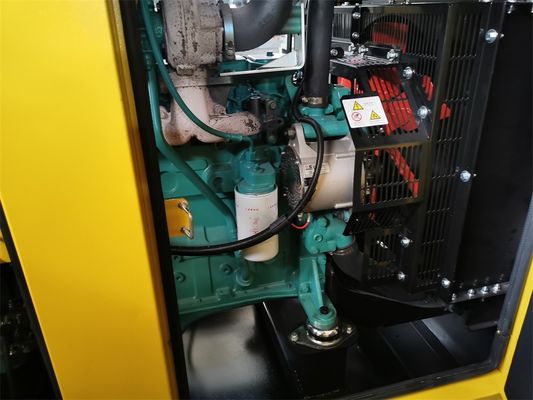

| Engine Model | Cummins 6BT5.9G2 | |
| Alternator Model | TGI274S100 | |
| Controller | DSE6020 | |
| Weight & Dimensions | ||
| Length (mm) | 2240 | 2700 |
| Width (mm) | 900 | 1020 |
| Height (mm) | 1400 | 1530 |
| Weight (kgs) | 1155 | 1820 |
| Engine Specification | ||
| Brand | DCEC Cummins | |
| Engine Model | 6BT5.9G2 | |
| Prime/Standby power | 115kW / 127kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged | |
| No. of cylinders | 6 | |
| Speed | 1800RPM | |
| Bore of Stroke (mm) | 102 x 120 | |
| Displacement (L) | 5.9 | |
| Cooling | Water Cooled | |
| Compression Ratio | 17.3:1 | |
| Engine Oil capacity (L) | 7.9 | |
| Coolant Capacity ( In radiator) | 7.9 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 60Hz | |
| 100% Load (L/h) | 29.7 | |
| 75% Load (L/h) | 22.2 | |
| 50% Load (L/h) | 15.6 | |
| 25% Load (L/h) | 9.4 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI274S100 | |
| Rate Output | 125kVA | |
| Speed | 1800RPM | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Deepsea | |
| Model | DSE6020 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Each and every Silent Cummins generator undergoes strict testing before shipment, including:
Functional testing:
√ Component faults testing
√ Fuel tank pressure testing
√ Bolt tightening torque testing
√ Painting finish testing
√ Temperature testing
√ Noise testing
√ Loading testing (0%, 25%, 50%, 75%, 100%, and 110% loading)
√ Control system and protection system function verification stringent testing procedures
We take great care during the testing phase, conducting loading tests at 0%, 25%, 50%, 75%, 100%, and 110% for every unit we ship. Each genset undergoes a load test for at least 30 minutes to ensure that its power output is optimal and its performance is stable.
We then test the controller and protective functions of each genset to verify if they can effectively stop the genset during any abnormal situations. Finally, we inspect all the details of the genset, including whether the bolts and nuts are properly tightened, the quality of the painting finish, and the presence of all accessories.
Frequently Asked Questions (FAQ):
- How do I purchase your Cummins Genset?
You can place an order directly through email, WhatsApp or Wechat.
- Do buyers need to contact the seller after placing an order?
No, we will contact you as soon as possible and begin preparing your generator set for production.
- How long does it take to receive the product after placing an order?
7-15 days from the deposit being received. After your order is placed, we will contact you and provide you with the specific timeframe.
- What is the minimum order quantity (MOQ)?
The MOQ is 1 unit.
- Are you a manufacturer or trading company?
We are a manufacturer with three large, owned factories as well as R&D teams and foreign trade teams.
- How is spare parts supply for generators provided?
During the warranty period, we can send you free spare parts by DHL.
If you are interested in TECGEN generator sets, please feel free to contact us. Welcome to visit TECGEN!
