Cummins Generator Set Low Nosie Cummins 200kVA Diesel Generator Set Competitive Price in Genset Market
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Cummins Low Noise Genset | Frequency | 50Hz |
|---|---|---|---|
| Rate Voltage | 400 / 230V | Rete Current | 288.7A |
| Prime Output | 160kW / 200kVA | Standby Output | 176kW / 220kVA |
| Engine Model | 6CTAA8.3-G2 | Alternator Model | TGI274S160 |
| ATS | 300A Auto Transfer Switch | Genset Type | Low Noise Soundproof Type |
Product Description

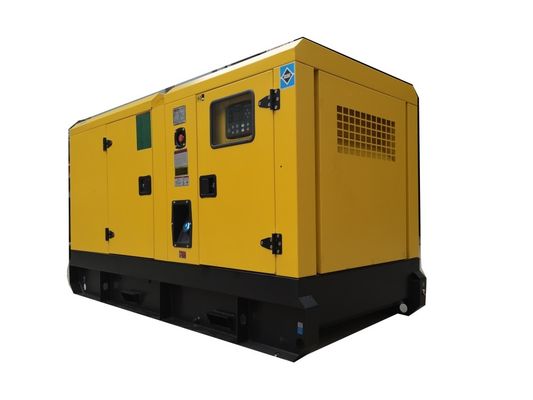

Cummins Generator Set Low Nosie Cummins 200kVA Diesel Generator Set Competitive Price in Genset Market
Tecgen Power Cummins 160kW Generator Set Standard Features:
1. Rated Power : 20KVA - 1500KVA (16kW – 1200kW)
2. Frequency :50/60Hz
3. Speed :1500/1800rpm
4. Phase :Three phase ; single phase
5. Voltage: 110V - 460V
6. Genset Fuel tank Capacity: 8 hours
7. Silent Generator Noise level : below 68db@7m
8. Environmental temperature : -5ºC ~ 50ºC
9. Water tank :50ºC environmental protection water tank
10. Diesel engine :Diesel , four stroke , water cooling
11. Alternator : brushless alternator /Stamford / Mecc alte / Leroy Somer / Marathon / Copy Stamford
12. Controller : Deepsea / ComAp / Smartgen / DATAKOM
13. Delivery time: Normal 15 days
14. Starting method: Manual, Electronic or ECU , adjustable
15. Package : Plastic wrapping film
16. Shipment Export port : Fuzhou Port
17. Optional : Water heater , fuel heater, Alternator heater.
18. Electrical start system with maintain free battery & engine driven battery charger;
19. Residence silencer with flexible connections & elbow;
20. Full Set of Test report, drawings & manuals include.
CUMMINS 200kVA DIESEL GENERATOR SET TECHNICAL DATA:
| Technical Specification: | ||
| Cummins Generator Set Specification | ||
| Genset Model | TG220C | TG220CS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 288.7A | |
| Prime Power | 160kW / 200kVA | |
| Standby Power | 176kW / 220kVA | |
| Engine Model | 6CTAA8.3-G2 | |
| Alternator Model | TGI274S160 | |
| Controller | HGM6120N | |
| Weight & Dimensions | ||
| Length (mm) | 1750 | 2300 |
| Width (mm) | 840 | 980 |
| Height (mm) | 1360 | 1460 |
| Weight (kgs) | 930 | 1290 |
| Engine Specification | ||
| Brand | Cummins | |
| Engine Model | 6CTAA8.3-G2 | |
| Prime/Standby power (kW) | 183 / 203 | |
| Injection | Indirect | |
| Aspiration | Turbocharged and Charge Air Cooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 114x135 | |
| Displacement (L) | 8.3 | |
| Cooling | water | |
| Compression Ratio | 18:1 | |
| Engine Oil capacity (L) | 12.3 | |
| Coolant Capacity ( In radiator) | 12.3 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 49 | |
| 75% Load (L/h) | 37 | |
| 50% Load (L/h) | 25 | |
| 25% Load (L/h) | 15 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI274S160 | |
| Rate Output (kVA) | 200 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Smartgen | |
| Model | 6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||

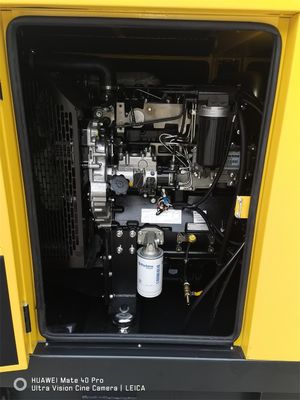

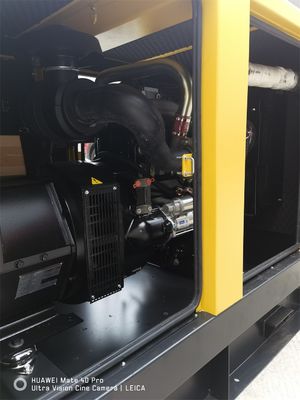

Diesel Engine System
*Heavy duty diesel engine
*Four stroke, water cooled
*12V and 24V stater and charge alternator
*Cooling radiator and fan
*Maintenance free battery including ract and cable
*Flexible fuel connection hoses and manual oil sump drain valve
*Exhaust silencer
*Machinery or electronic governing
*Fuel injection pump
*Electric motor starting system
*Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
*Low discharge, and low fuel consumption
*Installed conveniently and maintain easily
*AC Alternator system
*Brushless, single bearing, flexible disc
*Insulation class: H
*Protection class: IP23
*Self-exciting and Self-regulation
*Genset Low Nosie Canopy
*All canopy designed with modular principles
*All metal canopy parts painted by electrostatic polyester power paint
*Soundproof design ensure that the noise level be controlled in small scope
*Convenient to lift and move
*Easy to maintenance and operate
*Genset Base Frame
*Base frame including position for forklift and crane
*Integral fuel tank
*Daily fuel tank continuously supply for 8-24 hours
*Fuel tank easy to maintain and clean
*Anti-vibration pads are flexed between engine and alternator.
* Genset Control system
Controller Brand: Deepsea , ComAp, Smartgen, DATAKOM, MEBAY
Control Panel: English interface, LED screen and touch buttons.
*Control, monitor and protect the Generator Set including:
*High water temperature
*Low oil pressure
*Over and under speed
*Over current
*Under/Over generator voltage
*Start and stop failure
*Low and high battery voltage
*Charge failure
*Emergency stop
^Warranty
Running 1500 hours / 18months from shipment (which comes first)
Improper operation and maintenance will not be covered by the warranty.
Why Tecgen Power Cummins Low Noise Genset:
1. 15 years experience in supplying diesel generator sets and gasoline generator with different sorts of brand
2. We are Factory, you will have Factory price, Factory Quality, Factory Warranty.
3. Offer Super good service before and after sales, Response your needs fast.
4. Our reputation for low prices, fast shipping and excellent customer service keeps customers coming back.
