475kVA Cummins Quiet Outdoor Generator Low Noise Soundproof
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Cummins Outdoor Genset | Frequency | 50Hz |
|---|---|---|---|
| Rate Voltage | 400 / 230V | Rete Current | 685.6A |
| Prime Output | 380kW / 475kVA | Standby Output | 420kW / 525kVA |
| Engine Model | QSZ13-G3 | Alternator Model | TAL-A473-C |
| ATS | 800A Auto Transfer Switch | Genset Type | Outdoor Soundproof Type |
| Highlight | Cummins quiet outdoor generator,475kVA quiet outdoor generator,Soundproof quiet power generator |
||
Product Description
Silent Power Generators 475kVA Outdoor Cummins Generating Set Low Noise Soundproof Cummins Generators
Tecgen Power Cummins 380kW Generating Set Standard Features:
1. Rated Power : 20KVA - 1500KVA (16kW – 1200kW)
2. Frequency :50/60Hz
3. Speed :1500/1800rpm
4. Phase :Three phase ; single phase
5. Voltage: 110V - 460V
6. Genset Fuel tank Capacity: 8 hours
7. Silent Generator Noise level : below 68db@7m
8. Environmental temperature : -5ºC ~ 50ºC
9. Water tank :50ºC environmental protection water tank
10. Diesel engine :Diesel , four stroke , water cooling
11. Alternator : brushless alternator /Stamford / Mecc alte / Leroy Somer / Marathon / Copy Stamford
12. Controller : Deepsea / ComAp / Smartgen / DATAKOM
13. Delivery time: Normal 15 days
14. Starting method: Manual, Electronic or ECU , adjustable
15. Package : Plastic wrapping film
16. Shipment Export port : Fuzhou Port
17. Optional : Water heater , fuel heater, Alternator heater.
18. Electrical start system with maintain free battery & engine driven battery charger;
19. Residence silencer with flexible connections & elbow;
20. Full Set of Test report, drawings & manuals include.
CUMMINS 475kVA DIESEL ENGINE GENSET TECHNICAL DATA:
| Technical Specification: | ||
| Cummins Outdoor Generator Set Specification | ||
| Genset Model | TG525C | TG525CS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 685.6A | |
| Prime Power | 380kW / 475kVA | |
| Standby Power | 420kW / 525kVA | |
| Engine Model | QSZ13-G3 | |
| Alternator Model | TAL-A473-C | |
| Controller | DSE7320 | |
| Weight & Dimensions | ||
| Length (mm) | 3400 | 4200 |
| width (mm) | 1270 | 1730 |
| Height (mm) | 2100 | 2230 |
| Weight (kgs) | 4166 | 5300 |
| Engine Specifications | ||
| Brand | Cummins | |
| Engine Model | QSZ13-G3 | |
| Prime (kw) | 450 | |
| Injection | Indirect | |
| Aspiration | Turbocharged and Air-air Intercooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 130 x 163 | |
| Displacement (L) | 13 | |
| Cooling | water | |
| Compression Ratio | 17:1 | |
| Engine Oil capacity (L) | 23.1 | |
| Coolant Capacity ( In radiator) | 23.1 | |
| Governor | ECU | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 101 | |
| 75% Load (L/h) | 74 | |
| 50% Load (L/h) | 48.8 | |
| 25% Load (L/h) | 26 | |
| Alternator Specification | ||
| Brand | Leroy Somer | |
| Model | TAL-A473-C | |
| Rate Output (kW) | 400 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Deepsea | |
| Model | DSE7320 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||

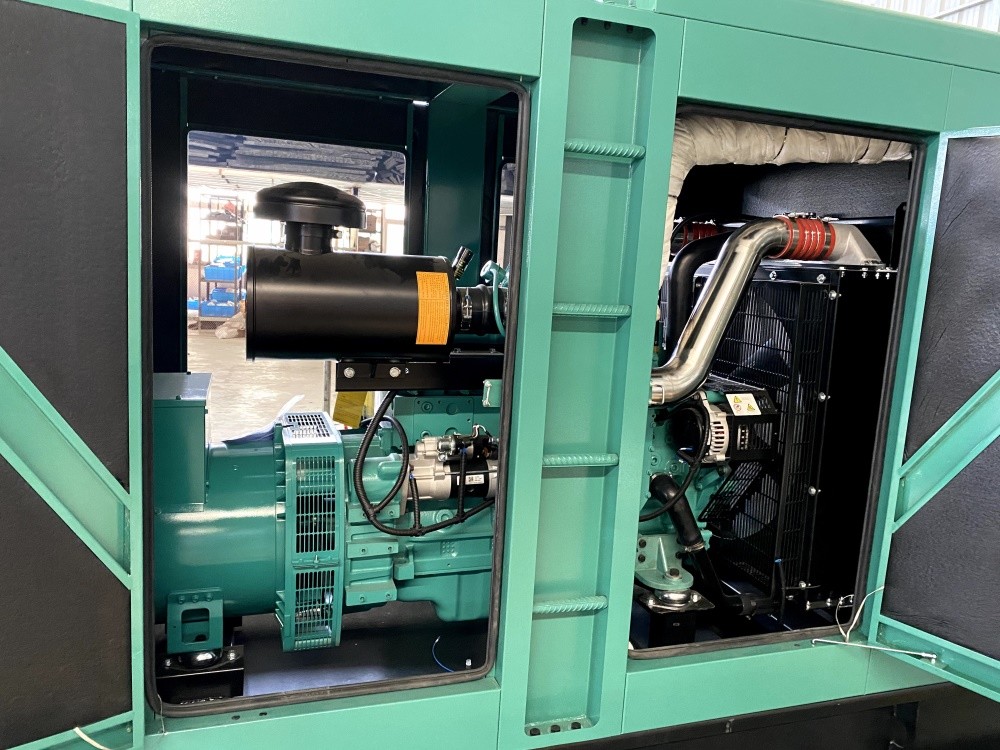

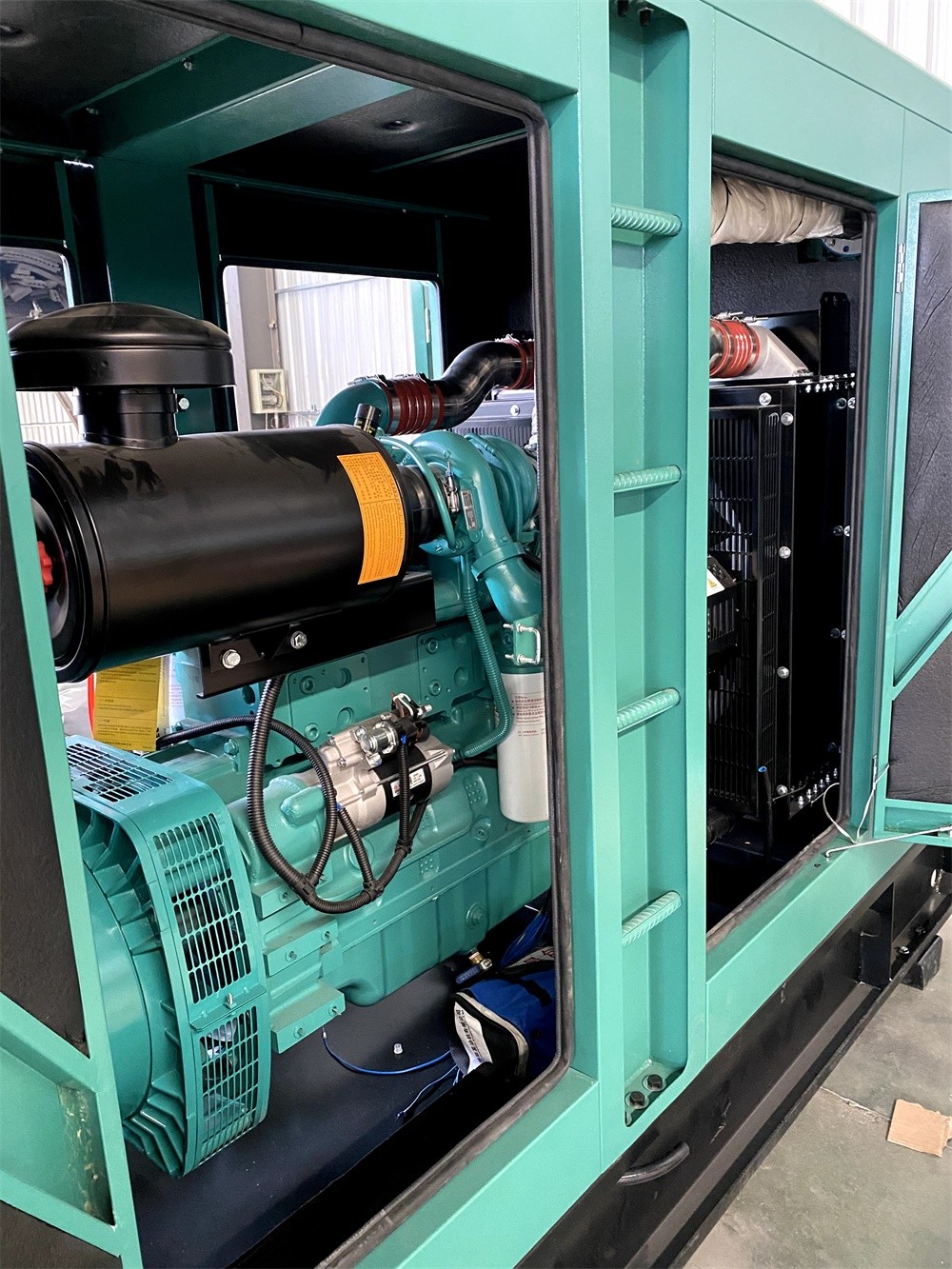

Cummins Diesel Engine System
*Heavy duty diesel engine
*Four stroke, water cooled
*12V and 24V stater and charge alternator
*Cooling radiator and fan
*Maintenance free battery including ract and cable
*Flexible fuel connection hoses and manual oil sump drain valve
*Exhaust silencer
*Machinery or electronic governing
*Fuel injection pump
*Electric motor starting system
*Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
*Low discharge, and low fuel consumption
*Installed conveniently and maintain easily
*Leroy Somer AC Alternator system
*Brushless, single bearing, flexible disc
*Insulation class: H
*Protection class: IP23
*Self-exciting and Self-regulation

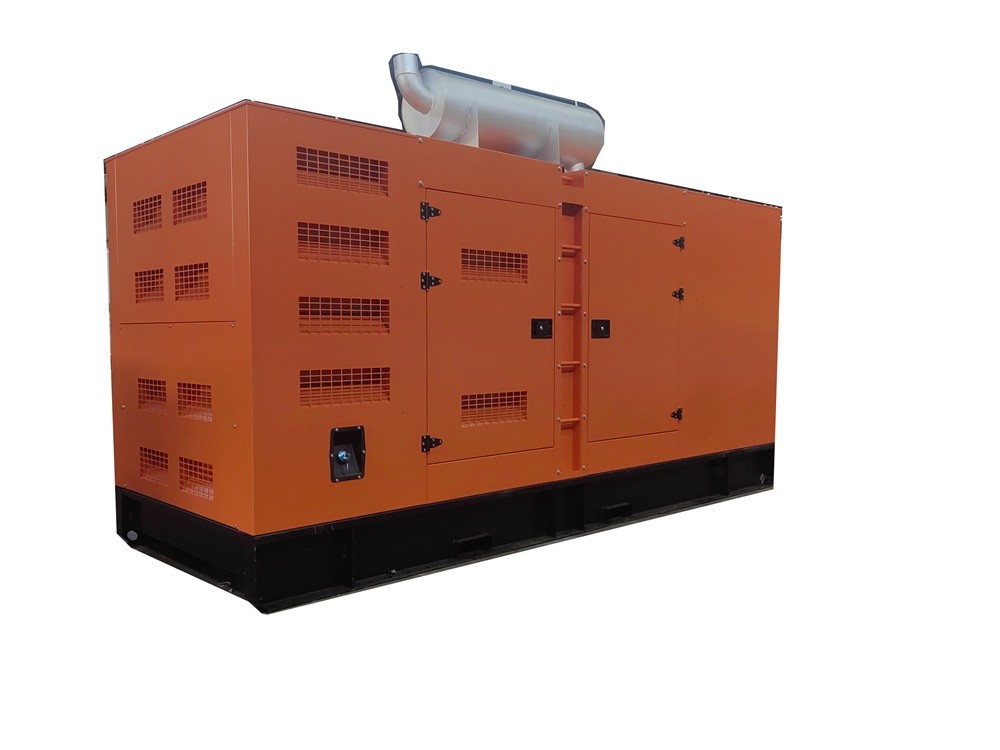

*Genset Low Nosie Canopy
*All canopy designed with modular principles
*All metal canopy parts painted by electrostatic polyester power paint
*Soundproof design ensure that the noise level be controlled in small scope
*Convenient to lift and move
*Easy to maintenance and operate
*Genset Base Frame
*Base frame including position for forklift and crane
*Integral fuel tank
*Daily fuel tank continuously supply for 8-24 hours
*Fuel tank easy to maintain and clean
*Anti-vibration pads are flexed between engine and alternator.

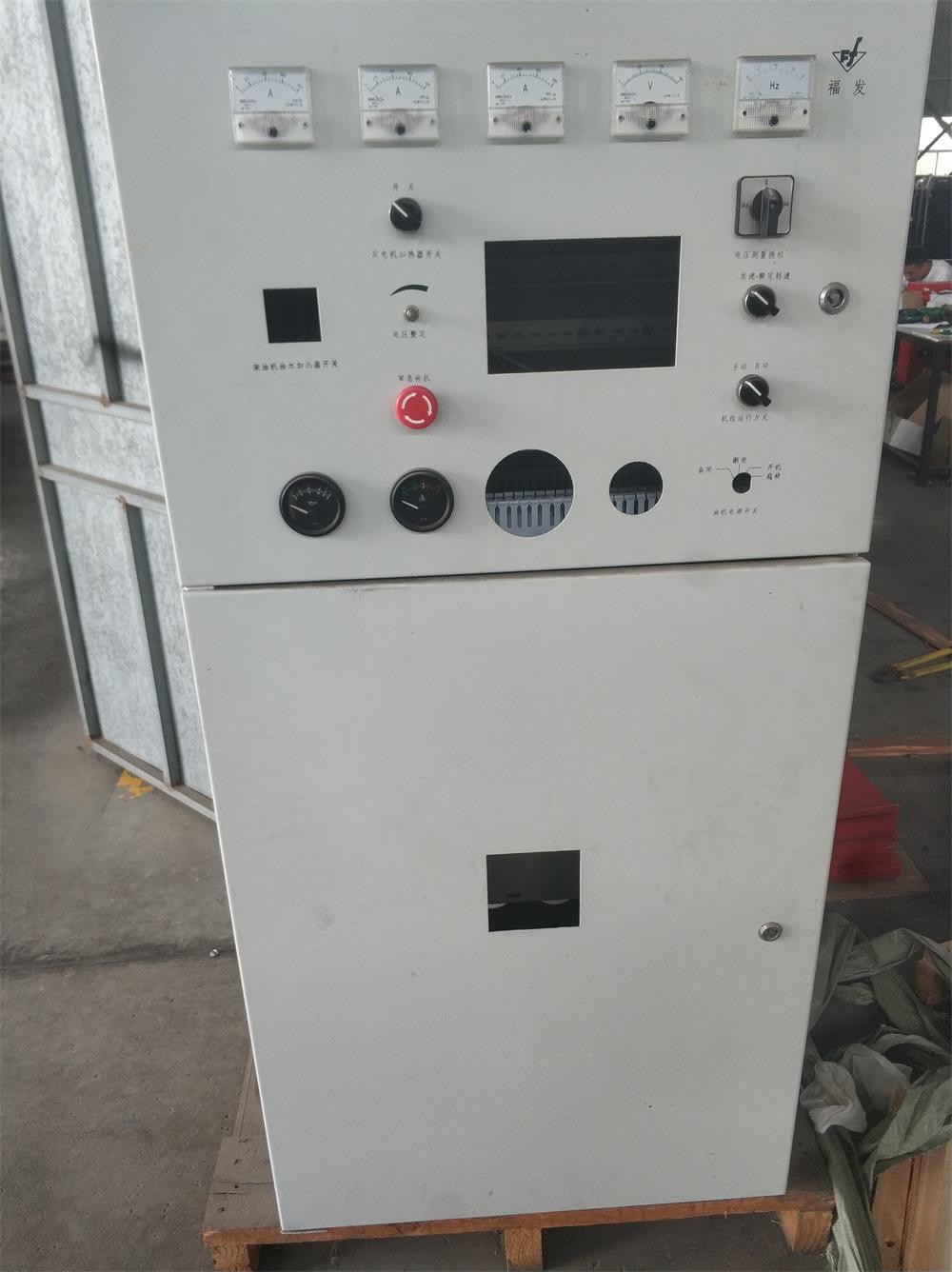

* Deepsea Control system
Controller Brand: Deepsea , ComAp, Smartgen, DATAKOM, MEBAY
Control Panel: English interface, LED screen and touch buttons.
*Control, monitor and protect the Generator Set including:
*High water temperature
*Low oil pressure
*Over and under speed
*Over current
*Under/Over generator voltage
*Start and stop failure
*Low and high battery voltage
*Charge failure
*Emergency stop
^Warranty
Running 1500 hours / 18months from shipment (which comes first)
Improper operation and maintenance will not be covered by the warranty.
