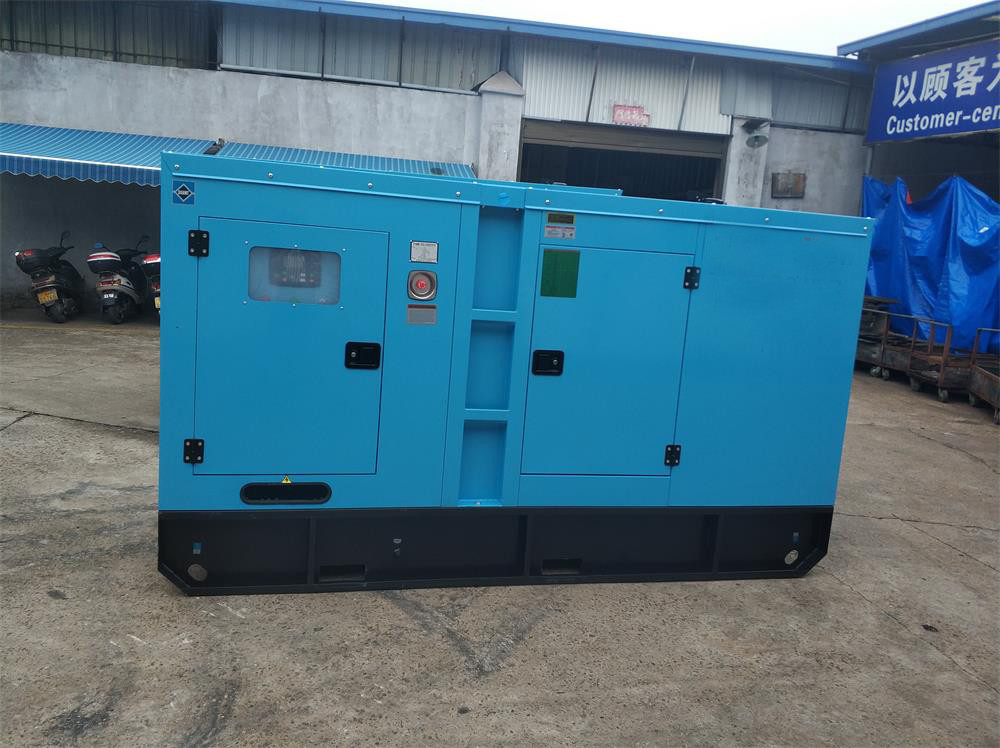

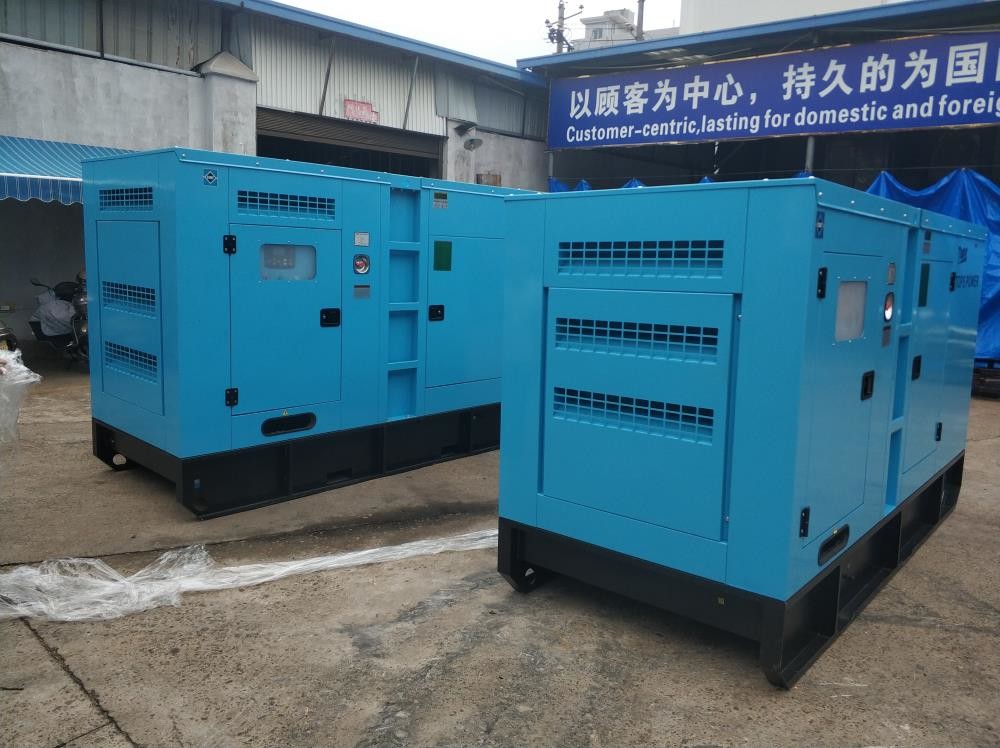

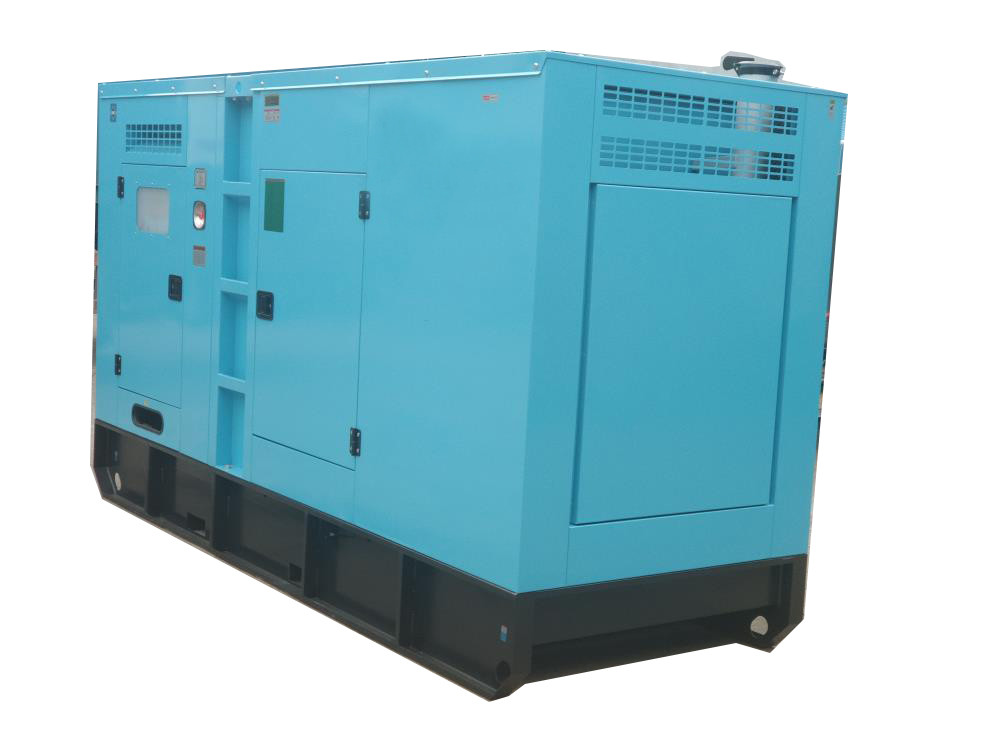

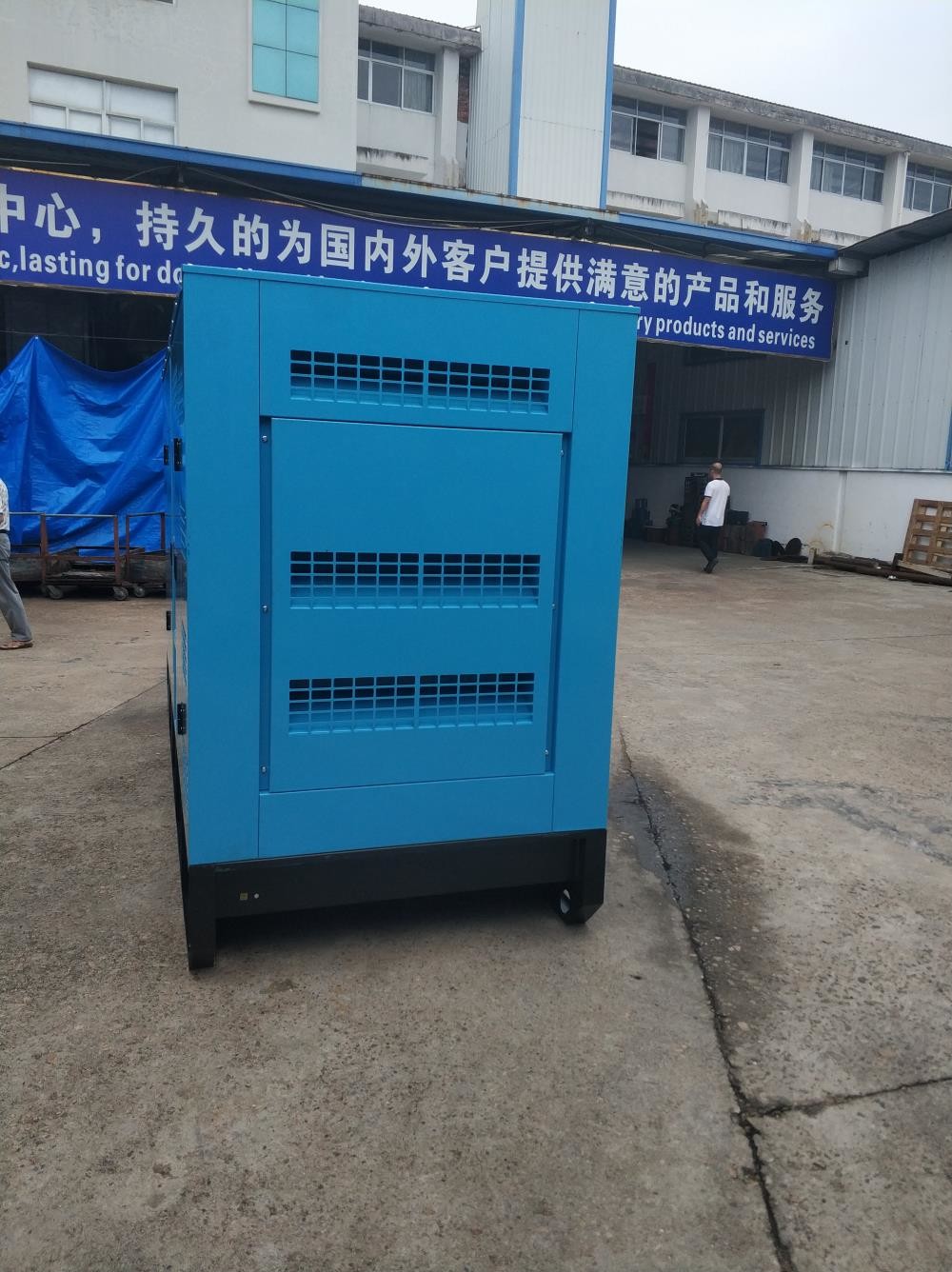

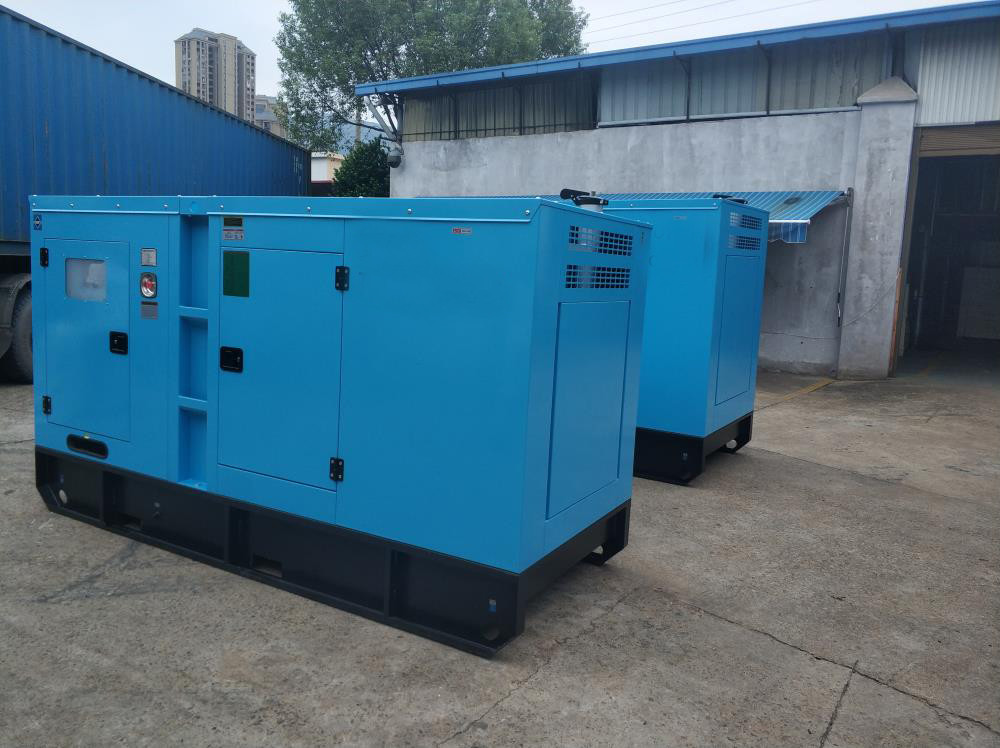

400V 230V Silent Power Generators Powered By DCEC Cummins Engine

Silent Generator Set Powered by DCEC Cummins Engine with Fuel Tank Capacity 336L 8 Hours Running

Tecgen Power Cummins 180kVA Silent Generating Set Standard Features:

1. Rated Power : 20KVA - 1500KVA (16kW – 1200kW)

2. Frequency :50/60Hz

3. Speed :1500/1800rpm

4. Phase :Three phase ; single phase

5. Voltage: 110V - 460V

6. Genset Fuel tank Capacity: 8 hours

7. Silent Generator Noise level : below 68db@7m

8. Environmental temperature : -5ºC ~ 50ºC

9. Water tank :50ºC environmental protection water tank

10. Diesel engine :Diesel , four stroke , water cooling

11. Alternator : brushless alternator /Stamford / Mecc alte / Leroy Somer / Marathon / Copy Stamford

12. Controller : Deepsea / ComAp / Smartgen / DATAKOM

13. Delivery time: Normal 15 days

14. Starting method: Manual, Electronic or ECU , adjustable

15. Package : Plastic wrapping film

16. Shipment Export port : Fuzhou Port

17. Optional : Water heater , fuel heater, Alternator heater.

18. Electrical start system with maintain free battery & engine driven battery charger;

19. Residence silencer with flexible connections & elbow;

20. Full Set of Test report, drawings & manuals include.

CUMMINS 180kVA SILENT DIESEL GENERATORS TECHNICAL DATA:

Cummins Diesel Engine System

*Heavy duty diesel engine

*Four stroke, water cooled

*12V and 24V stater and charge alternator

*Cooling radiator and fan

*Maintenance free battery including ract and cable

*Flexible fuel connection hoses and manual oil sump drain valve

*Exhaust silencer

*Machinery or electronic governing

*Fuel injection pump

*Electric motor starting system

*Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

*Low discharge, and low fuel consumption

*Installed conveniently and maintain easily

*Leroy Somer AC Alternator system

*Brushless, single bearing, flexible disc

*Insulation class: H

*Protection class: IP23

*Self-exciting and Self-regulation

*Genset Low Nosie Canopy

*All canopy designed with modular principles

*All metal canopy parts painted by electrostatic polyester power paint

*Soundproof design ensure that the noise level be controlled in small scope

*Convenient to lift and move

*Easy to maintenance and operate

*Genset Base Frame

*Base frame including position for forklift and crane

*Integral fuel tank

*Daily fuel tank continuously supply for 8-24 hours

*Fuel tank easy to maintain and clean

*Anti-vibration pads are flexed between engine and alternator.

* Smartgen Control system

Controller Brand: Deepsea , ComAp, Smartgen, DATAKOM, MEBAY

Control Panel: English interface, LED screen and touch buttons.

*Control, monitor and protect the Generator Set including:

*High water temperature

*Low oil pressure

*Over and under speed

*Over current

*Under/Over generator voltage

*Start and stop failure

*Low and high battery voltage

*Charge failure

*Emergency stop

^Warranty

Running 1500 hours / 18months from shipment (which comes first)

Improper operation and maintenance will not be covered by the warranty.

Why Tecgen Power Cummins Silent Diesel Generator:

1. 15 years experience in supplying diesel generating sets and gasoline generators with different sorts of brand

2. We are Factory, you will have Factory price, Factory Quality, Factory Warranty.

3. Offer Super good service before and after sales, Response your needs fast.

4. Our reputation for low prices, fast shipping and excellent customer service keeps customers coming back.
