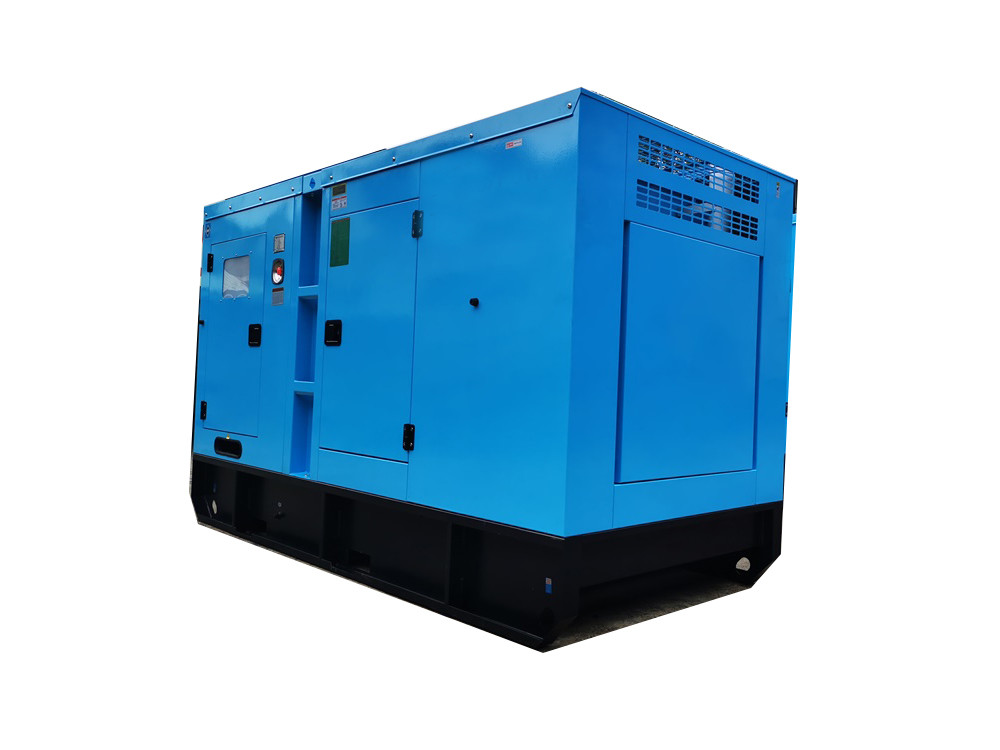

Cummins 190kVA Generator Set Silent With Maintenance Free Battery
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Silent Diesel Generator | Frequency | 60Hz |
|---|---|---|---|
| Speed | 1800rpm | Voltage | 208/120V |
| Genset Rate Output | 152kW / 190kVA | Genset Standby Output | 167kW / 209kVA |
| Engine Model | 6CTA8.3-G2 | Alternator Model | TGI274S152 |
| Fuel Consumption | 44L Per Hour | Opetion | Auto Transfer Switch |
| Highlight | 190kVA generator set silent,Cummins generator set silent,152kW generator silent generator |
||
Product Description
Cummins 190kVA Diesel Generator Silent Power Generator with Maintenance-free Battery Low Nosie Quiet Generator
Silent Genset Standard Configuration:
- Engine system
- Heavy-duty diesel engine
- Four-stroke, water-cooled design
- 12V and 24V starter and charging alternator
- Cooling radiator and fan
- Maintenance-free battery with lead and cable
- Flexible fuel connection hoses and manual oil sump drain valve
- Exhaust silencer pipe
- Electronic governing system
- Fuel injection pump
- Electric motor starting system
- Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
- Low fuel consumption and low discharge
- Easy installation and maintenance
- Brushless Alternator
- Chinese brand, brushless, single bearing, flexible disc design
- Insulation class: H
- Protection class: IP23
- Self-exciting and self-regulating
- Three-phase, four-wire configuration
- AVR (Automatic Voltage Regulator)
- Soundproof Canopy
- All canopies designed with modular principles
- All metal canopy parts painted with electrostatic polyester power paint
- Soundproof design ensures noise levels are controlled within a small range
- Easy to lift and move
- Easy to maintain and operate
- Base Frame
- Base frame includes positions for forklift and crane operation
- Integral fuel tank included
- Daily fuel tank continuously supplies for 8-24 hours (According to customer requirements)
- Fuel tank is easy to maintain and clean
- Anti-vibration pads are flexed between the engine and alternator.
- Control system
- Controller brand options including Deepsea, ComAp, Smartgen, Mebay
- Control panel with English interface, LED screen and touch buttons for ease of operation.* Controls, monitors, and protects the generator set, including:
- High water temperature alarm
- Low oil pressure alarm
- Over and under speed alarm
- Over current alarm
- Under/over generator voltage alarm
- Start and stop failure alarm
- Low and high battery voltage alarm
- Charge failure alarm
- Emergency stop function
190kVA SILENT DIESEL GENERATORS TECHNICAL DATA:
| Technical Specification: | ||
| Silent Power Generator Specification | ||
| Genset Model | TG209CD6 | TG209CSD6 |
| Open | Silent | |
| Frequency | 60Hz | |
| Rate Speed | 1800RPM | |
| Voltage | 208/120V | |
| Phase | 3 Phase, 4 or 12 Wires | |
| Rate Current | 527.4A | |
| Prime Power | 152kW / 190kVA | |
| Standby Power | 167kW / 209kVA | |
| Engine Model | Cummins 6CTA8.3-G2 | |
| Alternator Model | TGI274S152 | |
| Controller | DSE6020 | |
| Weight & Dimensions | ||
| Length (mm) | 2400 | 3100 |
| Width (mm) | 980 | 1100 |
| Height (mm) | 1500 | 1650 |
| Weight (kgs) | 1600 | 2250 |
| Engine Specification | ||
| Brand | DCEC Cummins | |
| Engine Model | 6CTA8.3-G2 | |
| Prime/Standby power | 170kW / 187kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged & Aftercooled | |
| No. of cylinders | 6 | |
| Speed | 1800RPM | |
| Bore of Stroke (mm) | 114 x 135 | |
| Displacement (L) | 8.3 | |
| Cooling | Water Cooled | |
| Compression Ratio | 17.3:1 | |
| Engine Oil capacity (L) | 12.3 | |
| Coolant Capacity ( In radiator) | 12.3 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 60Hz | |
| 100% Load (L/h) | 44 | |
| 75% Load (L/h) | 33 | |
| 50% Load (L/h) | 23 | |
| 25% Load (L/h) | 14 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI274S152 | |
| Rate Output | 152kW | |
| Speed | 1800RPM | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Deepsea | |
| Model | DSE6020 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Advanced Generator Specifications
1. Versatile Power Range: Our generators offer a rated power from 20 kVA to a robust 1500 kVA prime, catering to a wide range of power needs.
2. Frequency Options: You can choose between 50Hz and 60Hz to match the specific requirements of your applications.
3. Precision Speed Control: Our diesel generators operate at 1500/1800 RPM, ensuring precise power output.
4. Flexible Phase Configurations: Whether you need 3-phase or single-phase power, our generators can accommodate your needs.
5. Voltage Customization: We provide voltage options ranging from 110 V to 460 V, ensuring compatibility with various electrical systems.
6. Extended Operation: A generously-sized fuel tank ensures 8 hours of continuous operation or more, perfect for long-lasting power supply.
7. Quiet Operation: Our generators maintain a noise level below 68 dB at 7 meters, minimizing disruption in noise-sensitive environments.
8. Extreme Environment Compatibility: Operating seamlessly between -5ºC and +50ºC, our generators handle a broad range of environmental conditions.
9. Efficient Cooling: Featuring a 50ºC environmental protection water tank, our generators ensure consistent cooling even in demanding situations.
10. Robust Diesel Engine: Our generators are powered by reliable four-stroke, water-cooled diesel engines, offering longevity and performance.
11. Top-Notch Alternators: We use brushless alternators from reputable brands like Stamford Leroy Somer, Mecc Alte and Copy Stamford alternator, ensuring exceptional power output.
12. Advanced Control Options: Your generator is equipped with controllers from leading brands such as Deepsea, ComAp, Smartgen, or DATAKOM, offering precise control and monitoring.
13. Quick Delivery: Our standard delivery time is just 15 working days, ensuring you get your power solution promptly.
14. Convenient Starting: Start your generator manually or opt for electric start with adjustable settings, providing flexibility in operation.

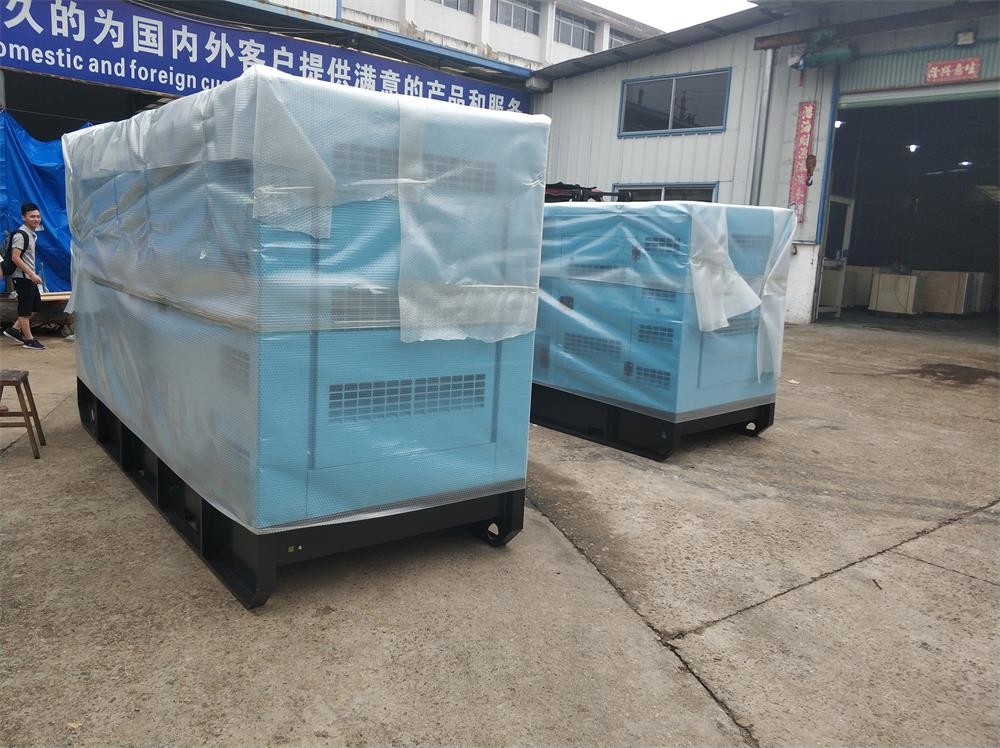

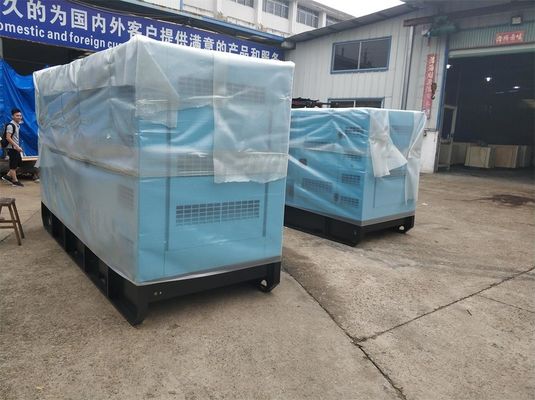

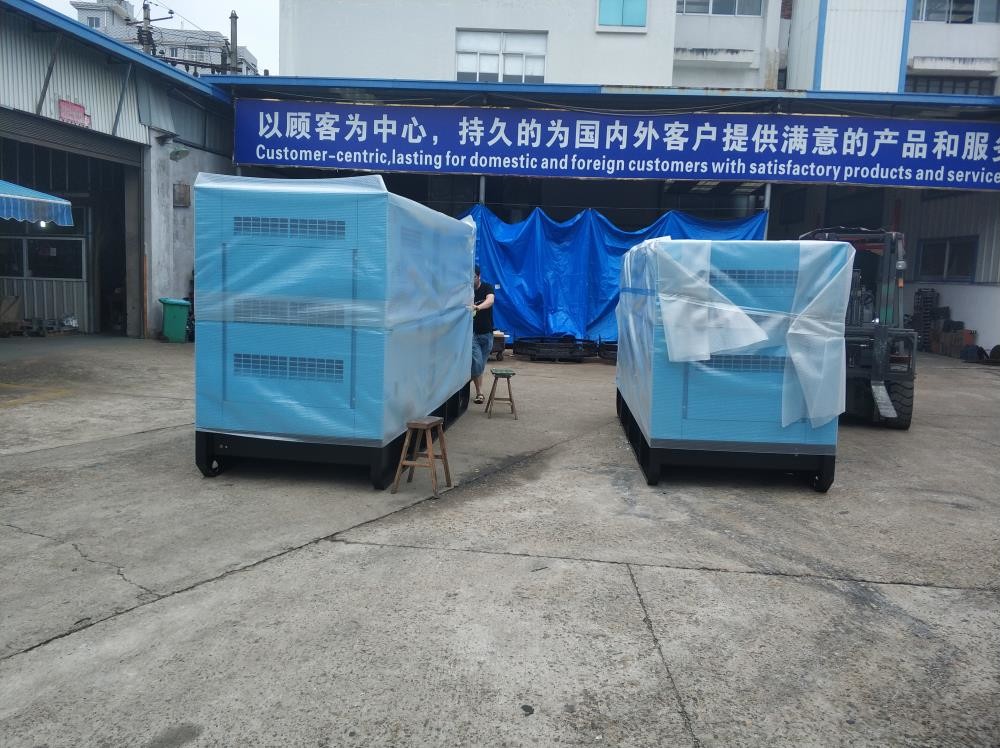

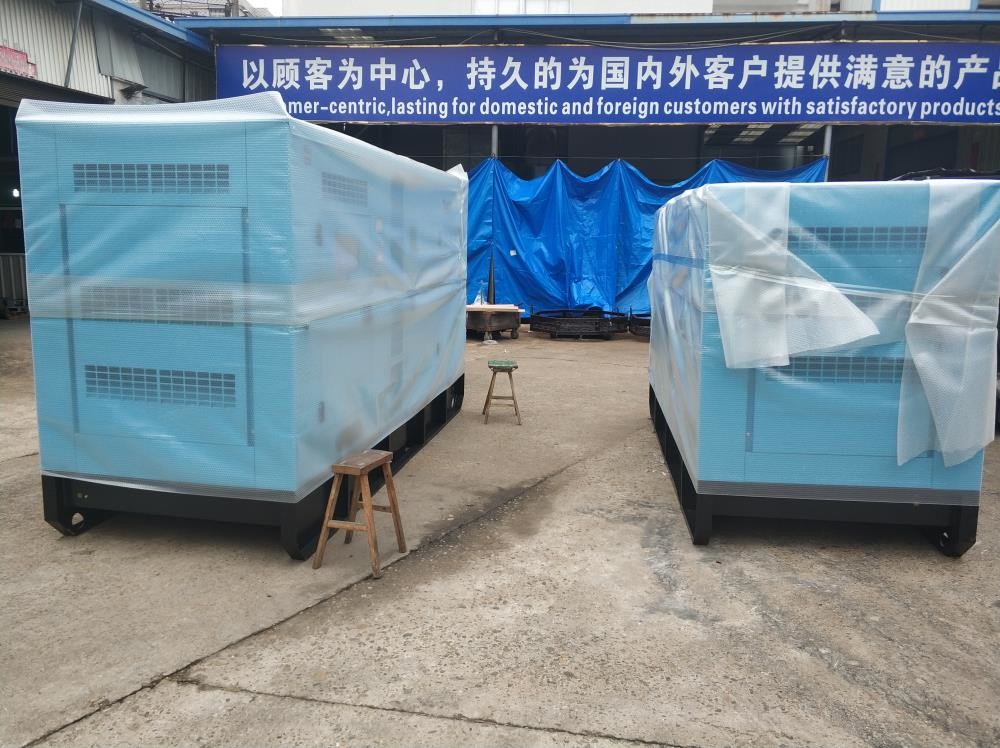

15. Secure Packaging: Generators are carefully wrapped in plastic shrink wrap film to ensure they reach you in top condition.
16. Customized Export Options: We export via Fuzhou Port or your preferred port, offering flexibility in shipping.
