55KVA 44KW Cummins Diesel Standby Generator 50KVA 40KW Diesel Generator With Cummins 4BTA3.9-G2
| Place of Origin | China |
|---|---|
| Brand Name | Cummins |
| Certification | CE/SONCAP/SASO/SGS |
| Model Number | TG55C |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plywood case Package or Plastic film package in container |
| Delivery Time | 15-20 working days after received deposit |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Namee | Cummins Diesel Generator | Genset Type | Open Or Silent |
|---|---|---|---|
| Engine Brand | Cummins | Alternator Brand | Stamford/Leroy Somer/Tecgen |
| Control System | AMF/ATS | Output Type | AC Three Phase |
| Cooling Method | Water Cooling | Ambient Temp | ≤40 C |
| Conditions Of Use | Land Use | Genset Color | Color Is Optional |
Product Description
Heavy Duty Diesel Generator for Standby Power Sources

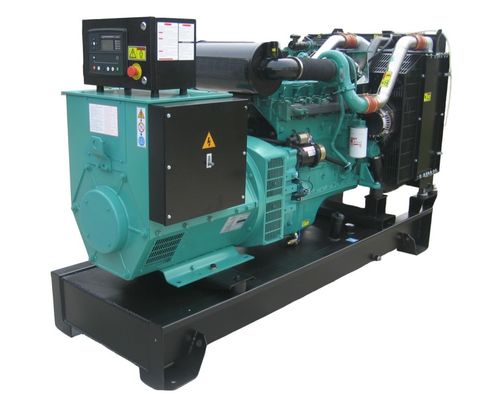

Products: 55KVA 44KW Cummins Diesel Standby Generator 50KVA 40KW Diesel Generator With Cummins 4BTA3.9-G2
Standby Output: 55kVA/44kW
Prime Output: 50kVA/40kW
Payment Term One: 30% Paid By T/T for Deposit, 70% Paid by T/T Before Shipment.
Payment Term Two: 100% Paid by Irrevocable L/C At Sight.
Engine Manufacturer: Dongfeng Cummins Engine Co., Ltd.
Supply Scope: Diesel engine, Alternator, Automatic start / stop control panel, Dry type air fillter, fuel filter, oil filter, 4V D.C automatic battery charger, Max. 50 degree celsius radiator, Batteries, rack and cable, Ripple flex exhaust pipe, flange and muffler, Circuit breaker, Base Fuel tank, Complete users' manual.
Testing: Tecgen Power provides a full line of brand new and high quality products. Every unit is strictly factory tested.
Services Parts: Service and parts are avaiable from Tecgen Power or distributors in your location.
Specifications:
| Technical Parameter for Diesel Generator | Genset Model | TG55C |
| Prime Power | 40kW/50kVA | |
| Standby Power | 44kW/55kVA | |
| Frequency | 50Hz | |
| Rated Voltage | 380V | |
| Power Factor | 0.8 | |
| Engine Brand | Cummins | |
| Engine Model | 4BTA3.9-G2 | |
| Alternator Brand | Stamford | |
| Alternator Model | UCI 224 D | |
| Engine General Data | Max Output (kW) | 55 |
| Number of Cylinders | 4 | |
| Cylinder arrangement | Vertical in-line | |
| Displacement (L) | 3.9 | |
| Aspiration | Turbocharged & Aftercooled | |
| Bore×Stroke (mm×mm) | 102x120 | |
| Compression Ratio | 16.5:1 | |
| Speed Governor | Electric | |
| Fuel Consumption at 100% load(L/H) | 10.5 | |
| Alternator Data | Model | TGI224S-40 |
| Brand | Tecgen | |
| Rate Output | 50kVA/40kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | Smartgen |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
Tecgen Diesel Generator Feature:
1, Output range: 10kVA to 3000kVA Heavy Duty diesel generator.
2, Different brands of engine, alternator and controller as options
3, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator or Tecgen Power alternator
4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery
7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
11, Perfect after-service network
12, Both 50Hz and 60Hz
13, Chint circuit breaker
14, Three-phase output meets differing requirements
15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
16, Large fuel tank ensure continuous running.
17, Anti-Vibration Mounted
18, Industrial silencer and flexible exhaust hose
19, 0-110% load test for each unit before delivery
20, Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date
