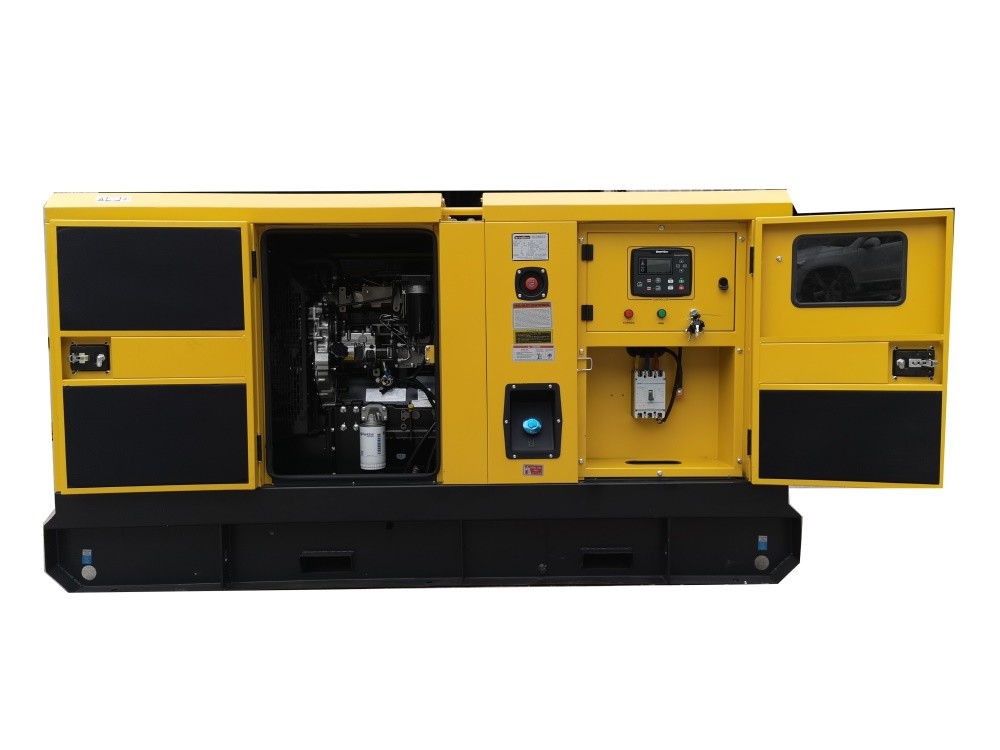

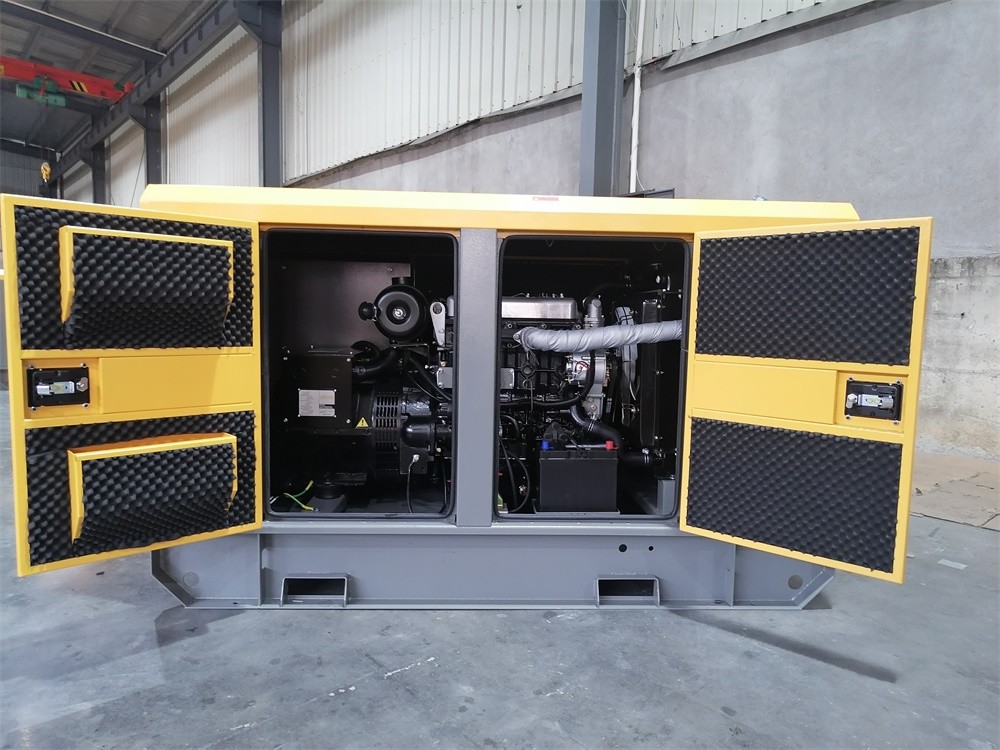

Silent 225kVA Electric Perkins Diesel Generators With Water Cooled Engine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Output | 180kW / 225kVA | Noise Level | ≤68dB(A) |
|---|---|---|---|
| Frequency | 50Hz | Protection System | Overload |
| Cooling System | Water Cooled | Warranty | 1500 Hours |
| Generator Type | Silent | Voltage | 380-454V |
| Highlight | 225kVA Perkins Diesel Generators,Silent Perkins Diesel Generators,Water Cooled perkins electric generator |
||
Product Description
Generator Type Silent 225kVA Electric Diesel Generator Set with Water Cooled Engine
Product Description:
Perkins diesel generators are a reliable and efficient solution for power generation. They are powered by a Perkins diesel engine, which offers high performance, low noise and a long service life. The frequency of the generator set is 50/60Hz, and the noise level is ≤68dB(A). The generator set is designed for silent operation and has an overload protection system to ensure the safety of the system. The power output of the generator set ranges from 9kVA to 2200kVA, making it suitable for a wide variety of applications. This generator set is a reliable, economical and efficient choice for diesel power generation.
Features:
- Generator Set Diesel Engine: Perkins Diesel Generators
- Cooling System: Water Cooled
- Frequency: 50/60Hz
- Voltage: 380-454V
- Power Output: 9-2200kVA
- Generator Type: Silent
- Container Diesel Generator: Perkins Diesel Generators
- Diesel Power Generator Set: Perkins Diesel Generators
- Silent Diesel Generator: Perkins Diesel Generators
Technical Parameters:
| Technical Specification: | ||
| Generator Set Specification | ||
| Genset Model | TG248P | TG248PS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 380/220V | |
| Phase | 3 Phase, 4 Wires | |
| Rate Current | 341.9A | |
| Prime Power | 180kW / 225kVA | |
| Standby Power | 198kW / 248kVA | |
| Engine Model | Perkins 1206A-E70TTAG2 | |
| Alternator Model | Stamford UCI 274J | |
| Controller | ComAp AMF20 | |
| Weight & Dimensions | ||
| Length (mm) | 2400 | 2900 |
| width (mm) | 950 | 1100 |
| Height (mm) | 1550 | 1700 |
| Weight (kgs) | 1650 | 2250 |
| Engine Specification | ||
| Brand | Perkins (UK) | |
| Engine Model | 1206A-E70TTAG2 | |
| Prime/Standby power (kw) | 195 / 217 | |
| Injection | Indirect | |
| Aspiration | Turbocharged & Air to Air Intercooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 105 x 135 | |
| Displacement (L) | 7 | |
| Cooling | water | |
| Compression Ratio | 15.8:1 | |
| Engine Oil capacity (L) | 25 | |
| Coolant Capacity ( In radiator) | 25 | |
| Governor | MECH | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 50Hz | |
| 100% Load (L/h) | 49.3 | |
| 75% Load (L/h) | 37.0 | |
| 50% Load (L/h) | 24.6 | |
| 25% Load (L/h) | 12.3 | |
| Alternator Specification | ||
| Brand | Cummins Generator Technologies | |
| Model | Stamford UCI 274J | |
| Rate Output (kW) | 184 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | ComAp | |
| Model | AMF20 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, ABB Breaker, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Generator Heater, Parallel Panel, Fuel-water separator, Super Silent type, Trailer Type, 3000Hours Spare Parts | ||
Support and Services:
Perkins Diesel Generators technical support and service includes:
- 24/7 online technical support
- On-site technical service
- Timely spare parts delivery
- Lifelong free maintenance
- Regular maintenance and overhaul
- Professional installation guidance
