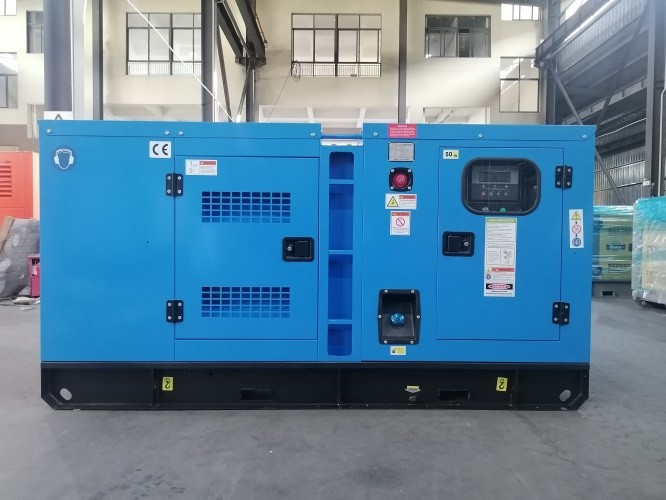

200kVA Silent 50Hz Perkins Diesel Power Generator Continuous Use

Place of Origin Fuzhou, China
Brand Name Tecgen Perkins Generator
Certification ISO / ce
Model Number TG220PS
Minimum Order Quantity 1 SET
Price negotiation
Packaging Details Plastic film package in container
Delivery Time 15 Working Days
Payment Terms T/T / L/C
Supply Ability 400 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cooling System Water Cooled Protection System Overload
Frequency 50 Power Output 200kVA
Generator Type Silent Warranty 1500 Hours
Noise Level ≤68dB(A) Voltage 400 / 230V
Highlight

50Hz perkins diesel power generator

,

Silent perkins diesel power generator

,

230V 200 kva perkins generator

Leave a Message
Product Description

200kVA Perkins Diesel Generator Silent 50Hz Diesel Generator Power Continuous USE

Product Description:

Perkins Diesel Generators

Perkins Diesel Generators are the perfect choice for a reliable container diesel generator, diesel power generator set and diesel power generator set. Our diesel generator sets are powered by Perkins engines, which have been proven to deliver reliable performance over time. With a power output ranging from 9kVA to 2200kVA, you can find the perfect diesel generator for your application. Additionally, our diesel generators come with water-cooled cooling systems, overload protection, and a 1500-hour warranty.

For those who require a frequency of 50/60Hz, Perkins Diesel Generators are the ideal choice. Whether you need a generator set for residential, commercial, or industrial use, Perkins Diesel Generators can provide you with the durable and reliable power you need. With a Perkins Diesel Generator, you can enjoy the peace of mind that comes with knowing that you have a dependable power source you can rely on.



Features:

  • Product Name: Perkins Diesel Generators
  • Warranty: 1500 Hours
  • Noise Level: ≤68dB(A)
  • Protection System: Overload
  • Frequency: 50/60Hz
  • Cooling System: Water Cooled
  • Diesel Power Generator Set
  • Generator Set Diesel Engine
  • Diesel Generator



200kVA Silent 50Hz Perkins Diesel Power Generator Continuous Use 0

Technical Parameters:

Technical Specification:
200kVA Perkins Generator Set Specification
Genset Model TG220P TG220PS TG220P TG220PS
Open Silent Open Silent
Frequency 50Hz
Voltage 415/240V
Phase 3
Rate Current (A) 278.2
Prime Power 160kW / 200kVA
Standby Power 176kW / 220kVA
Engine Model 1206A-E70TTAG1
Alternator Model TAL-A44-M
Controller Smartgen HGM6120N
Fuel Tank Capacity 320L
Weight And Dimensions
Length (mm) 2400 3200 2550 3600
Width (mm) 950 1100 950 1200
Height (mm) 1550 1630 1680 1800
Weight (kgs) 1750 2350 1890 2850
Engine Specification
Engine Brand Perkins (UK)
Engine Model 1206A-E70TTAG1
Prime Power(kW) 178.9
Injection Indirect
Aspiration Turbocharged
No. of cylinders 6
Bore of Stroke (mm) 105 x 135
Displacement (L) 7.01
Cooling water
Compression Ratio 18:1
Engine Oil capacity (L) 21
Coolant Capacity ( In radiator) 21
Governor ECM
Air Filter Dry Element
Fuel consumption at 50Hz
100% Load (L/h) 38.1
75% Load (L/h) 28.6
50% Load (L/h) 19
25% Load (L/h) 9.5
Alternator Specification
Brand Leroy Somer
Model TAL-A44-M
Rate Output (kW) 160
Pole 4
Winding Connections Star
Insulation Class H
Enclosure IP23
Altitude (m) ≤1000
Voltage Regulator AVR
Steady State Voltage Regulator 1%
Bearing single
Controller System
Brand Smartgen
Model HGM6120N
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
ATS Connection
OPTIONAL EQUIPMENTS
ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts

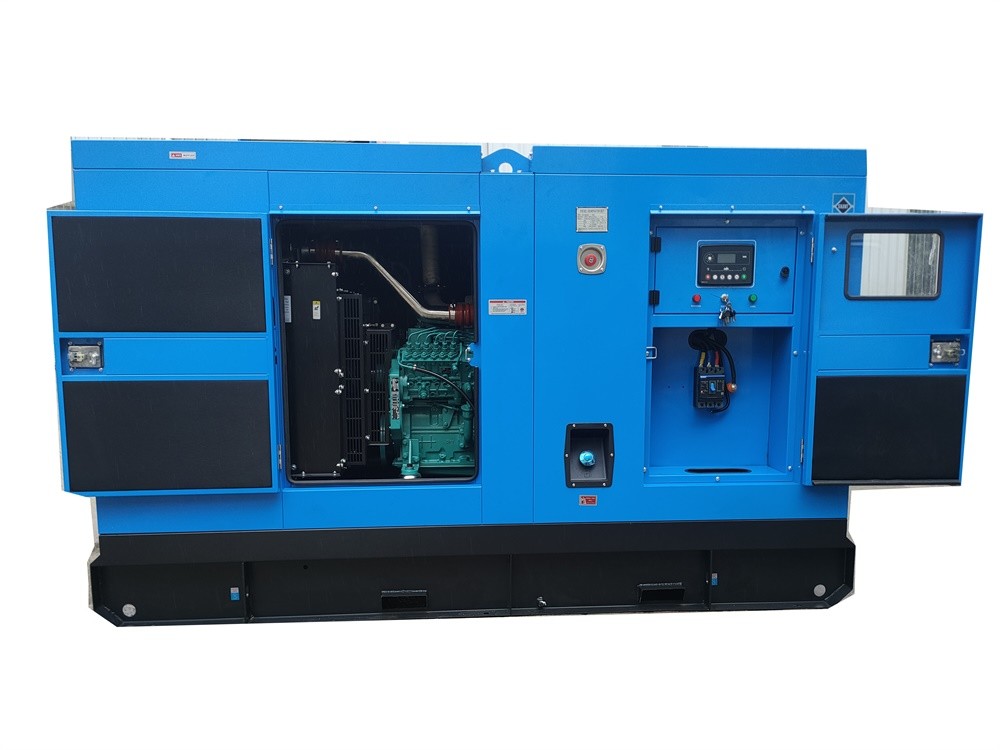

200kVA Silent 50Hz Perkins Diesel Power Generator Continuous Use 1

Applications:

Perkins Diesel Generators, such as Tecgen TG220PS model, are reliable and powerful solutions for numerous commercial and industrial applications. Crafted with quality raw materials and advanced technology, these generator sets are certified by ISO and CE, and are available in 9-2200kVA power range. Featuring overload protection, these generators have a noise level of below 68dB(A) and can be run at 50/60Hz frequency. With a minimum order quantity of one set, these diesel generator sets are priced competitively and can be delivered within 15 working days. Customers can also avail a 1500 hours warranty on Tecgen Perkins Generator. The generator sets are packed in a plastic film package and can be purchased through various payment terms including T/T and L/C. Tecgen is capable of delivering 400 units per month.


Support and Services:

Perkins Diesel Generators Technical Support and Service

At Perkins, our commitment to customer service extends beyond the sale. We provide technical support and service for our Perkins Diesel Generators. Our experienced team of engineers can provide tailored advice and support on every aspect of your Perkins Diesel Generator.

We offer a range of technical support options, including:

  • On-site technical support and maintenance
  • Remote diagnostic support
  • Consultancy services
  • Emergency parts and repair services
  • Technical training for operators

Contact us today to discuss how we can help you get the most out of your Perkins Diesel Generator.



FAQ:

Q: What is the brand name for the Perkins Generator?

A: The brand name for the Perkins Generator is Tecgen Perkins Generator.

Q: What is the model number of the Perkins Generator?

A: The model number of the Perkins Generator is TG248PS.

Q: Where is the Perkins Generator made?

A: The Perkins Generator is made in Fuzhou, China.

Q: What certifications does the Perkins Generator have?

A: The Perkins Generator has ISO / ce certification.

Q: How many Perkins Generators can be supplied each month?

A: We can supply 400 Units of the Perkins Generators per month.
