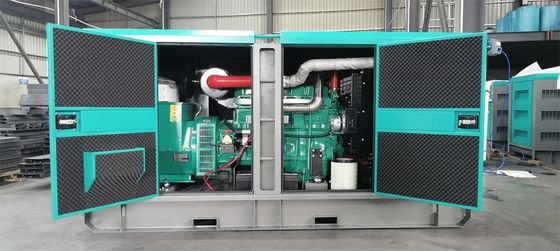

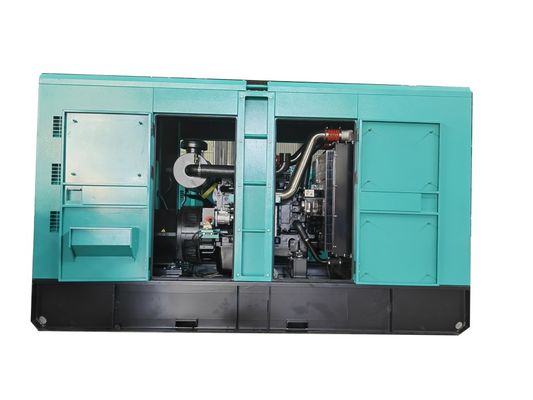

Continuous USE 250kW Silent Type Diesel Backup Generator For Home
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine Brand | Cummins | Options | Weatherproof Enclosures, Auto Transfer Switches, Etc. |
|---|---|---|---|
| Noise Level | As Low As 65 DB(A) | Frequency | 50Hz |
| Voltage | 220/380V, 230/400V, 240/415V | Genset Type | Silent / Super Silent Type |
| Prime Genset Output | 250kW / 313kVA | Fuel Tank Capacity | Up To 10 Operation Hours |
| Highlight | 250kW diesel backup generator for home,Continuous diesel backup generator for home,50Hz diesel backup generator |
||
Product Description
Continuous USE Diesiel Generator 250kW Silent Type Diesel Backup Generator for House
Product Description:
Cummins Diesel Generators are reliable power solutions for your business needs. Our Cummins Diesel Generator Parts are made with superior quality and craftsmanship, making them ideal for reliable and long-term use. We provide Cummins Diesel Engines and Cummins Diesel Engine Parts that are designed for the toughest applications. Our generators are available in Silent/Super Silent Type and provide a wide range of options, such as weatherproof enclosures, auto transfer switches, and more. We offer a warranty of up to 2 years or 2000 hours, and the frequency of our generators is 50Hz. The prime genset output is 250kW. With Cummins Diesel Generators, you can be sure you are getting a reliable, long-lasting power solution for your business.
Features:
- Product Name: Cummins Diesel Generators
- Options: Weatherproof Enclosures, Auto Transfer Switches, Etc.
- Noise Level: As Low As 65 DB(A)
- Colors: RAL Standard Colors Or Customed
- Genset Type: Silent / Super Silent Type
- Voltage: 220/380V, 230/400V, 240/415V
- CCEC Cummins Diesel Engines
- Cummins Diesel Engine Parts
- Diesel Power Generator Set
Technical Parameters:
| Technical Specification: | ||
| 313kVA Soundproof Generator Set Specification | ||
| Genset Model | TG344C | TG344CS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 451.8A | |
| Prime Power | 250kW / 313kVA | |
| Standby Power | 275kW / 344kVA | |
| Engine Model | MTAA11-G3 | |
| Alternator Model | TGI314S250 | |
| Controller | ComAP IL-AMF 25 | |
| Weight & Dimensions | ||
| Length (mm) | 3000 | 3810 |
| width (mm) | 1320 | 1630 |
| Height (mm) | 1700 | 2130 |
| Weight (kgs) | 2940 | 3700 |
| Engine Specification | ||
| Brand | CCEC Cummins | |
| Engine Model | MTAA11-G3 | |
| Prime/Standby power (kW) | 282 / 310 | |
| Injection | Indirect | |
| Aspiration | Turbocharged and Charge Air Cooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 125 x 147 | |
| Displacement (L) | 10.8 | |
| Cooling | water | |
| Compression Ratio | 15:1 | |
| Engine Oil capacity (L) | 9.5 | |
| Coolant Capacity ( In radiator) | 9.5 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 52.1 | |
| 75% Load (L/h) | 38.2 | |
| 50% Load (L/h) | 23.5 | |
| 25% Load (L/h) | 11.7 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI314S250 | |
| Rate Output (kVA) | 313 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | ComAp | |
| Model | IL-AMF 25 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger, overcurrent | ||
| Emergency stop push button | ||
| RS232, CAN | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
Tecgen Cummins Genset (model TGC) is a powerful and reliable diesel engine power generator powered by Cummins diesel engine parts. It offers a variety of Cummins diesel truck engines, which are suitable for a wide range of applications, from industrial to residential. It is certified by ISO/CE/SASO/CIQ and is available in a minimum order quantity of 1 SET.
Tecgen Cummins Genset is available at competitive prices and can be delivered within 7 working days. It accepts payment terms of T/T/L/C and has a supply ability of 300 units per month. It comes with a variety of options, such as weatherproof enclosures, auto transfer switches, and more. The frequency is 50Hz and the colors are RAL standard colors or customized.
Tecgen Cummins Genset is perfect for harsh environments due to its Cummins diesel truck engines, which provide maximum durability and reliability. It is an ideal choice for a wide range of applications, such as industrial, agricultural, residential, and commercial.
Support and Services:
Cummins Diesel Generators Technical Support and Service
Cummins Diesel Generators provide expertise and reliable service to help ensure your generator runs smoothly. Our team of experienced technicians and engineers are available to provide technical support and service for all Cummins Diesel Generators.
We offer a comprehensive range of services for Cummins Diesel Generators, including:
- Installation and commissioning
- Scheduled maintenance
- Repair and overhaul
- Replacement parts and components
- Emergency response and repair
- Testing and diagnostics
We are committed to providing our customers with the highest quality service and reliable maintenance that will keep their Cummins Diesel Generators running smoothly and efficiently. Our team of experts are available to provide technical advice and support, and will help you to identify and address any issues quickly and efficiently.
Packing and Shipping:
Packaging and Shipping for Cummins Diesel Generators
Cummins Diesel Generators are packaged and shipped with care to ensure they arrive at their destination in the best condition. The following steps are taken to ensure safe delivery:
- The generator is inspected and cleaned before being packaged.
- It is then wrapped in bubble wrap and placed in a cardboard box.
- The box is then sealed with packing tape.
- It is then labeled with the destination address.
- The generator is then securely placed in a larger cardboard box.
- The larger box is then sealed with packing tape and labeled with the destination address.
- The package is then shipped with a reliable carrier.
FAQ:
Q&A about Tecgen Cummins Genset
- Q: What is the Brand Name of the product?
A: The Brand Name of the product is Tecgen Cummins Genset.
- Q: What is the Model Number of the product?
A: The Model Number of the product is TGC.
- Q: Where is the product from?
A: The product is from China.
- Q: What certifications does the product have?
A: The product has ISO / CE / SASO / CIQ certifications.
- Q: What is the minimum order quantity?
A: The minimum order quantity is 1 SET.
- Q: What is the price of the product?
A: The price is Negotiation.
- Q: How is the product packaged?
A: The product is packaged in plastic film package in container.
- Q: How long does it take for delivery?
A: It takes 7 Working Days for delivery.
- Q: What are the payment terms?
A: The payment terms are T/T / L/C.
- Q: How many units can be supplied per month?
A: 300 Units can be supplied per month.
