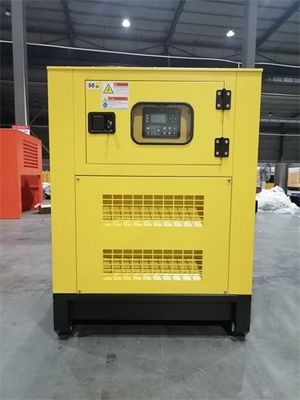

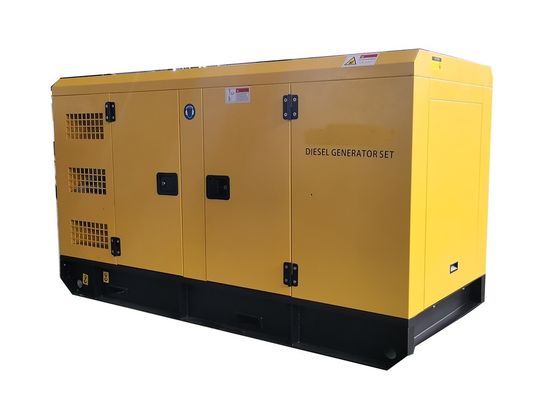

Silent Type Cummins Diesel Generators at Low Noise Level - Prime Genset Output 150kVA
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | Up To 2 Years Or 2000 Hours | Frequency | 50Hz |
|---|---|---|---|
| Fuel Tank Capacity | Up To 10 Operation Hours | Noise Level | As Low As 65 DB(A) |
| Genset Type | Silent / Super Silent Type | Prime Genset Output | 120kW / 150kVA |
| Colors | RAL Standard Colors Or Customed | Engine Brand | Cummins |
Product Description
Silent Type Cummins Diesel Generators at Low Noise Level - Prime Genset Output 150kVA
Product Description:
Cummins Diesel Generators offer a reliable and robust power solution. These Cummins diesel generator sets are powered by Cummins diesel engines and offer superior fuel tank capacity up to 10 operation hours. Cummins diesel engine parts are designed to offer maximum performance and reliability, and they are available in RAL standard colors or customized colors. These Cummins diesel generator sets are designed to produce low noise levels as low as 65 dB(A), and they are available in 50Hz frequency. Cummins diesel truck engines are designed for the most demanding applications and offer superior reliability and performance, and they come with a variety of options such as weatherproof enclosures and auto transfer switches.
Features:
- Product Name: Cummins Diesel Generators
- Options: Weatherproof Enclosures, Auto Transfer Switches, Etc.
- Engine Brand: Cummins, Cummins Diesel Truck Engines, Cummins Marine Diesel Engines, Cummins Diesel Engine Parts
- Colors: RAL Standard Colors Or Customed
- Noise Level: As Low As 65 DB(A)
- Warranty: Up To 2 Years Or 2000 Hours
Technical Parameters:
| Technical Specification: | ||
| 120kW / 150kVA Diesel Generating Set Specification | ||
| Genset Model | TG165C | TG165CS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 216.5A | |
| Prime Power | 120kW / 150kVA | |
| Standby Power | 132kW / 165kVA | |
| Engine Model | 6BTAA5.9-G12 | |
| Alternator Model | TGI274S120 | |
| Controller | HGM6120N | |
| Weight & Dimensions | ||
| Length (mm) | 2400 | 2900 |
| Width (mm) | 930 | 1100 |
| Height (mm) | 1400 | 1550 |
| Weight (kgs) | 1330 | 1980 |
| Engine Specification | ||
| Brand | Cummins | |
| Engine Model | 6BTAA5.9-G12 | |
| Prime/Standby power (kW) | 140 / 155 | |
| Injection | Indirect | |
| Aspiration | Turbocharged and Charge Air Cooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 102 x 120 | |
| Displacement (L) | 5.9 | |
| Cooling | water | |
| Compression Ratio | 17.3:1 | |
| Engine Oil capacity (L) | 10 | |
| Coolant Capacity ( In radiator) | 10 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 34 | |
| 75% Load (L/h) | 26 | |
| 50% Load (L/h) | 17 | |
| 25% Load (L/h) | 10 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI274S120 | |
| Rate Output (kVA) | 150 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Smartgen | |
| Model | 6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
Tecgen Cummins Gensets provide dependable power for a variety of applications, including construction sites, industrial complexes, hotels, hospitals, rural farms, and more. These Cummins Diesel truck engines are certified by ISO / CE / SASO / CIQ, and they come with RAL standard colors or custom color options. The minimum order quantity is one set and the price is negotiable. Tecgen Cummins Gensets are delivered in plastic film package in container within 7 working days, and payment can be made via T/T or L/C. With a noise level as low as 65 dB(A) and a warranty of up to 2 years or 2000 hours, these Cummins Diesel generator sets can be equipped with weatherproof enclosures and auto transfer switches. 300 units of these Cummins Diesel engine parts are supplied per month.
Support and Services:
Cummins Diesel Generators Technical Support and Service
Cummins offers a wide range of technical support and service for Cummins Diesel Generators. Our team of skilled technicians is available to provide the highest quality service and support of our generators. Our support is available 24/7 to ensure timely and efficient repairs, maintenance, and technical support.
We offer an array of services for Cummins Diesel Generators, including:
- Preventive maintenance
- Emergency repairs
- Parts replacement and installation
- Diagnostics and troubleshooting
- Technical support and training
Our technical support and service team is dedicated to providing you with the best experience possible. We understand the importance of reliable and efficient service, so we strive to offer the best possible support for your Cummins Diesel Generators.
Packing and Shipping:
Packaging and Shipping of Cummins Diesel Generators
Cummins Diesel Generators are packaged in robust packaging materials to ensure they are well protected during transit and arrive in a safe and usable condition. The packaging materials used for Cummins Diesel Generators are designed to protect the generator from the elements and provide cushioning against any impact during transport. The generators are also marked with all necessary information such as “Fragile”, “Handle with Care”, and “This Side Up” to ensure they are handled properly during transit.
Cummins Diesel Generators can be shipped via land, air, or sea depending on the needs of the customer. Shipping times can vary depending on the location and chosen mode of transportation. Cummins Diesel Generators are shipped with all necessary documentation including shipping manifests, invoices, and certificates of origin.
FAQ:
Q1: What is the Brand Name of Cummins Diesel Generators?
A1: The Brand Name of Cummins Diesel Generators is Tecgen Cummins Genset.
Q2: What is the Model Number of the product?
A2: The Model Number of Cummins Diesel Generators is TGC.
Q3: Where is Cummins Diesel Generators made?
A3: Cummins Diesel Generators is made in China.
Q4: What certifications do Cummins Diesel Generators have?
A4: Cummins Diesel Generators has certifications of ISO / CE / SASO / CIQ.
Q5: What is the minimum order quantity of Cummins Diesel Generators?
A5: The minimum order quantity of Cummins Diesel Generators is 1 SET.
