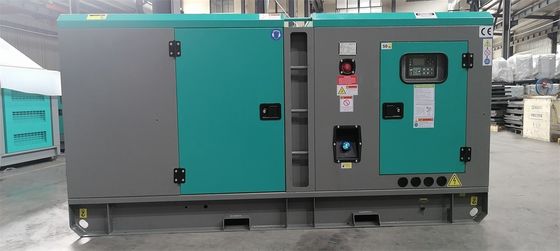

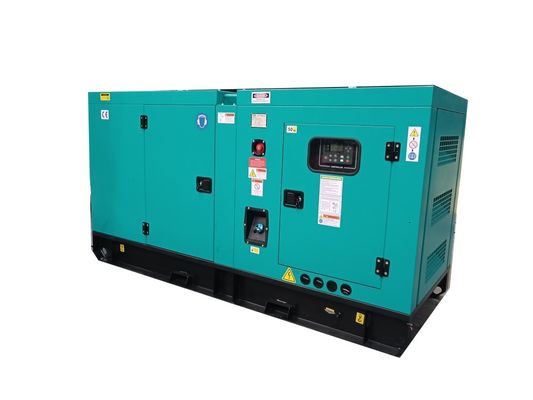

Three Phase Cummins 50kW Diesel Generator 62kVA Small Quiet Diesel Generator 65dB(A)

Place of Origin China
Brand Name Tecgen Cummins Genset
Certification ISO / CE / SASO / CIQ
Model Number TG70CSD6
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Plastic film package in container
Delivery Time 7 Working Days
Payment Terms T/T / L/C
Supply Ability 300 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency 60Hz Colors RAL Standard Colors Or Customed
Options Weatherproof Enclosures, Auto Transfer Switches, Etc. Genset Type Silent / Super Silent Type
Voltage 220V Prime Genset Output 50kW / 62kVA
Fuel Tank Capacity Up To 10 Operation Hours Engine Brand Cummins
Leave a Message
Product Description

Three Phase Cummins 50kW Diesel Generator 62kVA Small Quiet Diesel Generator 65dB(A)

Product Description:

Cummins diesel generators are reliable power solutions, offering high performance parts and engines for a variety of applications. With prime genset output of up to 1500kVA, fuel tank capacity of up to 10 operation hours, and voltage of 220/380V, 230/400V, and 240/415V, Cummins diesel generators are designed to provide reliable, efficient and cost-effective power solutions for any environment. Moreover, the noise level of Cummins diesel generators is as low as 65 dB(A), which is a result of superior design and sound insulation materials. To ensure maximum satisfaction of customers, Cummins diesel generators come with a warranty of up to two years or 2000 hours, making them the perfect choice for reliable and cost-effective power solutions.



Features:

  • Product Name: Cummins Diesel Generators
  • Engine Brand: Cummins
  • Noise Level: As Low As 65 DB(A)
  • Genset Type: Silent / Super Silent Type
  • Voltage: 120/208V, 120/220V, 220V
  • Colors: RAL Standard Colors Or Customed
  • Cummins Diesel Engine Parts
  • DCEC Cummins Diesel Engines
  • Noise Level: As Low As 65 DB(A)



Three Phase Cummins 50kW Diesel Generator 62kVA Small Quiet Diesel Generator 65dB(A) 0

Technical Parameters:

Technical Specification:
50Kw Cummins Silent Generator Set Specification
Genset Model TG70CD6 TG70CSD6
Open Silent
Frequency 60Hz
Rate Speed 1800RPM
Voltage 208/120V
Phase 3 Phase, 4 or 12 Wires
Rate Current 172.1A
Prime Power 50kW / 62kVA
Standby Power 55kW / 70kVA
Engine Model Cummins 4BTA3.9-G2
Alternator Model Stamford UCI224D
Controller DSE6020
Weight & Dimensions
Length (mm) 1750 2300
Width (mm) 840 980
Height (mm) 1360 1460
Weight (kgs) 930 1290
Engine Specification
Brand DCEC Cummins
Engine Model 4BTA3.9-G2
Prime/Standby power 67kW / 74kW
Injection Indirect
Aspiration Turbocharged & Aftercooled
No. of cylinders 4
Speed 1800RPM
Bore of Stroke (mm) 102 x 120
Displacement (L) 3.9
Cooling Water Cooled
Compression Ratio 17.3:1
Engine Oil capacity (L) 8.3
Coolant Capacity ( In radiator) 8.3
Governor Electric
Air Filter Dry Element
Fuel consumption @ 60Hz
100% Load (L/h) 17
75% Load (L/h) 13
50% Load (L/h) 9
25% Load (L/h) 6
Alternator Specification
Brand Cummins Generator Technologies
Model UCI224D
Rate Output 62.5kVA
Speed 1800RPM
Pole 4
Winding Connections Star
Insulation Class H
Enclosure IP23
Altitude (m) ≤1000
Voltage Regulator AVR
Steady State Voltage Regulator 1%
Bearing Single
Controller System
Brand Deepsea
Model DSE6020
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
ATS Connection
OPTIONAL EQUIPMENTS
ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts

Three Phase Cummins 50kW Diesel Generator 62kVA Small Quiet Diesel Generator 65dB(A) 1

Applications:

Tecgen Cummins Genset has been providing reliable diesel power generator sets and Cummins diesel truck engines, Cummins marine diesel engines to customers all over the world for many years. Our TGC genset is equipped with the latest technology and advanced features. It is certified by ISO, CE, SASO and CIQ and has a minimum order quantity of 1 SET. The price is negotiable and it is packaged in plastic film in the container. Delivery time is 7 working days and payment terms are T/T or L/C. We can provide up to 300 units per month with a voltage of 120/208V, 120/220V, 220V. We offer up to 2 years or 2000 hours of warranty and the noise level is as low as 65 DB(A). The prime genset output is 62kVA.



Support and Services:

Cummins Diesel Generators Technical Support and Service

Cummins Diesel Generators offers a wide range of technical support and service options to ensure the reliable operation of your generator. Our knowledgeable staff is available to help with any questions you may have. We offer various levels of service and support, so you can find the right solution for your needs.

  • Preventative Maintenance & Inspections
  • Complete Diagnostic & Repair Services
  • 24/7 Emergency Service
  • Parts and Component Replacement
  • Performance Testing & Optimization
  • Installation and Commissioning Assistance
  • On-Site Training and Support

For more information, please visit our website or contact us directly.



Packing and Shipping:

Packaging and Shipping

Cummins Diesel Generators are securely packaged to ensure no damage occurs during transport. The packaging includes a wooden crate and plastic shrink wrap. The generator is then secured with straps to further prevent any movement during transit. The generator is also covered with a tarp to ensure protection from the elements.

The generator is then shipped via truck or trailer to its destination. The trailer is equipped with a lift gate to ensure the generator is safely offloaded. The generator is then positioned and secured in its final destination.

Three Phase Cummins 50kW Diesel Generator 62kVA Small Quiet Diesel Generator 65dB(A) 2Three Phase Cummins 50kW Diesel Generator 62kVA Small Quiet Diesel Generator 65dB(A) 3

FAQ:

Q: What is the brand name of this product?
A: The brand name is Tecgen Cummins Genset.
Q: What is the model number?
A: The model number is TGC.
Q: Where is this product made?
A: This product is made in China.
Q: What certifications does this product have?
A: This product has ISO / CE / SASO / CIQ certifications.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 SET.
