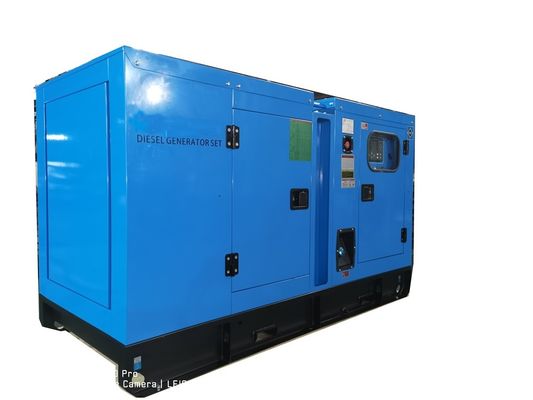

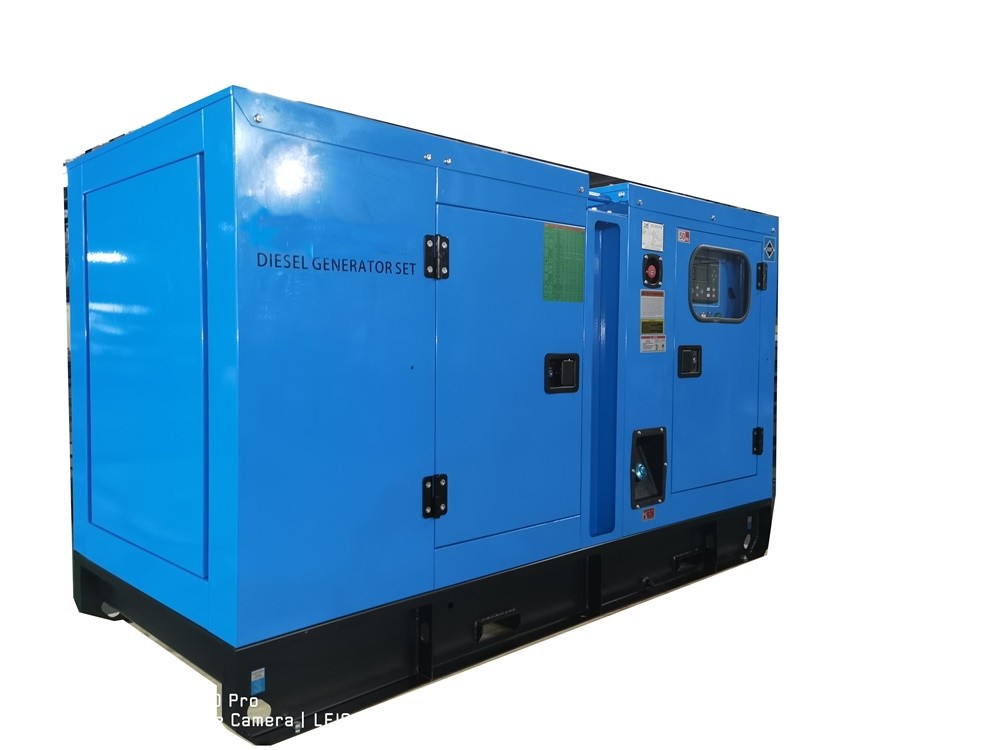

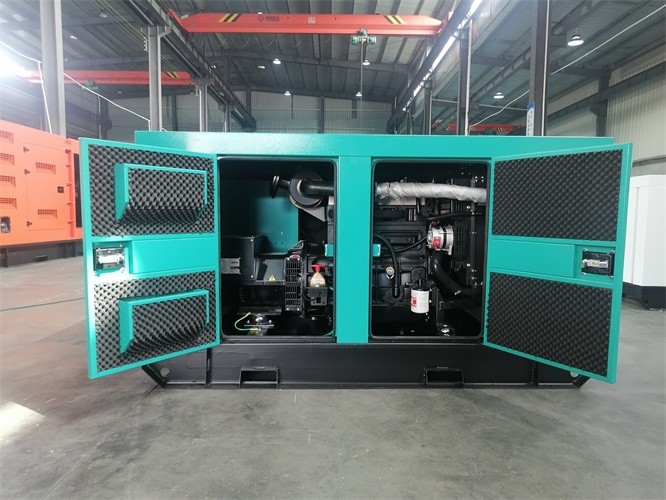

As Low As 65dB(A) 90kW Cummins Diesel Generators with Weatherproof Enclosures
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine Brand | Cummins | Colors | RAL Standard Colors Or Customed |
|---|---|---|---|
| Frequency | 50Hz | Warranty | Up To 2 Years Or 2000 Hours |
| Fuel Tank Capacity | Up To 10 Operation Hours | Voltage | 220/380V, 230/400V, 240/415V |
| Prime Genset Output | 90kW / 113kVA | Genset Type | Silent / Super Silent Type |
Product Description
As Low As 65dB(A) 90kW Cummins Diesel Generators with Weatherproof Enclosures
Product Description:
Cummins Diesel Generators are reliable power solutions with Cummins diesel engines. These diesel generators come with voltage from 220/380V, 230/400V, 240/415V, providing prime genset output of 30kVA. All Cummins diesel engine parts are of high-quality, ensuring efficient and continuous operations. Cummins diesel truck engines are designed for long-lasting and reliable performance. Moreover, these diesel power generator sets are available in a variety of RAL standard colors for you to choose from, or customed colors can be requested.
Features:
- Product Name: Cummins Diesel Generators
- Engine Brand: Cummins
- Genset Type: Silent / Super Silent Type
- Warranty: Up To 2 Years Or 2000 Hours
- Prime Genset Output: 90kW / 113kVA
- Standby Genset Output: 99kW / 124kVA
- Colors: RAL Standard Colors Or Customed
- Cummins Diesel Truck Engines
- Cummins Diesel Generator Parts
- Cummins Diesel Truck Engines
Technical Parameters:
| Technical Specification: | ||
| Generator Set Specification | ||
| Genset Model | TG124C | TG124CS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 163.1A | |
| Prime Power | 90kW / 113kVA | |
| Standby Power | 99kW / 124kVA | |
| Engine Model | 6BTA5.9-G2 | |
| Alternator Model | TGI274S90 | |
| Controller | DSE7320 | |
| Weight & Dimensions | ||
| Length (mm) | 2240 | 2700 |
| Width (mm) | 900 | 1020 |
| Height (mm) | 1400 | 1530 |
| Weight (kgs) | 1200 | 1850 |
| Engine Specification | ||
| Brand | Cummins | |
| Engine Model | 6BTA5.9-G2 | |
| Rate / Standby power (kw) | 106 / 116 | |
| Injection | Indirect | |
| Aspiration | Turbocharged and Aftercooled | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 102 x 120 | |
| Displacement (L) | 5.9 | |
| Cooling | water | |
| Compression Ratio | 17.3:1 | |
| Engine Oil capacity (L) | 10 | |
| Coolant Capacity ( In radiator) | 10 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 27 | |
| 75% Load (L/h) | 20 | |
| 50% Load (L/h) | 14 | |
| 25% Load (L/h) | 8 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI274S90 | |
| Rate Output (kW) | 90 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Deepsea | |
| Model | DSE7320 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
Tecgen Cummins Genset: Delivering Reliable Diesel Power Generator Set for Your Needs
Tecgen Cummins Genset offers a wide range of diesel powered generator sets to meet various power requirements. Our generator sets are powered by Cummins diesel truck engines, providing reliable and efficient diesel power for homes, businesses, and industrial applications. We offer a complete range of Cummins diesel generator parts and services, guaranteeing you the best performance and long-lasting reliability.
The Tecgen Cummins Genset is available in both silent and super silent type, with frequency of 50 Hz. It has a minimum order quantity of 1 set, with a competitive price to meet your budget. It comes with a wide selection of optional accessories, such as weatherproof enclosures and auto transfer switches. All Tecgen Cummins Genset are certified to ISO / CE / SASO / CIQ standards and come with a warranty of up to 2 years or 2000 hours.
We guarantee fast delivery within 7 working days, and secure payment terms of T/T / L/C. We can provide a maximum of 300 units per month with exceptional customer service and reliable after-sales support.
Choose Tecgen Cummins Genset for your diesel power generator needs and enjoy reliable and efficient power for years to come.
Support and Services:
Cummins Diesel Generators provides technical support and service to ensure the highest quality and performance for its products. Our technical support team is dedicated to providing reliable service and advice to customers. We offer a range of services including troubleshooting and diagnosis, maintenance and repair, installation and commissioning, and warranty services. We also provide product training and technical support documents. We strive to provide our customers with the best service and support possible.
Packing and Shipping:
Packaging and Shipping for Cummins Diesel Generators:
Cummins diesel generators are packaged and shipped in accordance with international shipping standards. All generators are secured to wooden pallets to ensure stability during transit. The generators are wrapped in plastic for protection from moisture and the elements, and then strapped to the pallet with heavy-duty cargo straps. Generators are also placed in a box with foam padding for additional protection.
FAQ:
A1: Tecgen Cummins Genset is a brand of Cummins Diesel Generators.
A2: The model number of Tecgen Cummins Genset is TG Series.
A3: Tecgen Cummins Genset is made in China.
A4: Tecgen Cummins Genset has ISO / CE / SASO / CIQ certifications.
A5: The payment terms for Tecgen Cummins Genset are T/T / L/C.
