Cummins Diesel Generators Prime Genset Output 31kVA and RAL Standard Colors
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Silent / Super Silent Type | Engine Brand | Cummins |
|---|---|---|---|
| Prime Genset Output | 31kVA | Frequency | 50Hz |
| Voltage | 220/380V, 230/400V, 240/415V | Noise Level | As Low As 65 DB(A) |
| Colors | RAL Standard Colors Or Customed | Options | Weatherproof Enclosures, Auto Transfer Switches, Etc. |
Product Description

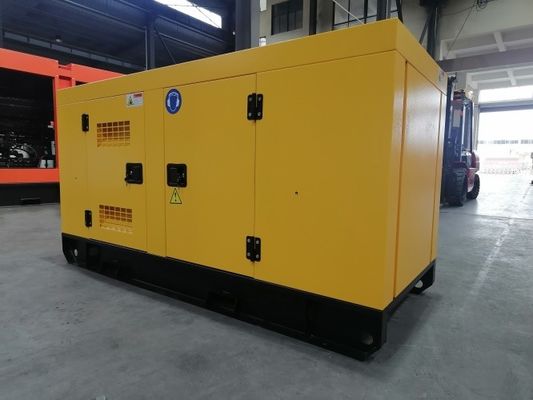

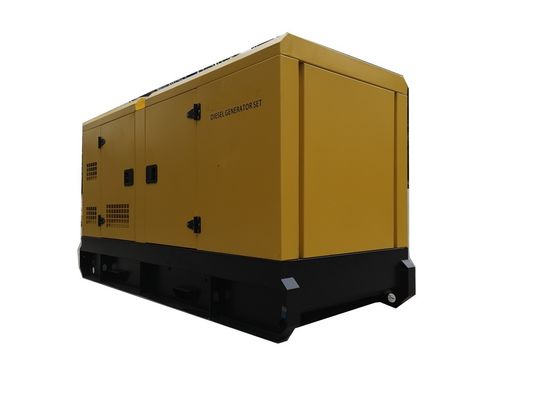

Cummins Diesel Generators Prime Genset Output 31kVA and RAL Standard Colors
Product Description:
Cummins Diesel Generators are the perfect choice for a reliable power source. These generators are equipped with Cummins diesel engines, which are renowned for their durability, efficiency, and low noise level. The generators come with a voltage range of 220/380V, 230/400V, and 240/415V, and the noise level can reach as low as 65 DB(A). The fuel tank capacity is up to 10 operation hours, and other options such as weatherproof enclosures and auto transfer switches are also available. Whether in the form of silent or super silent type, Cummins Diesel Generators are ideal for commercial or industrial use. Cummins is a trusted provider of marine diesel engines, truck engines, and other Cummins diesel engine parts.
Features:
- Product Name: Cummins Diesel Generators
- Engine Brand: Cummins
- Prime Genset Output: 25kW / 31kVA
- Standby Genset Output: 28kW / 34kVA
- Voltage: 220/380V, 230/400V, 240/415V
- Genset Type: Silent / Super Silent Type
- Fuel tank Capacity: Up To 10 Operation Hours
- Cummins Diesel Engine Parts
- Diesel Power Generator Set
Technical Parameters:
| Technical Specification: | ||
| 31kVA Cummins Generator Set Specification | ||
| Genset Model | TG34C | TG34CS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 44.7A | |
| Prime Power | 25kW / 31kVA | |
| Standby Power | 28kW / 34kVA | |
| Engine Model | 4B3.9-G12 | |
| Alternator Model | TGI184S25 | |
| Controller | DSE6020 | |
| Weight & Dimensions | ||
| Length (mm) | 1750 | 2300 |
| Width (mm) | 840 | 980 |
| Height (mm) | 1360 | 1460 |
| Weight (kgs) | 870 | 1230 |
| Engine Specification | ||
| Brand | Cummins | |
| Engine Model | 4B3.9-G12 | |
| Prime/Standby power (kW) | 27 / 30 | |
| Injection | Indirect | |
| Aspiration | Naturally Aspirated | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 102 x 120 | |
| Displacement (L) | 3.9 | |
| Cooling | water | |
| Compression Ratio | 18:1 | |
| Engine Oil capacity (L) | 8.3 | |
| Coolant Capacity ( In radiator) | 8.3 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 7.4 | |
| 75% Load (L/h) | 6.1 | |
| 50% Load (L/h) | 4.5 | |
| 25% Load (L/h) | 3 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI184S25 | |
| Rate Output (kVA) | 31 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Deepsea | |
| Model | DSE6020 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
Cummins Diesel Generators, branded as Tecgen Cummins Genset, are a reliable power source with a minimum order quantity of one set. They are certified with ISO, CE, SASO and CIQ, and come with a price that can be negotiated. These generators have weatherproof enclosures, automatic transfer switches and other options for customers to choose from. The prime genset output for Tecgen Cummins Genset is 30kVA, and the noise level is as low as 65DB(A). It has a frequency of 50Hz and fuel tank capacity of up to 10 operation hours. Cummins Diesel Generators are widely used in Cummins diesel truck engines, Cummins diesel generator parts, and Cummins marine diesel engines. The packaging for these generators is plastic film package in container, and delivery time is 7 working days. Payment terms are T/T or L/C, and there is a supply ability of 300 units per month.
Support and Services:
Cummins Diesel Generators Technical Support & Services
Cummins Diesel Generators provides a comprehensive suite of technical support and services to ensure our customers get the most out of their investment. Our teams of experienced technicians are available for on-site service and remote support to keep your Cummins Diesel Generators running at peak performance.
We also offer a range of preventive maintenance packages to help keep your Cummins Diesel Generators running smoothly and efficiently. Our preventive maintenance packages include periodic inspections, repairs, and upgrades to ensure your Cummins Diesel Generators run at peak performance.
In addition, we offer a wide variety of online and telephone technical support services. Our experienced technicians can help you diagnose and troubleshoot any issues you may have with your Cummins Diesel Generators. We also provide access to our online knowledge base, which contains hundreds of helpful articles on topics such as troubleshooting, maintenance, and repairs.
For more information about our technical support and services for Cummins Diesel Generators, please contact us. Our experienced team of technicians is available to answer any questions you may have and to provide the best possible service for your Cummins Diesel Generators.
Packing and Shipping:
Packaging and Shipping
Cummins Diesel Generators are packaged and shipped in a variety of ways to meet the needs of our customers. We use a combination of wooden crates, plastic pallets, steel bands, and shrink-wrap to ensure the secure transport of our generators. All of our packaging materials are designed to protect the product during transit and to ensure its safe arrival at its destination.
We offer several different types of shipping services depending on the customer's needs. These include ground shipping, air freight, and international shipping. All generators are shipped with tracking information and insurance to ensure safe delivery and to provide peace of mind for our customers.
FAQ:
- Q: What is the Brand Name of this product?
- A: The Brand Name of this product is Tecgen Cummins Genset.
- Q: What is the Model Number of this product?
- A: The Model Number is TGC.
- Q: Where is this product from?
- A: This product is from China.
- Q: What certifications does this product have?
- A: It has ISO / CE / SASO / CIQ certifications.
- Q: How many units can be produced per month?
- A: It can produce up to 300 units per month.
