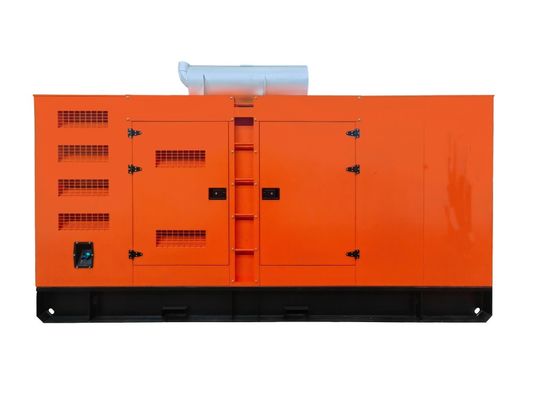

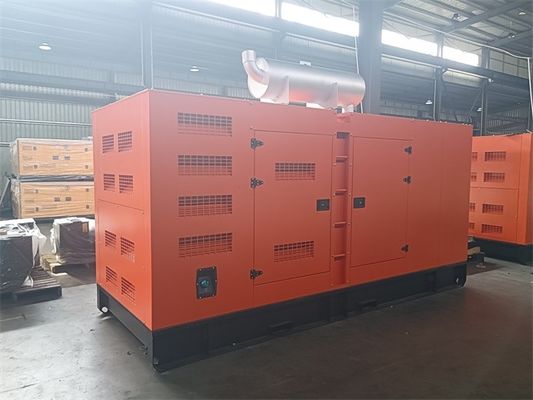

400kVA Perkins Diesel Generators 320kW Continuous Duty Diesel Generator With 720L Fuel Tank
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Perkins Genset |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TG440PSD6 & TG495PSD6 |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plastic film package in container |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Silent / Super Silent | Noise Level | 65dB(A) |
|---|---|---|---|
| Frequency | 60 Hz | Cooling System | Water Cooled Engine |
| Genset 1 Output | 320kW / 400kVA | Genset 2 Output | 360kW / 450kVA |
| Engine Brand | Perkins | Alternator Brand | Stamford / Leroy Somer/ Meccalte / Tecgen |
| Highlight | 400kVA Perkins Diesel Generators,Perkins Diesel Generators 320kW,60Hz continuous duty diesel generator |
||
Product Description
Product Description:
Perkins Diesel Generators
Perkins Diesel Generators are reliable and highly efficient power solutions for various applications. They are equipped with a diesel engine, generator set and related components, providing standby output of 352kW / 396kW. These generators are designed to be integrated with a variety of alternator brands, such as Stamford, Leroy Somer, Meccalte and Tecgen, to meet the requirements of a wide range of customers. With a noise level of only 65dB(A), these generator sets are available in both silent and super silent types, and can be customized to run at either 60 Hz frequency.
These diesel generator sets are ideal for both residential and commercial use, and can also be used in a diesel generator container for a more secure and stable enclosure. Due to their robust design and high performance, Perkins Diesel Generators are one of the most preferred diesel power generator sets in the market.
Features:
- Product Name: Perkins Diesel Generators
- Frequency: 60 Hz
- Genset Type: Silent / Super Silent
- Noise Level: 65dB(A)
- Cooling System: Water Cooled Engine
- Genset Standby Output: 352kW / 396kW
- Diesel Power Generator Set
- Container Diesel Generator
- Container Diesel Generator Set
Technical Parameters:
| Technical Specification: | |||||
| 320kW & 360kW Generator Set Specification | |||||
| Genset Model | TG440PD6 | TG440PSD6 | TG495PD6 | TG495PSD6 | |
| Open | Silent | Open | Silent | ||
| Frequency | 60Hz | ||||
| Rate Speed | 1800RPM | ||||
| Voltage | 440/254V | ||||
| Phase | 3 Phase, Four Wires | ||||
| Rate Current (A) | 524.9 | 590.5 | |||
| Prime Power | 320kW / 400kVA | 360kW / 450kVA | |||
| Standby Power | 352kW / 440kVA | 396kW / 495kVA | |||
| Engine Model | 2206C-E13TAG2 | 2206A-E13TAG6 | |||
| Alternator Model | TGI314S320 | TGI314S360 | |||
| Controller | Smartgen HGM6120N | ||||
| Fuel Tank Capacity | 680L | 720L | |||
| Weight And Dimensions | |||||
| Length (mm) | 3200 | 4350 | 3200 | 4350 | |
| Width (mm) | 1150 | 1430 | 1150 | 1430 | |
| Height (mm) | 1800 | 2000 | 1800 | 2000 | |
| Weight (kgs) | 3100 | 4080 | 3250 | 4260 | |
| Engine Specification | |||||
| Engine Brand | Perkins (USA) | ||||
| Engine Model | 2206C-E13TAG2 | 2206A-E13TAG6 | |||
| Prime/Standby power | 373.4kW / 406.5kW | ||||
| Injection | Indirect | ||||
| Aspiration | Turbocharged & Air-to-Air charge cooling | ||||
| No. of cylinders | 6 | ||||
| Speed | 1800RPM | ||||
| Bore of Stroke (mm) | 130 x 157 | ||||
| Displacement (L) | 12.5 | ||||
| Cooling | water | ||||
| Compression Ratio | 16.3:1 | ||||
| Engine Oil capacity (L) | 51.4 | ||||
| Coolant Capacity ( In radiator) | 51.4 | ||||
| Governor | Electric | ||||
| Air Filter | Dry Element | ||||
| Fuel consumption | @ 60Hz | @ 60Hz | |||
| 100% Load (L/h) | 84 | 91 | |||
| 75% Load (L/h) | 65 | 69 | |||
| 50% Load (L/h) | 46 | 48 | |||
| 25% Load (L/h) | 23 | 24 | |||
| Alternator Specification | |||||
| Brand | Tecgen | ||||
| Model | TGI314S320 | TGI314S360 | |||
| Rate Output | 320kW | 360kW | |||
| Speed | 1800RPM | ||||
| Pole | 4 | ||||
| Winding Connections | Star | ||||
| Insulation Class | H | ||||
| Enclosure | IP23 | ||||
| Altitude (m) | ≤1000 | ||||
| Voltage Regulator | AVR | ||||
| Steady State Voltage Regulator | 1% | ||||
| Bearing | single | ||||
| Controller System | |||||
| Brand | Smartgen | ||||
| Model | HGM6120N | ||||
| Functions | Control with AMF module | ||||
| Static with auto. battery charger | |||||
| Emergency stop push button | |||||
| ATS Connection | |||||
| OPTIONAL EQUIPMENTS | |||||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | |||||
Applications:
Tecgen Perkins Genset is a container diesel generator with a model number of TGP. It has the certification of ISO / CE / SASO / CIQ and has a minimum order quantity of 1 set. The price is negotiable and the packaging details are plastic film package in container. The delivery time is about 15 working days and the payment terms are T/T / L/C. The supply ability is 400 units per month and the noise level is 65dB(A). The genset standby output is 320kW / 360kW with a brand of Perkins. The cooling system is water cooled engine and the genset type is silent / super silent. It is a reliable diesel power generator set, ideal for many different applications, such as commercial, industrial, residential, and agricultural purposes.
The Tecgen Perkins Genset is designed to be robust and reliable. It is also easy to set up and operate. The container diesel generator is efficient and cost-effective, providing an excellent source of power for many different applications. The diesel generator set has a low noise level and is safe to use. It is also highly efficient and can provide up to 400kVA / 450kVA of power. Overall, the Tecgen Perkins Genset is an excellent choice for many different applications.
Customization:
Perkins Diesel Generators
Tecgen Perkins Genset TGP is a high-quality diesel power generator set from Fuzhou, China.
It is ISO / CE / SASO / CIQ certified and tested to ensure safety and quality. The minimum order quantity is 1 SET and the price is negotiable.
The package of this generator set is plastic film package in container, and the delivery time is 15 Working Days. The payment terms are T/T / L/C.
Supply ability is 400 units per month, and the frequency is 50/60 Hz. The genset prime output is 320kW / 360kVA, and the genset type is silent / super silent. The noise level is 65dB(A). Alternator brand includes Stamford / Leroy Somer/ Meccalte / Tecgen.
This diesel power generator set is the perfect choice for container diesel generator, silent generator, and super silent generator.
Support and Services:
Perkins Diesel Generators Technical Support and Service
We offer expert technical support and service for Perkins Diesel Generators to ensure our customers are getting the most out of their investment. Our experienced technicians are on hand to answer any questions you may have and to provide advice on the best installation and maintenance practices.
We also provide a comprehensive range of spare parts and accessories to ensure that your Perkins Diesel Generator is always running to its full capacity. Our team of experienced engineers are available to assist with the installation, service and maintenance of your Perkins Diesel Generator.
If you require any further assistance, please do not hesitate to contact us. We look forward to hearing from you.
Packing and Shipping:
Packaging and Shipping
Perkins Diesel Generators are packaged in heavy-duty cardboard boxes on wooden pallets and shrink-wrapped for protection. The pallets are secured to the truck bed with steel bands and wrapped in a breathable tarp for added protection.
We use only the best carriers to ensure that your Perkins Diesel Generators arrive safely and on time. We offer both land and air shipping and can accommodate rush orders. We also provide tracking information so you can monitor the progress of your shipment.
FAQ:
- Q1. What is the brand name of Perkins Genset?
- A1. The brand name of Perkins Genset is Tecgen Perkins Genset.
- Q2. What is the Model Number of Perkins Genset?
- A2. The Model Number of Perkins Genset is TGP.
- Q3. Where is the origin of Perkins Genset?
- A3. The origin of Perkins Genset is Fuzhou, China.
- Q4. What are the certifications of Perkins Genset?
- A4. The certifications of Perkins Genset are ISO / CE / SASO / CIQ.
- Q5. What is the minimum order quantity of Perkins Genset?
- A5. The minimum order quantity of Perkins Genset is 1 SET.
