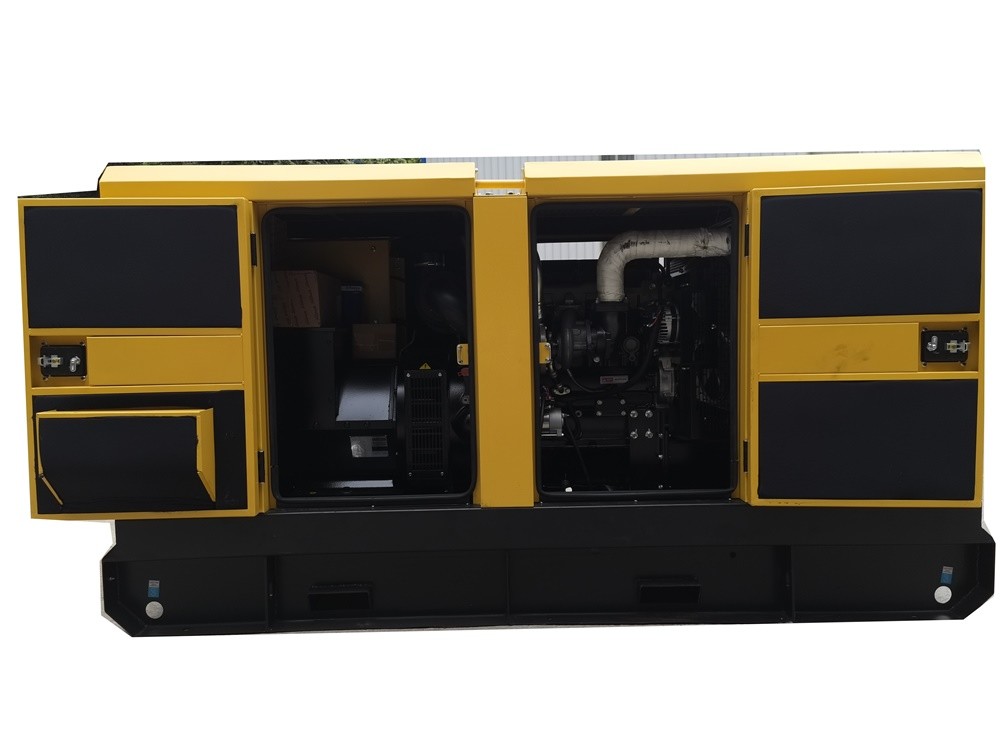

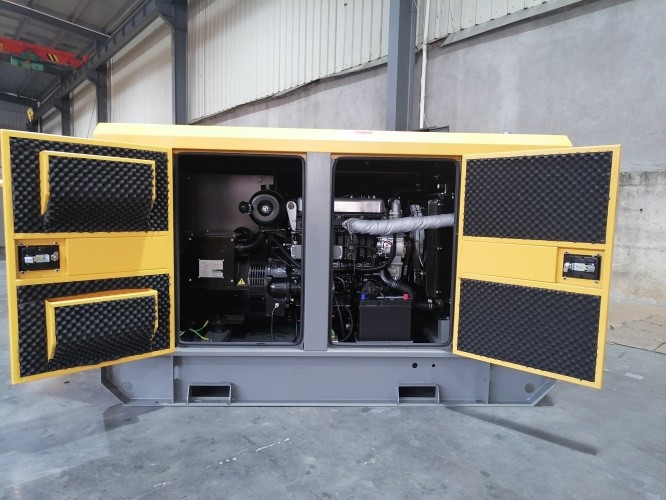

220kVA 200 Kw Perkins Diesel Generator Silent Running Diesel Generators
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Perkins Genset |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TGP |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plastic film package in container |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Standby Output | 176kW / 220kVA | Genset Prime Output | 160kW / 200kVA |
|---|---|---|---|
| Frequency | 50/60 Hz | Noise Level | 65dB(A) |
| Genset Type | Silent / Super Silent | Engine Brand | Perkins |
| Alternator Brand | Stamford / Leroy Somer/ Meccalte / Tecgen | Cooling System | Water Cooled Engine |
| Highlight | 220kVA 200 kw perkins diesel generator,Silent 200 kw perkins diesel generator,160kW Silent Running Diesel Generators |
||
Product Description
Product Description:
Perkins Diesel Generators are a perfect solution for emergency power supply and backup power. The generator set diesel engine is water cooled, and comes in either silent or super silent type. The container diesel generator provides an output of 176 kW/220 kVA at 50/60 Hz frequency. This diesel power generator set is powered by Perkins, a renowned engine brand for its reliability and durability.
Features:
- Product Name: Perkins Diesel Generators
- Genset Type: Silent / Super Silent
- Noise Level: 65dB(A)
- Cooling System: Water Cooled Engine
- Genset Standby Output: 176kW / 220kVA
- Frequency: 50/60 Hz
- Container Diesel Generator
Technical Parameters:
| Technical Specification: | ||||
| Generator Set Specification | ||||
| Genset Model | TG220P-1 | TG220PS-1 | TG220P-1 | TG220PS-1 |
| Open | Silent | Open | Silent | |
| Frequency | 50Hz | |||
| Voltage | 415/240V | |||
| Phase | 3 | |||
| Rate Current (A) | 278.2 | |||
| Prime Power | 160kW / 200kVA | |||
| Standby Power | 176kW / 220kVA | |||
| Engine Model | 1106A-70TAG4 | |||
| Alternator Model | UCI 274H | |||
| Controller | Smartgen HGM6120N | |||
| Fuel Tank Capacity | 320L | |||
| Weight And Dimensions | ||||
| Length (mm) | 2400 | 3200 | 2550 | 3600 |
| Width (mm) | 950 | 1100 | 950 | 1200 |
| Height (mm) | 1550 | 1630 | 1680 | 1800 |
| Weight (kgs) | 1750 | 2350 | 1890 | 2850 |
| Engine Specification | ||||
| Engine Brand | Perkins (Wuxi) | |||
| Engine Model | 1106A-70TAG4 | |||
| Prime Power(kW) | 178.9 | |||
| Injection | Indirect | |||
| Aspiration | Turbocharged and air charge cooled | |||
| No. of cylinders | 6 | |||
| Bore of Stroke (mm) | 105 x 135 | |||
| Displacement (L) | 7.01 | |||
| Cooling | water | |||
| Compression Ratio | 16:1 | |||
| Engine Oil capacity (L) | 21 | |||
| Coolant Capacity ( In radiator) | 21 | |||
| Governor | Electric | |||
| Air Filter | Dry Element | |||
| Fuel consumption | at 50Hz | |||
| 100% Load (L/h) | 40 | |||
| 75% Load (L/h) | 30 | |||
| 50% Load (L/h) | 20 | |||
| 25% Load (L/h) | 10 | |||
| Alternator Specification | ||||
| Brand | Stamford | |||
| Model | UCI 274H | |||
| Rate Output (kW) | 160 | |||
| Pole | 4 | |||
| Winding Connections | Star | |||
| Insulation Class | H | |||
| Enclosure | IP23 | |||
| Altitude (m) | ≤1000 | |||
| Voltage Regulator | AVR | |||
| Steady State Voltage Regulator | 1% | |||
| Bearing | single | |||
| Controller System | ||||
| Brand | Smartgen | |||
| Model | HGM6120N | |||
| Functions | Control with AMF module | |||
| Static with auto. battery charger | ||||
| Emergency stop push button | ||||
| ATS Connection | ||||
| OPTIONAL EQUIPMENTS | ||||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||||
Applications:
Tecgen Perkins Genset TGP is a silent type and super silent type diesel generator set with water cooled engine. It is powered by Perkins engine and is certificated with ISO, CE, SASO, CIQ. The noise level is 65dB(A) and the frequency is 50/60Hz. This generator set is available with alternator brands like Stamford, Leroy Somer, Meccalte and Tecgen. It has minimum order quantity of 1 SET, and the price is negotiable. The delivery time is 15 working days and the payment terms can be T/T or L/C. The supply ability is 400 units per month and the packaging details is plastic film package in container.
This Tecgen Perkins Genset TGP is suitable for many applications, such as generator set diesel engine, container diesel generator, super silent generator, container diesel generator set, and silent generator. It has high performance and is reliable for long time use. It is designed and manufactured according to international standards and is highly praised by customers.
Customization:
Tecgen Perkins Genset - Diesel Power Generator Set
Brand Name: Tecgen Perkins Genset
Model Number: TG220PS-1
Place of Origin: Fuzhou, China
Certification: ISO / CE / SASO / CIQ
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plastic film package in container
Delivery Time: 15 Working Days
Payment Terms: T/T / L/C
Supply Ability: 400 Units Per Month
Genset Type: Silent / Super Silent
Frequency: 50/60 Hz
Engine Brand: Perkins
Alternator Brand: Stamford / Leroy Somer/ Meccalte / Tecgen
Cooling System: Water Cooled Engine
Tecgen Perkins Genset is the perfect choice for Container Diesel Generator and Generator Set Diesel Engine.
Support and Services:
Perkins Diesel Generators Technical Support and Service
Perkins Diesel Generators provide world-class technical support and service. Our team of highly-trained technicians are available 24/7 for any questions or problems you may have with your generator. We also offer a full range of preventative maintenance services to keep your generator running smoothly. Our team of experts can also provide customized solutions for any unique needs or challenges you may face.
Our technical support and service offerings include:
- 24/7 technical support
- Preventative maintenance
- On-site repair and installation
- Customized solutions
For more information about Perkins Diesel Generators technical support and service, please contact us today.
Packing and Shipping:
Packaging and Shipping Perkins Diesel Generators
Perkins diesel generators are packaged and shipped in accordance with all applicable local, state and federal regulations.
Packaging materials used for Perkins diesel generators include:
- Heavy-duty cardboard boxes
- Bubble wrap
- Packing peanuts
- Foam padding
All packages are sealed with tape and labeled with warning labels. A copy of the applicable operating instructions is also included in the packaging.
Perkins diesel generators are shipped via ground transportation, utilizing carriers such as UPS, FedEx, or DHL. All shipments are tracked and insured.
FAQ:
- Q: What is the brand name of Tecgen Perkins Genset?
A: The brand name of Tecgen Perkins Genset is Tecgen Perkins Genset. - Q: What is the model number of Tecgen Perkins Genset?
A: The model number of Tecgen Perkins Genset is TGP. - Q: Where is Tecgen Perkins Genset manufactured?
A: Tecgen Perkins Genset is manufactured in Fuzhou, China. - Q: What certifications does Tecgen Perkins Genset have?
A: Tecgen Perkins Genset is certified with ISO / CE / SASO / CIQ. - Q: How many units of Tecgen Perkins Genset can be supplied per month?
A: Tecgen Perkins Genset can supply up to 400 units per month.
