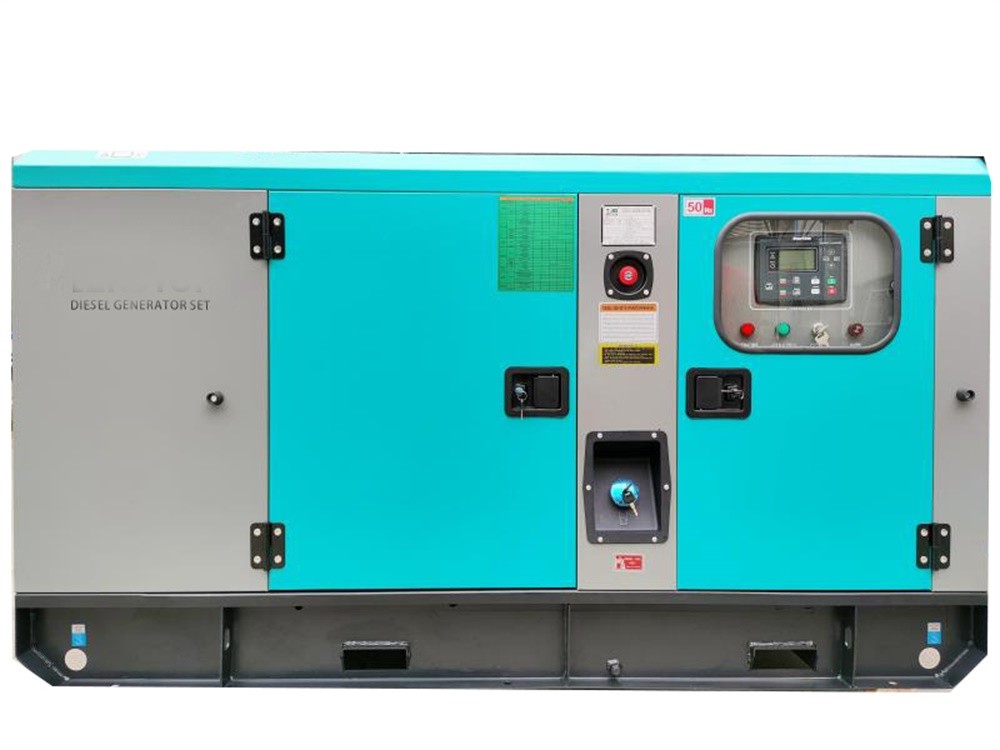

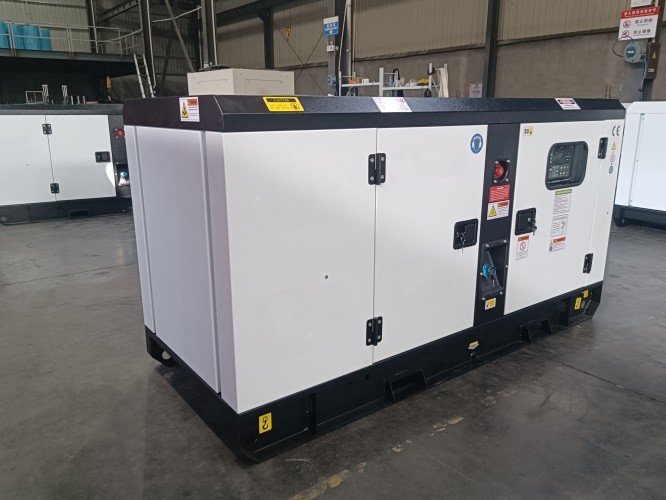

Quiet 250kVA Perkins Power Generator With Low Noise 65dBA Continuous Duty
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Perkins Genset |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TG275PS-1 |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plastic film package in container |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Silent / Super Silent | Frequency | 50/60 Hz |
|---|---|---|---|
| Noise Level | 65dB(A) | Genset Prime Output | 250kVA |
| Genset Standby Output | 275kVA | Engine Brand | Perkins |
| Alternator Brand | Stamford / Leroy Somer/ Meccalte / Tecgen | Cooling System | Water Cooled Engine |
| Highlight | 250kVA perkins power generator,perkins power generator Low Noise,65dBA perkins generator set |
||
Product Description
Product Description:
Perkins Diesel Generators are the perfect solution for all your power needs. Our diesel generator sets are designed to provide superior performance and efficient power in a wide range of applications. The premium engine brand, Perkins, provides reliable and long-lasting power for our diesel generator sets. Our Perkins diesel generator sets come in both Silent and Super Silent options. The Silent option has a noise level of 65dB(A) and the Super Silent option has a noise level of 50dB(A). Our Perkins diesel generator sets have a prime output ranging from 7kW/9kVAkVA to 1320kW/1650kVA and are available in both 50/60 Hz frequency. Our high-quality container diesel generator sets are the perfect choice for containerized power solutions. Our diesel power generator sets are designed for reliable and efficient power in a wide range of applications.
Features:
- Product Name: Perkins Diesel Generators
- Genset Prime Output: 200kW / 250kVA
- Genset Standby Output: 220kW / 275kVA
- Alternator Brand: Stamford / Leroy Somer/ Meccalte / Tecgen
- Noise Level: 65dB(A)
- Frequency: 50/60 Hz
- Container Diesel Generator
- Generator Set Diesel Engine
- Generator Set
Technical Parameters:
| Technical Specification: | ||
| 250kVA Generator Set Specification | ||
| Genset Model | TG275P-1 | TG275PS-1 |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 415/240V | |
| Phase | 3 | |
| Rate Current (A) | 347.8 | |
| Prime Power | 200kW / 250kVA | |
| Standby Power | 220kW / 275kVA | |
| Engine Model | 1206A-E70TTAG3 | |
| Alternator Model | UCI 274K | |
| Controller | Deepsea DSE7320 | |
| Fuel Tank Capacity | 400L | |
| Weight And Dimensions | ||
| Length (mm) | 2750 | 4000 |
| Width (mm) | 1150 | 1400 |
| Height (mm) | 1680 | 2100 |
| Weight (kgs) | 2790 | 3300 |
| Engine Specification | ||
| Engine Brand | Perkins (UK) | |
| Engine Model | 1206A-E70TTAG3 | |
| Max Power(kW) | 248.6 | |
| Injection | Indirect | |
| Aspiration | Turbocharged | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 105 x 135 | |
| Displacement (L) | 7.01 | |
| Cooling | water | |
| Compression Ratio | 16:1 | |
| Engine Oil capacity (L) | 41 | |
| Coolant Capacity ( In radiator) | 41 | |
| Governor | ECM | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 47.6 | |
| 75% Load (L/h) | 35.7 | |
| 50% Load (L/h) | 23.8 | |
| 25% Load (L/h) | 11.9 | |
| Alternator Specification | ||
| Brand | Stamford | |
| Model | UCI 274K | |
| Rate Output (kW) | 200 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | single | |
| Controller System | ||
| Brand | DEEPSEA | |
| Model | DSE7320 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
Tecgen Perkins Genset is a container diesel generator produced by Tecgen, a renowned generator manufacturer in Fuzhou, China. It is certified by ISO, CE, SASO and CIQ with minimum order quantity 1 SET. Its price is negotiable and it is packed with plastic films in a container for delivery. The delivery time is 15 working days and payment terms are T/T / L/C. Tecgen Perkins Genset provides a powerful supply capacity of 400 units per month. It adopts water cooled engine for cooling system and features alternator brands including Stamford / Leroy Somer/ Meccalte / Tecgen. It has the Genset Prime Output of 200kW / 250kVA and noise level of 65dB(A). It is available in two types, silent and super silent. Tecgen Perkins Genset is a reliable container diesel generator, Diesel Power Generator Set and Perkins Generator Set for commercial and industrial applications.
Customization:
Perkins Diesel Generators
Brand Name: Tecgen Perkins Genset
Model Number: TGP275PS-1
Place of Origin: Fuzhou, China
Certification: ISO/CE/SASO/CIQ
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plastic film package in container
Delivery Time: 15 Working Days
Payment Terms: T/T/L/C
Supply Ability: 400 Units Per Month
Noise Level: 65dB(A)
Alternator Brand: Stamford/Leroy Somer/Meccalte/Tecgen
Genset Type: Silent/Super Silent
Engine Brand: Perkins
Cooling System: Water Cooled Engine
Generator Set Diesel Engine, Container Diesel Generator Set, Perkins Diesel Generators
Support and Services:
Perkins Diesel Generators Technical Support and Services
Perkins Diesel Generators Technical Support and Services are offered to help you maximize the efficiency and reliability of your generators. Our team of experienced technicians is available to answer any questions you may have about your generator and its components. We provide a range of services, including installation, maintenance, troubleshooting, and repair. We also provide remote monitoring and remote diagnostics services, so you can be sure that your generator is running smoothly and efficiently.
Our team of experts is trained to provide exceptional customer service, and we have the knowledge and experience to help you with any issue that may arise. We understand the importance of keeping your generator running at its best, and we are committed to providing the best service possible. We strive to exceed your expectations and to ensure that your generator is running optimally.
If you have any questions or need any assistance with your Perkins Diesel Generators, please don't hesitate to contact us. We are here to help.
Packing and Shipping:
Perkins Diesel Generators will be packaged and shipped with the utmost care. The generator will be securely packed in a heavy-duty, industrial-grade cardboard box with an inner lining of foam padding to protect it against any potential damage. The box will be securely taped to ensure a safe transit. The generator will be further secured with bubble wrap and/or additional foam padding for extra protection. The package will be labeled to ensure it is easily identifiable during transit.
FAQ:
- Q: What is the Brand Name of the Perkins Genset?
- A: The Brand Name of the Perkins Genset is Tecgen Perkins Genset.
- Q: What is the Model Number of the Genset?
- A: The Model Number of the Genset is TGP.
- Q: Where is the Perkins Genset made?
- A: The Perkins Genset is made in Fuzhou, China.
- Q: What certifications do the Perkins Genset have?
- A: The Perkins Genset have ISO / CE / SASO / CIQ certifications.
- Q: How many Perkins Genset can be supplied?
- A: The Perkins Genset can be supplied up to 400 Units Per Month.
