15KVA Perkins Diesel Generator Set High Efficiency Low Fuel Consumption
| Place of Origin | CHINA |
|---|---|
| Brand Name | TECGEN |
| Certification | CE/SONCAP/FCC/SGS |
| Model Number | TGPS |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plywood case Package or Plastic film package in container |
| Delivery Time | 15-20 working days after received deposit |
| Payment Terms | T/T or L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Controller | Deepsea / Smartgen | Alternator Brand | Leroy Somer / Stamford / Tecgen |
|---|---|---|---|
| Phase | Single/Three Phase | Engine Brand | Perkins |
| Frequency | 50Hz | Fuel Type | Diesel |
| Noise Level | Low | Cooling System | Water-cooled |
| Highlight | 15KVA perkins diesel generator set,12kW perkins diesel generator set,13kW genset parkins |
||
Product Description

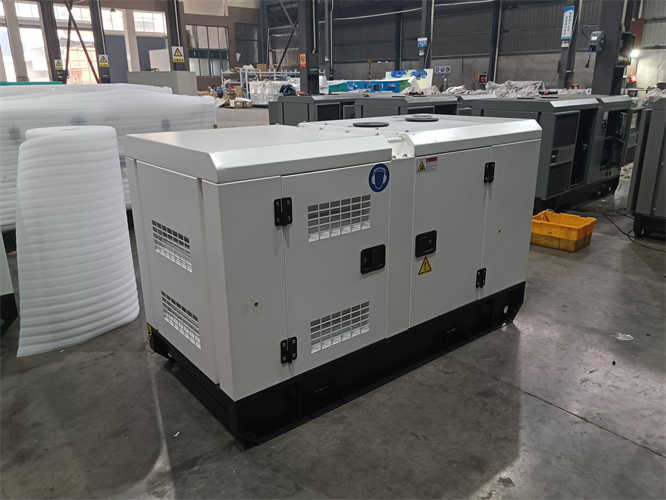

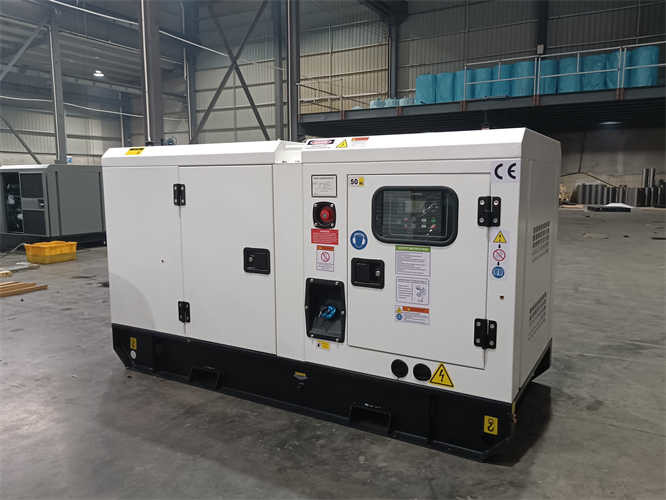

15KVA Perkins Diesel Generator High Efficiency Low Fuel Consumption
Product Description:
Silent Diesel Generators are the perfect choice for those looking for noise-free power generators. Our generators feature reliable and robust alternator brands such as Leroy Somer, Stamford, and Tecgen.
Generator Set Datasheet:
| Parameter | |
| Genset Model | TG17P |
| Prime Power | 15kVA/12kW |
| Standby Power | 17kVA/13kW |
| Frequency | 50Hz |
| Rated Voltage | 1500 RPM |
| Power Factor | 0.8 |
Engine Information:
| Engine Brand | Perkins |
| Engine Model | 403A-15G2 |
| Max Output (kW) | 15 |
| Number of Cylinders | 4 |
| Air intake way | Natural |
| Displacement (L) | 1.496 |
| Bore×Stroke (mm×mm) | 84x90 |
| Compression Ratio | 22.5:1 |
| Speed Governor | Mechanical |
| Fuel Consumption (g/kw.h) | 250 |
Alternator Information:
| Alternator Brand | Tecgen |
| Model | TGI164S-12 |
| Rate Output | 15kVA/12kW |
| Frequency | 50Hz |
| Altitude | ≤1000 |
| Insulation Class | H |
| Protection Grade | IP 23 |
| Optional Alternator Brands | Leroy Somer, Marathon, Mecc Alte, Chinese brand Brushless alternator |
Control System:
| Brand | Smartgen |
| Model | HGM6120N |
| Functions | Control with AMF module, Static with auto. battery charger, Emergency stop push button, Alarm |
| Optional Control System Brands | Deepsea, ComAp, Mebay |
Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date. During the guarantee period, our Tecgen Power will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts maintenance for gen-set
Support and Services:
Silent Power Generators Technical Support and Service
We are dedicated to providing the best possible technical support and service for our Silent Power Generators. Our team of dedicated professionals is ready to help you with any issue you may have with your generator.
We provide technical assistance over the phone, email, or even video chat. Our support staff is knowledgeable and experienced in all aspects of the Silent Power Generators and can provide helpful advice and troubleshooting tips.
We also offer a wide range of services to ensure that your generator is running at optimal performance. Our services include:
- Installation and setup
- Regular maintenance and inspections
- Troubleshooting and repair
- Parts and accessories
If you have any questions or need assistance, please don't hesitate to contact us. We are here to help keep your Silent Power Generators running smoothly.
