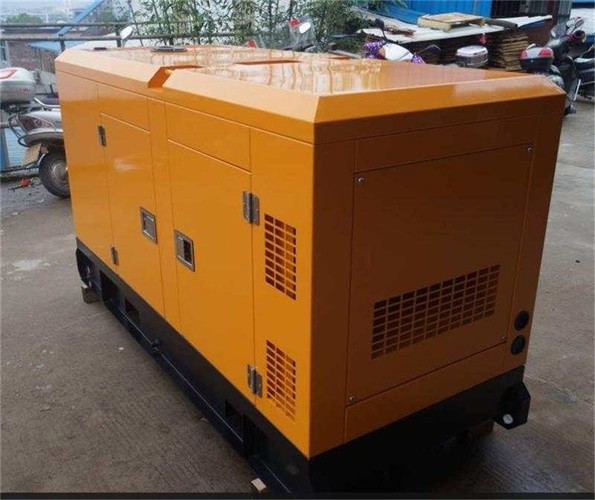

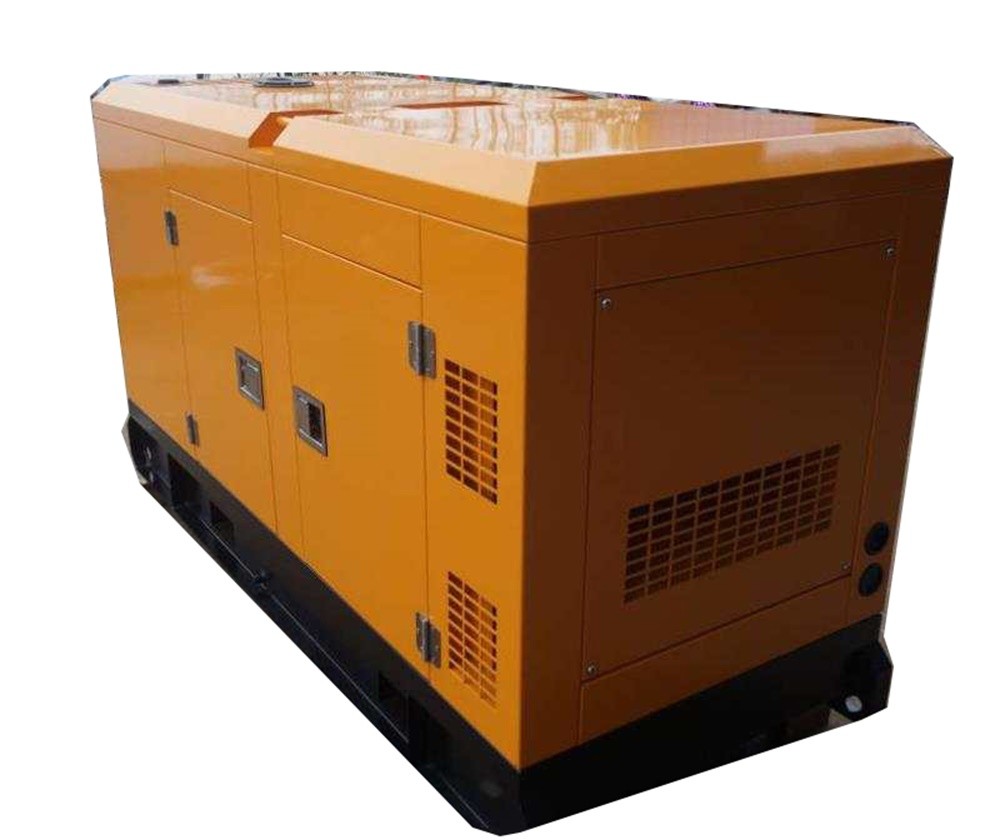

25kVA Water Cooled Industrial Generator Set Low Noise Level Ultrasonic Generators
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 60Hz / 1800rpm | Rate Output Genset | 20kW / 25kVA |
|---|---|---|---|
| Noise Level | 70dB(A)@7m | Alternator Brand | Leroy Somer / Stamford / Tecgen |
| Cooling System | Water-cooled | Phase | 3 Phase / 4 Wire |
| Engine Brand | Cummins | Controller | Deepsea / Smartgen / ComAp |
| Highlight | Water Cooled industrial generator set,25kVA industrial generator set,Low Noise ultrasonic generators |
||
Product Description
25kVA Water-Cooled Industrial Generator Set Low Noise Level ultrasonic generators
Product Description:
Silent Power Generators are a reliable and powerful source of energy for industrial applications. Our digital ultrasonic generators offer 25kVA of rate output, a water-cooled cooling system, and are available in 3 phase / 4 wire configurations. Our generator sets are precision-engineered with the latest technology and are powered by the best controllers, such as Deepsea, Smartgen, and ComAp. Furthermore, the frequency of our digital ultrasonic generator sets is 60Hz / 1800rpm. Our industrial generator sets are designed to ensure maximum reliability and performance and are suitable for a variety of industrial applications. We also provide a wide range of generator parts, such as alternators, fuel tanks, air filters, and exhaust systems, to ensure your generator set runs smoothly. With Silent Power Generators, you can be sure that you have the best generator set for your industrial needs.
Features:
- Product Name: Silent Power Generators
- Alternator Brand: Leroy Somer / Stamford / Tecgen
- Frequency: 60Hz / 1800rpm
- Engine Brand: Cummins
- Cooling System: Water-cooled
- Controller: Deepsea / Smartgen / ComAp
- Specialty: Brushless AC Generator, Industrial Generator Set, Brushless AC Generator Set
Technical Parameters:
| Technical Specification: | ||
| 25kVA Cummins Standby Generator Set Specification | ||
| Genset Model | TG28CD6 | TG28CSD6 |
| Open | Silent | |
| Frequency | 60Hz | |
| Rate Speed | 1800RPM | |
| Voltage | 208/120V | |
| Phase | 3 Phase, 4 or 12 Wires | |
| Rate Current | 69.4A | |
| Rate Power | 20kW / 25kVA | |
| Standby Power | 22kW / 28kVA | |
| Engine Model | Cummins 4B3.9G11 | |
| Alternator Model | Stamford SOL2-M1 | |
| Controller | DSE6020 | |
| Weight & Dimensions | ||
| Length (mm) | 1700 | 2300 |
| width (mm) | 840 | 980 |
| Height (mm) | 1360 | 1460 |
| Weight (kgs) | 800 | 1150 |
| Engine Specification | ||
| Brand | DCEC Cummins | |
| Engine Model | 4B3.9G11 | |
| Prime/Standby power | 23kW / 26kW | |
| Injection | Indirect | |
| Aspiration | Naturally Aspirated | |
| No. of cylinders | 4 | |
| Speed | 1800RPM | |
| Bore of Stroke (mm) | 102 x 120 | |
| Displacement (L) | 3.9 | |
| Cooling | Water Cooled | |
| Compression Ratio | 18:1 | |
| Engine Oil capacity (L) | 7.2 | |
| Coolant Capacity ( In radiator) | 7.2 | |
| Governor | MECH | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 60Hz | |
| 100% Load (L/h) | 5.7 | |
| 75% Load (L/h) | 4.6 | |
| 50% Load (L/h) | 3.7 | |
| 25% Load (L/h) | 2.4 | |
| Alternator Specification | ||
| Brand | Cummins Generator Technologies | |
| Model | SOL2-M1 | |
| Rate Output (kVA) | 28 | |
| Speed | 1800RPM | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Deepsea | |
| Model | DSE6020 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
TECGEN's silent power generators (model: TG28CSD6) are a reliable and efficient power solution for many applications. The generator sets are certified with CE/SONCAP/FCC/SGS, and have a minimum order quantity of 1 unit. The price is negotiable and it will be packaged with a plastic film package in a container. The delivery time is 15 working days and the payment terms are T/T or L/C. The generator sets supplier provides a supply ability of 400 units per month. The noise level of the generators is 70dB(A)@7m and it is equipped with a water-cooled cooling system. The rate output of the generator sets can be up to 1500kVA and it operates at 50Hz / 1500rpm. It utilizes the alternator brands of Leroy Somer / Stamford / Tecgen.
Customization:
Silent Power Generators
TECGEN's Silent Power Generators are large diesel generator sets designed for reliable power output and quiet operation. Our generators are built with quality parts from internationally renowned brands such as Leroy Somer, Stamford, and Tecgen. They are certified by CE/SONCAP/FCC/SGS, and come with a minimum order quantity of 1 unit. With a frequency of 50Hz/1500rpm, and a noise level of 70dB(A)@7m, these generators are perfect for providing large genset power plants.
The rate output genset of our silent power generators is 25kVA, and they are available for purchase at a price that can be negotiated. All generators are packaged in plastic film containers for safe delivery. We guarantee a delivery time of 15 working days, and are capable of supplying up to 400 units per month. Payment terms include T/T or L/C.
Support and Services:
Silent Power Generators Technical Support and Service
Overview
At Silent Power Generators, we are committed to providing excellent technical support and service for our customers. Our team of experienced professionals is available 24/7 to answer any questions or concerns you may have about our products. We offer a full range of services, from installation and maintenance to repairs and troubleshooting. We also provide product manuals and online tutorials to help you get the most out of your Silent Power Generator.
Installation
Our team of expert technicians can install your Silent Power Generator quickly and efficiently. We provide detailed instructions on how to properly assemble and install your generator. We also offer on-site inspections and testing to ensure your generator is operating correctly.
Maintenance
We recommend that all Silent Power Generators be serviced regularly to ensure optimal performance. Our technicians can inspect, clean, and maintain your generator on a regular schedule. We also offer a comprehensive preventative maintenance program to help avoid costly repairs in the future.
Repairs
If your Silent Power Generator is not working properly, we can help. Our team of experienced technicians can troubleshoot and repair any issues you may have. We use only the highest quality parts and components to ensure your generator is running smoothly.
Customer Support
Our customer support team is always available to answer any questions or concerns you may have. We offer live chat, email, and phone support to help you get the most out of your Silent Power Generator.
Packing and Shipping:
Silent Power Generators Packaging and Shipping:
- All Silent Power Generators are packaged securely with protective foam and a box.
- We use a variety of shipping carriers, including UPS, FedEx, and USPS.
- We ship all orders within 24 hours of payment.
- For domestic orders, we offer free shipping on orders over $50.
- For international orders, we offer competitive shipping rates.
FAQ:
- Q: What is the Brand Name of the Silent Power Generators?
- A: The Brand Name is TECGEN.
- Q: What is the Model Number of the Silent Power Generators?
- A: The Model Number is TG28CSD6.
- Q: Where is Silent Power Generators from?
- A: The Silent Power Generators is from China.
- Q: What certifications does Silent Power Generators have?
- A: The Silent Power Generators has CE/SONCAP/FCC/SGS certification.
- Q: What is the Minimum Order Quantity of the Silent Power Generators?
- A: The Minimum Order Quantity is 1 Unit.
