50Hz 525kVA Silent Power Generators Powered By Water Cooled Diesel Engine Couple With AC Alternator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Alternator Brand | Leroy Somer / Stamford / Tecgen | Rate Output Genset | 400kVA |
|---|---|---|---|
| Controller | Deepsea / Smartgen / ComAp | Noise Level | 70dB(A)@7m |
| Engine Brand | Cummins | Phase | 3 Phase / 4 Wire |
| Frequency | 50Hz / 1500rpm | Cooling System | Water-cooled |
| Highlight | 525kVA Silent Power Generators,50Hz Silent Power Generators,3 Phase quiet electric generator |
||
Product Description

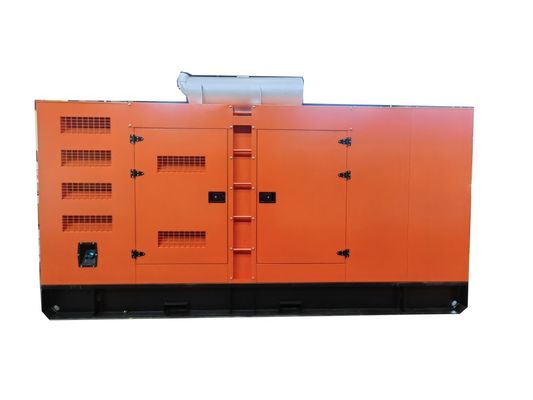

50Hz 525kVA Generator sets powered by water-cooled diesel engine couple with AC Alternator
Product Description:
Silent Power Generators are industrial generator sets designed for reliable and silent operation. Powered by diesel, these generator sets are perfect for applications that require a low noise level. The controller of the silent generator sets is Deepsea, Smartgen or ComAp, which has a noise level of 70dB(A)@7m. The frequency of the generator set is 50Hz and 1500rpm, and the rate output of the genset is 400kVA. The cooling system of the generator set is water-cooled. Silent Power Generators are reliable and silent generator sets that are perfect for industrial applications.
Features:
- Product Name: Silent Power Generators
- Engine Brand: Cummins
- Noise Level: 70dB(A)@7m
- Alternator Brand: Leroy Somer / Stamford / Tecgen
- Phase: 3 Phase / 4 Wire
- Controller: Deepsea / Smartgen / ComAp
- Digital Ultrasonic Generator
- Generator Sets
- Generator Set
- Diesel Generator
Technical Parameters:
| Technical Specification: | ||
| Generator Set Specification | ||
| Genset Model | TG578C | TG578CS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 541.3A | |
| Prime Power | 420kW / 525kVA | |
| Standby Power | 462kW / 578kVA | |
| Engine Model | KTAA19-G5 | |
| Alternator Model | TGI354S420 | |
| Controller | DSE7320 | |
| Weight & Dimensions | ||
| Length (mm) | 3650 | 4510 |
| width (mm) | 1550 | 1880 |
| Height (mm) | 2200 | 2350 |
| Weight (kgs) | 4400 | 5530 |
| Engine Specification | ||
| Brand | CCEC Cummins | |
| Engine Model | KTAA19-G5 | |
| Prime/Standby power (kw) | 470 / 550 | |
| Injection | Indirect | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 159 x 159 | |
| Displacement (L) | 18.9 | |
| Cooling | water | |
| Compression Ratio | 13.5:1 | |
| Engine Oil capacity (L) | 30 | |
| Coolant Capacity ( In radiator) | 30 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 113 | |
| 75% Load (L/h) | 91 | |
| 50% Load (L/h) | 61 | |
| 25% Load (L/h) | 31 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI354S420 | |
| Rate Output (kVA) | 525 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Deepsea | |
| Model | DSE7320 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
TECGEN’s Silent Power Generators are a perfect choice for any application that requires a large diesel generator with a brushless AC generator. The TGR model is designed with a 525kVA / 420kW rate output genset, a Deepsea, Smartgen or ComAp controller, a frequency of 50Hz/1500rpm, and a water-cooled cooling system. This generator is 3 phase/4 wire and is certified with CE/SONCAP/FCC/SGS. TECGEN offers competitive pricing and a minimum order quantity of 1 unit. Delivery time is 15 working days and payment terms are T/T or L/C. With a supply ability of 400 units per month, TECGEN provides outstanding service and quality of generator parts.
Customization:
Silent Power Generators - TECGEN TG578CS
TECGEN TG578CS Silent Power Generators are large diesel generator sets with low noise level and high reliability. Our generator sets feature Cummins diesel engines, water-cooled systems, 3 Phase / 4 Wire, and a 525kVA rate output.
- Brand Name: TECGEN
- Model Number: TG578CS
- Place of Origin: CHINA
- Certification: CE/SONCAP/FCC/SGS
- Minimum Order Quantity: 1 Unit
- Price: Negotiation
- Packaging Details: Plastic film package in container
- Delivery Time: 15 Working Days
- Payment Terms: T/T or L/C
- Supply Ability: 400 Units Per Month
- Noise Level: 70dB(A)@7m
- Engine Brand: Cummins
- Cooling System: Water-cooled
- Rate Output Genset: 525kVA / 420kW
- Phase: 3 Phase / 4 Wire
Our silent power generators are designed to be reliable and provide a low noise level, making them perfect for operations that require quiet conditions. If you are looking for a large diesel generator set, TECGEN TG578CS Silent Power Generators are the perfect choice.
Support and Services:
Silent Power Generators Technical Support and Service
At Silent Power Generators, we provide technical support and services for our products that are tailored to meet the needs of each customer. Our team of trained professionals is available to answer any questions you may have. We offer a variety of services, including installation, maintenance, troubleshooting and repairs. Our technicians are knowledgeable in all aspects of our products and can help you find the best solution for your needs. We also provide a warranty on our products to ensure that your purchase is covered for years to come.
If you need help with your Silent Power Generators product, please contact us for assistance. We are available 24 hours a day, 7 days a week to provide any technical support or service you may need. Our knowledgeable staff is ready to help you find the answers you are looking for.
Packing and Shipping:
Packaging and Shipping for Silent Power Generators
Silent Power Generators are packaged and shipped in sturdy, protective cardboard boxes.
For international shipments, the boxes are marked with the appropriate shipping codes and descriptions for customs.
We use secure and reliable couriers to ensure the safe delivery of Silent Power Generators.
FAQ:
- Q: What is the brand name of the Silent Power Generators?
- A: The brand name of the Silent Power Generators is TECGEN.
- Q: What is the model number of the Silent Power Generators?
- A: The model number of the Silent Power Generators is TG578CS.
- Q: Where is the Silent Power Generators manufactured?
- A: The Silent Power Generators are manufactured in China.
- Q: What certifications do the Silent Power Generators have?
- A: The Silent Power Generators have CE/SONCAP/FCC/SGS certifications.
- Q: What is the minimum order quantity for the Silent Power Generators?
- A: The minimum order quantity for the Silent Power Generators is 1 Unit.
