60Hz Soundproof Genset 160 KVA Diesel Generator Specification AC Electric Generator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Controller | Deepsea / Smartgen / ComAp | Cooling System | Water-cooled |
|---|---|---|---|
| Frequency | 60Hz / 1800rpm | Rate Output Genset | 160kVA / 128kW |
| Phase | 3 Phase / 4 Wire | Engine Brand | Cummins |
| Noise Level | 70dB(A)@7m | Alternator Brand | Leroy Somer / Stamford / Tecgen |
| Highlight | 60Hz soundproof genset,3 Phase soundproof genset,128kW 160 KVA Diesel Generator |
||
Product Description

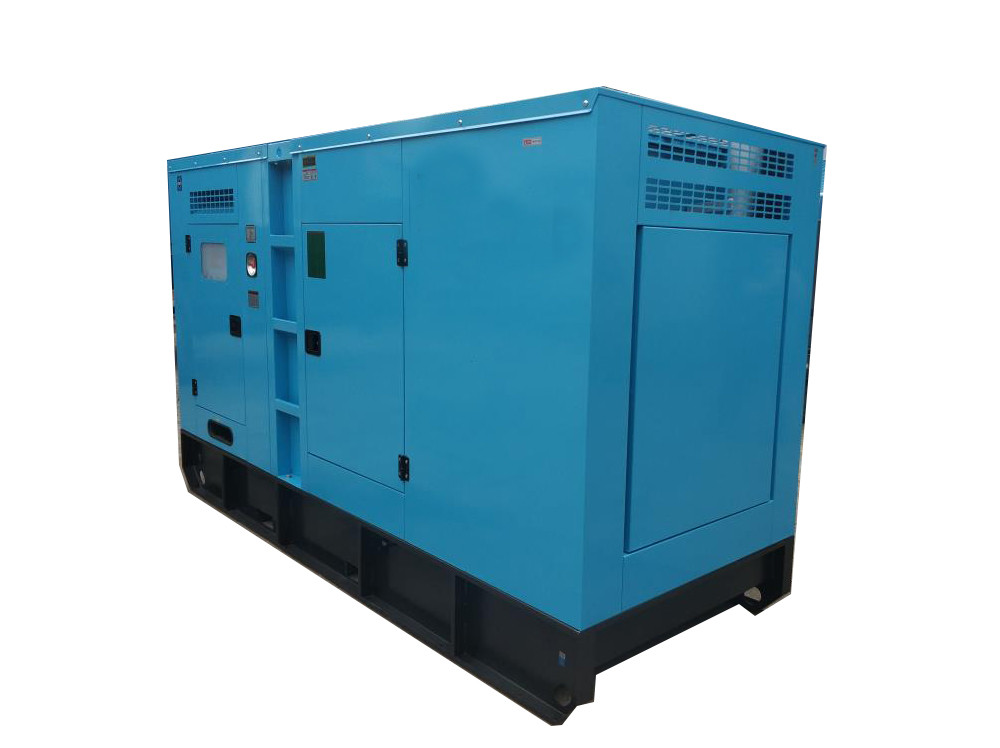

60Hz soundproof genset 160kVA diesel generator specification AC electric generator
Product Description:
Silent Power Generators
Silent Power Generators are industrial-grade AC electric generator sets designed to provide reliable and continuous power for any industrial or commercial application. This AC electric generator set features a powerful 400kVA rate output, with the alternator brand of Leroy Somer / Stamford / Tecgen and the engine brand of Cummins. It has a water-cooled cooling system that ensures optimal performance. The generator set is designed to generate low noise levels of only 70dB(A)@7m, making it ideal for use in noise-sensitive environments. Silent Power Generators is the perfect choice for any business that requires a reliable and silent source of power.
Features:
- Product Name: Silent Power Generators
- Cooling System: Water-cooled
- Alternator Brand: Leroy Somer / Stamford / Tecgen
- Frequency: 60Hz / 1800rpm
- Rate Output Genset: 160kVA
- Phase: 3 Phase / 4 Wire
- Generator Parts
- Generator Sets
- Digital Ultrasonic Generator
- Generator Accessories
Technical Parameters:
| Technical Specification: | ||
| 160kVA 60Hz Diesel Generator Set Specification | ||
| Genset Model | TG176CD6 | TG176CSD6 |
| Open | Silent | |
| Frequency | 60Hz | |
| Rate Speed | 1800RPM | |
| Voltage | 208/120V | |
| Phase | 3 Phase, 4 or 12 Wires | |
| Rate Current | 444.1A | |
| Prime Power | 128kW / 160kVA | |
| Standby Power | 141kW / 176kVA | |
| Engine Model | Cummins 6BTAA5.9G12 | |
| Alternator Model | TGI274S128 | |
| Controller | DSE6020 | |
| Weight & Dimensions | ||
| Length (mm) | 2240 | 2900 |
| width (mm) | 900 | 1100 |
| Height (mm) | 1400 | 1530 |
| Weight (kgs) | 1350 | 1980 |
| Engine Specification | ||
| Brand | DCEC Cummins | |
| Engine Model | 6BTAA5.9G12 | |
| Prime/Standby power | 150kW / 165kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged & Charge Air Cooled | |
| No. of cylinders | 6 | |
| Speed | 1800RPM | |
| Bore of Stroke (mm) | 102 x 120 | |
| Displacement (L) | 5.9 | |
| Cooling | Water Cooled | |
| Compression Ratio | 17.3:1 | |
| Engine Oil capacity (L) | 10 | |
| Coolant Capacity ( In radiator) | 10 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 60Hz | |
| 100% Load (L/h) | 38 | |
| 75% Load (L/h) | 28 | |
| 50% Load (L/h) | 19 | |
| 25% Load (L/h) | 11 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI274S128 | |
| Rate Output | 160kVA | |
| Speed | 1800RPM | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Deepsea | |
| Model | DSE6020 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
The TECGEN TGR Brushless AC Generator is designed to provide reliable and efficient power generation for a variety of applications and scenarios. With its powerful Cummins engine, advanced control systems, and noise level of 70dB(A)@7m, the TG176CSD6 is the perfect genset power plant for those seeking a quiet, efficient, and reliable source of electricity. It is certified by CE/SONCAP/FCC/SGS, and requires only a minimum order quantity of 1 unit. The price is negotiable and the delivery time is 15 working days. The machine comes pre-packaged in plastic film for easy transport and storage, and payment can be made via T/T or L/C. TECGEN is able to supply up to 400 units per month, and offers a wide range of alternator brands, including Leroy Somer, Stamford, and Tecgen, as well as leading control system brands such as Deepsea, Smartgen, and ComAp. Silent generators are now more accessible than ever with the TECGEN TGR Brushless AC Generator.
Customization:
Silent Power Generators
- Brand Name: TECGEN
- Model Number: TG176CSD6
- Place of Origin: CHINA
- Certification: CE/SONCAP/FCC/SGS
- Minimum Order Quantity: 1 Unit
- Price: Negotiation
- Packaging Details: Plastic film package in container
- Delivery Time: 15 Working Days
- Payment Terms: T/T or L/C
- Supply Ability: 400 Units Per Month
- Rate Output Genset: 160kVA / 128kW
- Frequency: 60Hz / 1800rpm
- Alternator Brand: Leroy Somer / Stamford / Tecgen
- Cooling System: Water-cooled
- Phase: 3 Phase / 4 Wire
- Highlights: Brushless AC Generator, Generator Set, Generator Parts
Support and Services:
Silent Power Generators Technical Support & Services
At Silent Power Generators, we offer comprehensive technical support and services to ensure that our customers have the best possible experience with our products.
Our technical support team is available 24/7 to answer any questions or concerns you may have. We can provide assistance on hardware and software installation, troubleshooting, and product maintenance. Our team is also available to provide guidance on product selection and customization.
We also offer a range of services to help you get the most out of your Silent Power Generators product. Our services include installation, maintenance, repair, warranty support, and more. Our team is committed to providing the best service possible to ensure that you get the best performance from your product.
If you have any questions or concerns, please contact us today. We are here to help you get the most out of your Silent Power Generators product.
Packing and Shipping:
Packaging and Shipping for Silent Power Generators
All Silent Power generators are packaged with provisions to ensure safe delivery. All of our generators are carefully wrapped in plastic bags, placed in strong cardboard boxes, and packed with bubble wrap.
We ship all Silent Power Generators through insured courier services for added protection. We pay special attention to ensure that all generators are shipped with the utmost care and that they arrive in perfect condition.
FAQ:
Silent Power Generators FAQ
Q1: What is the Brand Name of Silent Power Generators?
A1: The Brand Name of Silent Power Generators is TECGEN.
Q2: What is the Model Number of Silent Power Generators?
A2: The Model Number of Silent Power Generators is TG176CSD6.
Q3: Where are Silent Power Generators from?
A3: Silent Power Generators are from CHINA.
Q4: What Certifications do Silent Power Generators have?
A4: Silent Power Generators have CE/SONCAP/FCC/SGS Certifications.
Q5: What is the Minimum Order Quantity of Silent Power Generators?
A5: The Minimum Order Quantity of Silent Power Generators is 1 Unit.
