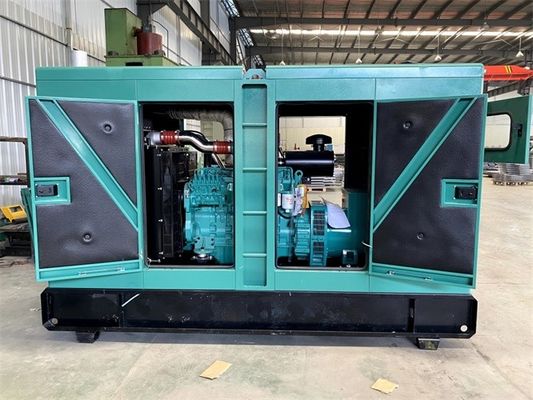

Standby 231kVA Diesel Low Noise Power Generator With Remote Control Industrial Genset RS485

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xGenset Type | Silent DG Genset | Frequency | 60Hz / 1800rpm |
---|---|---|---|
Phase | 3 Phase / 4 Wire | Engine Brand | Cummins |
Alternator Brand | Leroy Somer / Stamford / Tecgen | Rate Output Genset | 210kVA |
Colors | RAL Standard Or Customed Colors | Noise Level | 70dB(A)@7m |
Highlight | 231kVA low noise power generator,Diesel low noise power generator,Cummins industrial genset |

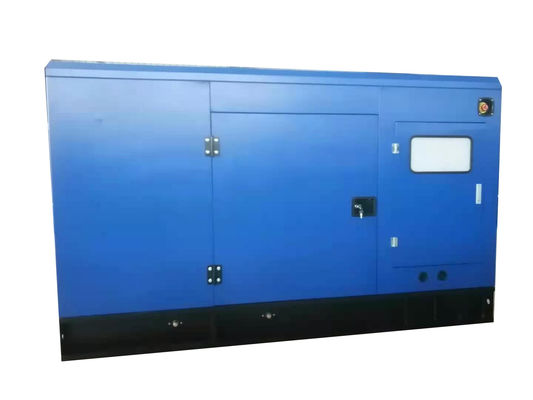

Standby 231kVA diesel power generating set with remote control industrial genset RS485
Product Description:
Are you looking for a Quieted Power Generators for your emergency generator needs? Look no further than our Silent DG Genset! Our Soundproof DG Genset has a noise level of 70dB(A)@7m, and a rate output of 210kVA. We also offer the best in generator brands, such as Leroy Somer, Stamford, and Tecgen. Our Silent DG Genset comes in a variety of colors, including RAL Standard or customed colors. With Silent Power Generators, you’ll get the emergency generator you need without the loud noise.
Features:
- Product Name: Silent Power Generators
- Alternator Brand: Leroy Somer / Stamford / Tecgen
- Frequency: 0Hz / 1800rpm
- Noise Level: 70dB(A)@7m
- Genset Type: Silent DG Genset
- Equipment Options: ATS, Water Heater, Engine Heater, PMG, Remote Control
- Industrial USE genset
- Emergency Generator
- Emergency Generator
Technical Parameters:
Technical Specification: | ||
Silent 210kVA Power Generator Set Specification | ||
Genset Model | TG231CD6 | TG231CSD6 |
Open | Silent | |
Frequency | 60Hz | |
Rate Speed | 1800RPM | |
Voltage | 208/120V | |
Phase | 3 Phase, 4 or 12 Wires | |
Rate Current | 582.9A | |
Prime Power | 168kW / 210kVA | |
Standby Power | 185kW / 231kVA | |
Engine Model | Cummins 6CTAA8.3G2 | |
Alternator Model | TGI274S180 | |
Controller | DSE6020 | |
Weight & Dimensions | ||
Length (mm) | 2600 | 3500 |
width (mm) | 1100 | 1200 |
Height (mm) | 1560 | 1750 |
Weight (kgs) | 1860 | 2520 |
Engine Specification | ||
Brand | DCEC Cummins | |
Engine Model | 6CTAA8.3G2 | |
Prime/Standby power | 190kW / 210kW | |
Injection | Indirect | |
Aspiration | Turbocharged and Charge Air Cooled | |
No. of cylinders | 6 | |
Speed | 1800RPM | |
Bore of Stroke (mm) | 114 x 135 | |
Displacement (L) | 8.3 | |
Cooling | Water Cooled | |
Compression Ratio | 18:1 | |
Engine Oil capacity (L) | 10 | |
Coolant Capacity ( In radiator) | 10 | |
Governor | Electric | |
Air Filter | Dry Element | |
Fuel consumption | @ 60Hz | |
100% Load (L/h) | 49 | |
75% Load (L/h) | 37 | |
50% Load (L/h) | 25 | |
25% Load (L/h) | 15 | |
Alternator Specification | ||
Brand | Tecgen | |
Model | TGI274S180 | |
Rate Output | 180kW | |
Speed | 1800RPM | |
Pole | 4 | |
Winding Connections | Star | |
Insulation Class | H | |
Enclosure | IP23 | |
Altitude (m) | ≤1000 | |
Voltage Regulator | AVR | |
Steady State Voltage Regulator | 1% | |
Bearing | Single | |
Controller System | ||
Brand | Deepsea | |
Model | DSE6020 | |
Functions | Control with AMF module | |
Static with auto. battery charger | ||
Emergency stop push button | ||
ATS Connection | ||
OPTIONAL EQUIPMENTS | ||
ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts |
Applications:
The Silent DG Genset, Model Number TG231CSD6, is your ideal choice if you are looking for industrial grade soundproof generators from China. With certification from ISO, CE, SASO and CIQ, it is guaranteed to meet the highest standards. These generators come with a minimum order quantity of one unit and the price is subject to negotiation. Packaging is done using plastic film in containers for safe delivery and the delivery time is 15 working days. Payment terms are T/T or L/C and our supply ability is 300 units per month. The noise level of this generator is 70dB(A)@7m, which makes it highly suitable for industrial applications. The cooling system is water-cooled and it is powered by Cummins engine. It is available in 3 phase and 4 wire and you can choose from our range of Leroy Somer, Stamford and Tecgen Alternators. So, if you are looking for a reliable and silent power generator for industrial use, Silent DG Genset, Model Number TG231CSD6, is your perfect choice.
Customization:
Silent Electric Generators – Industrial Use Genset, Emergency Generator
Brand Name: Silent DG Genset
Model Number: TG231CSD6
Place of Origin: CHINA
Certification: ISO / CE / SASO / CIQ
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Plastic film package in container
Delivery Time: 15 Working Days
Payment Terms: T/T or L/C
Supply Ability: 300 Units Per Month
Frequency: 60Hz / 1800rpm
Engine Brand: Cummins
Prime Output Genset: 168kW / 210kVA
Colors: RAL Standard Or Customed Colors
Phase: 3 Phase / 4 Wire
Equipment Options: ATS, Water Heater, Engine Heater, PMG, Remote Control
Packing and Shipping:
Silent Power Generators are packaged to ensure they remain safe during shipping. Each package is made up of a box, cushioning material, and a strap.
The box is made of sturdy, corrugated cardboard to protect the generator from any external force. It is also designed to be water-resistant.
Cushioning material is used to keep the generator secure within the box. This material is usually made of foam or bubble wrap to provide shock absorption.
The strap is used to secure the box and keep it from opening during shipping. It is made of strong, durable material and is designed to withstand the rigors of the shipping process.
FAQ:
- Q: What is the brand name of the Silent Power Generators?
A: The brand name of Silent Power Generators is Silent DG Genset. - Q: What is the model number?
A: The model number is TG231CSD6. - Q: Where is the place of origin?
A: The place of origin is China. - Q: What certifications do Silent Power Generators have?
A: Silent Power Generators have ISO / CE / SASO / CIQ certifications. - Q: What is the minimum order quantity?
A: The minimum order quantity is 1 unit.
