400kW Emergency Quiet Power Generator

Place of Origin CHINA
Brand Name Silent DG Genset
Certification ISO / CE / SASO / CIQ
Model Number TG550CS
Minimum Order Quantity 1 Unit
Price Negotiation
Packaging Details Plastic film package in container
Delivery Time 15 Working Days
Payment Terms T/T or L/C
Supply Ability 300 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Engine Brand Cummins Noise Level 70dB(A)@7m
Colors RAL Standard Or Customed Colors Cooling System Water-cooled
Genset Type Silent DG Genset Frequency 50Hz / 1500rpm
Alternator Brand Leroy Somer / Stamford / Tecgen Phase 3 Phase / 4 Wire
Highlight

Emergency quiet power generator

,

400kW quiet power generator

,

Cummins quiet diesel generator

Leave a Message
Product Description

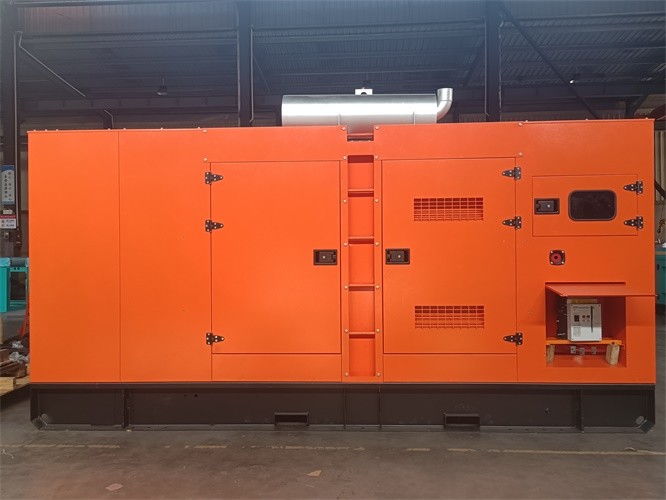

400kW Emergency generators QSK19 silent diesel engine genset weather canopy outdoor use

Product Description:

Our Silent Power Generators are super silent and perfect for emergency power needs. Crafted with Cummins engines, these emergency generators are powered with a frequency of 50Hz / 1500rpm. Equipped with options such as ATS, Water Heater, Engine Heater, PMG and Remote Control, these DG gensets are perfect for any environment. The water-cooled system further ensures silence while operating, making these generators the perfect choice for any situation.



Features:

  • Product Name: Silent Power Generators
  • Alternator Brand: Leroy Somer / Stamford / Tecgen
  • Genset Type: Quiet DG Genset
  • Engine Brand: Cummins
  • Frequency: 50Hz / 1500rpm
  • Phase: 3 Phase / 4 Wire
  • Keywords: Quiet DG Generators, Quieted Power Generators, Quiet DG Generators
400kW Emergency Quiet Power Generator 0

Technical Parameters:

Technical Specification:
500kVA Prime Silent Generator Set Specification
Genset Model TG550C TG550CS TG550C TG550CS
Open Silent Open Silent
Frequency 50Hz
Voltage 400/230V
Phase 3
Rate Current (A) 721.7
Prime Power 400kW / 500kVA 400kW / 500kVA
Standby Power 440kW / 550kVA 440kW / 550kVA
Engine Model KTA19-G3A QSK19-G13
Alternator Model TGI354S400 TGI354S400
Controller Smartgen HGM6120N
Fuel Tank Capacity 1400L 1200L
Weight And Dimensions
Length (mm) 3650 4510 3650 4510
Width (mm) 1550 1880 1550 1880
Height (mm) 2200 2300 2200 2300
Weight (kgs) 4400 5530 4400 5530
Engine Specification
Engine Model KTA19-G3A QSK19-G13
Prime/Standby power (kw) 507 / 563 570 / 630
Injection Indirect Indirect
Aspiration Turbocharged & Intercooled Turbocharged and Air to Air Aftercooled
No. of cylinders 6 6
Bore of Stroke (mm) 159 x 159 159 x 159
Displacement (L) 19 19
Cooling water water
Compression Ratio 13.9:1 15:1
Engine Oil capacity (L) 30.3 41.6
Coolant Capacity ( In radiator) 30.3 41.6
Governor Electric Electric
Air Filter Dry Element Dry Element
Fuel consumption at 50Hz at 50Hz
100% Load (L/h) 201 143
75% Load (L/h) 154 109
50% Load (L/h) 107 77
25% Load (L/h) 56 40
Alternator Specification
Brand Tecgen
Model TGI354S400
Rate Output (kW) 400
Pole 4
Winding Connections Star
Insulation Class H
Enclosure IP23
Altitude (m) ≤1000
Voltage Regulator AVR
Steady State Voltage Regulator 1%
Bearing single
Controller System
Brand Smartgen
Model HGM6120N
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
ATS Connection
OPTIONAL EQUIPMENTS
ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts



400kW Emergency Quiet Power Generator 1

Applications:

Silent Power Generators – The Perfect Choice When You Need Quiet and Reliable Power

Silent DG Genset, with model number TG550CS, is the perfect choice when you need quiet and reliable power. Manufactured in China and certified with ISO/CE/SASO/CIQ, Silent DG Genset offers superior quality and performance. With minimum order of 1 unit, the price of this silent DG Genset is negotiable. The package includes plastic film package in container, with delivery time of 15 working days. Payment can be made by T/T or L/C. The supply ability is 300 units per month.

This silent DG Genset is equipped with water-cooled cooling system and has 3 Phase/4 Wire configuration. It also has several equipment options, such as ATS, Water Heater, Engine Heater, PMG, Remote Control. In addition, it is powered by Cummins engine, assuring you of superior performance and reliability.

This Silent DG Genset is the ideal choice for Generator Set Quiet, Super Silent Genset, Generator Set Quiet, Diesel Generator and Silent Diesel Generator. With superior performance, reliable power and quiet operation, Silent DG Genset is the perfect choice for all your power needs.



Customization:

Silent Power Generators
  • Brand Name: Silent DG Genset
  • Model Number: TG550CS
  • Place of Origin: CHINA
  • Certification: ISO / CE / SASO / CIQ
  • Minimum Order Quantity: 1 Unit
  • Price: Negotiation
  • Packaging Details: Plastic film package in container
  • Delivery Time: 15 Working Days
  • Payment Terms: T/T or L/C
  • Supply Ability: 300 Units Per Month
  • Noise Level: 70dB(A)@7m
  • Equipment Options: ATS, Water Heater, Engine Heater, PMG, Remote Control
  • Genset Type: Silent DG Genset
  • Colors: RAL Standard Or Customed Colors
  • Rate Output Genset: 400kW / 500kVA
  • Max Output Genset: 440kW / 550kVA
Soundproof DG Genset, Generator Set Quiet, Quiet DG Generators, Silent DG Genset, Silent DG Genset 400kW / 500kVA with ISO / CE / SASO / CIQ Certification

Our Silent Power Generators are designed to provide quiet and reliable power for your equipment. All of our Silent DG Genset are certified with ISO / CE / SASO / CIQ, and come with a minimum order quantity of 1 unit. Our generators come in a plastic film package in a container, and have a delivery time of 15 working days. We accept T/T or L/C payments, and offer a supply ability of 300 units per month. Our Silent DG Genset 500kVA has noise level of 70dB(A)@7m, and comes with equipment options such as ATS, Water Heater, Engine Heater, PMG, and Remote Control. You can choose from RAL Standard or Customed Colors.



Packing and Shipping:

Silent Power Generators Packaging and Shipping

Silent Power Generators are packaged with extreme care and shipped with the utmost efficiency. All generators are placed in a custom-fitted box with foam padding to ensure that no damage is done in transit. The box is placed in an additional cardboard box with extra padding for protection. All packaging materials are 100% recyclable.

Generators are shipped via trusted courier services with tracking information for customers to follow the progress of their shipment. Delivery times vary based on the destination, but all orders are shipped as quickly as possible.

400kW Emergency Quiet Power Generator 2400kW Emergency Quiet Power Generator 3400kW Emergency Quiet Power Generator 4

FAQ:

Q1: What is the Brand Name of your product?
A1: Our product is Silent DG Genset.

Q2: What is the Model Number?
A2: The Model Number is TG550CS.

Q3: Where is the Place of Origin?
A3: The Place of Origin is CHINA.

Q4: What Certifications are available?
A4: We have ISO / CE / SASO / CIQ Certifications available.

Q5: What is the Minimum Order Quantity?
A5: The Minimum Order Quantity is 1 Unit.
