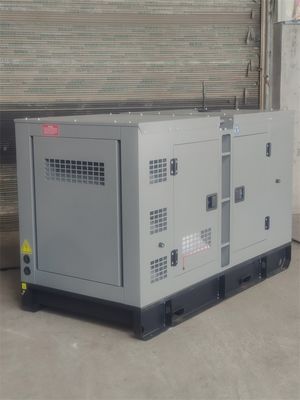

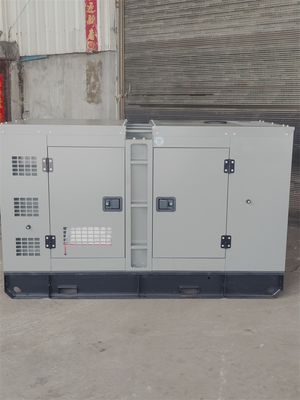

Electric Start Silent Yuchai Diesel Generator For Emergency With AC Three Phase 132kW Standby

Electric start silent Diesel Generator set Designed for Emergency with AC Three Phase 132kW Standby

Product Description:

Yuchai Diesel Generator is a perfect industrial diesel generator solution for commercial and industrial use. It offers superior performance, silent operation and reliable power output. It is perfect for power back up needs, whether running a critical business or home application. The Yuchai Diesel Generator is designed for industrial use, providing reliable and efficient power generation. It is powered by a Yuchai engine and has a standby power of 132kw / 165kVA, coupled with a robust alternator. It features a wide voltage range of 380V/400V/415V/440V/480V and a frequency of 50Hz. The Yuchai Diesel Generator also offers an Electric/Manual starting system, allowing for quick and easy start-up. It is also backed by a 1500 running hours warranty, ensuring maximum performance and reliability. The generator also comes in a silent mounted genset, making it perfect for a wide range of industrial applications. The Yuchai Diesel Generator is the perfect choice for industrial use, providing reliable power output and silent operation. With a 1500 running hours warranty and a wide voltage range, it is the perfect choice for power back-up needs.

Features:

• Product Name: Yuchai Diesel Generator
• Starting System: Electric/Manual
• Voltage: 380V/400V/415V/440V/480V
• Output Type: AC Three Phase
• Conditions of Use: Standby, Backup, Emergency Use
• Control System: Automatic/Manual
• Electric Diesel Generators, DG Diesel Generator, Industrial Diesel Generators

Technical Parameters:

Technical Specification:
Power Generating Set 165kVA Specification
Genset Model	TG165YC	TG165YCS
	Open	Silent
Frequency	50Hz
Voltage	415/240V
Phase	3
Rate Current	208.7A
Prime Power	120kW / 150kVA
Standby Power	132kW / 165kVA
Engine Model	Yuchai YC6B205L-D20
Alternator Model	TGI274S120
Controller	Mebay DC52D
Weight & Dimensions
Length (mm)	2300	2900
width (mm)	900	1100
Height (mm)	1400	1530
Weight (kgs)	1350	1980
Engine Specification
Brand	Yuchai
Engine Model	YC6B205L-D20
Prime power (kw)	138kW
Injection	Indirect
Aspiration	Turbocharged
No. of cylinders	6
Bore of Stroke (mm)	108 x 125
Displacement (L)	6
Cooling	water
Compression Ratio	17.5:1
Engine Oil capacity (L)	13
Coolant Capacity ( In radiator)	13
Governor	Electric
Air Filter	Dry Element
Fuel consumption	at 50Hz
100% Load (L/h)	32.9
75% Load (L/h)	24.6
50% Load (L/h)	16.4
25% Load (L/h)	8.2
Alternator Specification
Brand	Tecgen
Model	TGI274S120
Rate Output	150kVA
Pole	4
Winding Connections	Star
Insulation Class	H
Enclosure	IP23
Altitude (m)	≤1000
Voltage Regulator	AVR
Steady State Voltage Regulator	1%
Bearing	Single
Controller System
Brand	Mebay
Model	DC52D
Functions	Control with AMF module
	Static with auto. battery charger
	Emergency stop push button
	ATS Connection
OPTIONAL EQUIPMENTS
ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts



Applications:

Tecgen Yuchai DG Set (TG165YCS) is a reliable and silent mounted genset made in Fuzhou, China. It is certified by ISO / CE / SASO / CIQ / CO and each unit is offered with a minimum order quantity of 1 SET. The unit is offered at a competitive price with flexible payment terms and delivery time of 9 working days. There are 400 units available each month.

Tecgen Yuchai DG Set operates at 380V/400V/415V/440V/480V with automatic or manual control system. Yuchai Engine is the brand used in the generator and it is backed with a warranty of 1500 running hours. The package of Tecgen Yuchai DG Set consists of plastic film package or polywooden package.

Tecgen Yuchai DG Set is the best choice for those who are looking for silent and reliable China Diesel Engine Generator. It is also suitable for those who need Yuchai DIESEL GENERATOR and Yuchai Genset.



Customization:

Tecgen Yuchai DG Set Industrial Diesel Generators
Brand Name: Tecgen Yuchai DG Set
Model Number: TG165YCS
Place of Origin: Fuzhou, China
Certification: ISO / CE / SASO / CIQ / CO
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plastic film package or Polywooden Package
Delivery Time: 9 Working Days
Payment Terms: T/T / L/C
Supply Ability: 400 Units Per Month
Conditions of Use: Standby, Backup, Emergency Use
Voltage: 380V/400V/415V/440V/480V
Control System: Automatic/Manual
Output Type: AC Three Phase
Starting System: Electric/Manual
Features: High Efficiency, Low Noise, Easy Operation, Long Service Life
Applications: Industrial, Commercial, Residential, Backup Power Solutions



Packing and Shipping:

Yuchai diesel generator is safely packed in wooden crates, and the internal parts are packed with foam or other materials to protect them from damages during shipping. The generator is shipped in accordance with customers' requirements. It can be shipped by air, sea, land, or railway.

The shipping cost and time may vary depending on the destination and delivery method. Customers can contact our customer service team for more information.
