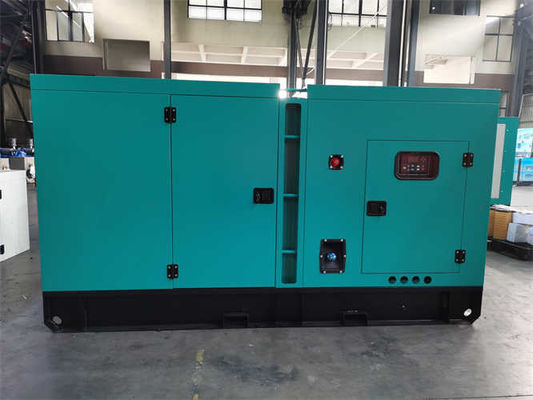

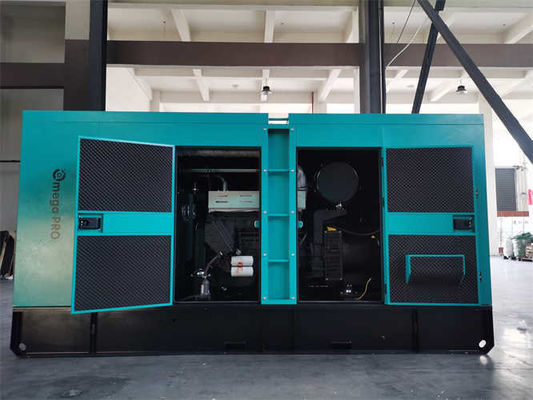

60HZ 275KVA Cummins Diesel Generators 300KVA 220KW 240KW Industrial Diesel Stand By Generator
Place of Origin | China |
---|---|
Brand Name | Tecgen Cummins Genset |
Certification | ISO / CE / SASO / CIQ |
Model Number | TGC |
Minimum Order Quantity | 1 SET |
Price | Negotiation |
Packaging Details | Plywood case / Foam and PE film package |
Delivery Time | 15 Working Days |
Payment Terms | T/T / L/C |
Supply Ability | 300 Units Per Month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xVoltage | 220V, 240V, 440V 460V And Other Voltage Is Optional | Options | Auto Transfer Switch(ATS) |
---|---|---|---|
Power Output | 25kVA--2500kVA | Alternator Brand | Stamford / Leroy Somer / Tecgen |
Warranty | 18 Months | Frequency | 60Hz |
Engine Brand | Cummins | Genset Type | Silent / Super Silent Type |
Highlight | 275KVA Cummins Diesel Generators,60HZ Cummins Diesel Generators,240KW diesel stand by generator |
Standby Diesel Genset 60HZ 275KVA 300KVA 220KW 240KW Cummins Diesel Generator Set Industrial Generator
Product Description:
Cummins Diesel Generators are designed to provide the reliable power you need, when and where you need it. With their robust design and precision engineering, Cummins generators deliver reliable and efficient power for a variety of applications, including residential, commercial, industrial, and marine. Our generators feature Cummins diesel engines and are available in both silent and super silent types, offering a variety of voltage options like 220V, 240V, 440V, 460V, and more. The generators are also equipped with quality alternator brands like Stamford, Leroy Somer, and Tecgen, and are available in frequency of 60Hz. Cummins diesel generators are renowned for their robustness, reliability, fuel efficiency, and low emissions. They are also backed by an extensive range of Cummins marine diesel engines and Cummins diesel engine parts, making them ideal for marine applications.


Features:
1, Output range: 10kVA to 3000kVA Heavy Duty diesel generator.
2, Different brands of engine, alternator and controller as options
3, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator or Tecgen Power alternator
4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery

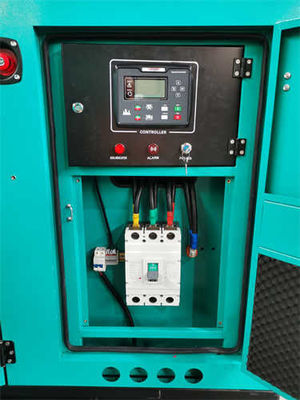

7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
11, Perfect after-service network
12, Both 50Hz and 60Hz
13, Chint circuit breaker
14, Three-phase output meets differing requirements
15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
16, Large fuel tank ensure continuous running.
17, Anti-Vibration Mounted
18, Industrial silencer and flexible exhaust hose
19, 0-110% load test for each unit before delivery
20, Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date
Technical Parameters:
PRODUCTS DETAILS
DIESEL GENERATOR SET | |
Genset Model | TG300CD6 |
Prime Power | 275KVA/220KW |
Standby Power | 300KVA/240KW |
Rated Voltage (V) | 220 |
Rated Frequency (Hz) | 60 |
Rated Speed (RPM) | 1800 |
Power Factor (COS¢) | 0.8 (lagging) |
ENGINE DATA | |
Engine Brand | Cummins |
Engine Model | 6LTAA8.9-G2 |
No. of Cylinders | 6 |
Cylinder Arrangement | In-line |
Air intake way | Turbo |
Governor | Electronic |
Bore*Stroke (mm*mm) | 114*135 |
Displacement (Liter) | 8.9 |
Cooling System | Water-Cooled |
Fuel Consumption (g/kw.h) | 197 |
ALTERNATOR DATA | |
Alternator Brand | Tecgen Stamford |
Alternator Model | TGI274S-220 |
Connecting Type | 3 Phases and 4 Wires |
Number of Bearing | Single |
Production Grade | IP23 |
Altitude | ≤ 1000m |
Exciter Type | Brushless, Self-exciting, AVR & 100% Copper Winding Wire |
Insulation Class | H |
Telephone Influence Factor (TIF) | ≤ 50 |
Telephone Harmonic Factor (THF) | ≤ 2% |
Voltage Regulation, Steady State | 1.00% |
Transient State Voltage | ≤ -15% ~ +20% |
Customization:
- Brand Name: Tecgen Cummins Genset
- Model Number: TGC
- Place of Origin: China
- Certification: ISO / CE / SASO / CIQ
- Minimum Order Quantity: 1 SET
- Price: Negotiation
- Packaging Details: Plywood case / Foam and PE film package
- Delivery Time: 15 Working Days
- Payment Terms: T/T / L/C
- Supply Ability: 300 Units Per Month
- Warranty: 18 Months
- Engine Brand: Cummins
- Alternator Brand: Stamford / Leroy Somer / Tecgen
- Voltage: 220V, 240V, 440V 460V And Other Voltage Is Optional
- Power Output: 25kVA--2500kVA
Our Cummins diesel generators are the perfect choice for diesel power generator set, Cummins diesel generator parts and Cummins diesel generator parts. With certification, ISO / CE / SASO / CIQ, the minimum order quantity is 1 SET and the price is negotiable. Delivery time is 15 working days. Payment terms are T/T / L/C. The supply ability is 300 units per month and the warranty is 18 months. The engine brand is Cummins and the alternator brand is Stamford / Leroy Somer / Tecgen. Voltage is 220V, 240V, 440V 460V and other voltage is optional. Power output is 25kVA--2500kVA.
Support and Services:
Cummins Diesel Generators provides technical support and services for its products. Customers can access 24/7 support for their Cummins Diesel Generators products. Our technical support staff are knowledgeable and highly experienced, and can assist customers with any technical questions that may arise. Customers can also access online resources, such as product manuals, as well as service and maintenance information.
We also offer a variety of service and maintenance packages to suit customer needs. These packages include scheduled maintenance, emergency repairs, upgrades, and more. We also provide training for maintenance personnel, so they can properly operate and maintain Cummins Diesel Generators products.
For customers who need more extensive technical support and services, we offer a range of extended warranty packages. These packages provide longer-term coverage for parts and labor, and can help to ensure that your Cummins Diesel Generators products are always up and running.
