Standby Genset 60Hz 50 KVA Cummins Generator With Auto Transfer Switch
| Place of Origin | China |
|---|---|
| Brand Name | Tecgen Cummins Genset |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TGC |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plywood case / Foam and PE film package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 60Hz | Voltage | 220V, 240V, 440V 460V And Other Voltage Is Optional |
|---|---|---|---|
| Genset Type | Silent / Super Silent Type | Warranty | 18 Months |
| Alternator Brand | Stamford / Leroy Somer / Tecgen | Engine Brand | Cummins |
| Options | Auto Transfer Switch(ATS) | Power Output | 25kVA--2500kVA |
| Highlight | 60Hz 50 kva cummins generator,220V 50 kva cummins generator,440V standby genset |
||
Product Description

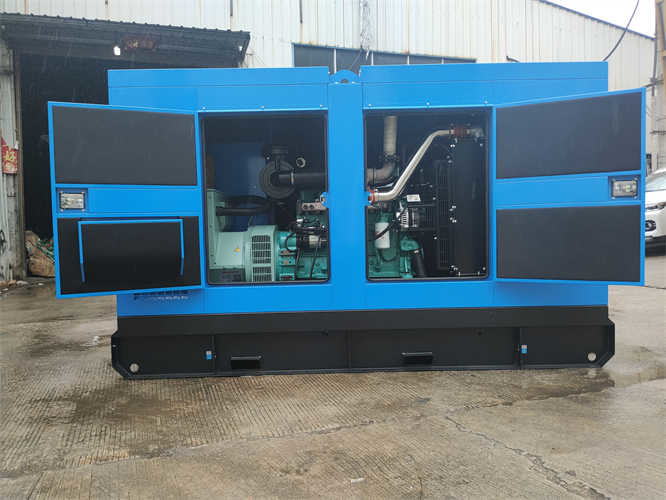

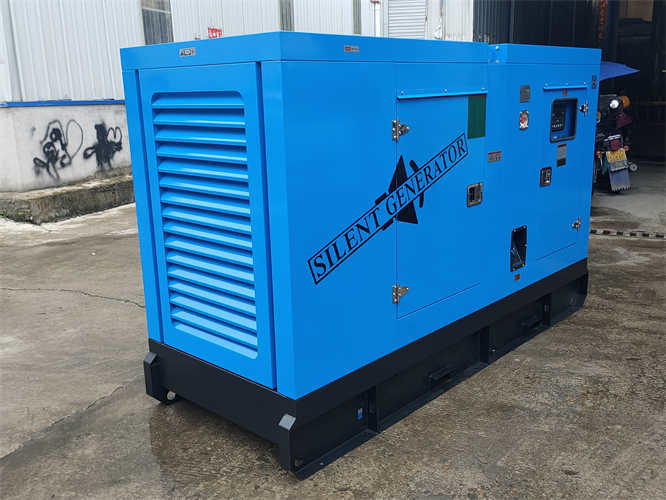

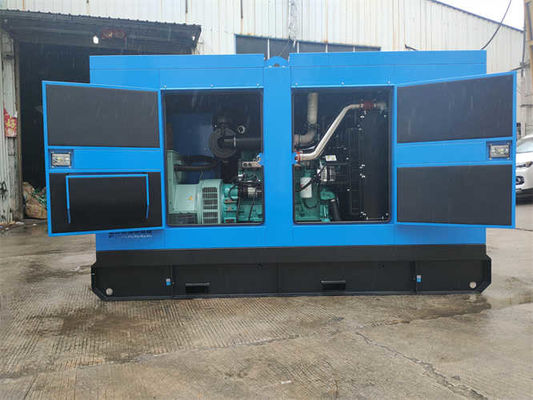

Standby Genset 60Hz 50kVA Cummins Diesel Generator With Auto Transfer Switch
Product Description:
Cummins Diesel Generators are high-performance, reliable and cost-effective power solutions, designed to deliver superior power and energy efficiency. Cummins Diesel Generators are available in a wide range of power outputs, from 25kVA to 2500kVA, in both silent and super silent types. Depending on the model, they are capable of producing a frequency of 60Hz and voltages of 220V, 240V, 440V and 460V, with other voltage options available. With the choice of leading alternator brands, such as Stamford, Leroy Somer and Tecgen, Cummins Diesel Generators provide the ultimate in marine diesel engines and diesel power generator set technology, with Cummins diesel generator parts of the highest grade.
Tecgen Diesel Generator Features:
1, Output range: 5kVA to 3000kVA Heavy Duty diesel generator.
2, Different brands of engine, alternator and controller as options
3, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator or Tecgen Power alternator
4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery
7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
11, Perfect after-service network
12, Both 50Hz and 60Hz
13, Chint circuit breaker
14, Three-phase output meets differing requirements
15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
16, Large fuel tank ensure continuous running.
17, Anti-Vibration Mounted
18, Industrial silencer and flexible exhaust hose
19, 0-110% load test for each unit before delivery
20, Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date
Technical Parameters:
PRODUCTS DETAILS
| DIESEL GENERATOR SET | |
| Genset Model | TG50CSD6 |
| Prime Power | 45KVA/36KW |
| Standby Power | 50KVA/40KW |
| Rated Voltage (V) | 220 |
| Rated Frequency (Hz) | 60 |
| Rated Speed (RPM) | 1800 |
| Power Factor (COS¢) | 0.8 (lagging) |
| ENGINE DATA | |
| Engine Brand | Cummins |
| Engine Model | 4BT3.9-G1 |
| No. of Cylinders | 4 |
| Cylinder Arrangement | In-line |
| Air intake way | Turbo |
| Governor | Mechanical |
| Bore*Stroke (mm*mm) | 102*120 |
| Displacement (Liter) | 3.9 |
| Cooling System | Water-Cooled |
| Fuel Consumption (g/kw.h) | 214 |
| ALTERNATOR DATA | |
| Alternator Brand | Tecgen Stamford |
| Alternator Model | TGI184S-36 |
| Connecting Type | 3 Phases and 4 Wires |
| Number of Bearing | Single |
| Production Grade | IP23 |
| Altitude | ≤ 1000m |
| Exciter Type | Brushless, Self-exciting, AVR & 100% Copper Winding Wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | ≤ 50 |
| Telephone Harmonic Factor (THF) | ≤ 2% |
| Voltage Regulation, Steady State | 1.00% |
| Transient State Voltage | ≤ -15% ~ +20% |
Customization:
Customized Cummins Diesel Generators
Tecgen Cummins Genset (TGC) is a diesel power generator set with brand name Tecgen Cummins Genset, model number TGC, origin from China, certified with ISO / CE / SASO / CIQ. It is available in minimum order quantity of 1 SET. The price is negotiable. Packaging details include Plywood case / Foam and PE film package. Delivery time is 15 Working Days and Payment terms are T/T / L/C. We offer 300 Units Per Month and auto transfer switch (ATS) as optional. It provides 18 Months warranty. The engine brand is Cummins. Voltage range from 220V, 240V, 440V 460V or other voltage options. Power output is 25kVA--2500kVA.
Also, we provide Cummins marine diesel engines and Cummins diesel generator parts.
Support and Services:
Cummins Diesel Generators Technical Support and Service
At Cummins, we are committed to providing our customers with superior technical support and service. We offer a variety of services for our diesel generators, including:
- Installation and commissioning
- Regular maintenance and service
- Troubleshooting and repair
- Spare parts supply
- Remote monitoring
- Software updates
Our highly trained technicians are available 24/7 to provide any technical support you may need. We are dedicated to providing our customers with the highest quality of service and support.
