35kVA Cummins Diesel Generators 60Hz 220V 127V Soundproof Silent
| Place of Origin | China |
|---|---|
| Brand Name | Tecgen Cummins Genset |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TGC |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plywood case / Foam and PE film package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Output | 25kVA--2500kVA | Alternator Brand | Stamford / Leroy Somer / Tecgen |
|---|---|---|---|
| Engine Brand | Cummins | Frequency | 60Hz |
| Voltage | 220V, 240V, 440V 460V And Other Voltage Is Optional | Options | Auto Transfer Switch(ATS) |
| Warranty | 18 Months | Genset Type | Silent / Super Silent Type |
| Highlight | 35kVA Cummins Diesel Generators,Cummins Diesel Generators 220V,127V 35 kva cummins generator |
||
Product Description

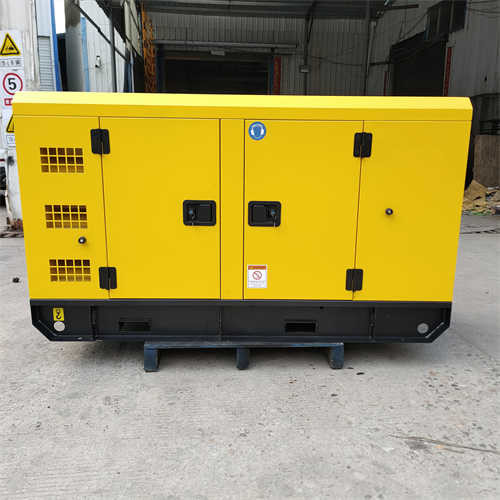

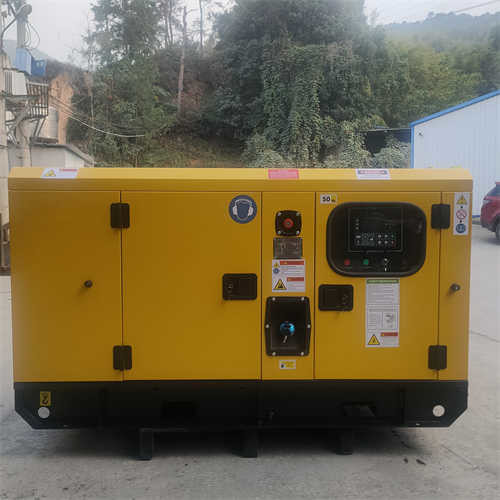

35kVA Cummins Diesel Generator Set 60Hz 220/127V Soundproof Silent Generator
Product Description:
Cummins Diesel Generators are renowned for their reliable and efficient performance. As a leading provider of diesel power solutions, Cummins offers a wide range of diesel generators to meet the needs of various industries. Cummins Diesel Generators are available in a variety of configurations, such as silent, super silent, and open-frame, and they are designed to meet the most demanding requirements. They are rated from 15kVA to 1000kVA and are available in a range of voltages, including 220V, 240V, 440V, 460V, and other voltages are optional. All Cummins Diesel Generators come with a standard 18-month warranty and are backed by Cummins' unmatched service and support network.
Cummins Diesel Generators are designed to provide reliable power in the most challenging environments. They are powered by Cummins Diesel Truck Engines and are equipped with Cummins Diesel Engine Parts and components that are built to last and provide maximum performance and fuel efficiency. With Cummins Diesel Generators, you can be sure of reliable power whenever and wherever you need it. Whether you need to power a data center, an industrial facility, or an emergency backup system, Cummins Diesel Generators are the perfect solution.
Features:
- Product Name: Cummins Diesel Generators
- Voltage: 220V, 240V, 440V 460V And Other Voltage Is Optional
- Engine Brand: Cummins
- Genset Type: Silent / Super Silent Type
- Power Output: 25kVA--2500kVA
- Warranty: 18 Months
- Cummins Diesel Engine Parts
- Cummins Diesel Generator Parts
- Cummins Diesel Engine Parts
Technical Parameters:
PRODUCTS DETAILS
| DIESEL GENERATOR SET | |
| Genset Model | TG35CSD6 |
| Prime Power | 32KVA/25KW |
| Standby Power | 35KVA/28KW |
| Rated Voltage (V) | 220 |
| Rated Frequency (Hz) | 60 |
| Rated Speed (RPM) | 1800 |
| Power Factor (COS¢) | 0.8 (lagging) |
| ENGINE DATA | |
| Engine Brand | Cummins |
| Engine Model | 4B3.9-G1 |
| No. of Cylinders | 4 |
| Cylinder Arrangement | In-line |
| Air intake way | Natural |
| Governor | Mechanical |
| Bore*Stroke (mm*mm) | 102*120 |
| Displacement (Liter) | 3.9 |
| Fuel Consumption (g/kw.h) | 228 |
| Cooling System | Water-Cooled |
| ALTERNATOR DATA | |
| Alternator Brand | Tecgen Stamford |
| Alternator Model | TGI184S-25 |
| Connecting Type | 3 Phases and 4 Wires |
| Number of Bearing | Single |
| Production Grade | IP23 |
| Altitude | ≤ 1000m |
| Exciter Type | Brushless, Self-exciting, AVR & 100% Copper Winding Wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | ≤ 50 |
| Telephone Harmonic Factor (THF) | ≤ 2% |
| Voltage Regulation, Steady State | 1.00% |
| Transient State Voltage | ≤ -15% ~ +20% |
Applications:
Tecgen Cummins Genset is a powerful diesel power generator set with Cummins diesel engine parts. It is certified by ISO /CE/SASO/CIQ and is available in a wide range of models, with a minimum order quantity of 1 SET. It comes with a competitive price and can be delivered in 15 working days. Payment terms include T/T and L/C, and a supply ability of 300 units per month. This generator set is available in silent and super silent type, with an auto transfer switch (ATS) and a wide range of optional voltages (220V, 240V, 440V, 460V and more). It also comes with 18 months of warranty and a frequency of 60Hz.
The Tecgen Cummins Genset is designed with Cummins diesel generator parts, making it reliable and efficient. It is designed to be used in a variety of applications, such as residential, commercial, industrial, and marine. It is also suitable for a variety of power needs, from small to large, and can be used for emergency power needs. The generator is also designed to be easy to install and maintain, and comes with a range of additional features, such as fuel tank, oil filter, and exhaust system.
Support and Services:
Cummins Diesel Generators Technical Support and Service
Cummins Diesel Generators provide technical support and service for customers through its comprehensive service network. We provide phone and online support, as well as on-site service support. Our certified technicians are dedicated to providing the best service and support to keep your Cummins Diesel Generator running at peak performance.
Technical Support
We offer 24/7 technical support for Cummins Diesel Generators through our toll-free customer service number. Our experienced technicians are available to answer your questions and provide technical assistance. This includes troubleshooting, installation, and maintenance tips for your Cummins Diesel Generator.
On-Site Service
Our team of experienced technicians are available to provide on-site service and support for Cummins Diesel Generators. This includes troubleshooting, repair, and maintenance services. We take pride in providing the best service and support so you can get the most out of your Cummins Diesel Generator.
Online Support
We also offer online support for Cummins Diesel Generators. Our online support includes access to our customer support portal, where you can get answers to frequently asked questions, find product manuals and resources, and submit a service request. We are committed to providing you with the best online support and service.
