75kVA Cummins Diesel Generators With Auto Transfer Switch 60Hz 127V 220V
| Place of Origin | China |
|---|---|
| Brand Name | Tecgen Cummins Genset |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TGC |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plywood case / Foam and PE film package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine Brand | Cummins | Power Output | 25kVA--2500kVA |
|---|---|---|---|
| Warranty | 18 Months | Alternator Brand | Stamford / Leroy Somer / Tecgen |
| Options | Auto Transfer Switch(ATS) | Genset Type | Silent / Super Silent Type |
| Voltage | 220V, 240V, 440V 460V And Other Voltage Is Optional | Frequency | 60Hz |
| Highlight | 75kVA Cummins Diesel Generators,Cummins Diesel Generators 127V,220V cumins dg set |
||
Product Description

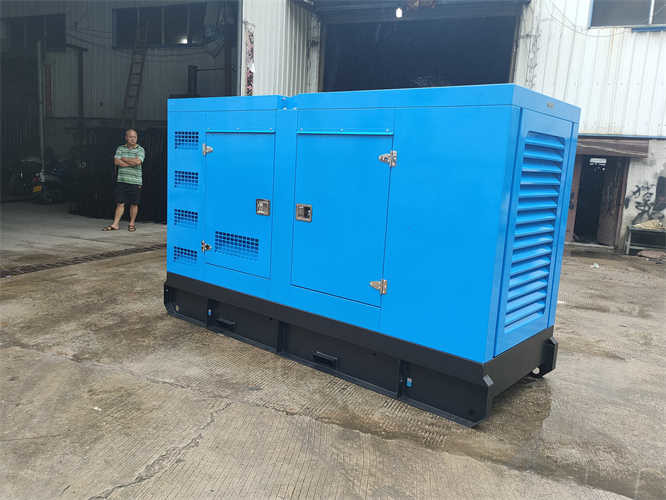

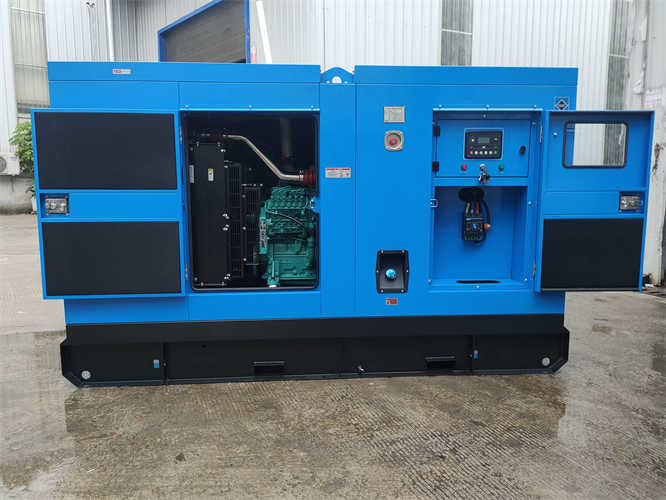

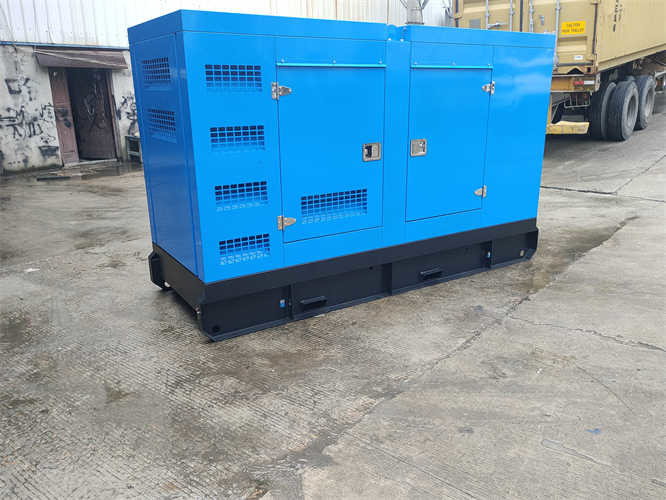

75kVA Cummins Diesel Power Generator Set with Auto Transfer Switch 60Hz 127/220V
Product Description:
Cummins Diesel Generators are the perfect solution for reliable power generation. From 25kVA to 2500kVA, these Cummins diesel generators are built to deliver peak performance and reliability. The Cummins diesel engines are constructed with top-of-the-line Cummins diesel engine parts, ensuring superior performance and reliability. The alternator brand used for these generators are either Stamford, Leroy Somer or Tecgen, providing the most efficient power output. In addition, Cummins diesel generator parts come with an 18-month warranty, providing customers with peace of mind. These Cummins diesel generators are ideal for all your power generation needs, with a frequency of 60Hz to meet your required output.
Tecgen Power Genset Features:
1, Output range: 5kVA to 3000kVA Heavy Duty diesel generator.
2, Different brands of engine, alternator and controller as options
3, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator or Tecgen Power alternator
4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery
7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
11, Perfect after-service network
12, Both 50Hz and 60Hz
13, Chint circuit breaker
14, Three-phase output meets differing requirements
15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
16, Large fuel tank ensure continuous running.
17, Anti-Vibration Mounted
18, Industrial silencer and flexible exhaust hose
19, 0-110% load test for each unit before delivery
20, Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date
Technical Parameters:
PRODUCTS DETAILS
| DIESEL GENERATOR SET | |
| Genset Model | TG75CSD6 |
| Prime Power | 68KVA/55KW |
| Standby Power | 75KVA/60KW |
| Rated Voltage (V) | 220 |
| Rated Frequency (Hz) | 60 |
| Rated Speed (RPM) | 1800 |
| Power Factor (COS¢) | 0.8 (lagging) |
| ENGINE DATA | |
| Engine Brand | Cummins |
| Engine Model | 4BTA3.9-G2 |
| No. of Cylinders | 4 |
| Cylinder Arrangement | In-line |
| Air intake way | Turbo |
| Governor | Electric |
| Bore*Stroke (mm*mm) | 102*120 |
| Displacement (Liter) | 3.9 |
| Cooling System | Water-Cooled |
| Fuel Consumption (g/kw.h) | 216 |
| ALTERNATOR DATA | |
| Alternator Brand | Tecgen Stamford |
| Alternator Model | TGI224S-55 |
| Connecting Type | 3 Phases and 4 Wires |
| Number of Bearing | Single |
| Production Grade | IP23 |
| Altitude | ≤ 1000m |
| Exciter Type | Brushless, Self-exciting, AVR & 100% Copper Winding Wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | ≤ 50 |
| Telephone Harmonic Factor (THF) | ≤ 2% |
| Voltage Regulation, Steady State | 1.00% |
| Transient State Voltage | ≤ -15% ~ +20% |
Applications:
Cummins Diesel Generators, branded as Tecgen Cummins Genset and with Model number TGC, is a cutting-edge power solution that offers a wide range of power output from 25kVA to 2500kVA and is available with a variety of voltage options, such as 220V, 240V, 440V, 460V and other optional voltages, making it ideal for a wide range of applications. It is certified by ISO, CE, SASO, and CIQ, and is available with minimum order quantity of 1 SET. The pricing for this product is negotiable. It is shipped in plywood case or foam and PE film package, and delivery time is within 15 working days. Payment terms include T/T or L/C. The product has a supply ability of 300 units per month and comes with an 18-month warranty. It is available in silent or super silent type. This Cummins Diesel Generator is highly suitable for Cummins Diesel Generator parts, Cummins Diesel Truck Engines, Cummins Marine Diesel Engines, and Cummins Diesel Genset.
Customization:
Customized Cummins Diesel Generators
- Brand Name: Tecgen Cummins Genset
- Model Number: TGC
- Place of Origin: China
- Certification: ISO / CE / SASO / CIQ
- Minimum Order Quantity: 1 SET
- Price: Negotiation
- Packaging Details: Plywood case / Foam and PE film package
- Delivery Time: 15 Working Days
- Payment Terms: T/T / L/C
- Supply Ability: 300 Units Per Month
- Power Output: 25kVA--2500kVA
- Alternator Brand: Stamford / Leroy Somer / Tecgen
- Engine Brand: Cummins
- Genset Type: Silent / Super Silent Type
- Warranty: 18 Months
Support and Services:
Cummins Diesel Generators Technical Support and Service
Cummins Diesel Generators provides customers with the necessary technical support and service needed to ensure that their products are running efficiently and reliably. We offer both on-site and remote support for our customers. Our technical support team is always available to answer any questions or provide assistance with any issues you may have.
On-Site Support
Our on-site support team is available to help with any immediate technical issues or questions you may have. We will come to your site to troubleshoot any problems and make sure that your generator is running optimally. We also provide regular maintenance and service checks that ensure your generator is running safely and efficiently.
Remote Support
Our remote support team is available 24/7 to provide assistance with any technical issues you may have. We can also provide remote diagnosis and repair of your generator, as well as provide advice and guidance on best practices for maintenance and operation.
Additional Services
In addition to our technical support and service offerings, we also provide additional services to help customers get the most out of their Cummins Diesel Generators. These include installation services, spare parts and consumables, and extended warranty programs.
