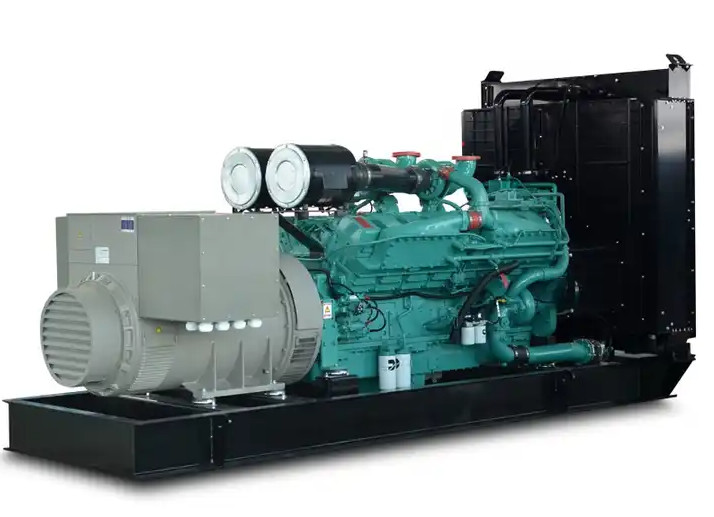

Industrial Diesel Cummins Generator 880KVA With Stamford Alternator
| Place of Origin | China |
|---|---|
| Brand Name | Tecgen Cummins Genset |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TGC |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plywood case / Foam and PE film package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine Brand | Cummins | Alternator Brand | Stamford / Leroy Somer / Tecgen |
|---|---|---|---|
| Warranty | 18 Months | Frequency | 50Hz/60Hz |
| Options | Auto Transfer Switch(ATS) | Genset Type | Open / Silent Type |
| Power Output | 25kVA--2500kVA | Voltage | 220V, 240V, 440V 460V And Other Voltage Is Optional |
| Highlight | Industrial diesel cummins generator,diesel cummins generator 880KVA,220V cummins 3 phase generator |
||
Product Description
Industrial Genset Standby Power 880KVA Cummins Diesel Generator Set With Stamford Alternator
Product Description:
Cummins Diesel Generators are renowned for their reliability and efficiency, providing power solutions for a variety of applications.
Tecgen Power Genset Features:
1, Output range: 5kVA to 3000kVA Heavy Duty diesel generator.
2, Different brands of engine, alternator and controller as options
3, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator or Tecgen Power alternator

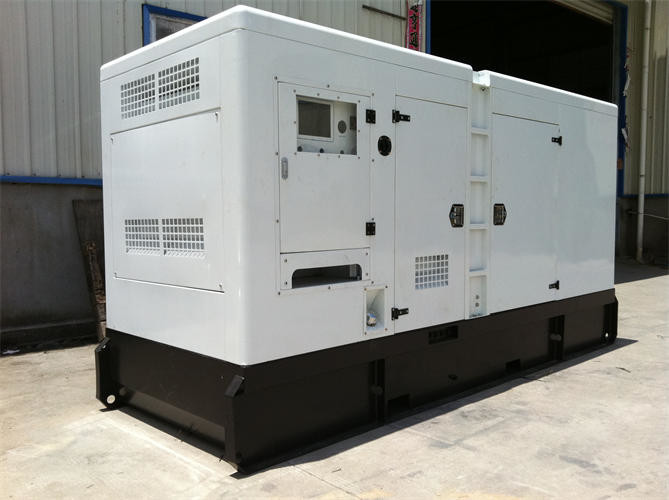

4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery
7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
11, Perfect after-service network
12, Both 50Hz and 60Hz
13, Chint circuit breaker
14, Three-phase output meets differing requirements
15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
16, Large fuel tank ensure continuous running.
17, Anti-Vibration Mounted
18, Industrial silencer and flexible exhaust hose
19, 0-110% load test for each unit before delivery
20, Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date
Technical Parameters:
PRODUCTS DETAILS
| DIESEL GENERATOR SET | |
| Genset Model | TG880C |
| Prime Power | 800KVA/640KW |
| Standby Power | 880KVA/704KW |
| Rated Voltage (V) | 380 |
| Rated Frequency (Hz) | 50 |
| Rated Speed (RPM) | 1500 |
| Power Factor (COS¢) | 0.8 (lagging) |
| ENGINE DATA | |
| Engine Brand | Cummins |
| Engine Model | KTA38-G2B |
| No. of Cylinders | 12 |
| Cylinder Arrangement | Vertical in Line |
| Air intake way | Turbo |
| Bore*Stroke (mm*mm) | 159*159 |
| Displacement (Liter) | 37.8 |
| Compression Ratio | 14.5:1 |
| Cooling System | Water-Cooled |
| Starting Method | DC 24V Electrical Starting |
| Fuel Consumption (g/kw.h) | 199 |
| ALTERNATOR DATA | |
| Alternator Brand | Stamford |
| Alternator Model | HCI634G |
| Connecting Type | 3 Phases and 4 Wires |
| Number of Bearing | Single |
| Production Grade | IP23 |
| Altitude | ≤ 1000m |
| Exciter Type | Brushless, Self-exciting, AVR & 100% Copper Winding Wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | ≤ 50 |
| Telephone Harmonic Factor (THF) | ≤ 2% |
| Voltage Regulation, Steady State | 1.00% |
| Transient State Voltage | ≤ -15% ~ +20% |
Support and Services:
Cummins Diesel Generators Technical Support and Service
Cummins diesel generators provide reliable and efficient power solutions for a range of applications. We offer a wide range of technical support and service options to ensure that your Cummins diesel generator runs at optimal performance.
Technical Support
Our technical experts are on hand to provide you with the information and assistance you need to maintain your Cummins diesel generator. Our team can provide product advice, troubleshooting guidance and technical support when you need it.
Service and Maintenance
We have a network of certified technicians and service centers available to provide maintenance and service for your Cummins diesel generator. Our service technicians can perform routine maintenance, repairs, and upgrades to keep your generator running reliably and efficiently.
Parts and Accessories
Our online store offers a variety of parts and accessories for your Cummins diesel generator. From batteries to fuel filters, we have the parts and components you need to keep your generator running at optimal performance.
