Standby Power 1000KVA Cummins Diesel Generators With Stamford Leroy Somer Alternator
| Place of Origin | China |
|---|---|
| Brand Name | Tecgen Cummins Genset |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TGC |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plywood case / Foam and PE film package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 220V, 240V, 440V 460V And Other Voltage Is Optional | Power Output | 25kVA--2500kVA |
|---|---|---|---|
| Frequency | 50Hz/60Hz | Genset Type | Open / Silent Type |
| Warranty | 18 Months | Alternator Brand | Stamford / Leroy Somer / Tecgen |
| Engine Brand | Cummins | Options | Auto Transfer Switch(ATS) |
| Highlight | 1000KVA Cummins Diesel Generators,Cummins Diesel Generators 460V,220V genset cummins |
||
Product Description

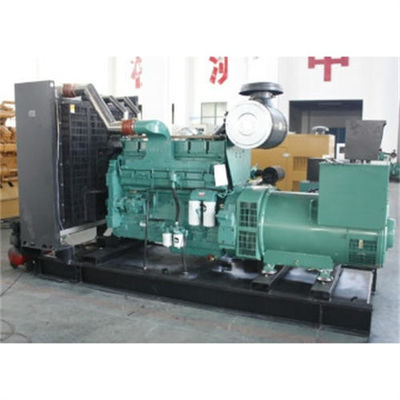

Standby Power 1000KVA Cummins Diesel Generator Set With Stamford/Leroy Somer Alternator
Product Description:
Cummins Diesel Generators provide an excellent power solution for any application. The diesel generator sets range from 25kVA to 2500kVA in power output. Cummins diesel engines are reliable and robust with low fuel consumption, making them a great choice for your power needs.
Tecgen Diesel Genset Features:
1, Output range: 5kVA to 3000kVA Heavy Duty diesel generator.
2, Different brands of engine, alternator and controller as options
3, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator or Tecgen Power alternator

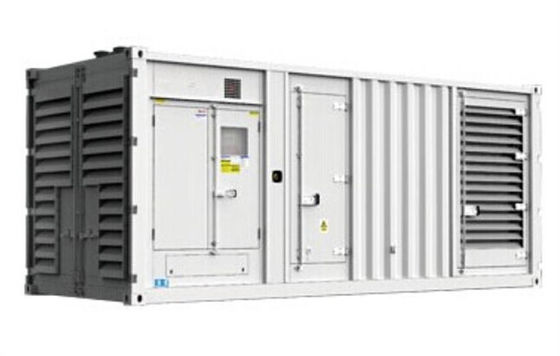

4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery
7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
11, Perfect after-service network
12, Both 50Hz and 60Hz
13, Chint circuit breaker
14, Three-phase output meets differing requirements
15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
16, Large fuel tank ensure continuous running.
17, Anti-Vibration Mounted
18, Industrial silencer and flexible exhaust hose
19, 0-110% load test for each unit before delivery
20, Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date
Technical Parameters:
| DIESEL GENERATOR SET | |
| Genset Model | TG1000C |
| Prime Power | 910KVA/728KW |
| Standby Power | 1000KVA/800KW |
| Rated Voltage (V) | 380 |
| Rated Frequency (Hz) | 50 |
| Rated Speed (RPM) | 1500 |
| Power Factor (COS¢) | 0.8 (lagging) |
| ENGINE DATA | |
| Engine Brand | Cummins |
| Engine Model | KTA38-G2A |
| Engine Power(KW) | 895 |
| No. of Cylinders | 12 |
| Cylinder Arrangement | Vertical in Line |
| Air intake way | Turbo |
| Bore*Stroke (mm*mm) | 159*159 |
| Displacement (Liter) | 37.8 |
| Compression Ratio | 14.5:1 |
| Cooling System | Water-Cooled |
| Starting Method | DC 24V Electrical Starting |
| Fuel Consumption (g/kw.h) | 199 |
| ALTERNATOR DATA | |
| Alternator Brand | Stamford |
| Alternator Model | HCI634H |
| Connecting Type | 3 Phases and 4 Wires |
| Number of Bearing | Single |
| Production Grade | IP23 |
| Altitude | ≤ 1000m |
| Exciter Type | Brushless, Self-exciting, AVR & 100% Copper Winding Wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | ≤ 50 |
| Telephone Harmonic Factor (THF) | ≤ 2% |
| Voltage Regulation, Steady State | 1.00% |
| Transient State Voltage | ≤ -15% ~ +20% |
Support and Services:
Cummins Diesel Generators Technical Support and Service
Cummins Diesel Generators are built to last and offer reliable, efficient, and cost-effective power for a variety of operations. Cummins stands behind our products and provides comprehensive technical support and service options to ensure that our customers get the most out of their generators.
Technical Support
Cummins offers a variety of technical support options for our diesel generators. We provide detailed technical manuals and parts catalogs, as well as access to our knowledgeable technical support team. Our team is comprised of experienced engineers and technicians who can provide expert advice on installation, troubleshooting, and maintenance.
Service and Maintenance
Cummins also provides comprehensive service and maintenance options for our diesel generators. We offer scheduled maintenance plans, as well as emergency service and repair. Our technicians are trained to work on Cummins generators and can quickly diagnose and repair any issues that may arise.
