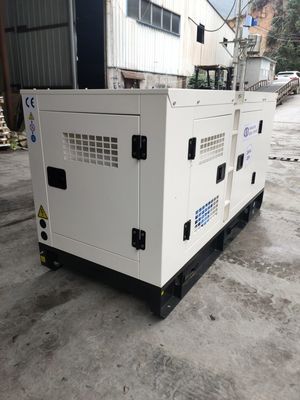

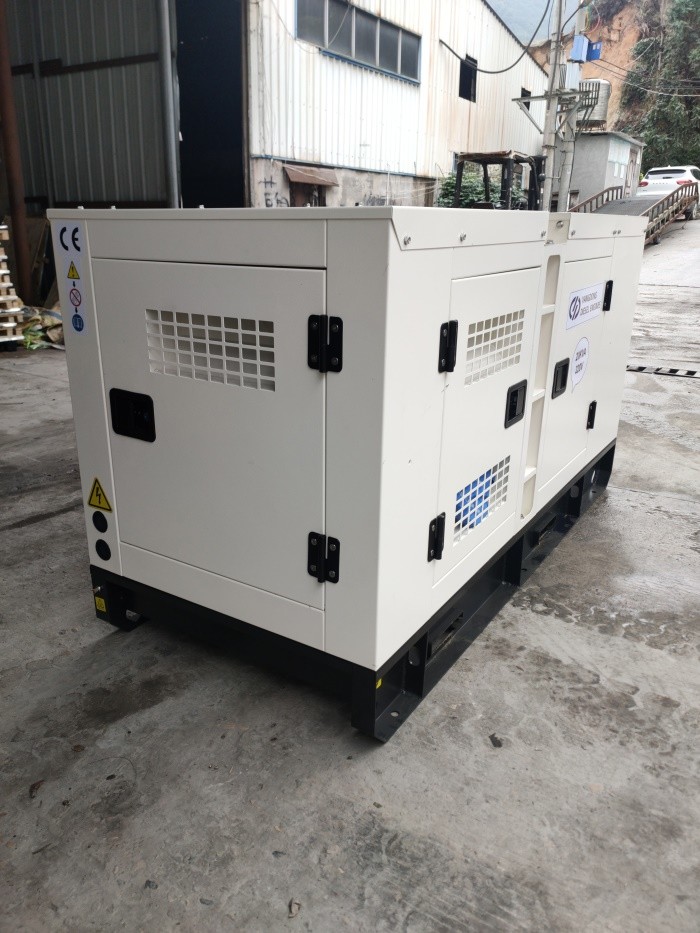

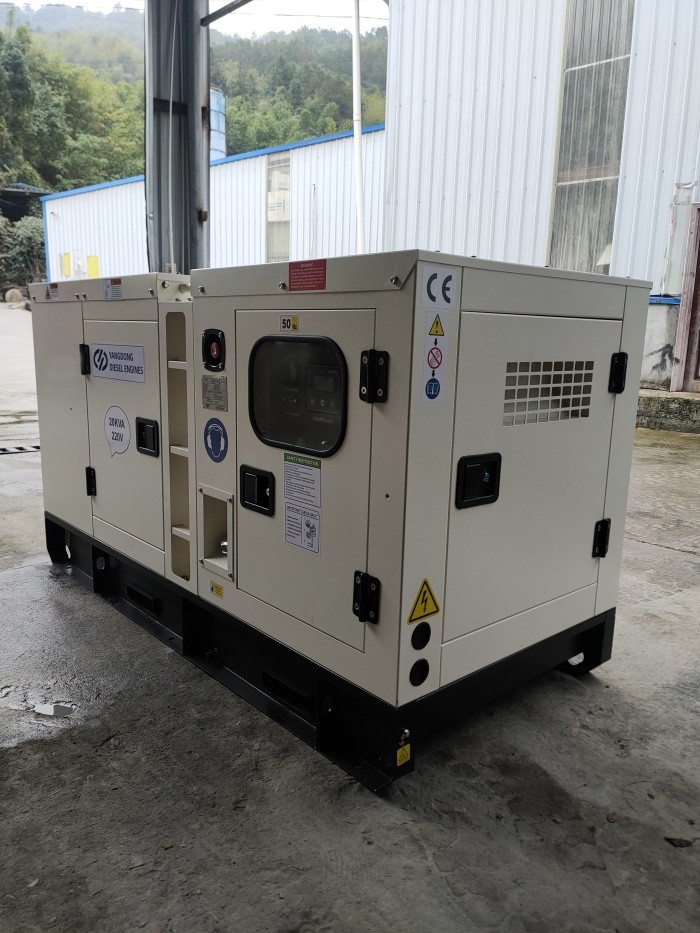

60Hz Silent Power Generators With 20kVA Rate Power And ATS Controller
Place of Origin | CHINA |
---|---|
Brand Name | Silent 60Hz Genset |
Certification | ISO / CE / SASO / CIQ |
Model Number | TG22YDSD6 |
Minimum Order Quantity | 1 Unit |
Price | Negotiation |
Packaging Details | Plastic film package in container |
Delivery Time | 10 Working Days |
Payment Terms | T/T or L/C |
Supply Ability | 300 Units Per Month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xGenset Type | Silent Diesel Genset | Frequency | 60Hz / 1800rpm |
---|---|---|---|
Phase | 3 Phase / 4 Wire | Rated Output Genset | 20kVA / 16kW |
Engine Brand | Yangdong | Alternator Brand | Tecgen (Copy Stamford) |
Equipment Options | ATS, Water Heater, Single Phase, Remote Control | Production Capacity | 300units Per Month |
Highlight | 60Hz Silent Power Generators,Silent Power Generators 20kVA,16kW 20kva silent generator |
60Hz Silent diesel genset with 20kVA rate power genset silent with ATS controller
Product Description:
Silent Power Generators are 60Hz electric generators with a rated output of 20kVA / 16kW. This generator is equipped with a Yangdong engine, offering a reliable and powerful generator for your needs. Our generators come with various options, such as ATS, water heater, single phase, and remote control. And with 300 units available per month, you can be sure to get your generators when you need them. Our Silent Power Generators come in RAL standard or customed colors, allowing you to choose the color that best fits your needs.
Silent Power Generators provide an efficient and reliable source of power, perfect for any application. Whether you need a generator for your home, office, or industrial site, the Silent Power Generator is the perfect choice. With its strong and reliable engine, you can be sure to get the power you need, when you need it.
Choose Silent Power Generators for your 60Hz generator needs. With its 20kVA / 16kW rated output, powerful engine, and various options, you can be sure to find the generator that will suit your needs.
Features:
- Product Name: Silent Power Generators
- Equipment Options: ATS, Water Heater, Single Phase, Remote Control
- Rated Output Genset: 20kVA / 16kW
- Genset Type: Silent Diesel Genset
- Engine Brand: Yangdong
- Phase: 3 Phase / 4 Wire
- Special Features: Diesel Power Generators, Silent Electric Generators, 60Hz Generator

Technical Parameters:
Technical Specification: | ||
60Hz 20kVA Silent Diesel Genset Specification | ||
Genset Model | TG22YDD6 | TG22YDSD6 |
Open | Silent | |
Frequency | 60Hz | |
Rate Speed | 1800RPM | |
Voltage | 220V | |
Phase | 3 Phase, 4 or 12 Wires | |
Rate Current | 52.5A | |
Prime Power | 16kW / 20kVA | |
Standby Power | 18kW / 22kVA | |
Engine Model | Yangdong YND485D | |
Alternator Model | TGI164S16 | |
Controller | Smartgen HGM6120N | |
Weight & Dimensions | ||
Length (mm) | 1700 | 2300 |
width (mm) | 840 | 980 |
Height (mm) | 1360 | 1460 |
Weight (kgs) | 700 | 950 |
Engine Specification | ||
Brand | YANGDONG | |
Engine Model | YND485D | |
Prime power | 20kW | |
Injection | Indirect | |
Aspiration | Naturally Aspirated | |
No. of cylinders | 4 | |
Bore of Stroke (mm) | 85 x 95 | |
Displacement (L) | 2.156 | |
Cooling | water | |
Compression Ratio | 18:1 | |
Brand | KOFO Ricardo Series | |
Engine Oil capacity (L) | 7.2 | |
Coolant Capacity ( In radiator) | 7.2 | |
Governor | MECH | |
Air Filter | Dry Element | |
Fuel consumption | @ 60Hz | |
100% Load (L/h) | 4.6 | |
75% Load (L/h) | 3.4 | |
50% Load (L/h) | 2.3 | |
25% Load (L/h) | 1.1 | |
Alternator Specification | ||
Brand | Tecgen | |
Model | TGI184S16 | |
Rate Output | 20kVA | |
Speed | 1800RPM | |
Pole | 4 | |
Winding Connections | Star | |
Insulation Class | H | |
Enclosure | IP23 | |
Altitude (m) | ≤1000 | |
Voltage Regulator | AVR | |
Steady State Voltage Regulator | 1% | |
Bearing | Single | |
Controller System | ||
Brand | Smartgen | |
Model | HGM6120N | |
Functions | Control with AMF module | |
Static with auto. battery charger | ||
Emergency stop push button | ||
ATS Connection | ||
OPTIONAL EQUIPMENTS | ||
Single Phase, ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Silent & Trailer Type, 3000Hours Spare Parts |
Applications:
Silent Electric Generators are the perfect solution for backup DG Genset and for a reliable source of energy. Our Silent DG Generators TGYD model is a 60Hz Genset that is powered by a Yangdong Engine as well as a Tecgen Alternator, ensuring a silent power output of 68dB(A)@7m. It is available with multiple Equipment Options, including Alternator Transfer Switch (ATS), Water Heater, Single Phase, and Remote Control. It is 3 Phase / 4 Wire and can be customized to meet your specific needs.
The Silent 60Hz Genset TG22YDSD6 is certified by ISO / CE / SASO / CIQ, and is available with a minimum order quantity of 1 Unit. The price is negotiable, and the packaging details are plastic film package in container. Delivery generally takes 10 working days, and payment can be made via T/T or L/C. We can supply up to 300 units per month.
Customization:
Brand Name: Yandgong Silent 60Hz Genset
Model Number: TG22YDSD6
Place of Origin: CHINA
Certification: ISO / CE / SASO / CIQ
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Plastic film package in container
Delivery Time: 10 Working Days
Payment Terms: T/T or L/C
Supply Ability: 300 Units Per Month
Production Capacity: 300units Per Month
Frequency: 60Hz / 1800rpm
Colors: RAL Standard Or Customed Colors
Equipment Options: ATS, Water Heater, Single Phase, Remote Control
Noise Level: 68dB(A)@7m
Yandgong's Silent 60Hz Genset TGYD is the perfect choice for your generator needs. This generator set has the highest noise level rating at 68dB(A)@7m. It is certified by ISO/CE/SASO/CIQ and is available in RAL standard or customed colors. It is equipped with ATS, Water Heater, Single Phase, and Remote Control options. Our Silent 60Hz Genset TG22YDSD6 has a minimum order quantity of 1 unit and comes with a plastic film package in container. It has a production capacity of 300 units per month and delivery time of 10 working days. Price is negotiable and payment terms are T/T or L/C.
Support and Services:
We provide technical support and service for Silent Power Generators. Our team of professionals is available 24/7 to answer any questions and address any issues you may have with your Silent Power Generators. We also offer preventative maintenance to keep your Silent Power Generators running safely and efficiently.
Packing and Shipping:
Silent Power Generators are packaged and shipped with the utmost care. We use sturdy boxes, bubble wrap, and other protective materials to ensure that your product is safe and secure during transit. You can also choose from a variety of delivery methods, including air, ground, and express shipping.
If you have any questions or concerns about your shipment, please contact us and one of our knowledgeable customer service representatives will be happy to assist you.



FAQ:
- Q: What is the brand name of Silent Power Generators?
A: The brand name of Silent Power Generators is Silent 60Hz Genset. - Q: What is the model number of Silent Power Generators?
A: The model number of Silent Power Generators is TG22YDSD6. - Q: Where is Silent Power Generators made?
A: Silent Power Generators is made in China. - Q: What kind of certifications does Silent Power Generators have?
A: Silent Power Generators is certified by ISO, CE, SASO, and CIQ. - Q: How many Silent Power Generators are available each month?
A: We have 300 units of Silent Power Generators available each month.
