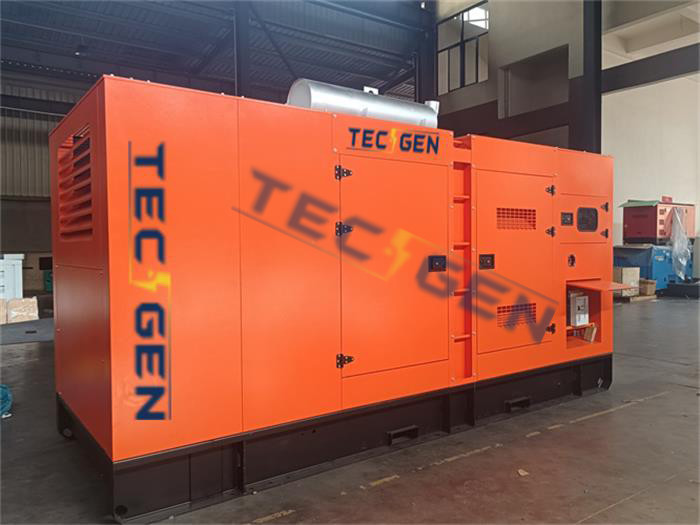

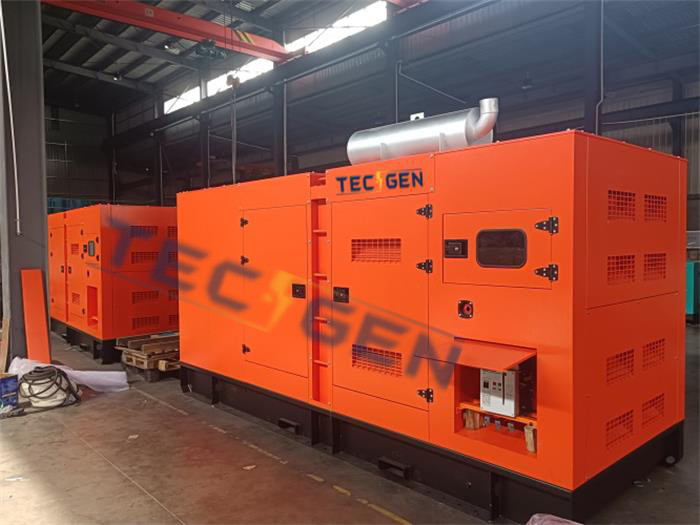

310kw Silent Diesel Generator For Agricultural Field Continuous Power Back Up

Silent diesel generator 310kW for Agricultural field continuous power Back-up

Product Description

We're the only few manufacturers of genset factories owned ourself alternator factory.

310kW Diesel Genereator Set

Genset model: TG426CS

Rated power (kW): 100 Standby power (kW): 90

Unit size (mm): L4010 × W1630 × H2230mm Noise (dB): 75

Genset weight (kg): 4650 Rotating speed (r/min): 1500

Fuel consumption (g/kw. h): 220 Frequency (HZ): 50

Control system: DEIF (supporting ATS, RS485,9Inputs, 7Outputs, PLC function)

Option equipment: Integrated Fuel Tank

Silent & Supper silent Gen-set Sound level: 63-75dB(A) (at 7m side)

Payment terms: T/T,L/C, Western Union, Paypal etc.

Production cycle & delivery time: Within 15 days upon downpayment received.

Cummins Engine:

Diesel engine brand: Cummins

Cummins Manufacturer: (DCEC) Dongfeng Cummins Engine Co., Ltd

Diesel engine model: 6ZTAA13-G3 Rated power: 390Kw

Number of cylinders/arrangement mode: 6 cylinders/in-line compression ratio: 17:1

Cylinder diameter * stroke (mm): 130 * 163

Displacement (L): 13

Governor: Electric

Alternator Selection

Leroy Somer √ Stamford Mecc alte TECGEN selected

Control panel Selection

DEIF SGC-420 √ Smartgen HGM6120N Comap AMF20  Deepsea DSE6120

310kW Gen-set Specifications:

TECHNICAL DATA:

Diesel generator sets can be used in many places, including but not limited to the following fields:

1. Industrial field: factories, mines, railways, field workplaces and other places that require backup power or temporary power supply.
2. Communication field: communication stations, base stations and other places that require stable power supply.
3. Agricultural field: farmland irrigation and drainage, pastoral areas, forest areas and other places that require independent power supply.
4. Defense engineering: field construction, national defense facilities and other places that require self-contained power supply.
5. Places such as highways, ports, etc.: used as power or lighting power supply.

Silent Type Genset Advantage:

• Easy to Operate:
  • The generator set's control system incorporates an advanced control module, allowing for effortless operation through the control panel or remote control device. This streamlined approach makes operation simple and convenient.
  • Additionally, the control system features automatic alarm and shutdown protection. In case of any malfunction, it automatically shuts down the unit, safeguarding it.
• Advanced Waterproof Design:
  • The unit's control and maintenance doors are equipped with a photo frame rain- and dust-resistant design, effectively keeping out rainwater and dust.
• Superior Intake and Exhaust System:
  • The intake and exhaust system, along with the cooling fan, have been meticulously designed for optimal performance. This ensures that the unit's temperature remains low during operation, enhancing its operational stability.

Robust and Durable:

• Tough and Sturdy Structure:
  • The entire canopy frame is crafted from heavy-duty galvanized steel, ensuring it can withstand vibrations and material wear.
  • It features a reinforced and specially designed wear-resistant double-thick plate chassis, making it highly resistant to strong torsional impacts and twisting forces.

Superior Muffler System:

• Quieter Operation:
  • It incorporates a unique noise reduction and muffler system.
  • The muffler's advanced design, along with its use of materials like stainless steel and alloy materials, helps reduce the unit's noise by 20-30 dB(A).
  • This ensures the unit runs quietly, without disrupting daily life.

Impressive Corrosion-Resistance:

• Long-Lasting Durability:
  • The canopy is crafted from high-hardness electroplated zinc material, which offers excellent corrosion resistance.
  • It's designed to last over 5 years without any signs of rusting, with exposed fasteners and locks made of stainless steel for extra durability.

Convenient Maintenance:

• Easy Access:
  • All daily maintenance tasks can be performed from either side of the equipment.
  • The unit's wide inspection door provides easy access to all its parts.
  • The integrated sewage tank at the bottom offers convenient daily maintenance access.
  • It's equipped with a climbing ladder for easy unit hoisting and point inspection.

Fully Enclosed Design:

• Sound and Weather Protection:
  • The canopy features a double-layer sheet metal construction.
  • It's equipped with sound-absorbing cotton devices to ensure noise reduction.
  • The door edges utilize sticky rubber sealing strips to provide vibration buffering, noise reduction, and enhanced rain and dust resistance.
  • The protection grade can reach IP54, making it highly weather-resistant.

Frequently Asked Questions (FAQ):

1. Warranty Period:
   • Answer: Tecgen offers a warranty period of 18 months or 1500 running hours, whichever comes first. However, depending on specific projects, we can provide an extended warranty period.
2. Global Warranty:
   • Answer: Yes, most of our products, such as Cummins and Doosan power generators, come with a global warranty. The alternators we use, like Leroysomer and Stamford Marathon, also come with a global warranty, so you don't have to worry about after-sales service.
3. Acceptance of OEM:
   • Answer: Yes, we can accept OEM orders.
4. Payment Terms:
   • Answer: We accept Telegraphic Transfer (T/T) with a 20% advance payment. The balance of 80% is due before shipment or through an Irrevocable Letter of Credit (L/C) at sight or West union.
5. Delivery Time:
   • Answer: Our standard delivery time is about 10-20 days. However, for special engines and alternators, the delivery time may be longer.
