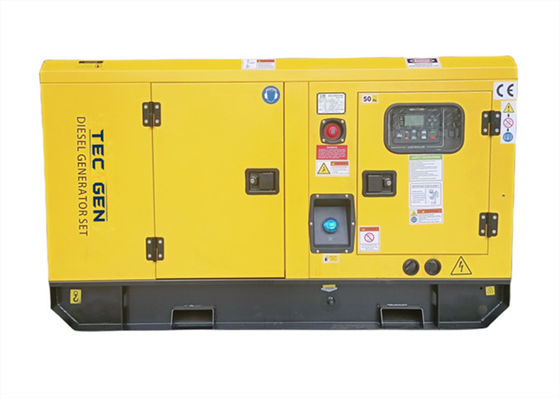

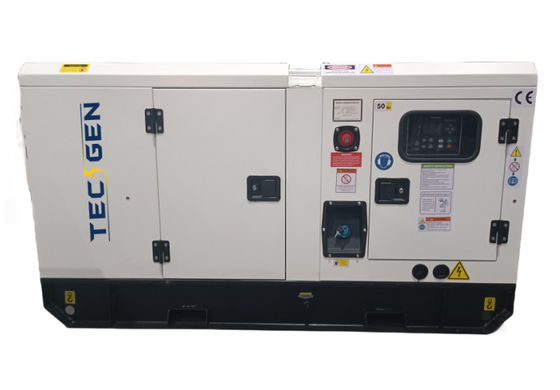

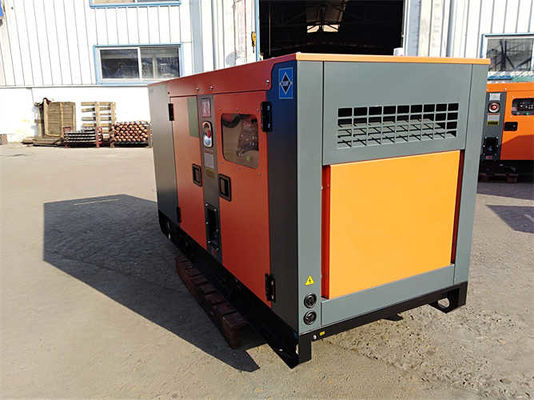

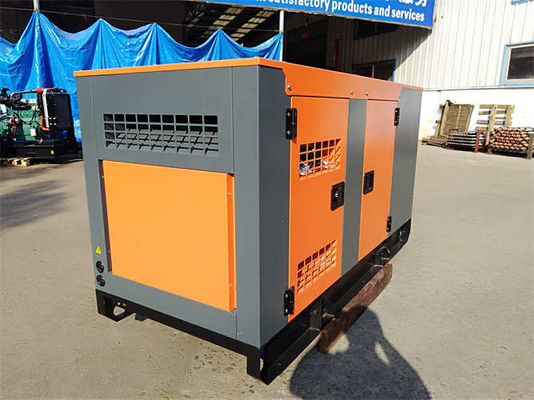

50HZ Cumins Dg Set 23KVA 28KVA 40KVA Silent Type
| Place of Origin | China |
|---|---|
| Brand Name | Tecgen Cummins Genset |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TGC |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plywood case / Foam and PE film package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Output | 20kVA--2500kVA | Engine Brand | Cummins |
|---|---|---|---|
| Voltage | 220V, 240V, 440V 460V And Other Voltage Is Optional | Options | Auto Transfer Switch(ATS) |
| Warranty | 18 Months | Frequency | 50Hz/60Hz |
| Alternator Brand | Stamford / Leroy Somer / Tecgen | Genset Type | Open / Silent Type |
| Highlight | 23KVA cumins dg set,Silent Type cumins dg set,28KVA cummins gen set |
||
Product Description
Low maintenance cost Cummins Diesel Engine Genset 50HZ 23KVA 28KVA 40KVA Silent Type
Product Description:
Cummins Diesel Generators
The Cummins Diesel Generators are a reliable and powerful source of backup power for any application. With a wide range of voltage options, power outputs, and a strong warranty, these generators are built to meet your specific needs.
Features:
- Product Name: Cummins Diesel Generators
- Power Output: 20kVA--2500kVA
- Voltage: 380V, 400V, 415V And Other Voltage Is Optional
- Warranty: 18 Months
- Genset Type: Open / Silent Type
- Alternator Brand: Stamford / Leroy Somer / Tecgen
- Optional voltage configurations available
- 18 months warranty for peace of mind
- Available in both open and silent types for different applications
- Equipped with high-quality alternators from leading brands such as Stamford, Leroy Somer, and Tecgen
Technical Parameters:
| Genset Model | TG25C/S | TG30C/S | TG45C/S | |
| Rated Power | KW/KVA | 18/23 | 22/28 | 32/40 |
| Standby Power | KW/KVA | 20/25 | 24/30 | 36/45 |
| Rated Voltage | V | 400/230V or Others | ||
| Speed | RPM | 1500 | ||
| Rated frequency | Hz | 50 | ||
| Engine Model | 4B3.9-G11 | 4B3.9-G1 | 4BT3.9-G1 | |
| Engine Prime Power | KW | 20 | 24 | 36 |
| Displacement | L | 3.9 | 3.9 | 3.9 |
| Governor | Mechanical | Mechanical | Mechanical | |
| Cylinder | QTY | 4 | 4 | 4 |
| Bore*Stroke | mm*mm | 102×120 | 102×120 | 102×120 |
| Fuel Consumption 100% Load | L/h | 5.6 | 6.5 | 9.1 |
| Alternator Model | TGI184S-18 | TGI184S-22 | TGI184S-32 | |
| Voltage Regulation | AVR | |||
| Excitation Method | Brushless | |||
| Open Type Size | mm | 1600x800x1200 | 1600x800x1200 | 1700x800x1200 |
| Open Type Weight | kg | 750 | 790 | 870 |
| Silent Type Size | mm | 2200x1000x1300 | 2200x1000x1300 | 2300x1000x1300 |
| Silent Type Weight | kg | 1100 | 1150 | 1230 |
Applications:
Tecgen Cummins Genset - Reliable Power Solutions for Various Applications
The Tecgen Cummins Genset is a high-quality diesel generator that is perfect for a wide range of applications. This powerful and efficient generator is designed and manufactured by Cummins, a world-renowned brand in the industry known for its reliable and durable marine diesel engines. With its advanced features and top-notch performance, the Tecgen Cummins Genset is the perfect choice for all your power needs.
Customization:
Tecgen Cummins Genset - Customized Service
Brand Name: Tecgen Cummins Genset
Model Number: TGC
Place of Origin: China
Certification: ISO / CE / SASO / CIQ
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plywood case / Foam and PE film package
Delivery Time: 15 Working Days
Payment Terms: T/T / L/C
Supply Ability: 300 Units Per Month
Genset Type: Open / Silent Type
Options: Auto Transfer Switch(ATS)
Warranty: 18 Months
