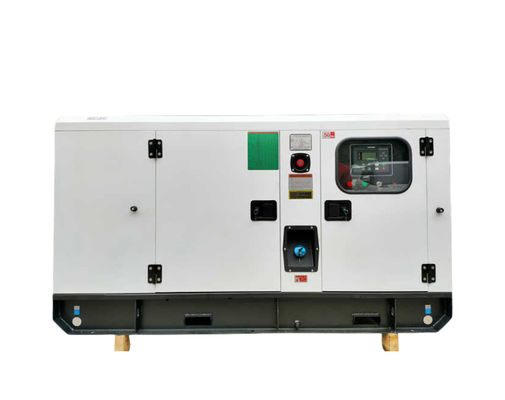

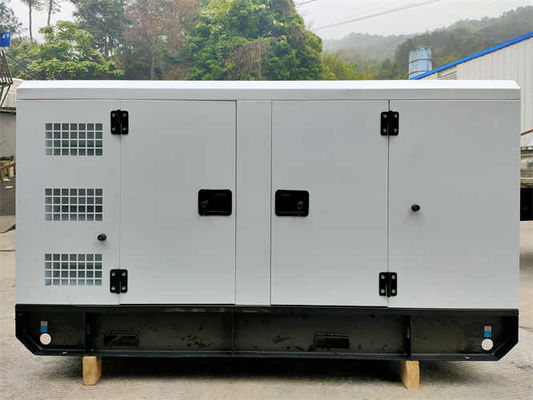

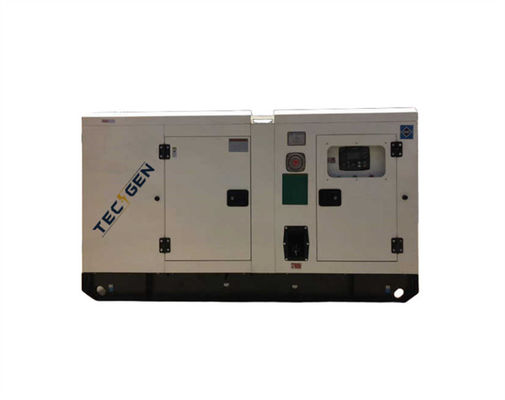

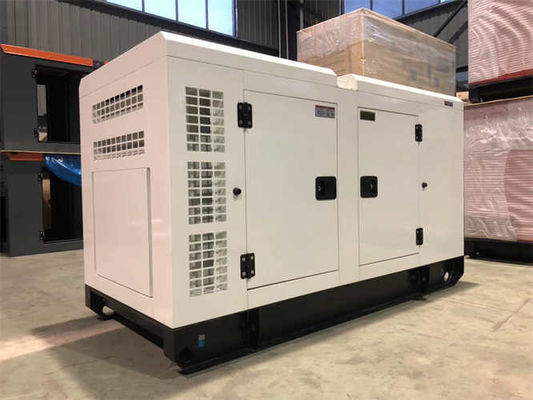

20KW 24KW 36KW Cummins Diesel Generators Genset Type Open / Silent Type
| Place of Origin | China |
|---|---|
| Brand Name | Tecgen Cummins Genset |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TGC |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plywood case / Foam and PE film package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine Brand | Cummins | Genset Type | Open / Silent Type |
|---|---|---|---|
| Alternator Brand | Stamford / Leroy Somer / Tecgen | Warranty | 18 Months |
| Options | Auto Transfer Switch(ATS) | Power Output | 20kVA--2500kVA |
| Voltage | 220V, 240V, 440V 460V And Other Voltage Is Optional | Frequency | 50Hz/60Hz |
| Highlight | 20KW cummins diesel generators,24KW cummins diesel generators,36kw genset cummins |
||
Product Description
Easy access to spare parts Cummins Diesel Generators 20KW 24KW 36KW Genset Type Open / Silent Type
Product Description:
Cummins Diesel Generators - Your Reliable Source of Power
When it comes to providing uninterrupted power supply, Cummins Diesel Generators stand out as the top choice. Our diesel power generator sets are built with the most advanced technology and high-quality materials to ensure reliable performance and efficient energy consumption. With a wide range of voltage options and the choice between open or silent type genset, we have the perfect solution for all your power needs.
Features:
- Product Name: Cummins Diesel Generators
- Genset Type: Open / Silent Type
- Voltage: 380V, 400V, 415V And Other Voltage Is Optional
- Power Output: 20kVA--2500kVA
- Frequency: 50Hz/60Hz
- Engine Brand: Cummins
- Available in a wide range of power outputs from 20kVA to 2500kVA to meet various energy needs
- Operates at a standard frequency of 50Hz or 60Hz for efficient power generation
- Can be customized to different voltage options for compatibility with different locations
Technical Parameters:
| Genset Model | TG25C/S | TG30C/S | TG45C/S | |
| Rated Power | KW/KVA | 18/23 | 22/28 | 32/40 |
| Standby Power | KW/KVA | 20/25 | 24/30 | 36/45 |
| Rated Voltage | V | 400/230V or Others | ||
| Speed | RPM | 1500 | ||
| Rated frequency | Hz | 50 | ||
| Engine Model | 4B3.9-G11 | 4B3.9-G1 | 4BT3.9-G1 | |
| Engine Prime Power | KW | 20 | 24 | 36 |
| Displacement | L | 3.9 | 3.9 | 3.9 |
| Governor | Mechanical | Mechanical | Mechanical | |
| Cylinder | QTY | 4 | 4 | 4 |
| Bore*Stroke | mm*mm | 102×120 | 102×120 | 102×120 |
| Fuel Consumption 100% Load | L/h | 5.6 | 6.5 | 9.1 |
| Alternator Model | TGI184S-18 | TGI184S-22 | TGI184S-32 | |
| Voltage Regulation | AVR | |||
| Excitation Method | Brushless | |||
| Open Type Size | mm | 1600x800x1200 | 1600x800x1200 | 1700x800x1200 |
| Open Type Weight | kg | 750 | 790 | 870 |
| Silent Type Size | mm | 2200x1000x1300 | 2200x1000x1300 | 2300x1000x1300 |
| Silent Type Weight | kg | 1100 | 1150 | 1230 |
Applications:
Cummins Diesel Generators
Cummins Diesel Generators, also known as Tecgen Cummins Genset, are powerful and reliable products that are perfect for various applications and scenarios. These generators are manufactured in China and are certified with ISO, CE, SASO, and CIQ, ensuring high quality standards. They are available in both open and silent types, making them suitable for different environments.
Product Attributes
| Brand Name | Tecgen Cummins Genset |
|---|---|
| Model Number | TGC |
| Place of Origin | China |
| Certification | ISO / CE / SASO / CIQ |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plywood case / Foam and PE film package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 300 Units Per Month |
| Genset Type | Open / Silent Type |
| Frequency | 50Hz/60Hz |
| Engine Brand | Cummins |
| Voltage | 380V, 400V, 415V And Other Voltage Is Optional |
| Warranty | 18 Months |
Application Scenarios
Cummins Diesel Generators are widely used in various industries and scenarios, including:
- Construction sites: With their reliable and powerful engines, these generators are perfect for providing electricity to construction sites, ensuring smooth operation and productivity.
- Emergency power: In case of power outages, these generators can provide emergency power to hospitals, data centers, and other critical facilities.
- Outdoor events: From concerts to festivals, these generators can be used to power stage lights, sound systems, and other equipment.
- Mining operations: In remote mining locations, these generators are essential for providing electricity to power heavy machinery and equipment.
- Telecom industry: Cummins Diesel Generators are commonly used in the telecom industry to provide backup power for cell towers and communication systems.
Customization:
Tecgen Cummins Genset
Brand Name: Tecgen Cummins Genset
Model Number: TGC
Place of Origin: China
Certification: ISO / CE / SASO / CIQ
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plywood case / Foam and PE film package
Delivery Time: 15 Working Days
Payment Terms: T/T / L/C
Supply Ability: 300 Units Per Month
