Prime Power 20KVA 16KW Cummins Generator Set With Denmark DEIF Controller
| Place of Origin | China |
|---|---|
| Brand Name | Tecgen Cummins Genset |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TGC |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plywood case / Foam and PE film package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Open / Silent Type | Frequency | 50Hz/60Hz |
|---|---|---|---|
| Voltage | 380V, 400V, 415V And Other Voltage Is Optional | Prime Power | 20kVA 16kW |
| Warranty | 18 Months | Options | Auto Transfer Switch(ATS) |
| Engine Brand | Cummins | Alternator Brand | Stamford / Leroy Somer / Tecgen |
| Highlight | 20 kva cummins generator set,cummins generator set 16kw,cummins 16 kw diesel generator |
||
Product Description

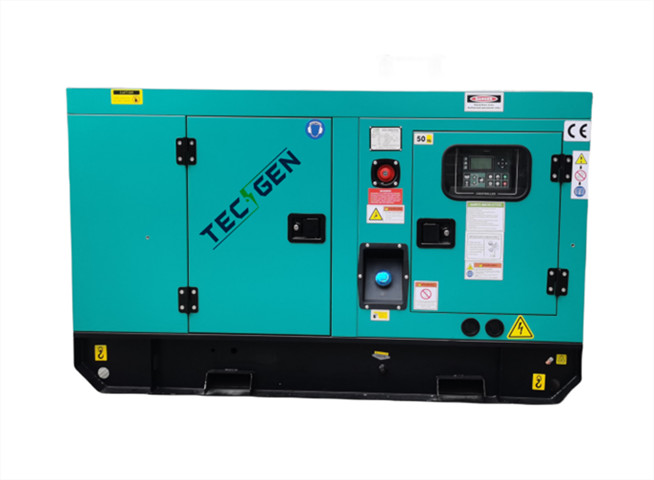

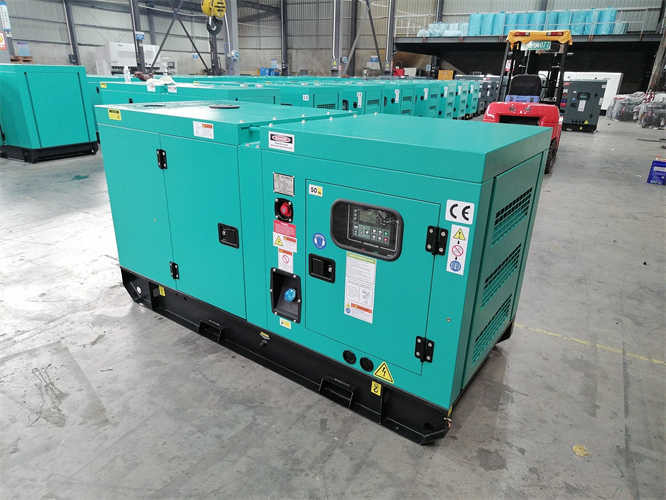

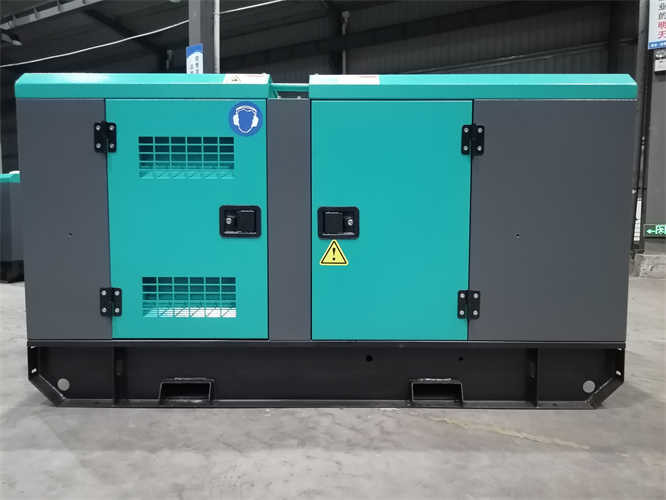

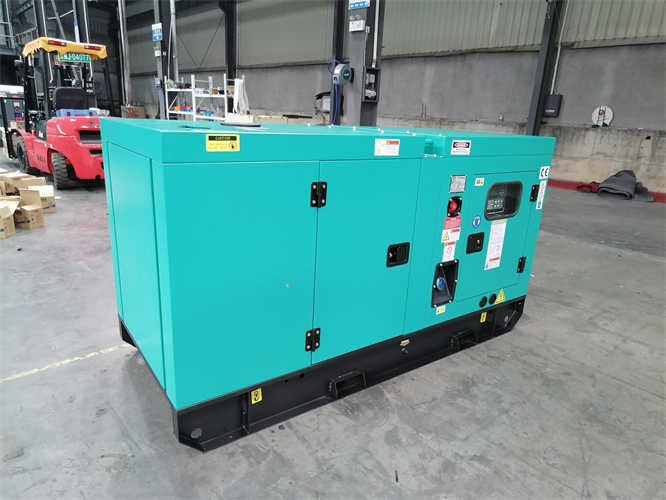

Prime Power 20KVA 16KW Cummins Diesel Engine Generator Set With Denmark DEIF Controller
Product Description:
Cummins Diesel Generators
Cummins Diesel Generators are high-quality, reliable and efficient power solutions that are suitable for various applications. With a power output ranging from 20kVA to 2500kVA, these generators are designed to meet the diverse needs of customers.
One of the key features of Cummins Diesel Generators is the use of Cummins diesel engine parts, which are known for their durability and performance. This ensures that the generators are able to provide consistent and long-lasting power supply, making them a preferred choice for many industries.
Features:
1, Output range: 20kVA to 3000kVA Heavy Duty diesel generator.
2, Different brands alternator and controller as options
3, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator or Tecgen Power alternator
4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery
7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
Technical Parameters:
| Technical Parameter for Diesel Generator | Genset Model | TG22C |
| Prime Power | 20kVA/16kW | |
| Standby Power | 22kVA/18kW | |
| Frequency | 50Hz | |
| Rated Voltage | 400/230V | |
| Power Factor | 0.8 | |
| Engine Brand | Cummins | |
| Engine Model | 4B3.9-G11 | |
| Alternator Brand | Stamford | |
| Alternator Model | PI 144D | |
| Engine General Data | Max Output (kW) | 22 |
| Cyl / Arrangement | 4L | |
| Displacement (L) | 3.9 | |
| Air Intake way | Natural | |
| Bore×Stroke (mm×mm) | 102x120 | |
| Compression Ratio | 16.5:1 | |
| Speed Governor | Mechanical | |
| Fuel Consumption at 100% load(L/H) | 5.6 | |
| Alternator Data | Model | TGI184S-16 |
| Brand | Tecgen Stamford | |
| Rate Output | 20kVA/16kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Optional brand | Leroy Somer, Marathon and others | |
| Control System | Brand | DEIF |
| Model | SGC420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brand | Deepsea, Smartgen and others | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
Applications:
Product Description
The Tecgen Cummins Genset, also known as TGC, is a high-quality diesel power generator set produced in China. It is designed to meet the needs of various applications and is suitable for both commercial and residential use.
Certification
Our Tecgen Cummins Genset has been certified by ISO, CE, SASO, and CIQ. This ensures that our product meets international standards of quality and safety.
With its high-quality components and reliable performance, the Tecgen Cummins Genset is a top choice for customers looking for a high-quality diesel generator. It is built to last and provide efficient power supply in various applications and scenarios.
Customization:
Tecgen Cummins Genset
Brand Name: Tecgen Cummins Genset
Model Number: TGC
Place of Origin: China
Certification: ISO / CE / SASO / CIQ
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plywood case / Foam and PE film package
Delivery Time: 15 Working Days
Payment Terms: T/T / L/C
Supply Ability: 300 Units Per Month
Warranty: 18 Months
