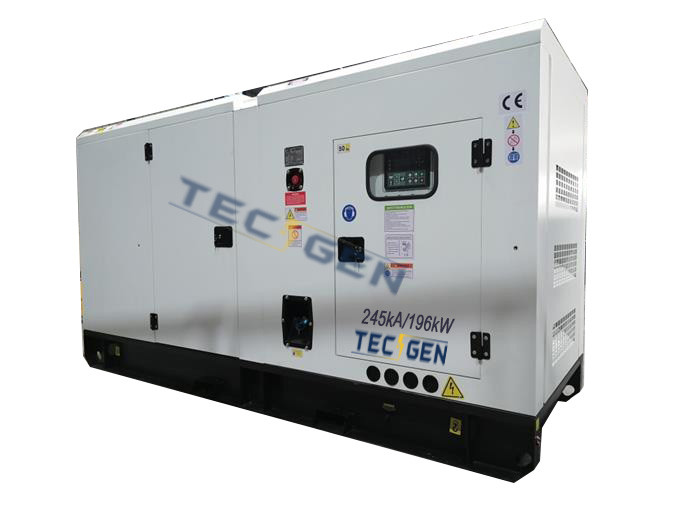

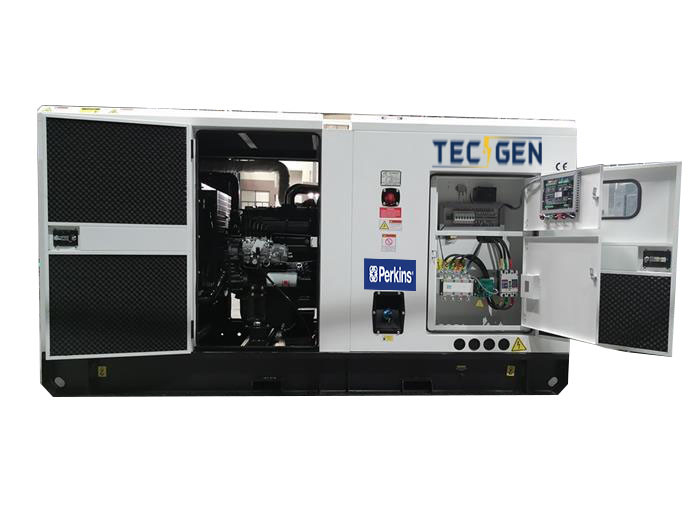

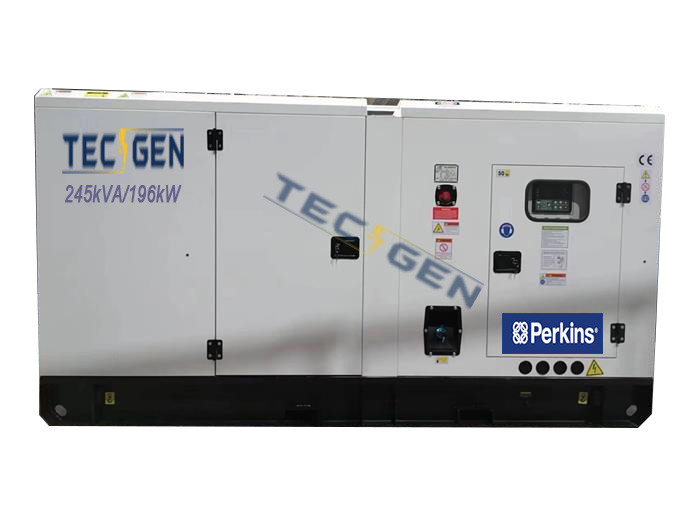

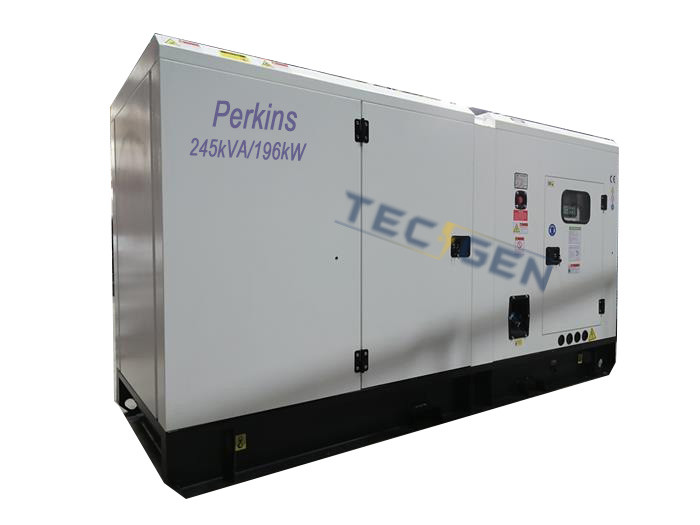

196kW 60Hz Self Start Diesel Generator With 300A Built In ATS

196kW Diesel generator 60Hz self start diesel generator with 300A Built-in ATS

Detailed Product Description:

1) Rated output: 8.8 - 1360kW / 11kVA - 1700kVA
2) Rated voltage: 480 / 440 / 400 / 220, 220 / 208 / 120 V
3) Rated frequency: 60Hz
4) Power factor: 0.8PF / 1PF

Engine: Perkins Water cooled Engine (Wuxi / UK / USA)
1)Cooling method: closed water cooling or air force cooled
2)Starting method: electric start.
3)Rated speed: 1,800rpm
4) Noise level: 65dB to 75dB(A) at 7 meter away

Alternator:
1) Brand: Stamford or Leroysomer or Our Tecgen brand(TGI)
2) Rated output: 11kVA -1700kVA
3) Rated voltage: 480V or according to your requested
4) Rated Frequency: 60Hz
5) Power factor: 0.8
6) Phase: 3-phase, 4-wire
7) Connection: Y or other type connection
8) Rated speed: 1,800rpm
9) Excitation: harmonic excitation or phase compound or brushless
11) Voltage regulation: automatic
12) 1.0% voltage regulation (max.) in static conditions
13) Protection class: IP 22 or IP23
14)Connect with engine: Direct coupled with flywheel

Control panel:
1) The generator control panel is manufactured locally by Tecgen Power with DEIF controller
2) The panel is provided with:
a) Standard engine instrumentation
b) Voltmeter with selector switch
c) Ammeter with selector switch
d) Frequency meter
e) Current transformers
f) Instrument fuses duly wired and ferruled
g) MCCB of suitable rating with overload and short circuit protection
h) With AMF control panel or with ATS (Built-in, Box, Cabinet)
i) With CE certification

196kW Diesel Genset General Specifications:

Perkins Generator Set Accessories:

1) Standard accessories
Standard 50C radiator mounted on skid, Common steel frame, circuit breaker, Non-return valve,Shock Pad,exhaust silencer, battery and connecting wires, Standard tools kit, operation manual and document.
2) Optional accessories
Engine coolant and oil heater, cooling for heat exchanger, communication interface, battery charger by main supply, ATS and paralleling system, soundproof canopy


Warranty:
Guarantee for 1500 hours whichever reach first from ex-factory date. During the guarantee period, Tecgen Power will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Tecgen Power provides cost spare parts maintenance of gensets

Perkins Genset Advantages

1. High pressure pipes for diesel input-outlet
2. Stronger heavy duty rubber anti-vibration mountings
3. All base fuel tank Baking paint
4. All canopy powder coating (Powder type - 3 years durable, longer service life and less color fading)
5. Maintenance free battery and high quality battery charger
6. High standard wiring and brands (Chint/Delixi) relays, indicators, fuse breaker, meters etc.
7. Non-return Valve equipped
8. Turbo charger protection, moving parts protected and other CE standards (depends on required)
9. ONE Hour Testing for all genset (0%-25%-50%-75%-100%-110% loading)
10. Make sure the Fastest Delivery Time
11. Reliable Quality and Aftersale Services as committed
12. Excellent Quality Control and Pre-shipment Inspection
(All base frame, fuel tank, canopy, ATS cabinets etc are produced in Hensing factory zone to avoid any out-off-controlled quality problems.

FAQ (FREQUENCY ASKED QUESTION)

Q: What's your warranty period?
A: Our payment terms is 18 month or 1500 running hours whichever comes first. But based on some special project, we can extend our warranty period.

Q: Does your generators has global warranty?
A: Yes, most of our products like Cummins, Perkins, Weifang Ricardo, SDEC, Weichai, Yangdong, Yuchai, FAWDE power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.

Q: Do you accept OEM/ODM service?
A: Yes, we can accept OEM.

Q: What's your payment terms?
Answer: We can accept T/T 20% in advance, and the balance 80% shall be paid before shipment or L/C at sight, L/C deferred payment terms .

Q:What is your company's available production capacity?
A: 200 sets of diesel generator set per month and 10000 pieces of alternators per month.

Q: What's your delivery time?
A: Our normal delivery time is 10-20 working days. But if your order is some special engine and alternator, then the delivery time is longer.

Q. Can you offer parts to us if we need?
A:Yes,we can offer parts to you at any time, not limited in warranty time. Usually the parts can be sent out during 3-5days.
