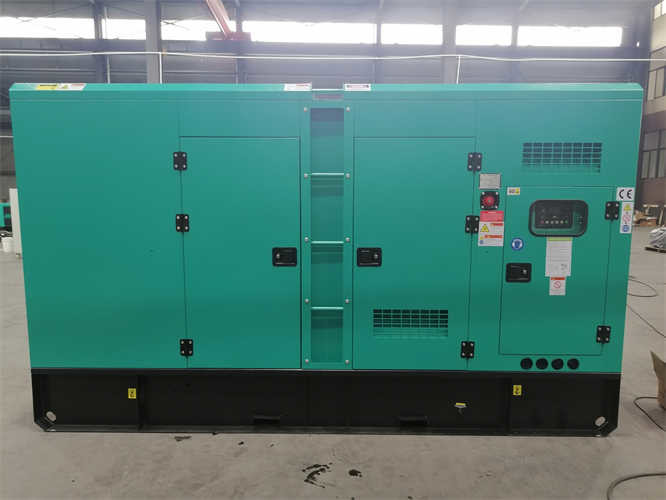

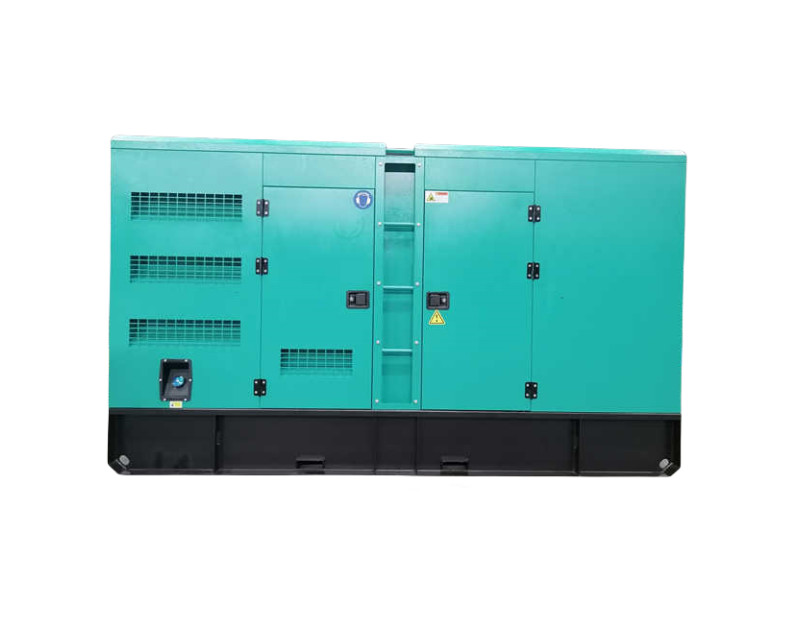

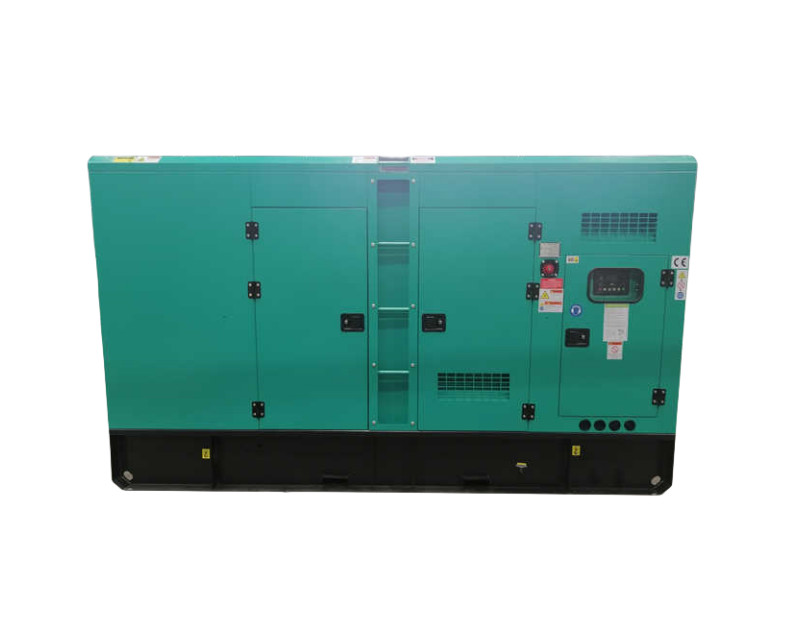

138KVA 110KW Diesel Generator Set Powered By Cummins Engine 6BTAA5.9-G2
| Place of Origin | China |
|---|---|
| Brand Name | Tecgen Cummins Genset |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TG150C |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plywood case / Foam and PE film package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine Brand | Cummins | Alternator Brand | Stamford / Leroy Somer / Tecgen |
|---|---|---|---|
| Genset Type | Open / Silent Type | Frequency | 50Hz/60Hz |
| Power Output | 138kVA/110kW | Voltage | 380V, 400V, 415V And Other Voltage Is Optional |
| Options | Auto Transfer Switch(ATS) | Warranty | 18 Months |
| Highlight | 138KVA cummins diesel generator set,110KW cummins diesel generator set,6BTAA5.9-G2 cummins dg set |
||
Product Description
138KVA 110KW Diesel Generator Set Powered By Cummins Engine 6BTAA5.9-G2
Product Description:
Cummins Diesel Generators
Cummins Diesel Generators are reliable and efficient power solutions that are designed to provide continuous power supply for various applications. With Cummins Engine, Stamford / Leroy Somer / Tecgen Alternator and optional Auto Transfer Switch(ATS), our generators are able to deliver high performance and meet the diverse needs of our customers.
Features:
- Product Name: Cummins Diesel Generators
- Genset Type: Open / Silent Type
- Alternator Brand: Stamford / Leroy Somer / Tecgen
- Voltage: 380V, 400V, 415V And Other Voltage Is Optional
- Prime Power Output: 138KVA/110kW
- Options: Auto Transfer Switch(ATS)
Technical Parameters:
| Technical Parameter for Diesel Generator | Genset Model | TG150C |
| Prime Power | 110kW/138kVA | |
| Standby Power | 120kW/150kVA | |
| Frequency | 50Hz | |
| Rated Voltage | 400/230V | |
| Power Factor | 0.8 | |
| Engine Brand | Cummins | |
| Engine Model | 6BTAA5.9-G2 | |
| Alternator Brand | Stamford | |
| Alternator Model | UCI 274E | |
| Engine General Data | Max Output (kW) | 132 |
| Number of Cylinders | 6 | |
| Cylinder arrangement | Vertical in-line | |
| Displacement (L) | 5.9 | |
| Aspiration | Turbocharged & Aftercooled | |
| Bore×Stroke (mm×mm) | 102x120 | |
| Compression Ratio | 16.5:1 | |
| Speed Governor | Electric | |
| Fuel Consumption at 100% load(L/H) | 30 | |
| Alternator Data | Model | TGI274S-110 |
| Brand | Tecgen Stamford | |
| Rate Output | 138kVA/110kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
| Control System | Brand | DEIF |
| Model | SGC420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brands | Deepsea, Smartgen and Others | |
| Starting Voltage | 24V | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
Applications:
Cummins Diesel Generators - Powerful and Reliable
Product Description
The Tecgen Cummins Genset Model TG150C is a top-of-the-line diesel power generator set that is designed and manufactured in China. This product is certified with ISO, CE, SASO, and CIQ standards, ensuring its quality and reliability.
The Tecgen Cummins Genset Model TG150C is a dependable and efficient diesel generator that can meet your power needs in various applications and industries. With its high-quality parts and options, it provides a reliable and continuous source of power, making it an essential investment for any business or individual requiring uninterrupted electricity supply.
Customization:
Cummins Diesel Generator Customization Service
Brand Name: Tecgen Cummins Genset
Model Number: TG150C
Place of Origin: China
Certification: ISO / CE / SASO / CIQ
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plywood case / Foam and PE film package
Delivery Time: 15 Working Days
Payment Terms: T/T / L/C
Supply Ability: 300 Units Per Month
Warranty: 18 Months
Power Output: 138kVA/110kW
Options: Auto Transfer Switch(ATS)
Alternator Brand: Stamford / Leroy Somer / Tecgen
Choose Tecgen Cummins Genset for your customized diesel generator needs. With our quality products and excellent service, we are committed to providing you with the best power solution.
