20kva Silent Power Generator Prime 16kw Diesel Generator For Agricultural Power
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Production | FAWDE Genset | Rate Speed | 1500rpm |
|---|---|---|---|
| Voltage | 220 / 380V | PRP | 20kVA / 16kW |
| STP | 22kVA / 18kW | Engine | FAWDE 4DW91-29D-YFD10W |
| No. Of Cylinder | 4 Cylinders In Line | Genset Size | L2000 * W900 * H1000mm |
| Highlight | 20kva silent power generator,agricultural silent power generator,20kva silent diesel generator |
||
Product Description

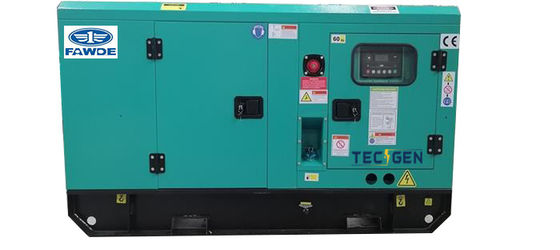

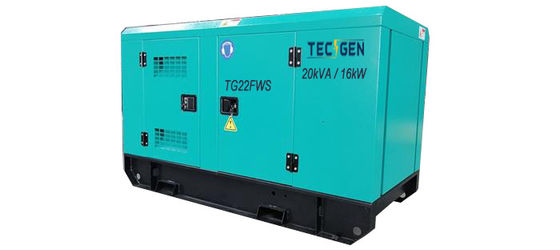

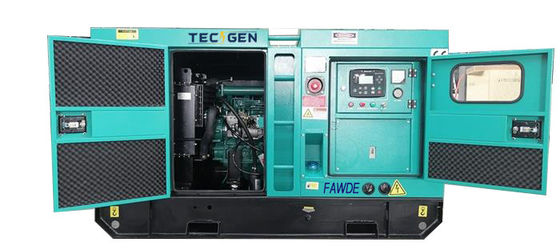

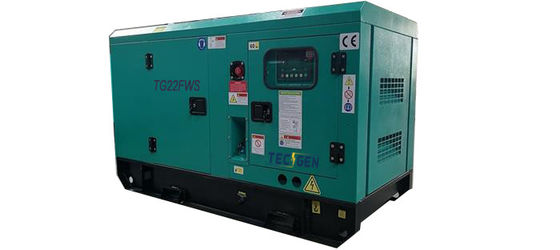

20kVA Silent power generator Prime 16kW diesel generator for agricultural Power
Product Description:
Introducing our 16kW FAWDE Xichai Silent Diesel Generator Set, the perfect power solution for reliable performance. Crafted with precision and built to last, this generator set offers exceptional efficiency and durability. With its key features, optional enhancements, numerous advantages, and versatile usage, it is the ideal choice for various applications.
Key Features:
- Robust Power Output: With a 16kW capacity, this generator set delivers consistent and dependable power to meet your energy needs.
- FAWDE Xichai Engine: Powered by a high-performance FAWDE Xichai diesel engine, renowned for its reliability and fuel efficiency, ensuring optimal power generation.
- Silent Operation: The advanced soundproofing technology reduces noise levels, making it suitable for residential areas and noise-sensitive environments.
- User-Friendly Controls: The intuitive control panel allows for easy operation and monitoring, providing convenience and hassle-free usage.
- Sturdy Construction: Built with premium materials and a rugged frame, this generator set is designed to withstand demanding conditions and ensure long-lasting performance.
Options:
- Automatic Transfer Switch (ATS): Seamlessly switches between the grid and the generator, ensuring uninterrupted power supply during outages without manual intervention.
- Remote Monitoring: Enables remote monitoring of the generator's performance and status, providing real-time updates and alerts for enhanced convenience.
16kW Diesel Powered Genset Specifications:
| 16kW Silent Diesel Genset Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG22FWS | 4DW91-29D-YFD10W | TGI184S16 | DEIF SGC-420 | 16kW | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of FAWDE 16kW Land-base Diesel Generator Set | |||||
| Engine Model | 4DW91-29D-YFD10W | ||||
| Alternator Mode | TGI184S16 | ||||
| Rated Output | 20kVA / 16kW | ||||
| Standby Output | 22kVA / 18kW | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 220 / 380V | ||||
| Rated Current | 30.4A | ||||
| Breaker | 63A Aisikai Breaker | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 70dB(A) | ||||
| Net Weight | 700KGS | ||||
| Genset size | L2000 * W900 * H1000mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for FAWDE 16kW Land-base Diesel Generator Set | |||||
| Manufacture | FAWDE JIEFANG | ||||
| Model | 4DW91-29D-YFD10W | ||||
| Rated Output/Speed | 21KW/1500RPM | ||||
| Standby Output/Speed | 23KW/1500RPM | ||||
| Aspiration | Natural ASP | ||||
| Speed Governor | MECH or Electric | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 90*100mm | ||||
| Displacement | 2.54 L | ||||
| Compression ratio | 17:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 4.6 L / h | ||||
| Fuel Consumption/standby output | 5.1 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for FAWDE 16kW Land-base Diesel Generator Set | |||||
| Alternator Model | TGI184S16 | ||||
| Manufacture | Fujian Tecgen Power Co., Ltd | ||||
| Rate Output | 15kVA | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of onshore diesel generator set | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Advantages:
- Reliable Backup Power: Keep your essential appliances and systems running during power outages, ensuring continuous productivity and comfort.
- Versatile Applications: Ideal for residential backup power, small businesses, construction sites, and outdoor events, catering to a wide range of power requirements.
- Fuel Efficiency: The FAWDE Xichai engine optimizes fuel consumption, reducing operating costs and environmental impact.
- Low Noise Emission: The silent design minimizes noise levels, offering a peaceful environment during operation.
- Durability and Longevity: Engineered with high-quality components, this generator set is built to withstand demanding usage and provide reliable performance over an extended lifespan.
Usage:
- Residential Backup Power: Ensure uninterrupted power supply for essential appliances, lighting, and HVAC systems during outages.
- Small Business Applications: Power offices, retail establishments, and small-scale operations to maintain productivity and minimize financial losses during power disruptions.
- Construction Sites: Provide reliable power for construction equipment, tools, and temporary lighting, ensuring uninterrupted progress and productivity.
- Outdoor Events: Power outdoor events, concerts, or festivals, enabling a seamless and enjoyable experience for attendees.
FAQ (Frequently Asked Questions):
Q: How do I determine the power capacity I need for my specific requirements?
A: Calculate the total wattage of the appliances or equipment you intend to power simultaneously. Ensure the generator's capacity meets or exceeds the calculated wattage to ensure sufficient power supply.
Q: Can the generator set be used in both indoor and outdoor environments?
A: Yes, the generator set is designed for both indoor and outdoor use. Its silent operation and robust construction make it suitable for various settings.
Q: How often should I perform maintenance on the generator set?
A: Regular maintenance is essential to ensure optimal performance and longevity. Follow the manufacturer's guidelines for maintenance intervals and procedures.
Choose our 16kW FAWDE Xichai Silent Diesel Generator Set for reliable, efficient, and quiet power generation. Experience uninterrupted performance and peace of mind when you need it the most.
