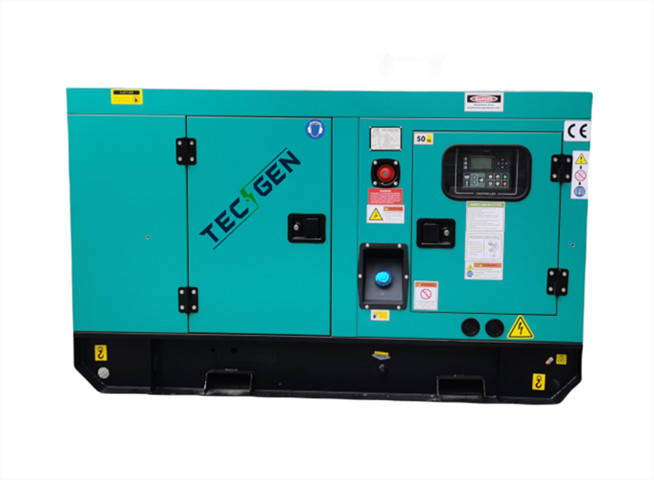

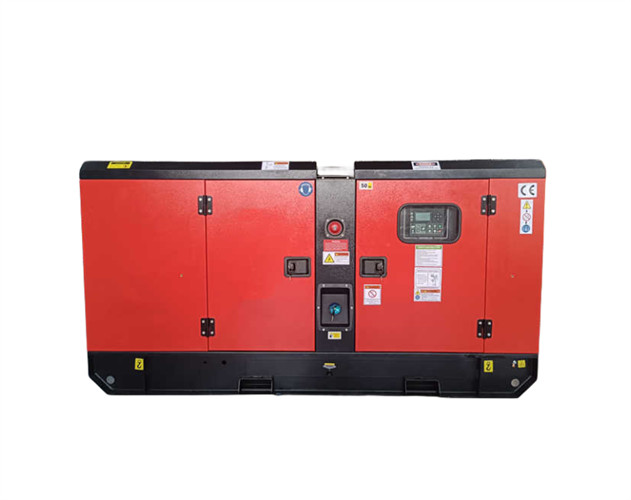

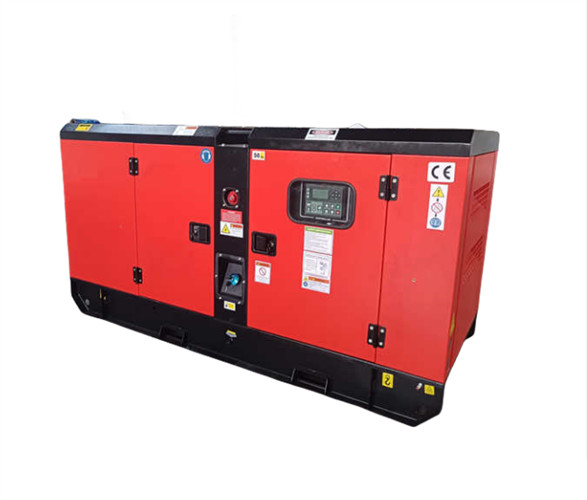

20KVA Perkins Silent Diesel Generator Low Noise Level
| Place of Origin | CHINA |
|---|---|
| Brand Name | TECGEN |
| Certification | CE/SONCAP/FCC/SGS |
| Model Number | TG22PS |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plywood case Package or Plastic film package in container |
| Delivery Time | 15-20 working days after received deposit |
| Payment Terms | T/T or L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Controller | Deepsea / Smartgen / Deif | Alternator Brand | Leroy Somer / Stamford / Tecgen |
|---|---|---|---|
| Phase | Single/Three Phase | Engine Brand | Perkins |
| Frequency | 50Hz | Fuel Type | Diesel |
| Noise Level | Low | Cooling System | Water-cooled |
| Highlight | 20 KVA perkins silent diesel generator,Low Noise perkins silent diesel generator,20kva perkins silent diesel generator |
||
Product Description
20KVA Perkins Silent Diesel Generator Low Noisel Level for Customer Requirements
Product Description:
Perkins Silent Diesel Generators are the perfect choice for those looking for noise-free power generators.
1) Engine: UK Perkins diesel engine, Water-cooled
2) Alternator: Stamford / Leroy Somer / Marathon / Tecgen Brushless Alternator
Brushless H class insulation, Self excitation, IP 23 protection, AVR regulator,THF < 5%,low radio interference.
3) 3 phase 4 wires / 1 phase 2 wires
4) Three phase voltage Available :208V/220V/230V/240V/380V/390V/400V/415V/440V/460V/480V
Single phase available:100-250V
Generator Set Datasheet:
| DIESEL GENERATOR SET | |
| Genset Model | TG22PS |
| Prime Power | 20KVA/16KW |
| Standby Power | 22KVA/17.6KW |
| Rated Voltage (V) | 380 |
| Rated Frequency (Hz) | 50 |
| Rated Speed (RPM) | 1500 |
| Power Factor (COS¢) | 0.8 (lagging) |
| ENGINE DATA | |
| Engine Brand | Perkins |
| Engine Model | 403A-22G1 |
| Engine Power(KW) | 20.6 |
| No. of Cylinders | 4 |
| Air intake way | Natural |
| Governor | Mechanical |
| Bore*Stroke (mm*mm) | 84*100 |
| Displacement (Liter) | 2.216 |
| Compression Ratio | 23.3:1 |
| Cooling System | Water-Cooled |
| Starting Method | DC 12V Electrical Starting |
| Fuel Consumption (g/kw.h) | 237 |
| ALTERNATOR DATA | |
| Alternator Brand | Stamford |
| Alternator Model | PI144D |
| Connecting Type | 3 Phases and 4 Wires |
| Number of Bearing | Single |
| Production Grade | IP23 |
| Altitude | ≤ 1000m |
| Exciter Type | Brushless, Self-exciting, AVR & 100% Copper Winding Wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | ≤ 50 |
| Telephone Harmonic Factor (THF) | ≤ 2% |
| Voltage Regulation, Steady State | 1.00% |
| Transient State Voltage | ≤ -15% ~ +20% |
Warranty:
Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date. During the guarantee period, our Tecgen Power will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts maintenance for gen-set
Support and Services:
We offer a wide range of services to ensure that your generator is running at optimal performance. Our services include:
- Installation and setup
- Regular maintenance and inspections
- Troubleshooting and repair
- Parts and accessories
